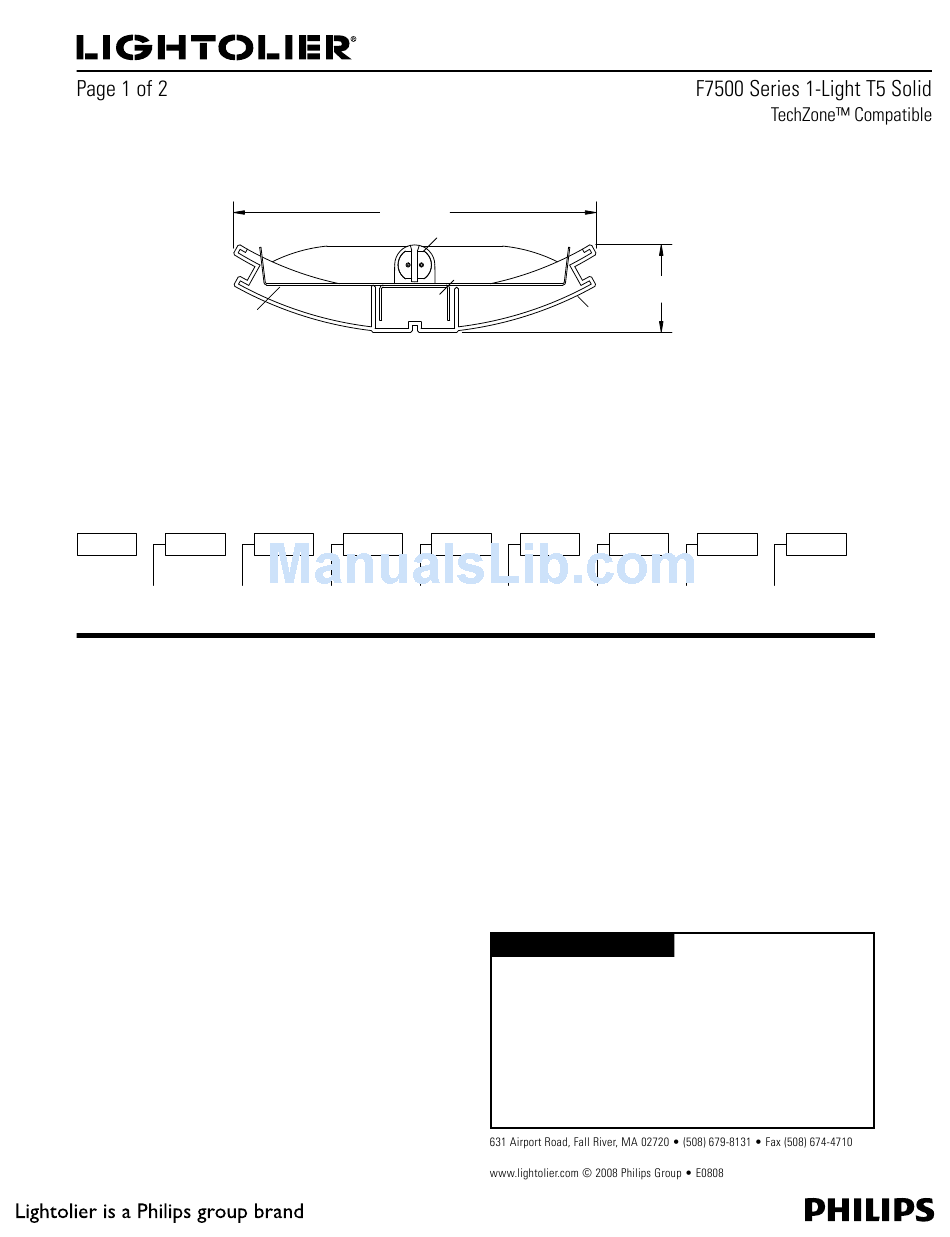

Lightolier F7000-19 Specification Sheet

6
Ordering Information
Family Series
F7 5
5 = Curved 1 = Solid
Complete Ordering Instructions below.
Features
1. Housing: Single piece of high purity extruded aluminum, a portion from
recycled material.
2. Housing End: Die-cast aluminum, welded in place.
3. End Cap: Die-cast aluminum. Encloses the suspension cable and power feed
cord for the end of the run.
4. Lamps: F28T5 or F54T5HO as specified. By others. Installed from the ceiling
side of the luminaire.
5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound
rating specifications. Low THD. Maximum ballast size is 1.2" (3.05cm) wide by
0.625" (1.59cm) high.
6. Reflector: Die-formed specular aluminum.
Electrical
Connections: Pre-wired with 18 gauge wires and polarized cannon plug con-
nectors for simultaneous mechanical/electrical connection.
Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520
lumens for 28W.
Power Feeds: Standard 18/3 power feed is rated for 10 amps. X4 power feed
is 18/4 and is rated for 7 amps. Observe amperage limitations and provide addi-
tional Intermediate Power Cables, as required. When providing an additional
power feed, the through wiring from the previous module must be disconnected
from the cannon plug and capped.
Factory installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Mounting
Cable suspension is on 48" (121.92cm) and 96" (243.94cm) centers and consists of
a 4 1/2" (11.43cm) diameter canopy finished white enamel and a 1/16" (0.16cm)
diameter stainless steel aircraft cable adjustable up to 36" (91.44cm).
6.75" (17.15cm)
4
Type Lamps Color
1 1
1 = 1 Lamp AL = Aluminum
WH = White
Lighting Systems
5
1
Wattage Voltage
1 = 28W 1 = 120v
2 = 54W 2 = 277v
4 = 28W EM
6 = 54W EM
Finish
Powder-coated, baked enamel, white or aluminum, as specified.
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order one MODULE.
2. Order one POWER FEED END SET.
Continuous Rows:
1. Order the appropriate number of MODULES for the complete run.
2. Order one POWER FEED END SET.
3. Order one INTERMEDIATE CABLE SET per MODULE minus one.
4. For runs that exceed amperage limits, order the appropriate number of
CABLE/CORD SETs.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
F7000-19
Armstrong ®
1.63"
(4.14cm)
Length Options
4 = 4' (121.92cm) X4 = 4 Through
8 = 8' (243.84cm) Wires
X5 = 5 Through
Wires
Type:
