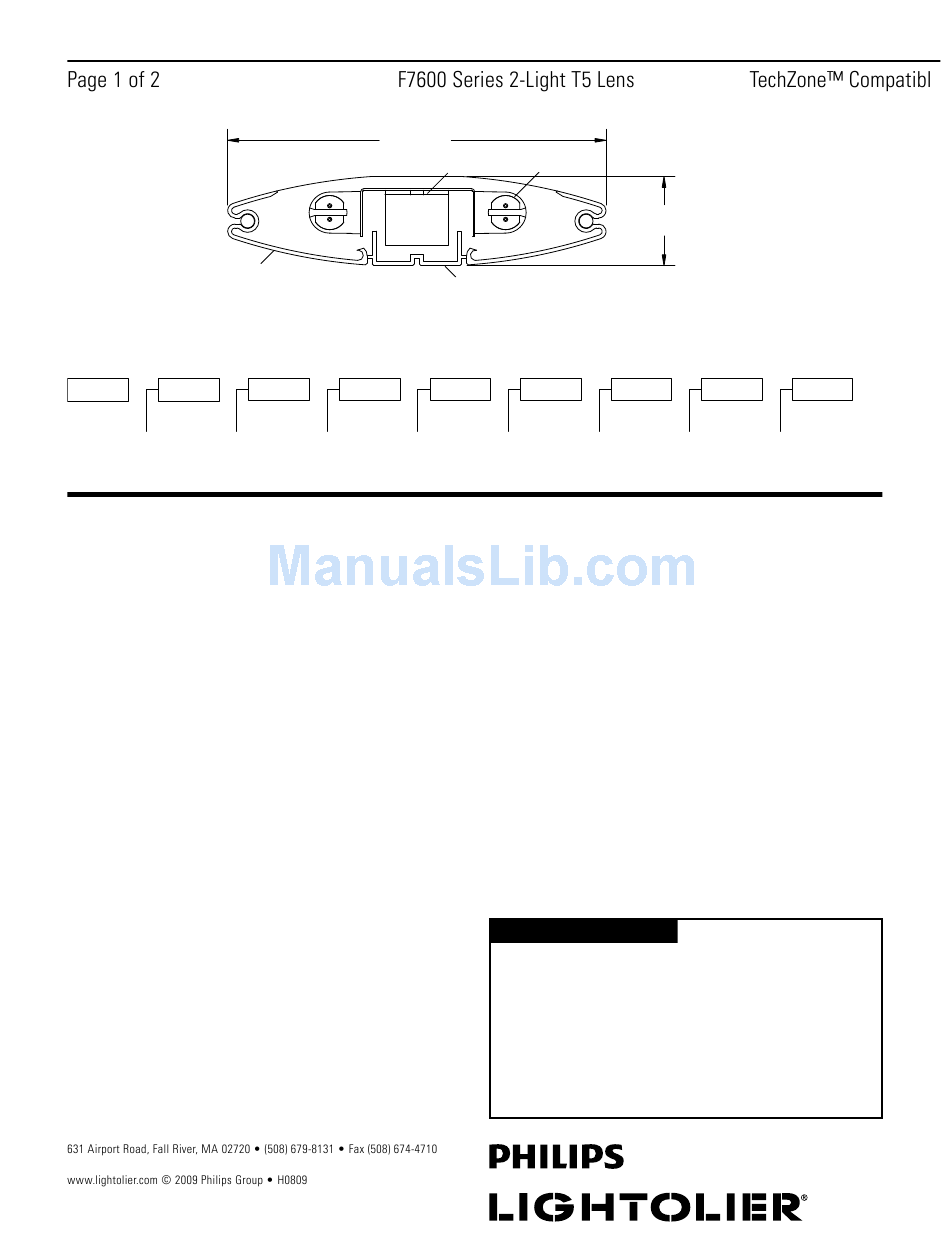

Lightolier F7000-24 Specification

Ordering Information
Family Series
F7 6
6 = Lens
Complete Ordering Instructions below.
Features
1. Housing: Single piece of high purity extruded aluminum, a portion from
recycled material.
2. Housing End: Die-cast aluminum, welded in place.
3. End Cap: Die-cast aluminum. Encloses the suspension cable and power
feed cord for the end of the run.
4. Lamps: F28T5 or F54T5HO as specified. By others. Installed from the ceil-
ing side of the luminaire.
5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound
rating specifications. Low THD.
6. Shielding: Extruded acrylic with suspended bead texture; inset metal rod.
Electrical
Connections: 18 gauge pre-wired with polarized cannon plug connectors for
simultaneous mechanical/electrical connection.
Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520
lumens for 28W.
Dimming: Advance Mark X standard for 54W lamps (no additional wires required)
or ULT Super Dim standard for 28W lamps (5 wires required in end set); use
compatible dimmer.. Dimming ballasts using additional control wires (e.g. Lutron
Hi-Lume or ECO-10, Osram) can be used; consult factory and use X4 or X5 power
feeds with additional leads, as appropriate. Ballast not to exceed 1.25" (3.18cm)
wide by 1.20" (3.05cm) high.
iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology.
Use with X5 power feed.
Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish;
secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock-
ets, and wiring. Accepts ballasts up to 1.25" (3.18cm) wide by 1.20" (3.05cm) high.
Power Feeds: Standard 18/3 power feed is rated for 10 amps. X4 power feed
is 18/4 and is rated for 7 amps. Observe amperage limitations and
provide additional Intermediate Power Cables, as required. When providing
an additional power feed, the through wiring from the previous module must be
disconnected from the cannon plug and capped.
Dual Switching: Use DS option for separate switching of the lamp rows.
includes a 4th through wire. Use X4 power feed.
Factory installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
We reserve the right to change details of design, materials and finish.
6.88" (17.48cm)
6
Type Lamps
5 2
5 = Extruded 2 = 2 Lamps
Lens
Lighting Systems
5 4
1
Color Wattage
AL = Aluminum 1 = 28W
WH = White 2 = 54W
3 = 28W Dimming
4 = 28W EM
5 = 54W Dimming
6 = 54W EM
Finish
Powder-coated, baked enamel, white or aluminum, as specified.
Mounting
Cable suspension is on 48" (121.92cm) and 96" (243.84cm) centers and consists of
a 4 1/2" (11.43cm) diameter canopy finished white enamel and a 1/16" (0.16cm)
diameter stainless steel aircraft cable adjustable up to 36" (91.44cm).
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order one MODULE.
2. Order one POWER FEED END SET.
Continuous Rows:
1. Order the appropriate number of MODULES for the complete run.
2. Order one POWER FEED END SET.
3. Order one INTERMEDIATE CABLE SET per MODULE minus one.
4. For runs that exceed amperage limits, order the appropriate number of
CABLE/CORD SETs.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
F7000-24
Armstrong ®
1.63"
(4.14cm)
Voltage Length
4
1 = 120v 4 = 4' (121.92cm)
2 = 277v
Type:
e
Options
X4 = 4 Through
Wires
X5 = 5 Through
Wires
DS = Dual Switch
