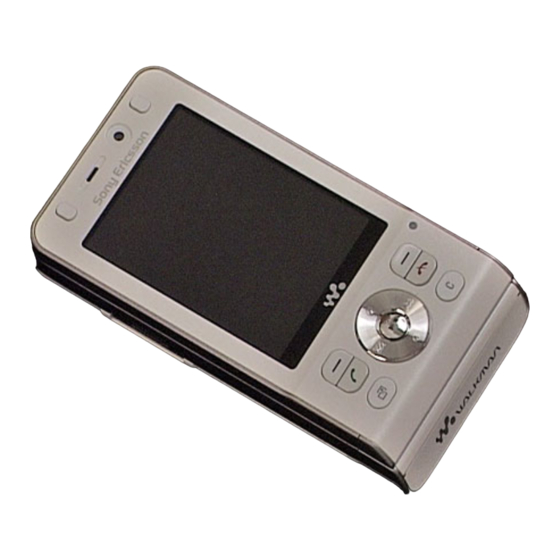

Sony Ericsson W910 Working Instruction, Mechanical

Advertisement

Working Instruction, Mechanical
Applicable for W910
CONTENTS
1 Introduction .............................................................................. 3
1.1 Equipment.................................................................................4
1.2 General cautions ......................................................................5
1.3 Adhesives .................................................................................5
2 Disassembly ............................................................................. 6
2.1 Overview ...................................................................................6
3 Replacements......................................................................... 14
3.1 Battery Cover..........................................................................15
3.2 Battery .....................................................................................15
3.3 RF Cap.....................................................................................15
3.4 Label Co-Brand Inlay .............................................................15
3.5 Keyboard Main........................................................................15
3.6 Liquid Intrusion Indicator ......................................................16
3.7 Panel Antenna ........................................................................16
3.8 Rear Back Cover.....................................................................16
3.9 Key, On/Off..............................................................................16
3.10 Key, Volume............................................................................16
3.11 Key, Camera............................................................................16
3.12 Key, Music...............................................................................17
3.13 Cap, MemoryStick ..................................................................17
3.14 Camera 2.0 MPixel CMOS ......................................................17
3.15 BT Antenna Assy....................................................................17
3.16 Front Cover Assembly ...........................................................18
3.17 Key, Game...............................................................................18
3.18 Key, Navi .................................................................................18
3.19 Navi Key PBA..........................................................................18
3.20 Display.....................................................................................18
3.21 Slider Flex Module..................................................................18
3.22 Slider Sub Assembly..............................................................18
3.23 Main Antenna..........................................................................19
3/000 21-1/FEA 209 544/129 A
©
Company Internal
Sony Ericsson Mobile Communications AB
2.1.1
M2, Battery Cover and Battery .............................................. 7
2.1.2
Rear Back Cover ................................................................... 8
2.1.3
Main PCB ............................................................................ 10
2.1.4
Front Cover Assembly......................................................... 11
2.1.5
Navi Key PBA...................................................................... 13
2.1.6
Display ................................................................................ 13
Working Instruction, Mechanical
1(34)

Advertisement

Table of Contents
loading

Summary of Contents for Sony Ericsson W910

  • Page 1: Table Of Contents

    3.16 Front Cover Assembly ............18 3.17 Key, Game................18 3.18 Key, Navi .................18 3.19 Navi Key PBA................18 3.20 Display..................18 3.21 Slider Flex Module..............18 3.22 Slider Sub Assembly..............18 3.23 Main Antenna................19 3/000 21-1/FEA 209 544/129 A 1(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 2 Front Cover Assembly............30 4.1.4 Main PCB ................30 4.1.5 Rear Back Cover ..............31 4.1.6 Battery, Battery Cover and M2 ..........33 5 Revision history ..............34 3/000 21-1/FEA 209 544/129 A 2(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 3: Introduction

    Working Instruction, Mechanical 1 Introduction W910 3/000 21-1/FEA 209 544/129 A 3(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 4: Equipment

    LABEL EQUIPMENT The following special equipment is required when replacing or installing a new label: • Hot air flow solder station • Zebra printer connected to computer 3/000 21-1/FEA 209 544/129 A 4(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 5: General Cautions

    SE AIR BLOW EQUIPMENT TO KEEP THE FRONT WINDOW AND DISPLAY MODULE DUST FREE 1.3 Adhesives Use a Dental hook and/or the tweezers to remove old adhesives. Clean the surface with isopropyl alcohol before attaching new adhesives. 3/000 21-1/FEA 209 544/129 A 5(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 6: Disassembly

    The disassembly is done in the following sequence: 1. M2, Battery Cover and Battery 2. Rear Back Cover 3. Main PCB 4. Front Cover Assembly 5. Navi Key PBA 6. Display 3/000 21-1/FEA 209 544/129 A 6(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 7: M2, Battery Cover And Battery

    Working Instruction, Mechanical 2.1.1 M2, Battery Cover and Battery Open the MemoryStick Cap and remove the M2 MemoryStick. Unlock the Battery Cover and remove it. Remove the Battery. 3/000 21-1/FEA 209 544/129 A 7(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 8: Rear Back Cover

    Working Instruction, Mechanical 2.1.2 Rear Back Cover Remove the screw Caps using a Dental hook. Remove the two screws (Torx T6). 3/000 21-1/FEA 209 544/129 A 8(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 9 Remove the two screws (Torx T6). Release the Rear Back Cover using a guitar pick, carefully sliding it along the side of the Cover Lower Rear. 3/000 21-1/FEA 209 544/129 A 9(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 10: Main Pcb

    Carefully remove the Rear Back Cover by lifting it 90 degrees from the unit as shown in picture. 2.1.3 Main PCB Remove the screw. Carefully release the Antenna Coax using a Dental hook. 3/000 21-1/FEA 209 544/129 A 10(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 11: Front Cover Assembly

    Carefully release the Front Flex Board to Board connector from the Main PCB using a guitar pick. Remove the Main PCB. 2.1.4 Front Cover Assembly Remove the two screw Caps using a Dental hook. 3/000 21-1/FEA 209 544/129 A 11(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 12 Front Cover will release. E CAREFUL NOT TO SCRATCH THE OR DAMAGE THE AVIGATION Repeat previous step to release the left side of the Front Cover as well. 3/000 21-1/FEA 209 544/129 A 12(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 13: Navi Key Pba

    When all BtB connectors have been released, remove the Navi Key PBA. 2.1.6 Display E CAREFUL NOT TO DAMAGE THE ISPLAY Carefully slide the Display towards the bottom of the phone. Remove the Display. 3/000 21-1/FEA 209 544/129 A 13(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 14: Replacements

    The instruction usually ends by directing you to the Reassembly section with a specification of the instructions you have to carry out in order to reassemble the phone. REPLACEMENTS Contents Start page DISASSEMBLY REASSEMBLY Done 3/000 21-1/FEA 209 544/129 A 14(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 15: Battery Cover

    E CAREFUL NOT TO DAMAGE THE PLASTICS Remove the old Keyboard using a pair of tweezers. Prepare the new Keyboard. Follow the 4.1.5 - 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 15(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 16: Liquid Intrusion Indicator

    Follow the 4.1.5 – 4.1.6 Reassembly instructions! 3.11 Key, Camera Follow the 2.1.1 – 2.1.2 Disassembly instructions! Prepare the new Key. Follow the 4.1.5 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 16(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 17: Key, Music

    Remove the BT Antenna using a Dental hook and a pair of tweezers. Prepare the new BT Antenna Assy. Follow the 4.1.5 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 17(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 18: Front Cover Assembly

    Follow the 4.1.1 – 4.1.6 Reassembly instructions! 3.22 Slider Sub Assembly Follow the 2.1.1 – 2.1.6 Disassembly instructions! Prepare the new Slider Sub Assembly Follow the 4.1.1 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 18(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 19: Main Antenna

    Antenna Cover using a Dental hook. 4. Carefully release the Holder Antenna from the Main Antenna. 5. Repeat the previous step on the other side of the Holder Antenna. 3/000 21-1/FEA 209 544/129 A 19(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 20 3. Carefully press the Speaker Flex Module into position. Make sure the Holder Antenna Sub Assy clicks into position and the adhesive fixates to the Main Antenna and the frame. 3/000 21-1/FEA 209 544/129 A 20(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 21 3 hooks in the frame using a Dental hook. 5. Mount the Speaker Flex onto the frame. Make sure the adhesive sticks to the frame. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 21(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 22: Speaker Flex Module

    4. Repeat the previous step on the other side of the Holder Antenna. 5. Carefully release the speaker from the Main Antenna using a Dental hook. 3/000 21-1/FEA 209 544/129 A 22(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 23 3 hooks in the frame using a Dental hook. 4. Mount the Speaker Flex onto the frame. Make sure the adhesive sticks to the frame. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 23(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 24: Key Foil Assy

    3. Release the Camera Switch from the Slider Assembly using a pair of tweezers. 4. Release the Key Foil Assy from the Slider Assembly using a pair of tweezers. 3/000 21-1/FEA 209 544/129 A 24(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 25 Camera Key correct into the Slider Sub Assembly. 3. Make sure you position the Camera Key correct into the Slider Sub Assembly. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 25(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 26: Camera Qcif Mpixel Cmos

    Position the new Receiver Flex Module into the cavity of the Slider Assembly. Carefully press it into place and make sure the adhesive sticks to the Slider Assembly. Follow the 4.1.1 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 26(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 27: Label

    OK. Take the new label and place it onto the frame as in the adjacent picture. NE LABEL ONLY IS ALLOWED Follow the 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/129 A 27(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 28: Reassembly

    The reassembly is done in the following sequence: 1. Display 2. Navi key PBA 3. Front Cover Assembly 4. Main PCB 5. Rear Back Cover 6. Battery, Battery Cover and M2 3/000 21-1/FEA 209 544/129 A 28(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 29: Display

    Carefully connect the 3 Board to Board connectors. AKE SURE THE ISPLAY IS IN CORRECT POSITION Carefully fold down the Navi Key PBA into position. Insert and tighten the screw (JCIS 10Ncm). 3/000 21-1/FEA 209 544/129 A 29(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 30: Front Cover Assembly

    2 – Torx T6 10Ncm 4.1.4 Main PCB Connect the Slider Flex to the Main PCB using a pair of tweezers. Fold down the Main PCB into position. 3/000 21-1/FEA 209 544/129 A 30(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 31: Rear Back Cover

    Position the Rear Back Cover as shown in picture. Fold it down into position. Carefully press all four sides of the Rear Back Cover and make sure it snaps into position. 3/000 21-1/FEA 209 544/129 A 31(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 32 3 – JCIS 10Ncm Insert the two screw Caps. Insert and tighten the two screws (Torx T6 14Ncm). Position and put the Panel Antenna in place. 3/000 21-1/FEA 209 544/129 A 32(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 33: Battery, Battery Cover And M2

    Working Instruction, Mechanical 4.1.6 Battery, Battery Cover and M2 Insert the Battery. Place the Battery Cover into position and lock it. Insert the M2 MemoryStick. 3/000 21-1/FEA 209 544/129 A 33(34) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 34: Revision History

    Working Instruction, Mechanical 5 Revision history Rev. Date Changes / Comments 2007-10-09 Initial release 3/000 21-1/FEA 209 544/129 A 34(34) © Company Internal Sony Ericsson Mobile Communications AB...
