Page 1: Instruction Manual

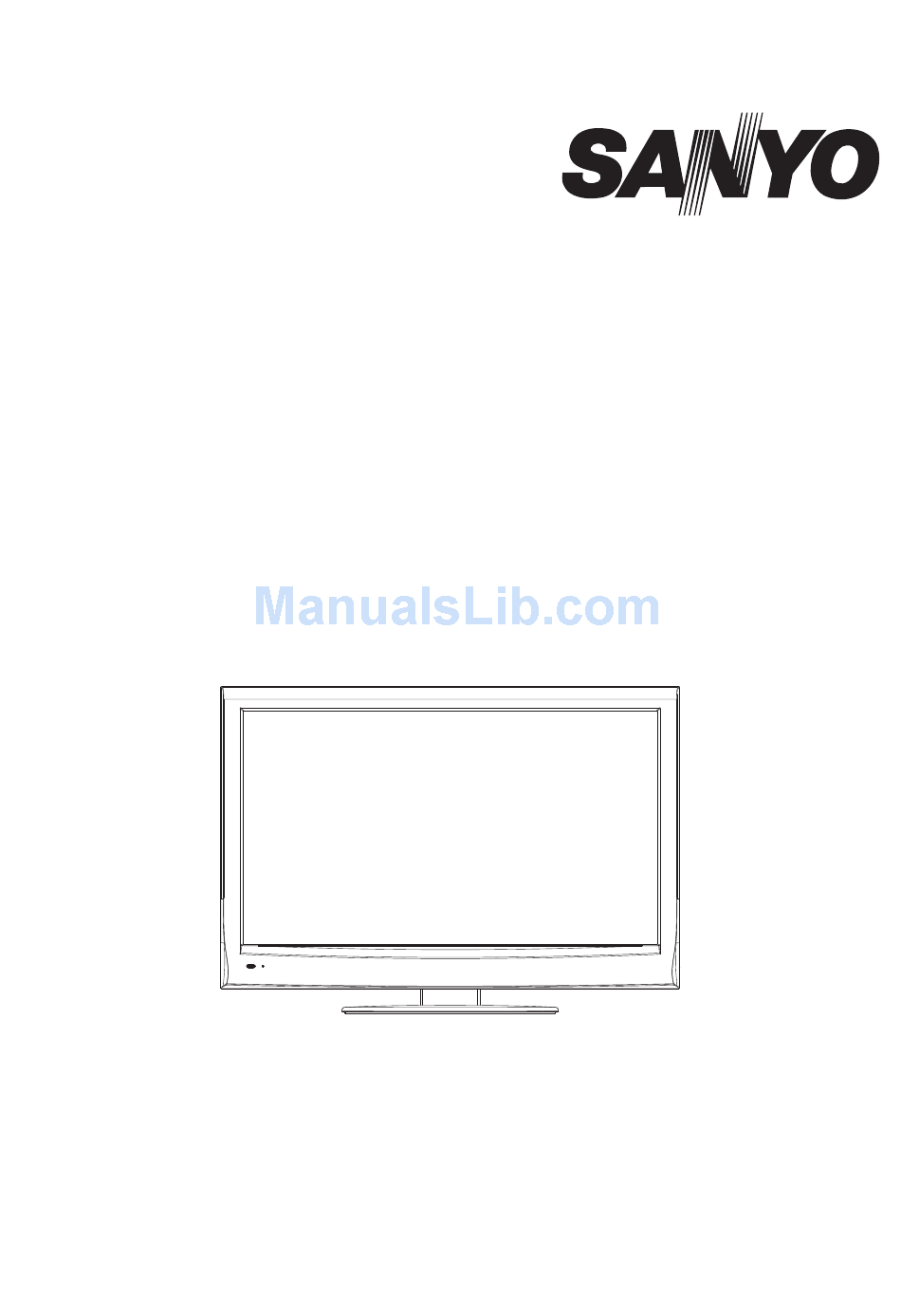

LCD-32XAZ10 INSTRUCTION MANUAL LCD TV Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference. -
Page 2: Table Of Contents
Contents Important Information Important Safety Precautions Important Notice Identification of Controls Setting Up Connections Basic Operations Memorizing the Channels & Setting Channels Adjusting the Picture Adjusting the Sound Adjusting Basic Settings Teletext Operation Adjusting the Computer Image Using USB Troubleshooting Specifications Appendix: Installing the Stand... -
Page 3: Important Information
IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ! Using cabinets or stands recommended by the manufacturer of the television. ! Only using furniture that can safely support the television. -
Page 4: Important Safety Precautions
Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. - Page 5 Important Safety Precautions (Continued) 15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
-
Page 6: Important Notice
Important Notice About Temperature Do not use in hot and cold rooms (locations) When the unit is used in rooms (locations) with low temperature, the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. -
Page 7: Identification Of Controls
Identification of Controls Main Unit (front view) 1. Remote sensor Receives signals from the remote control. Do not block. 2. Power indicator Lights blue when in operating mode. Lights red when in standby mode. INPUT MENU 3. POWER Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. - Page 8 Identification of Controls (Continued) 1. POWER : Switches the TV power on or Standby. Remote control unit 2: ZOOM: Selects the picture aspect ratio. 3. INPUT: Displays Input menu. 4. COMP: Press to switch to COMPONENT mode. 5. VGA: Press to switch to VGA mode. 6.
-
Page 9: Setting Up
Setting Up You should select a location for the TV: Selecting a location Where direct light does not reflect on the screen. · That has indirect and soft lighting. · Where the TV has access to an antenna or cable TV connection. ·... -
Page 10: Connections
Connections Cautions Before Connecting When connecting an external device to the TV, make sure that the TV and the device are turned off. Check the plugs on the ends of cables to make sure that they are the correct type before you try plugging them into jacks on the TV. - Page 11 Connections (Continued) Connecting Headphones To connect headphones: TV Side Insert the plug of the headphone into the TV’s Headphone jack. When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result. Headphones Connecting a USB device Insert your USB device into the USB port.
-
Page 12: Connecting A Computer
Connections (Continued) Connecting a component video device To connect a component video device: TV REAR AUDIO AUDIO Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr C /P C /P HDMI 1 HDMI 2 PC IN COMPONENT IN input jacks on the TV and Y, Pb, Pr(or Y, Cb, Cr) output jacks on the device . - Page 13 Connections (Continued) Connecting device with 21-pin Scart This TV has a 21-pin SCART socket located at the side of the set. The SCART socket can input audio and video signals. TV Side To connect device with 21-pin Scart: Connect the SCART Cable between the TV and external device through the 21-pin SCART socket.
-
Page 14: Basic Operations
Basic Operations Turning the TV on or off To turn the TV on or off: Plug the power cord into an AC power outlet. Now the set is in standby mode. Wait some seconds until the power indicator lights up, then press POWER to turn on the TV. - Page 15 Basic Operations (Continued) On-screen menu overview CHANNEL menu VIDEO menu CHANNEL VIDEO Color System Picture Mode User AUTO Contrast Sound System Brightness Country Others Color Auto Scan Sharpness Manual Scan Channel Edit Advanced Move Enter Exit Move Enter Exit SETTING menu AUDIO menu SETTING AUDIO...
-
Page 16: Memorizing The Channels & Setting Channels
Memorizing the Channels & Setting Channels Auto Channel Scan When you turn on the TV for the first time, you should perform an auto channel scan to set up stations on your TV. CHANNEL Note: Be sure to select the TV input source before operation. Color System AUTO Sound System... - Page 17 Memorizing the Channels & Setting Channels (Continued) Auto/manual fine tuning Fine Tuning is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustment is necessary for a CHANNEL better picture and sound, use fine tuning (auto or manual fine tuning) . Color System AUTO To auto or manual fine tune the programs...
-
Page 18: Sorting Channels
Memorizing the Channels & Setting Channels (Continued) Sorting channels You can sort programs in your favorite order. CHANNEL To sort programs Color System AUTO Press MENU, then press 6 or 5 to display CHANNEL menu, Sound System press ENTER to access. Country Others Auto Scan... - Page 19 Memorizing the Channels & Setting Channels (Continued) Setting favorite channels You can set up your favorite channels so you can quickly browse through them by pressing FAVORITE button. CHANNEL To set up favorite channels Color System AUTO Sound System Use channel select buttons to select your favorite channel. Country Others Or go to Channel Edit sub-menu, make use of Current Channel...
-
Page 20: Adjusting The Picture
Adjusting the Picture To adjust the picture: Adjusting the picture Press MENU. The on-screen menu opens with the VIDEO menu VIDEO displayed, then press ENTER to access. Press 6 or 5 to highlight an option, press 3 to adjust the Picture Mode User Contrast... -
Page 21: Adjusting The Sound
Adjusting the Sound To adjust the sound: Adjusting the sound Press MENU. The on-screen menu opens. AUDIO Press 6 or 5 to display AUDIO menu, press ENTER to access. Sound Mode User Normal Equalizer Music Press 6 or 5 to highlight an option, press ENTER to access the Balance Movie option. -
Page 22: Adjusting Basic Settings
Adjusting Basic Settings Adjusting basic settings To adjust basic settings: Press MENU. The on-screen menu opens. SETTING Press 6 or 5 to display SETTING menu, press ENTER to access. Language English TT Language West Europe OSD Menu Press 6 or 5 to highlight an option, press ENTER to access the Sleep Mode OFF ... -
Page 23: Teletext Operation
Teletext Operation What Is Teletext? Your TV System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available. To Turn On/Off Teletext Note: Before you turn on teletext, please decrease the sound volume level first. -
Page 24: Adjusting The Computer Image
Adjusting the computer image & Using USB Adjusting the PC image To adjust the computer image: Make sure that your TV is in VGA mode. H.Position Press MENU. The on-screen menu opens. V.Position Clock Press 6 or 5 to display PC menu, press ENTER to access. Phase Press 6 or 5... -
Page 25: Viewing Photos
Using USB (Continued) To view photos: Viewing photos When switching to USB mode, the USB main menu will appear automatically. Press 3 to select Photo icon, then press ENTER to access . Photo Now the upper screen shows compatible files while bottom screen shows folders. -
Page 26: Troubleshooting
Troubleshooting If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions. Remote Control Problem Possible Solutions The batteries could be weak. -
Page 27: Specifications
Specifications Type: LCD TV Panel: 32” (80 cm) TFT LCD TV system: PAL-BG, NTSC(AV) Power Requirement: AC 220-240 V, 50/60 Hz Power Consumption: 120W Audio out: × Dimensions (W x H x D, with stand): 210 mm × × Weight: 10.3 kg Terminals: Antenna in (1) -
Page 28: Appendix: Installing The Stand
Appendix: Installing the Stand If the stand is provided, please read these instructions thoroughly before attempting this installation. You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column. - Page 29 5944037940 Ver. 1.0...
