Summary of Contents for Life Fitness ARCTIC SILVER 95SW

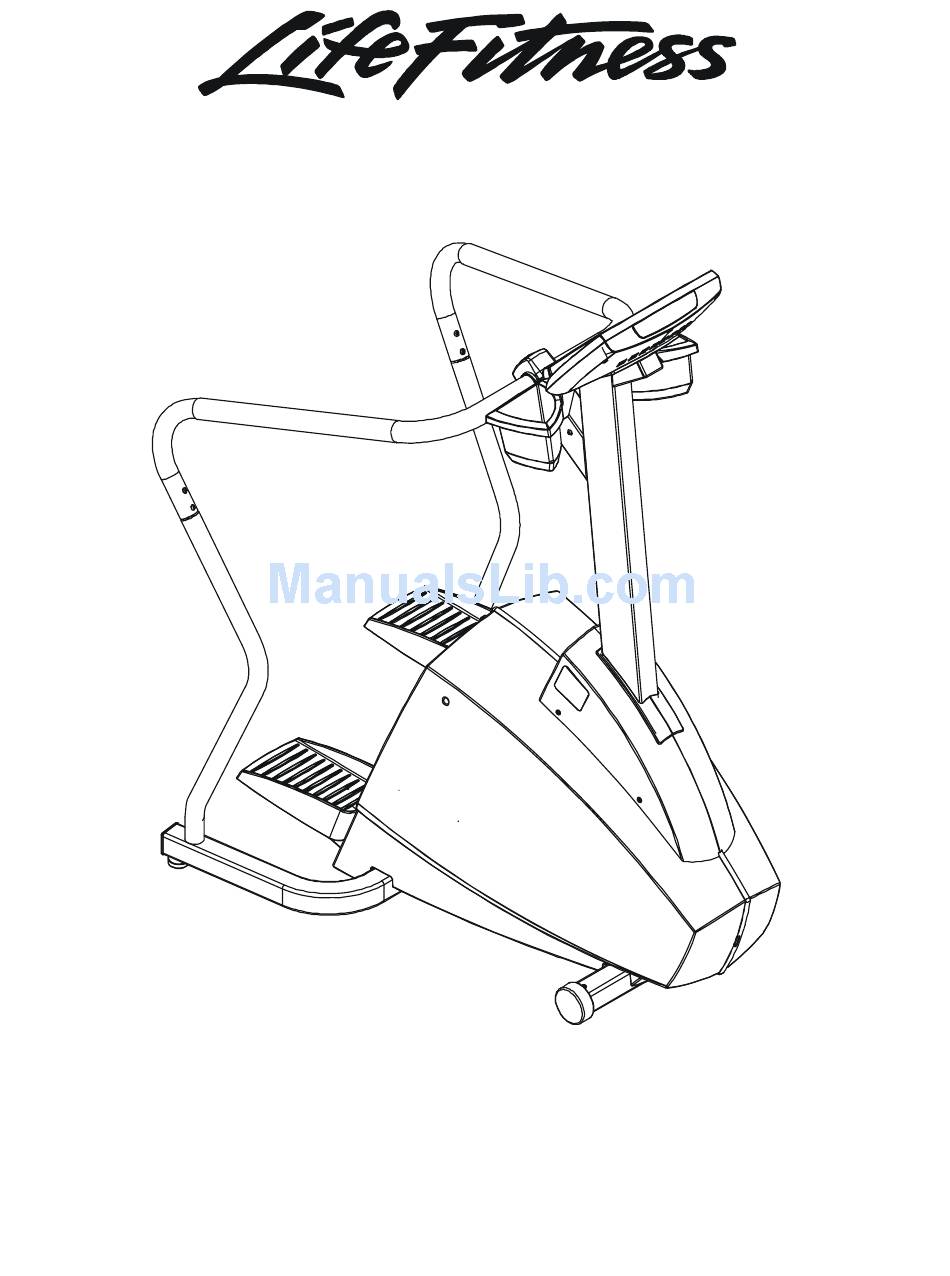

- Page 1 ARCTIC SILVER 95SW Stairclimber Customer Support Services PARTS MANUAL revised 14 Jul 2008...
- Page 2 CONSISTS OF: 1) COAX CABLE 2) POWER EXT. CABLE 3) MOUNTING PLATE 4) F TYPE CONNECTOR SERVICE MANUAL NOTE: ADDING THE LCD BOLT-ON SCREEN TO A 95SW-0XXX-01 MAKES IT A 95SER-0XXX-02. 95SW-0XXX-01 S/N WSC100000 and up M051-00K47-A025 AK47-00106-0000 0017-00008-0204 0017-00008-0205...
-
Page 3: Table Of Contents
ARCTIC SILVER 95SW 95SW-0XXX-01 CONTENTS S/N WSC100000 and up Page CONSOLE COMPONENTS ...4 FRAME COMPONENTS………………………………………..………………………………..5 SHROUDS AND PEDAL TUBE ...6 PEDAL ASSEMBLY...7 CLUTCH/SHAFT/PULLEY ASSEMBLY ...8 LEFT CLUTCH ASSEMBLY ...9 CROSSOVER PULLEY ASSEMBLY...10 ALTERNATOR ASSEMBLY…………………………………………………………………….11 GUIDE ROLLERS ...12 POWER CONTROL BOARD & RESISTORS ...13 POLAR RECEIVER ASSEMBLY ...14... -
Page 4: Console Components
ARCTIC SILVER 95SW Console Components Lower Console Board Cable AK63-00038-0000 Console Case Assembly AK63-00121-0001 Phillips Screws(17) 0017-00101-1650 Console Assembly AK47-00094-0001 Eng Met AK47-00094-0003 Ger Met AK47-00094-0004 Spn Met AK47-00094-0006 Jap Met AK47-00094-0007 Frn Met AK47-00094-0008 Itl Met AK47-00094-0009 Dut Met... -
Page 5: Frame Components
ARCTIC SILVER 95SW Frame Components Console Mounting Screws 0017-00101-1744 Accessory Tray 0K63-01030-0001 Mounting Screws 0017-00101-1744 Mono-Column AK47-00068-0003 S/N WSC100000 and up Bull Horn w/HR - RT AK47-00110-0001 Bull Horn w/HR - LT AK47-00110-0002 Wheel Handlebar 0K63-01040-0001 Hex Screws(2) Wheel w/Bearings... -
Page 6: Shrouds And Pedal Tube
ARCTIC SILVER 95SW Shrouds and Pedal Tube Mono-Column Shroud AK47-00082-0001 Phillips Pan Screw(2) 0017-00101-1769 Phillips Pan Screws(2) 0017-00101-1764 Center Shroud 0K47-01165-0000 Decal; ISO Track 0K47-01181-0000 Phillips Pan Screw(9) 0017-00101-1769 S/N WSC100000 and up Track Cover Bracket Right Shroud 0K47-01146-0001 AK47-00111-0007... -
Page 7: Pedal Assembly
ARCTIC SILVER 95SW Pedal Assembly Side Track Roller 0K47-01084-0000 Roller Sleeve(2) Side Track Roller 0K47-01138-0000 0K47-01084-0000 Roller Sleeve (2) 0K47-01136-0000 Track Roller(4) w/Busshing Assy AK47-00087-0000 Thin Lock Nut(2) 0017-00103-0324 Low Head Terminator Screw(2) 0K47-01153-0000 Pedal Bracket Assembly w/o Rollers AK47-00086-0002... -
Page 8: Clutch/Shaft/Pulley Assembly
ARCTIC SILVER 95SW Clutch/Shaft/Pulley Assembly Clutch/Shaft/Pulley Assy. AK47-00006-0000 E-ring 0017-00100-0107 Special Thrust Washers Hardened Thrust Washers 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 95SW-0XXX-01 S/N WSC100000 and up Special Thrust Washer(3) 0K47-01104-0000... -
Page 9: Left Clutch Assembly
ARCTIC SILVER 95SW Left Clutch Assembly Hardened Thrust Washers(3) 0K47-01105-0000 Special Thrust E-Ring Washer Left Clutch/Sprocket Assy. AK47-00043-0002 Special Hardened Thrust Thrust Washer Washer 95SW-0XXX-01 S/N WSC100000 and up E-Rings(2) 0017-00100-0107... -
Page 10: Crossover Pulley Assembly
ARCTIC SILVER 95SW Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Lock Nut 0017-00103-0025 Magnet 118E-00001-0124 Screw 0017-00101-1148 Tensioning Bolt 0017-00101-0928 S/N WSC100000 and up Frame 0017-00103-0026 Intermediate Pulley Bracket 0K47-01052-0000 Reed Switch Bolts(2) and Cable Assy. 0017-00101-1048 AK63-00050-0000 95SW-0XXX-01 Washer... -
Page 11: Alternator Assembly
ARCTIC SILVER 95SW Alternator Assembly Alternator Flywheel 0K47-01069-0000 Locking Nut 0017-00103-0117 Alternator Strap 0K47-01053-0000 Alternator Belt 0K47-01106-0000 S/N WSC100000 and up Alternator w/Flywheel AK47-00038-0000 Alternator Pivot Bolt 0017-00101-0962 Washer 0017-00104-0043 Tensioning Bracket Bolt 0017-00101-0986 95SW-0XXX-01... -
Page 12: Guide Rollers
ARCTIC SILVER 95SW Guide Rollers Return Spring Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Pulley Spring Shaft 0K47-01154-0000 Bolt 0017-00101-1048 0017-00103-0025 Idler w/Bearing(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00103-0025 95SW-0XXX-01 S/N WSC100000 and up Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1098... -
Page 13: Power Control Board & Resistors
ARCTIC SILVER 95SW Power Control Board & Resistor Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92239-B000 Phillips Screw(4) 0017-00101-0823 95SW-0XXX-01 S/N WSC100000 and up Resistor Assembly AK47-00037-0000 PCB Bracket 0K47-01087-0000... -
Page 14: Polar Receiver Assembly
ARCTIC SILVER 95SW Polar Receiver Assembly Electrode, Bottom AK47-00061-0001 Screws(2) 0017-00101-1277 Screw 0017-00101-1844 S/N WSC100000 and up 0K63-01114-0001 Electrode, Top AK47-00060-0001 Polar Receiver SK40-00045-0001 Screw 0017-00101-1761 95SW-0XXX-01 Polar Cap 0K47-01075-0002 Isolator 0K36-01059-0002... -
Page 15: Cables
ARCTIC SILVER 95SW Cables Description Domestic 120/60 Battery Charge w/Cord Universal Battery Charger w/o Line Cord Line Cord 220V/60Hz Line Cord 100V/50Hz Line Cord 240+ Line Cord 220V/50Hz Line Cord 200V/50Hz Line Cord 230V/50Hz 95SW-0XXX-01 S/N WSC100000 and up Part Number...
