Summary of Contents for Life Fitness Signature SDR1
Page 1: Parts List

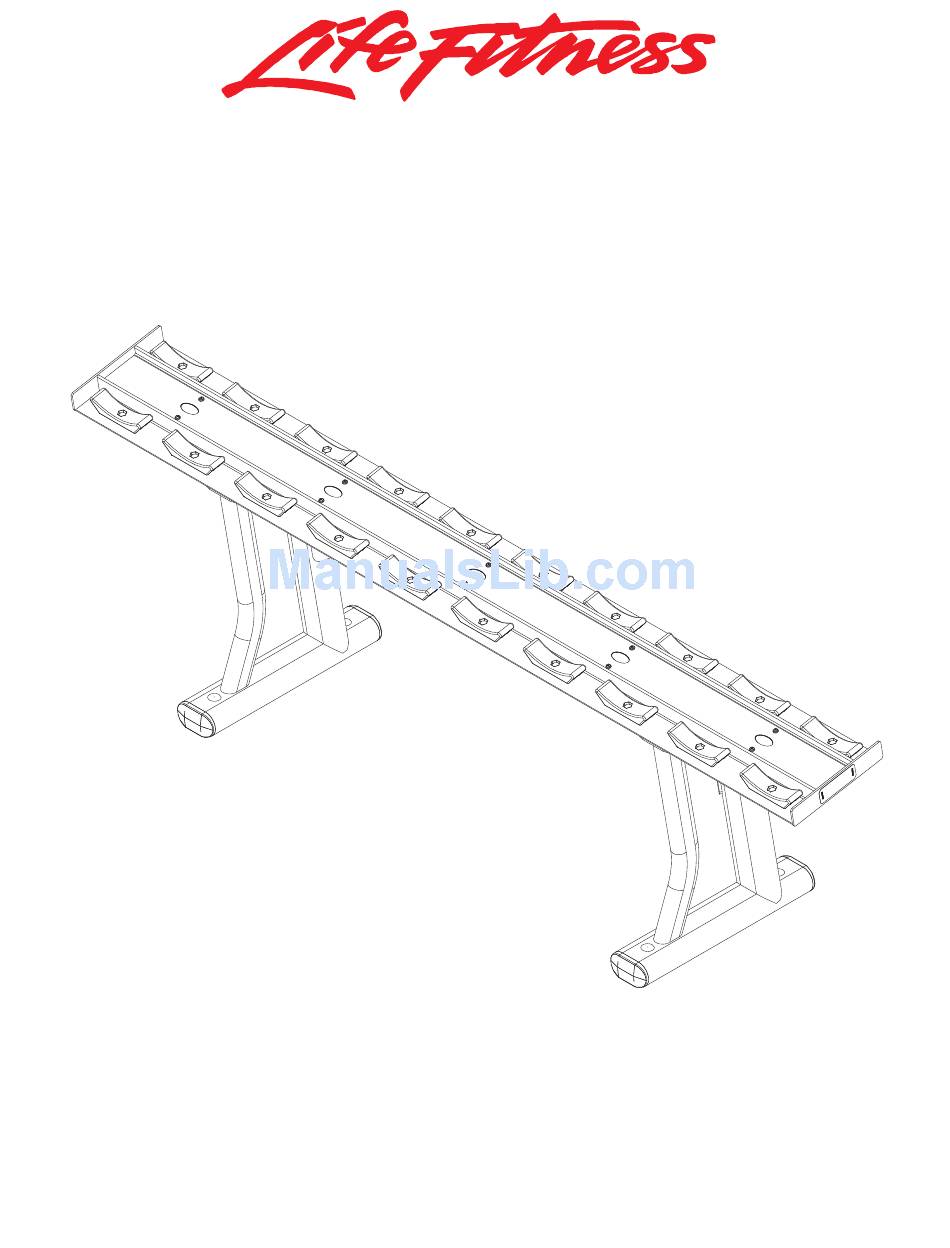

SIGNATURE SERIES SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK Customer Support Services PARTS LIST Page 1...
Page 2: Table Of Contents
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND RIGHT UPRIGHT ASSEMBLY RIGHT UPRIGHT ASSEMBLY LEGEND TRAY ASSEMBLY TRAY ASSEMBLY LEGEND CROSS MEMBER ASSEMBLY LEFT UPRIGHT ASSEMBLY LEFT UPRIGHT ASSEMBLY LEGEND IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’...
Page 3: Component Assembly
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3...
Page 4: Component Assembly Legend
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78889XX PTD ASSY, SDR1, RIGHT UPRIGHT 7811595 PTD ASSY, SDR TRAY (SHADOW GREY) 82305XX ASSY, SDR1, CROSS MEMBER 3102514 WASHER, FLAT 3/8" SAE ST ZN 3256202 SCREW, M10 X 1.5 25MM ZN...
Page 5: Right Upright Assembly
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK RIGHT UPRIGHT ASSEMBLY - 78889XX ________________________________________ SEE PAGE 6 FOR LEGEND Page 5...
Page 6: Right Upright Assembly Legend
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK RIGHT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78888XX WLDMT, SDR1, FRAME 3237403 PLUG, 1" HOLE 7810801 PAD, RUBBER FOOT 7800401 CAP, LRG FLOV END 3114407 WASHER, SAE #10 3239102 SCREW, M5X12 PHL PAN TT ST BZ...
Page 7: Tray Assembly
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK TRAY ASSEMBLY - 78115XX ________________________________________ SEE PAGE 8 FOR LEGEND Page 7...
Page 8: Tray Assembly Legend
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK TRAY ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7811595 PTD ASSY, SDR TRAY (SHADOW GREY) 7811601 CRADLE, DUMBELL 7811201 COVER, SDR TRAY 3260802 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 3102514 WASHER, FLAT 3/8"...
Page 9: Cross Member Assembly
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK CROSS MEMBER ASSEMBLY - 82305XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78883XX WLDMNT, SDR1 CROSS MEMBER 8003301 LABEL, LIFE FIT 2-1/2 X 15 SG Page 9...
Page 10: Left Upright Assembly
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK LEFT UPRIGHT ASSEMBLY - 81876XX ________________________________________ SEE PAGE 11 FOR LEGEND Page 10...
Page 11: Left Upright Assembly Legend
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK LEFT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 81876XX PTD ASSY, SDR1, LEFT UPRIGHT 3237403 PLUG, 1" HOLE 7810801 PAD, RUBBER FOOT 7800401 CAP, LRG FLOV END 3114407 WASHER, FLAT #10 SAE ST BZ 3239102 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ...
Page 12: Image
SDR1 SIGNATURE SINGLE TIER DUMBBELL RACK IMAGE ________________________________________ Page 12...
