Summary of Contents for ParaBody 874

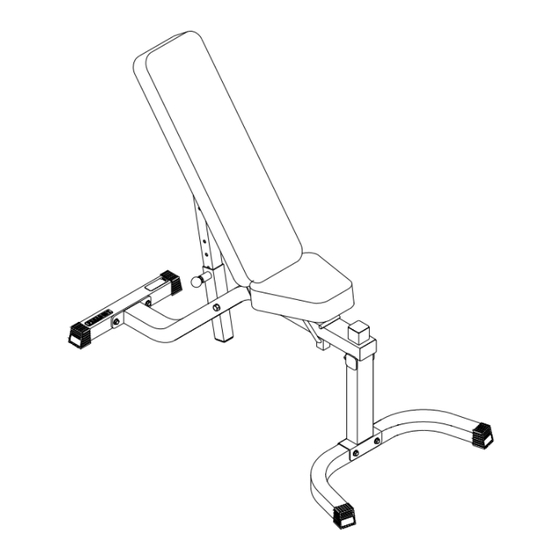

- Page 1 874 MULTI-ANGLE BENCH SYSTEM CLASS H PART # 7349001 REV. A USER’S GUIDE WARNING: Read and follow all directions for each step to insure proper assembly of this product. Version: 874108 Revision: 09/24/02...
-
Page 2: Important Safety Information
Use only the pin provided by the manufacturer. If unsure, call your authorized ParaBody dealer. NOTE: In a continual effort to improve our products, specifications are subject to change 2001 Life Fitness, a division of Brunswick Corporation. All rights reserved. © ParaBody is a trademark of Brunswick Corporation www.parabody.com... -
Page 3: Important Notes
Please note: * Thank you for purchasing the ParaBody 874 Multi-Angle Bench System. Please read these instructions thoroughly and keep them for future reference. This product must be assembled on a flat, level surface to assure its proper function. * This product must be assembled on a flat, level surface to assure its proper function. DO NOT securely tighten any frame connections until the entire frame has been assembled, unless otherwise stated. - Page 4 1’ 3’ 2’ 4’ 5’ 1’ 2’ 3’ 4’ 5’ 6’ 7’ 1 Square = 1’ X 1’...
-
Page 5: Parts List
DESCRIPTION PART # LEA6650609 BENCH FRAME LEA6650109 ADJUSTABLE SLIDE ADJUSTABLE SLEEVE LEA6649309 LEA6624210 LEFT BACK PAD ANGLE LEA6624310 RIGHT BACK PAD ANGLE FRONT BASE LEA6259109 REAR BASE LEA6655709 LEA6654521 SEAT PAD LEA6654421 BACK PAD HINGE TAB LEA6406401 LEA6412001 SPRING PIN ASSEMBLY LEA6236701 1-3/4”... - Page 6 FIGURE 2 STEP 2: • Slide four 2” SQ. COVER CAPS (15) over the ends of the FRONT & REAR BASE (6 & 7) as shown in FIGURE 2. • SECURELY assemble the FRONT BASE (6) to the BENCH FRAME (1) using two 3/8 X 3” BOLTS (18), four 3/8” WASHERS (19), and two 3/8”...
- Page 7 1/2 X 3-3/4” 21 FIGURE 3 STEP 3: • SECURELY assemble one SPRING PIN ASSEMBLY (11) to the spring pin barrel on the ADJUSTABLE SLEEVE (3). See FIGURE 3. • Attach eight 3/4 X 1-1/2” GLIDES (28) to the inside of the ADJUSTABLE SLEEVE (3) as shown in FIGURE 3 using the following steps: •...
- Page 8 22 1/2 X 5-1/2” 1/2 X 8” 23 FIGURE 4 STEP 4: • Assemble the LEFT and RIGHT BACK PAD ANGLE (4 & 5) and two HINGE TABS (10) to the BENCH FRAME (1) using one 1/2 X 8” BOLT (23) and one 1/2” LOW HEIGHT LOCK NUT (24) as shown in FIGURE 4. •...
- Page 9 3/8 X 1” 17 FIGURE 5 STEP 5: • SECURELY assemble the SEAT PAD (8) to the HINGE TABS (10) using two 3/8 X 1” BOLTS (17) and two 3/8” WASHERS (19) as shown in FIGURE 5. • SECURELY assemble the BACK PAD (9) to the LEFT BACK PAD ANGLE (4) and the RIGHT BACK PAD ANGLE (5) using four 3/8 X 1”...
-
Page 10: Maintenance
YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMATION. REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND MAIL BACK. SERIAL NUMBER LOCATION Thank you for purchasing the ParaBody 874 Multi-Angle Bencb System. MAINTENANCE MODEL #________________________ SERIAL #_________________________ DATE OF PURCHASE: _____________... -
Page 11: Limited Warranty
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONLY. 1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired or replaced by ParaBody. - Page 12 Life Fitness Italia S.R.L. Via Elvas 92 39042 Bressanone Italy Phone: 39 (472) 835-470 Fax: 39 (472) 833-150 Life Fitness Asia Pacific Limited Room 2610, Miramar Tower 132 Nathan Road, Tsimshatsui Kowloon, Hong Kong Phone: (852) 2891-6677 Fax: (852) 2575-6001 www.parabody.com...
