Page 1: Parts Manual

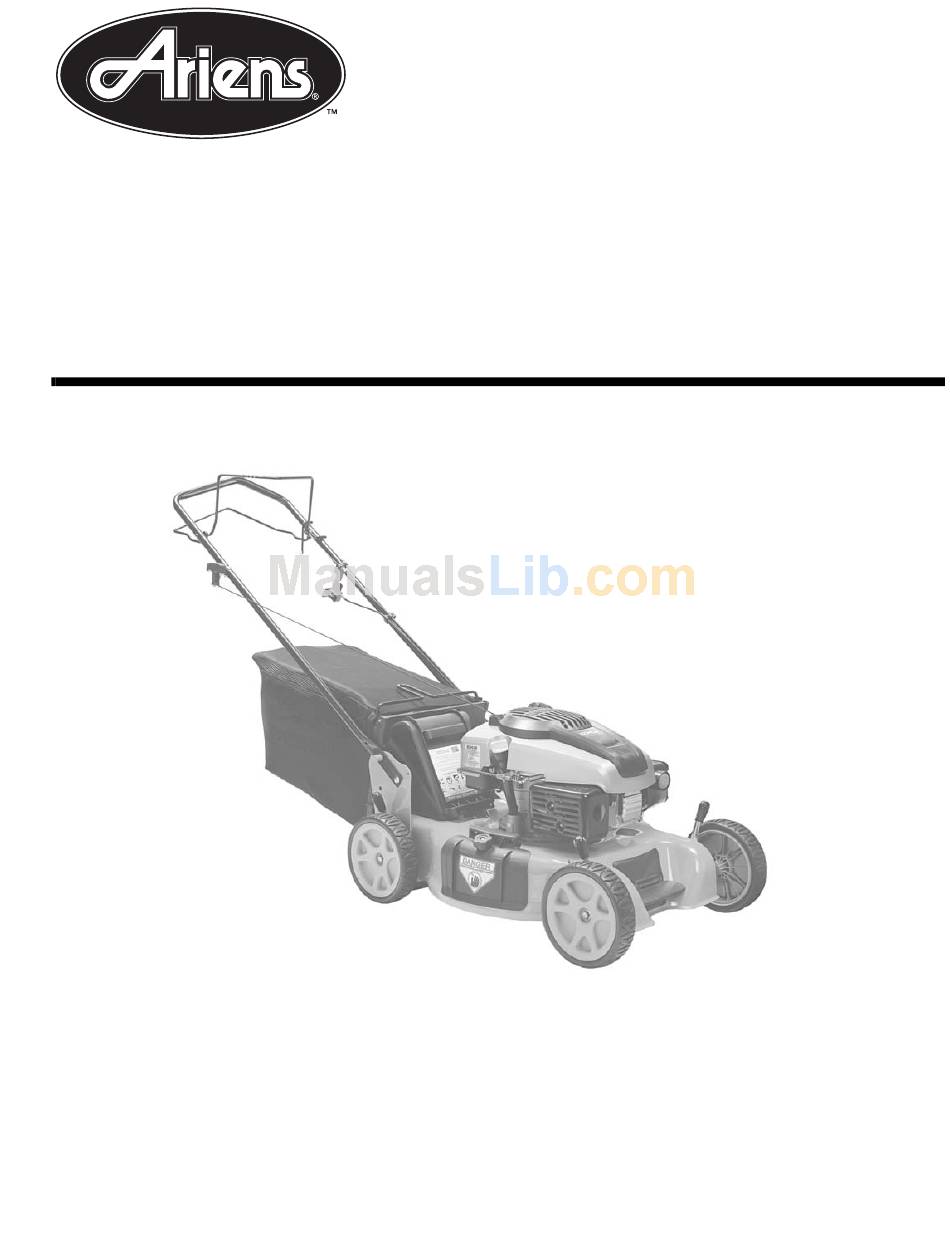

Walk-Behind Lawn Mowers Parts Manual Models 911150 - BRP21 911151 - BRP21 CARB 911152 - BRSP21 911153 - BRSP21 CARB 911154 - BRSPE21 01282200B 5/08 Printed in USA... - Page 2 RODUCT The Ariens dealer must register the product at the time of purchase. Registering the product will help the company process warranty claims or contact you with the latest service information.
-
Page 3: Table Of Contents
Continuity & Electrical Diagram ....15 Electrical Harness & Battery ....16 © Copyright 10/07 Ariens Company RANSMISSION... -
Page 4: Ecals
Model 911150, 151, 152, 153, 154 Item Part No. Qty. Description 05303100 Ariens, Jewel 01285500 Decal, Ariens Blade Runner ECALS... - Page 5 OTES...
-
Page 6: Handlebar And Controls
ANDLEBAR AND ONTROLS Model 911150, 151, 152, 153, 154 PM0028... - Page 7 Item Part No. Qty. Description 01263851 Bail, Drive 01263751 Bail, Operator Presence 01261351 Handlebar 07517000 Cap, Vinyl .25 I.D. 07517000 Cap, Vinyl .25 I.D. 06220100 Bolt, Round Head Square Neck .25-20 x 1.25 01250651 Anchor, Cable Thumb Adjustment 06543500 Nut, Locking-Top-Flange .25-20 04642100 Guide, Pullcord 10 06530400...
-
Page 8: Mower Deck And Bagger
OWER ECK AND AGGER Model 911150, 151, 152, 153, 154... - Page 9 Qty. Description 01268051 Mulch Plug 01278551 Frame, Bagger 01253200 Rod, Hinge 07027600 Nut, Push .25 x .50 O.D. 01250700 WBLM, Ariens Bagger 01253400 Bagger Door 01251400 Rear Discharge Cover 01260900 Pin, Hinge 08300035 Spring, Torsion 10 01253059 21" Deck Weldment...
-
Page 10: Eight Of
HEELS AND EIGHT OF Model 911150, 151, 152, 153, 154 991152, 153. 154... - Page 11 Item Part No. Qty. Description 01266600 Wheel, 8.5" WBLM Assembly 01265100 Bolt, Wheel Shoulder 06216100 Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5 01263000 Wheel Mount Hub (911150, 151) 51110700 Wheel Mount Hub (911152, 153, 154) 01250900 Guard, WBLM 06220800 Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5 (911150, 151) 00548400...
-
Page 12: Transmission & Height Of Cut
911152, 153, 154 & H RANSMISSION EIGHT OF 31 32... - Page 13 Item Part No. Qty. Description 01291000 Gear, Wheel (Order as part of kit 51111000. See item 4.) 07400008 Screw, Tapping .25-15 x .75 Hi-Lo Hex Washer Head (Order as part of kit 51111000. See item 01250500 Wheel (Order as part of kit 51111000. See item 4.) 51111000 Kit, Assembly, LM Rear Wheel (Contains items 1, 2 and 3) 01263300...
-
Page 14: Engine, Blade And Belt
Model 911150, 151, 152, 153, 154 Item Part No. Qty. Description 08200312 Engine, Kohler XT-7 (911150, 152) 08200313 Engine, Kohler XT-7 (911151, 153) 08200050 Engine, Honda GCV 160 5.5 hp, Electric Start (Honda Engine Model # - GCV160A) (911154) 07414100 Screw, Tapping .38-16X1.00 Hex Washer Head 01268100 Ring, Engine Bolt... -
Page 15: Electrical
& E ONTINUITY BLACK LECTRICAL IAGRAM BLACK Charger Terminal Black Wire / Red Shrink Wrap Cover Model 911154 Splice 30 Amp... -
Page 16: Electrical Harness & Battery
Model 911154 Item Part No. Qty. Description 02460700 01269400 Key, Switch 01269200 Housing, Switch 01268800 Harness, Wire 01269300 Battery 01281100 Battery, Charger 01269151 Cover, Battery 06200013 Bolt, Hex 8-32 x .5 06531300 Nut, Locking-Nylon 8-32 LECTRICAL ARNESS & B ATTERY... - Page 17 Ariens Company 655 West Ryan Street Brillion, WI 54110-1072 920-756-2141 Fax 920-756-2407 www.ariens.com...
