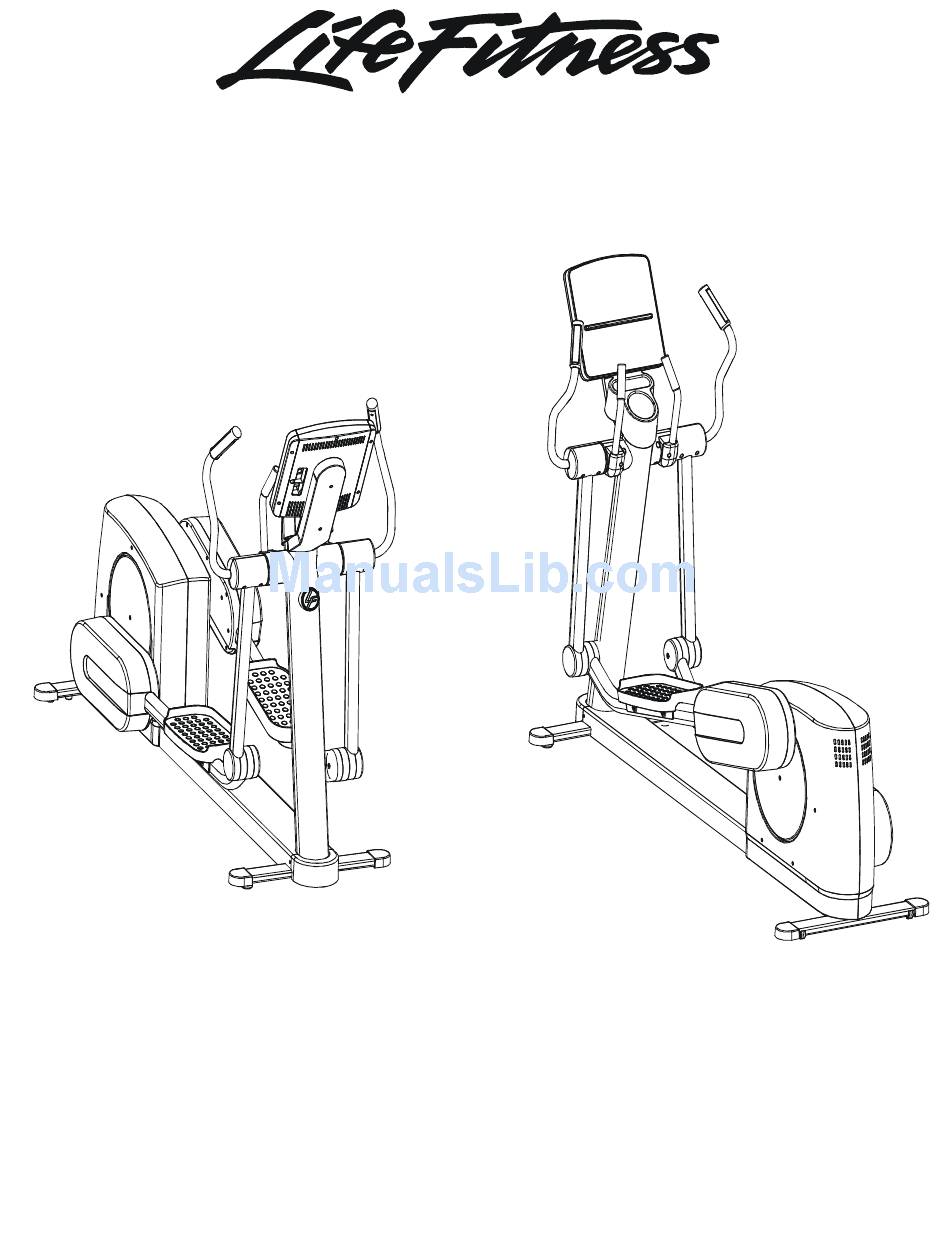

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 90X-0XXX-03 ( MADE IN HUNGARY) Customer Support Services PARTS MANUAL 30 Jul 2008...
- Page 2 ARCTIC SILVER QUIET DRIVE 90X REFERENCES OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN HARDWARE BAG PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS PLUG IN OPTION 230/50 CONT. C-SAFE KIT S/N XHA504206206 M051-00K62-A111...
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 90X 90X-0XXX-03 CONTENTS S/N XHA504206206 Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10 PEDAL LEVER COMPONENTS ...11 PCB, BATTERY, REED SWITCH &... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER QUIET DRIVE 93X Console Support & Deadshaft Covers Console Support MAK62-00123-0000 Console Support Cap M0K62-01030-0000 Console Support Shroud M0K62-01023-0000 Right Inside Deadshaft Cover M0K62-01010-0000 Left Inside Deadshaft Cover M0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 S/N XHA504206206 Right Bullhorn Cover M0K62-01007-0001 Left Bullhorn Cover M0K62-01008-0001... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER QUIET DRIVE 90X Handlebars and Bullhorns Right Handlebar MAK62-00090-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 NOTE: The Right Bullhorn Assembly consists of: AK62-00057-0001 Bullhorn, M0K62-01136-0000 Grip, and M0K62-01199-0000 Gasket. NOTE: The Left Bullhorn Assembly consists of: AK62-00058-0001 Bullhorn, M0K62-01136-0000 Grip and M0K62-01199-0000 Gasket S/N XHA504206206 Right Bullhorn (See Note) -
Page 6: Console And Related Components
ARCTIC SILVER QUIET DRIVE 90X Console & Related components Programmed PCB A084-92220-A008 Polar W/Latch Ca ble AK39-00063-0000 CONSOLE AK62-00147-0000 AK62-00147-0002 Console Case Screws 0017-00101-1242 PCB Mounting Screws 0017-00101-1650 Polar PCB with Receiver AK39-00064-0000 Overlay/Bezel/Switch (see chart below) OVERLAY/BEZEL/SWITCH AK62-00189-0001 AK62-00189-0006 Page 6 of 17 90X-0XXX-03 S/N XHA504206206... -
Page 7: Upper Frame Hardware
ARCTIC SILVER QUIET DRIVE 90X Upper Frame Hardware Items Not Shown Accessory Tray Accessory Tray Mounting Screws (2) Console Mounting Screws (4) 0017-00101-1796 Console Support Mounting Screws (6) M0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) M0K62-01022-0000 0017-00101-1846... -
Page 8: Rocker Arms And Pedal Levers
ARCTIC SILVER QUIET DRIVE 90X Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assembly AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly MAK62-00236-0000 Page 8 of 17... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER QUIET DRIVE 90X Crank Cover and Lower Caps Front frame Cap M0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 Page 9 of 17 90X-0XXX-03 S/N XHA504206206 Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
ARCTIC SILVER QUIET DRIVE 90X Lower Frame Shrouds & Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01037-0000 Right Inside Lever Joint Cover 0K62-01039-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit... -
Page 11: Pedal Lever Assembly Components
ARCTIC SILVER QUIET DRIVE 90X Pedal Lever Assembly Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) E-Ring 0017-00100-0107 Thrust Washer 0K47-01105-0000 Brass Washer 0K47-01104-0000 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 Left Pedal M0K62-01005-0000 Pedal Mounting Right Pedal Hardware Screws (4) M0K62-01006-0000... -
Page 12: Pcb, Battery, Reed Switch & Bracket
ARCTIC SILVER QUIET DRIVE 90X PCB, Battery, Reed Switch & Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 Page 12 of 17 90X-0XXX-03 S/N XHA504206206 Grommet (4) M0017-00042-0821 Reed Switch 118E-00001-0140... -
Page 13: Bearing-Insert Assembly
ARCTIC SILVER QUIET DRIVE 90X Bearing-Insert Assembly – AK62-00299-0000 This assembly is used 4 times on the drive module assembly. Service Kit- MGK62-00002-0044 Includes: 1- crankshaft 2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings... -
Page 14: Crank Arm Pulley Assembly
ARCTIC SILVER QUIET DRIVE 90X Crank arm-pulley Assembly Crank arm weld Assembly MAK62-00205-0000 Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate M0K61-02302-0001 Crankshaft Plate Magnet-Standoff Mounting screws (4) Assembly M0017-00101-1834... -
Page 15: Drive Module
ARCTIC SILVER QUIET DRIVE 90X Drive Module Crank Arm-Pulley Assembly See Page 14 for breakdown Crankshaft M0K62-01222-0001 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable MAK62-00260-0000 Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Poly-V Metric Pulley 0K35-01186-0007 Pulley Set Screws... -
Page 16: Drive Module Hardware
ARCTIC SILVER QUIET DRIVE 90X Drive Module Hardware Crankshaft M0K62-01222-0001 Square Machine Key (2) M0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Retaining ring 0017-00100-0107 Poly-V pulley mounting screw and washer 0017-00101-1836 Machine Key... -
Page 17: Cables
ARCTIC SILVER QUIET DRIVE 90X Cables Power Control Cable AK62-00092-0000 Power Control Board B084-92218-D002 Console PCB A084-92220-A008 Page 17 of 17 90X-0XXX-03 S/N XHA504206206 Main Cable AK62-00093-0000...
