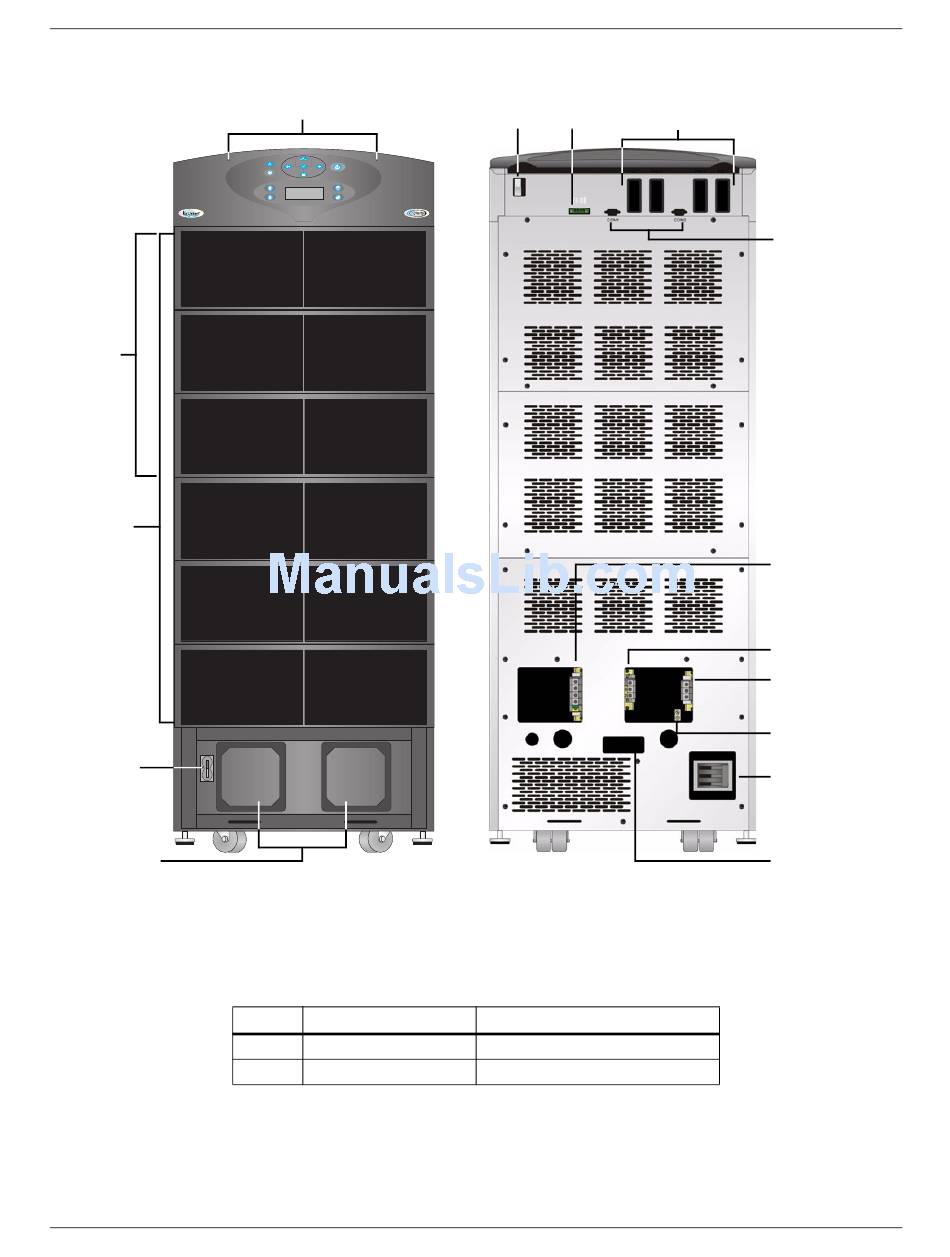

Figure 1 Front and back views (12 bay model shown)
Power
Module
Bays
Battery
Module
Bays
Manual
Bypass
Switch
(SW1)
Intake
Cooling Fans
Refer to the table below for size and fully populated weight considerations.
User Interface
!
ESC
FRONT VIEW
with bezels
removed
Table 1 Nfinity weight and dimensions
Model Max Weight - lb (kg)
8 bay 855 (388)
12 bay 1176 (534)
Control REPO
Switch (SW2) Connection
BACK VIEW
with access
plates removed
W x D x H - in. (mm)
20 x 28 x 40 (508 x 711 x 1016)
20 x 28 x 53 (508 x 711 x 1346)
4
Introduction
Intellislot™
Communications Ports
DB-9
Communication
Ports
Output Power
Terminal
208/240 Jumper
Input Power
Terminal
Input Earth
Terminal
Input Circuit
Breaker (CB1)
External Battery
Connection
