- Page 1 OWER VAILABILITY PowerSure™ PST ANUAL 500-650 VA 230V...
-
Page 3: Table Of Contents
TABLE OF CONTENTS MPORTANT AFETY NTRODUCTION AND Top and Side Views of UPS ......5 AJOR OMPONENTS Transient Voltage Surge Suppression (TVSS) &... -
Page 5: Important Safety Instructions
UPS. Adhere to all warnings on the unit and in this manual. Follow all operating and user instructions. This equipment is designed for Commercial, Industrial or Home use. Liebert Corporation neither recommends nor knowingly sells this product for use in life support applications or with other designated critical devices. - Page 6 CAUTION Although your UPS has been designed and manufactured to assure personal safety, improper use may result in electrical shock or fire. To ensure safety, please observe the following rules: • Turn off and unplug your UPS before cleaning. Do not use liquid or aerosol cleaners.
- Page 7 Electromagnetic Compatibility—The PowerSure™ PST series complies with the requirements of the EMC Directive 89/336/EEC and the published technical standards. Continued compliance requires installation in accordance with these instructions and use of Liebert approved accessories only. Environmental—Operate the UPS in an indoor environment only in an ambient temperature range of 0°C to 40°C (32°F to 104°F).
-
Page 8: Introduction And System Description
NTRODUCTION AND YSTEM ESCRIPTION Congratulations on your choice of the Liebert PowerSure™ PST Unin- terruptible Power System (UPS). It provides filtered AC power to sen- sitive electronic equipment and other critical loads. The PowerSure PST is an off-line UPS designed for desktop applica- tions. -
Page 9: Top And Side Views Of Ups

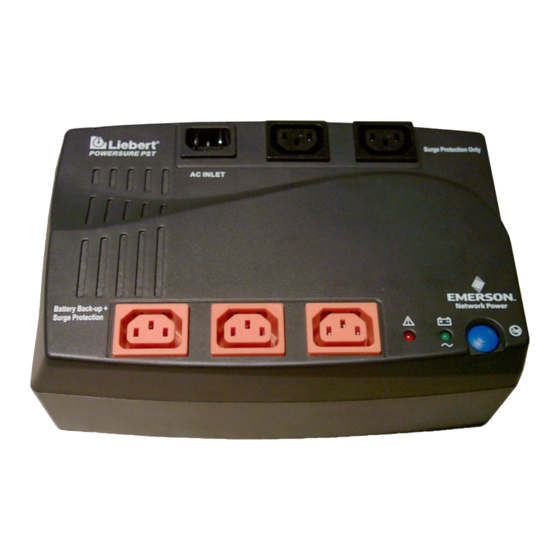

Top and Side Views of UPS AC Inlet Orange output receptacles Battery backup + surge protection RIGHT SIDE OF UPS USB interface port (for PAXXX-230U models only) Circuit Protector Black output receptacles Surge protection only Refer to Bottom for Cautionary Markings TOP OF UPS Mains/Battery Indicator (Green) -
Page 10: Major Components
AJOR OMPONENTS Input TVSS & EMI/RFI Filters Transient Voltage Surge Suppression (TVSS) & EMI / RFI Filters These UPS components provide surge protection and filter electro- magnetic interference (EMI) and radio frequency interference (RFI). They minimize surges or interference present in the mains line and keep the sensitive equipment protected. -
Page 11: What S Included
’ NCLUDED The PowerSure PST is shipped with the following items: • PowerSure PST user manual • USB cable (PAXXX-230U models only), 1.8m (6 ft.) • RJ-11 cord, 2.1m (7 ft.) • Two (2) 10A output power cords, 2.0m (6.6 ft.) PowerSure PST RJ-11 cord 2.1m (7 ft.) -
Page 12: Installation
3.5 mA. Most data processing equipment meets this require- ment if you use no more than two pieces of equipment. If uncertain about your load, consult your local dealer, Liebert representative, or Liebert Worldwide Support Group. 1. Visually inspect the UPS for freight damage. Report damage to the carrier and your local dealer, Liebert representative or the Liebert Worldwide Support Group. - Page 13 4. Shut down the load equipment and turn off the mains supply. Unplug the load equipment’s power input cable from the mains sup- ply socket and plug it into the UPS input socket. Plug the power input cable into the mains supply socket. Connect the supplied output cable between the load equipment input socket and one of the UPS AC output sockets.
-
Page 14: Controls And Indicators
ONTROLS AND ON/OFF/Alarm Silence Button This button controls output power to the connected load and has three functions: • ON • OFF • Alarm Silence When the UPS is off, pressing the main ON/OFF button for more than two seconds will start the UPS, and an audible alarm sounds briefly. -
Page 15: Status Indicators: Mains/Battery, Fault
Status Indicators: Mains/Battery, Fault There are two (2) status indicators on the top panel of the UPS, as shown in the diagram below. Each indicator illuminates to specify the status of the UPS (see Troubleshooting section for details). Mains/Battery Indicator (Green) The Mains/Battery Indicator illuminates when the UPS is operating in Normal mode, supplying power to connected loads. -
Page 16: Modes Of Operation
ODES OF PERATION Normal Mode During Normal mode operation, the Power- Sure PST supplies conditioned, computer- grade power to the connected equipment: mains power passes through the TVSS cir- cuitry, EMI/RFI filters and then through the Transfer Switch to the connected equipment. When the UPS is in Normal mode, the Mains/Battery Indicator illuminates green. -
Page 17: Communications
OMMUNICATIONS USB Interface Port The PowerSure PST models with extension “-230U” have a USB inter- face port for communication that will work with the built-in Microsoft Power Manager software on the user’s PC, if the PC is so equipped. It will provide UPS status and manages the automatic, orderly shut- down of the computer. -
Page 18: Maintenance
AINTENANCE The PowerSure PST UPS requires very little maintenance. Follow these practices to prevent problems. Cleaning the UPS The following will help ensure trouble-free operation for years: • Vacuum dust from the ventilation intake occasionally. • Wipe the cover periodically with a dry cloth. Maintaining Batteries The batteries are valve-regulated, nonspillable, lead acid and must be kept charged to retain their design life. -
Page 19: Troubleshooting
ROUBLESHOOTING The information below indicates various symptoms a user may encounter in the event the PowerSure PST experiences a problem. Use this information to determine whether external factors caused the problem. See Troubleshooting Chart for suggested remedy. Fault Mains/ Indicator Battery Indicator Guide to Status Indicators... -
Page 20: Troubleshooting Chart
Check the circuit protector on the side of the UPS. If it is tripped, reset it and restart the UPS. For further help, call your local dealer, Liebert representative or the Liebert Worldwide Support Group. Plug in power cord securely. Reset the circuit protector and restart the UPS. -
Page 21: Specifications
PECIFICATIONS Model Number Model Rating VA / W DIMENSIONS: mm (in.) Unit W x D x H Shipping W x D x H WEIGHT: kg (lbs) Unit Shipping INPUT AC PARAMETERS Surge Protection Rated Input Voltage Voltage Range Without Battery Operation Frequency OUTPUT AC PARAMETERS Output Receptacles... -
Page 22: Battery Run Times
ENVIRONMENTAL Operating Temperature Storage Temperature Relative Humidity Operating Elevation Audible Noise AGENCY Safety Surge Susceptibility Electrical Fast Transient/ Burst Emissions Harmonics Conducted Immunity Flicker Transportation Battery Run Times Load % Note: Approximate discharge times are in minutes and at 25°C (77°F) with resistive load. 0°C to +40°C (+32°F to + 104°F) -15°C to +50°C (+5°F to + 122°F) 0% to 95%, non-condensing... - Page 24 PowerSure™ PST The Company Behind the Products With over a million installations around the globe, Liebert is the world leader in computer protection systems. Since its founding in 1965, Liebert has developed a complete range of support and protection systems for sensitive electronics: •...
