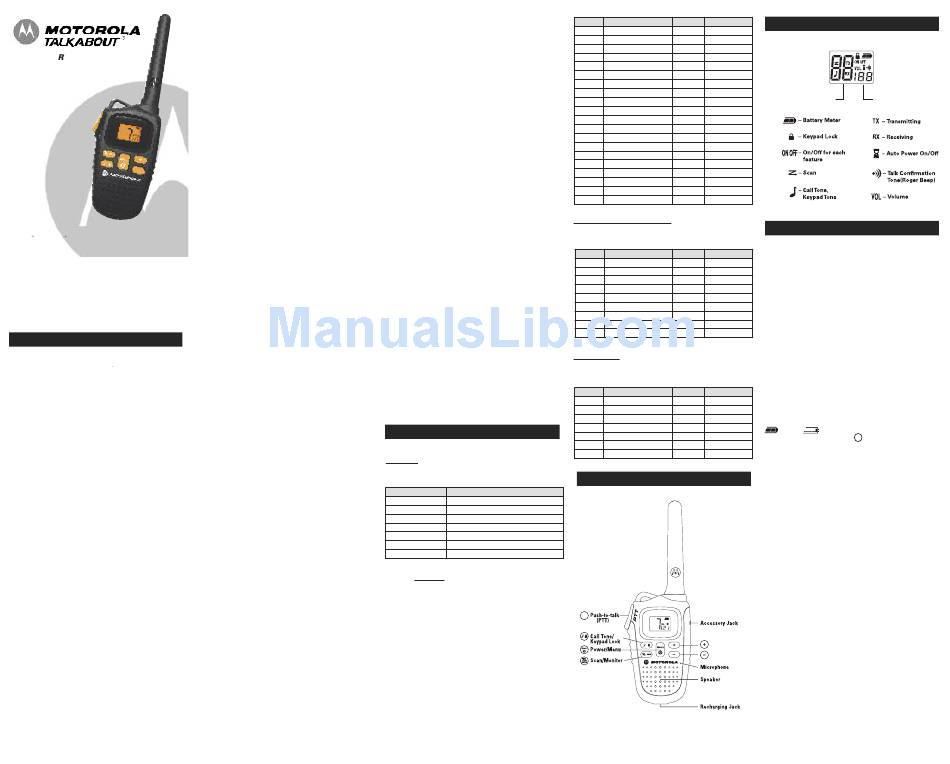

Motorola TALKABOUT MD207AR User Manual

Two-Way adio
User Guide
Models
MD207AR, MD207CLR,
KEM ML36801 28
MD207CMR, MD207PR
For More Information
For further information, you may contact Motorola Solutions, Inc.
as follows:
Argentina: Call 0-800-666-86-76
Chile: Call 0-800-201-442
Colombia: Call 1-800-700-15-04
Peru: Call 0-800-52-470
Safety and General Information
Important Information on Safe and Efficient Operation
Read This Information Before Using Your Radio
The information provided in this document supersedes the general
safety information in user guides published prior to December 1, 2002.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control
your exposure and ensure compliance with the general
population/uncontrolled environment exposure limits, always adhere to
the following procedure:
• Transmit no more than 50% of the time.
• To receive calls, release the Push-to-Talk (PTT) button.
• To transmit (talk), press the PTT button.
Transmitting 50% of the time, or less, is important because the radio
generates measurable RF energy exposure only when transmitting (in
terms of measuring standards compliance).
Exposure to Radio Frequency Energy
Your Motorola two-way radio complies with the following RF energy
exposure standards and guidelines:
• United States Federal communications Commission, Code of Federal
Regulations; 47CFR part 2 sub-part J.
• American National Standards Institute (ANSI)/Institute of Electrical
and Electronic Engineers (IEEE) C95. 1-1992.
• Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition.
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998.
• Health Canada - Safety Code 6; Limits of Human Exposure to
Radiofrequency Electromagnetic Energy in the Frequency Range
from 3 kHz to 300 GHz (2009).
• Australian communications Authority Radiocommunications
(Electromagnetic Radiation—Human Exposure) Standard, 2003.
• ANATEL ANNEX to Resolution No. 303 of July 2, 2002.
• ANATEL ANNEX to Resolution No. 533 of September 10, 2009.
To ensure optimal radio performance and make sure human exposure
to radio frequency electromagnetic energy is within the guidelines set
forth in the above standards, always adhere to the following
procedures.
Portable Radio Operation and EME Exposure
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage
the radio and may violate FCC regulations.
Do NOT hold the antenna when the radio is "IN USE." Holding the
antenna affects the effective range.
Body-Worn Operation
To maintain compliances with FCC/Health Canada RF exposure
guidelines, if you wear a radio on your body when transmitting, always
place the radio in a Motorola-supplied or approved clip, holder, holster,
case or body harness for this product. Use of non-Motorola-approved
accessories may exceed FCC/Health Canada RF exposure guidelines.
If you do not use one of the Motorola-supplied or approved body-worn
accessories and are not using the radio held in the normal use position,
ensure the radio and its antenna are at least 1 inch (2.5 cm) from your
body when transmitting.
Data Operation
If applicable, when using any data feature of the radio with or without
an accessory cable, position the radio and its antenna at least one
inch (2.5 cm) from the body.
Approved Accessories
53724: Remote Speaker with Push-to-Talk Microphone
53727: Earbud with Push-to-Talk Microphone
53728: Flexible Ear Receiver
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or otherwise
configured for electromagnetic compatibility. This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts,
turn off your radio in any facility where posted notices instruct you to
do so. Hospitals or health care facilities may be using equipment that is
sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when onboard on aircraft.
Any use of a radio must be in accordance with applicable regulations
per airline crew instructions.
Medical Devices – Pacemakers
The Advanced Medical Technology Association recommends that a
minimum separation of 6 inches (15 cm) be maintained between a
handheld wireless radio and a pacemaker. These recommendations are
consistent with the independent research by and recommendations of
the U.S. Food and Drug Administration.
People with pacemakers should:
• ALWAYS keep the radio more than 6 inches (15 cm) from their
pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• Turn the radio OFF immediately if there is any reason to suspect that
interference is taking place.
Medical Devices – Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In
the event of such interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
Medical Devices - Other
If you use any other personal medical device, consult the manufacturer
of your device to determine if it is adequately shielded from RF energy.
Your physician may be able to assist you in obtaining this information.
Safety and General Use While Driving
Check the laws and regulations regarding the use of radios in the area
where you drive, and always obey them. If you do use your radio while
driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
The use of a two-way radio while engaged in activities requiring
concentration may cause distraction or otherwise impair your ability to
safely participate in such activities. Always use technology safely.
Do not place a portable radio in the area over an air bag or in the air
bag deployment area. Air bags inflate with great force. If a portable
radio is placed in the air bag deployment area and the air bag inflates,
the radio may be propelled with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially
explosive atmosphere. Only radio types that are especially qualified
should be used in such areas as "Intrinsically Safe." Do not remove,
install or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in bodily
injury or even death.
Note: The areas with potentially explosive atmospheres referred to
above include fueling areas such as below decks on boats, fuel or
chemical transfer or storage facilities, areas where the air contains
chemicals or particles (such as grain, dust or metal powders) and any
other area where you would normally be advised to turn off your
vehicle engine. Areas with potentially explosive atmospheres are
often—but not always—posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio
when you are near electrical blasting caps, in a blasting area, or in areas
posted "Turn off two-way radios." Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or bodily injury such as
burns if a conductive material—like jewelry, keys or beaded
chains—touch exposed terminals. The conductive material may
complete an electrical circuit (short circuit) and become quite hot.
Exercise care in handling any charged battery, particularly when placing
it inside a pocket, purse or other container with metal objects.
Exercise care when removing NiMH or AA batteries. Do not use sharp or
conductive tools to remove either of these batteries.
Battery Charger Safety Instructions:
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp
blow, or has been dropped or damaged in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will
not fit the outlet, have the proper outlet installed by a qualified
electrician. An improper condition can result in a risk of electric shock.
4. To reduce the risk of damage to the cord or plug, pull the plug rather
than the cord when disconnecting the charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the outlet
before attempting any maintenance or cleaning.
6. Use of an attachment not recommended or sold by Motorola may
result in a risk of fire, electric shock or personal injury.
7. Make sure the cord is located so it will not be stepped on, tripped over
or subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary.
Use of an improper extension cord could result in a risk of a fire and/or
electric shock. If an extension cord must be used, make sure that:
• The pins on the plug of the extension cord are the same number, size
and shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical condition.
• The extension cord size is 18 AWG for lengths up to 100 feet, and
16 AWG for lengths up to 150 feet.
9. The supply cord of the AC adaptor cannot be replaced. If the cord is
damaged, call customer service at 1-800-638-5119 or e-mail us at
giantintl@callcenter.com.
Changes or modifications, not expressly approved by Motorola, may void
the user's authority granted by the local regulatory agency to operate this
radio and should not be made. To comply with local regulatory
requirements, transmitter adjustments should be made only by or under
the supervision of a person certified as technically qualified to perform
transmitter maintenance and repairs in the private land mobile and fixed
services as certified by an organization representative of the user of those
services. Replacement of any transmitter component (crystal,
semiconductor, etc.) not authorized by the local agency's equipment
authorization for this radio could violate local government regulatory rules.
Note:
• Use of this outside the country where it was intended to be distributed is
subject to government regulations and may be prohibited.
Licensing Information
Argentina - MD207AR
Uso Familiar frequency use is subject to CNC Resolution SC
No. 2750/98. No license is required for use in Argentina.
Consult the CNC at www.cnc.gov.ar for more information.
Channel Frequency in MHZ
1 462.5625
2 462.5875
3 462.6125
4 462.6375
5 462.6625
6 462.6875
7 462.7125
Chile - MD207CLR
Servicio de Banda Local UHF frequency use is subject to SUBTEL
Resolution 1.261 and Resolution 52 Exenta. A license is required for use in
Chile. To obtain a Banda Local end-user license:
1. Fill out the required application form to request Local Band service.
a. It is available on the SUBTEL website: http://www.subtel.gob.cl/
index.php?option=com_content&view=article&id=1388&Itemid=2087
b. It is also available at the SUBTEL offices:
Subsecretaría de Telecomunicaciones
Unidad de Licencias y Permisos
Lorenzo Gotuzzo N°124, piso 6
Santiago, Chile
Tel. (56-2) 421 3634
2. Present this form with your ID at the above location.
3. Consult the SUBTEL offices for applicable fees.
For more information, consult SUBTEL at www.subtel.cl or call their
offices at the telephone number listed above.
Channel Frequency in MHZ Channel Frequency in MHZ
1 462.5500 21 467.6125
2 462.5625 22 467.6250
3 462.5750 23 467.6375
4 462.5875 24 467.6500
5 462.6000 25 467.6625
6 462.6125 26 467.6750
7 462.6250 27 467.6875
8 462.6375 28 467.7000
9 462.6500 29 467.7125
10 462.6625 30 467.7250
11 462.6750 31 467.8125
12 462.6875 32 467.8250
13 462.7000 33 467.8375
14 462.7125 34 467.8500
15 462.7250 35 467.8625
16 467.5500 36 467.8750
17 467.5625 37 467.8825
18 467.5750 38 467.9000
19 467.5875 39 467.9125
20 467.6000 40 467.9250
Colombia - MD207CMR
Operacion itinerante de baja potencia frequency use is subject to
CRC Resolución 002190 de 2003. No license is required for use in
Colombia. Consult CRC at www.crcom.gov.co for more information.
Channel Frequency in MHZ Channel Frequency in MHZ
1 462.5625 10 467.6125
2 462.5875 11 467.6375
3 462.6125 12 467.6625
4 462.6375 13 467.6875
5 462.6625 14 467.7125
6 462.6750 15 467.7625
7 462.7125 16 467.8125
8 467.5625 17 467.8375
9 462.5875 18 467.9125
Peru - MD207PR
Colectivo Familiar frequency use is subject to MTC RVM
388-200-MTC/15.03 and FCC (FRS), Part 95B. No license is required
for use in Peru. Consult MTC Peru at www.mtc.gob.pe for more
information.
Channel Frequency in MHZ Channel Frequency in MHZ
1 462.5625 8 467.5625
2 462.5875 9 467.5875
3 462.6125 10 467.6125
4 462.6375 11 467.6375
5 462.6625 12 467.6625
6 462.6875 13 467.6875
7 462.7125 14 467.7125
Control Buttons
PTT
Volume Scroll
(High) / Weather
Volume Scroll
(Low)
Display Screen Guide
Numbers for Channel, Numbers for Codes
Call Tone
Getting Started
Installing the Batteries
Each radio uses 1 NiMH rechargeable battery pack or 3 AA alkaline
batteries and beeps when the batteries are low.
Installing NiMH Rechargeable Battery Pack
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Remove the NiMH battery pack from the clear plastic bag (do not
disassemble or unwrap the battery pack).
4. Insert the NiMH battery pack with the diagram facing you.
5. Reposition the battery cover and press down to secure.
Installing the Three AA Alkaline Batteries (Optional Accessory)
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Insert the three AA alkaline batteries with + and - polarity as shown
inside.
4. Reposition the battery cover and press down to secure.
Radio Battery Meter
The radio battery icon shows the radio battery charge level, from full
to empty . When the radio has one segment left, the radio
chirps periodically or after releasing (Low Battery Alert).
PTT
Removing the NiMH Battery Pack
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Gently remove the NiMH battery by easing it out.
4. Reposition the battery cover and press down to secure.
Removing the Three AA Alkaline Batteries (Optional Accessory)
1. Turn the radio off.
2. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
3. Remove each alkaline battery by easing each battery out
individually.
4. Reposition the battery cover and press down to secure.
Notes:
• Exercise care when removing NiMH or AA batteries. Do not use sharp
or conductive tools to remove either of these batteries.
• Remove the batteries before storing your radio for extended periods of
time. Batteries corrode over time and may cause permanent damage
to your radio.
Using the Plug-in Charging Adaptor
The battery plug-in charger (adaptor) provides charging convenience
for NiMH batteries in one or both radios. Charge the NiMH battery
overnight (at least 16 hours) before using it for the first time. After the
initial charge, an empty battery is fully charged within 14 hours.
1. Follow the steps above to install a NiMH battery pack.
2. Connect the AC power adaptor plug into the recharging jack at the
bottom of the radio. (The adaptor charges two radios.)
3. Plug the AC power supply into a standard wall outlet.
Continued on back
Models MD207AR, MD207CLR, MD207CMR, MD207PR
