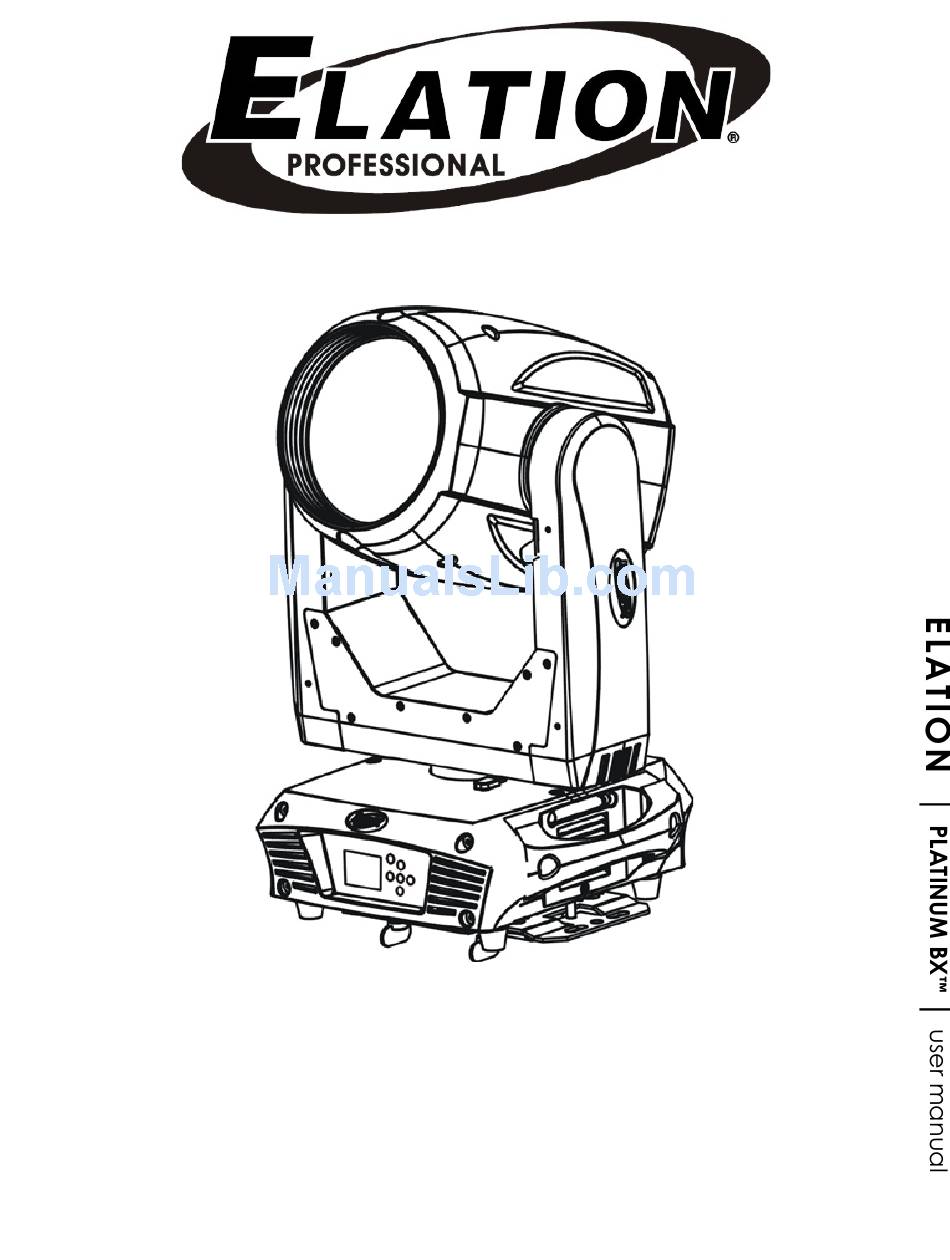

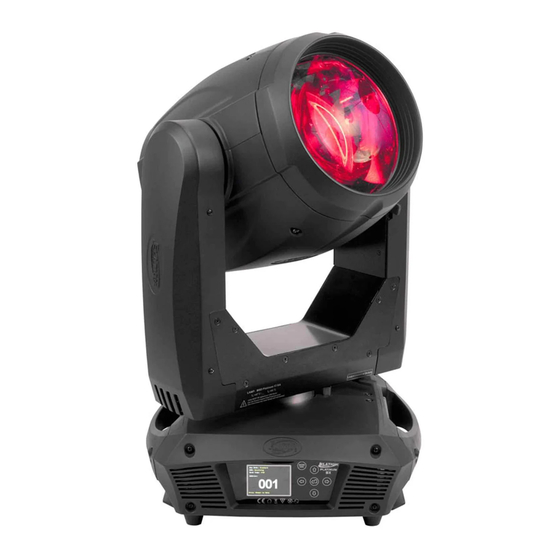

PLATINUM BX™
user manual



Advertisement

Table of Contents
loading

Related Manuals for Elation PLATINUM BX

Summary of Contents for Elation PLATINUM BX

  • Page 1 PLATINUM BX™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    General Information Warranty Safety Instructions General Guidelines Discharge Lamp Warning Fixture Overview Lamp Installation Instructions Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories PLATINUM BX™ User Manual Ver. 1...

  • Page 4: General Information

    G E N E R A L I N F O R M A T I O N INTRODUCTION Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The PLATINUM BX ™ has been designed to perform reliably for years when the guidelines in this booklet are followed.
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions

    Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. PLATINUM BX™ User Manual Ver. 1...

  • Page 8: General Guidelines

    Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PLATINUM BX™ User Manual Ver. 1...

  • Page 9: Discharge Lamp Warning

    R E P L A C E M E N T Please note that due to the nature of the Phillips™ Platinum 17 RA Lamp and the optical path of the Elation PLATINUM BX fixture, the lamp MUST BE replaced at 1,500 hours.

  • Page 10: Fixture Overview

    LCD Menu Function Display LEFT Button DOWN Button ENTER Button RIGHT Button MODE/ESC Button UP Button Lamp Access/Cover Panel RJ45 Input RJ45 Output 5pin DMX Input 5pin DMX Output powerCON Input powerCON Output Fuse PLATINUM BX™ User Manual Ver. 1...

  • Page 11: Lamp Installation Instructions

    R E P L A C E M E N T Please note that due to the nature of the Phillips™ Platinum 17 RA Lamp and the optical path of the Elation PLATINUM BX fixture, the lamp MUST BE replaced at 1,500 hours.
  • Page 12 UV Radiation exposure! LAMP INSTALLATION PROCEDURE 1. Place fixture on a flat surface and remove (3) screws marked “A”, “B”, and “C” and then remove rear cover plate to access the lamp. PLATINUM BX™ User Manual Ver. 1...
  • Page 13 . e l a t i o n l i g h t i n g . c o m LAMP INSTALLATION PROCEDURE - [continued] 2. Using two fingers, unlock the retention clips and then gently unseat the lamp from the retention bracket and move the lamp towards you. PLATINUM BX™ User Manual Ver. 1...
  • Page 14 . e l a t i o n l i g h t i n g . c o m LAMP INSTALLATION PROCEDURE - [continued] 3. Gently remove (2) Wires connected to spade terminals on base of lamp. PLATINUM BX™ User Manual Ver. 1...
  • Page 15 . e l a t i o n l i g h t i n g . c o m LAMP INSTALLATION PROCEDURE - [continued] 4. Gently remove the lamp from the fixture. PLATINUM BX™ User Manual Ver. 1...
  • Page 16 5. Insert new lamp into back of fixture and gently attach (2) Wires to spade terminals on the base of the lamp. 6. Gently position the new lamp into the retention bracket, making sure the lamp is seated correctly as it was before. PLATINUM BX™ User Manual Ver. 1...
  • Page 17 . e l a t i o n l i g h t i n g . c o m LAMP INSTALLATION PROCEDURE - [continued] 7. Lock both retention clips into place and make lamp is securely positioned. PLATINUM BX™ User Manual Ver. 1...
  • Page 18 . e l a t i o n l i g h t i n g . c o m LAMP INSTALLATION PROCEDURE - [continued] 8. Replace the rear cover plate and secure (3) screws marked “A”, “B”, and “C”. PLATINUM BX™ User Manual Ver. 1...
  • Page 19 Please remember the Phillips Platinum 17 RA Lamp is NOT a hot-restrike lamp ™ therefore, you must wait approximately 15 minutes before you can attempt to restrike the lamp once it has been turned off. PLATINUM BX™ User Manual Ver. 1...

  • Page 20: Fixture Installation

    10 times the weight of the fixture. (630 lbs / 286 kg) Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. PLATINUM BX™ User Manual Ver. 1...
  • Page 21 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. PLATINUM BX™ User Manual Ver. 1...
  • Page 22 Safety Cable to the fixture using the safety cable rigging point integrated in the base assembly. SECURING Regardless of the rigging option you choose for your PLATINUM BX ™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.

  • Page 23: Understanding Dmx

    1 to that fixture no matter where it is located in the DMX chain. The PLATINUM BX™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu.
  • Page 24 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the PLATINUM BX™ The diagram below illustrates a typical DMX-512 connection when the fixture is in the 22 Channel Extended Mode.
  • Page 25 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. PLATINUM BX™ User Manual Ver. 1...
  • Page 26 That means changing the settings of one channel will only affect the selected fixture. In the case of the PLATINUM BX™, when in the 22 Channel Extended Mode you should set the starting DMX address of the first unit to 1, the second unit to 23 (1 + 22), the third unit to 45 (23 + 22), and so on.

  • Page 27: Fixture Menu

    F I X T U R E M E N U ON-BOARD SYSTEM MENU The PLATINUM BX™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. LCD MENU CONTROL PANEL The control panel (see image below) located on back of the fixture allows you to access the main menu and make all necessary adjustments to the PLATINUM BX™.
  • Page 28 Initial Effect Position DMX Only DMX Only Select Signal Art-Net on IP2 Elect Art-Net IP02 Art-Net on IP10 Elect Art-Net IP010 Set Universe 000 - 255 Set Art-Net Universe Reset Default ON/OFF Passcode=XXX Passcode 011 PLATINUM BX™ User Manual Ver. 1...
  • Page 29 FUNCTION - Auto Program Define fixture mode (Master or Alone) for running Auto Programs. Select desired internal programs under “Select Program”, set the number of steps under “Edit Program”, and edit individual scenes under “Edit Scenes”. PLATINUM BX™ User Manual Ver. 1...
  • Page 30 Displays temperature of the fixture. INFORMATION - Ethernet IP Displays Ethernet IP address of the fixture. INFORMATION - Software Version Displays software version of the fixture. INFORMATION - Error Info Displays last 10 Error Records of the fixture. PLATINUM BX™ User Manual Ver. 1...
  • Page 31 When set to (7), the DMX address can be set between (1) and (255). When set to (8), the DMX address can be set between (256) and (511). 4. Using Channel 3 on the controller set the desired DMX address of the fixture. PLATINUM BX™ User Manual Ver. 1...
  • Page 32 PERSONALITY – Service Setting - Password Service Password - (050) NOTE: The Service Password MUST be entered in order to access the following menus: RDM PID, Ethernet IP, Ethernet IP Mask, Clear Err. Info, and DFLT Pow. LampOn. PLATINUM BX™ User Manual Ver. 1...
  • Page 33 To unlock, keep MODE/ESC button pressed for 3 seconds. PERSONALITY – Temperature C/F Define how fixture displays internal temperature (Celsius or Fahrenheit). PERSONALITY – Initial Status Create custom PAN/TILT and Effect settings and save as a custom Home Position. PLATINUM BX™ User Manual Ver. 1...
  • Page 34 100%. PAN and TILT functions will still operate if the fixture needs to be positioned to a flat clear surface. With the individual functions, you can focus the light on a flat surface (wall) and perform fine adjustments. PLATINUM BX™ User Manual Ver. 1...
  • Page 35 DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from – to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head. PLATINUM BX™ User Manual Ver. 1...
  • Page 36 MODE/ESC in order to return to the main menu. 2. Automatic Program Run “Function Mode”. ENTER to confirm. “Auto Program”. ENTER to confirm. elect “Master” or “Alone”. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM BX™ User Manual Ver. 1...
  • Page 37 5. Automatic Scene Recording “Edit Program”. ENTER to confirm. “Edit Scenes”. desired scene numbers. A maximum of 250 scenes can be programmed. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM BX™ User Manual Ver. 1...
  • Page 38 Auto Pro Part 1 is Program 2 Auto Pro Part 2 is Program 3 Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: PLATINUM BX™ User Manual Ver. 1...

  • Page 39: Dmx Channel Functions And Values

    128-189 *Clockwise Color Wheel Rotation from FAST to SLOW 190-193 NO Rotation 194-255 *Counterclockwise Color Wheel Rotation from SLOW to FAST COLOR WHEEL FINE ADJUSTMENT 0-255 FINE Adjustment of Color Wheel to Any Position PLATINUM BX™ User Manual Ver. 1...
  • Page 40 Gobo Indexing 128-189 *Clockwise Gobo Rotation from FAST TO SLOW 190-193 NO Rotation 194-255 *Counterclockwise Gobo Rotation from SLOW to FAST ROTATING GOBOS, FINE INDEX ROTATION [GOBO WHEEL 1] 0-255 Gobo Rotation FINE Indexing PLATINUM BX™ User Manual Ver. 1...
  • Page 41 *Clockwise Gobo Wheel Rotation from FAST to SLOW 222-223 NO Rotation 224-255 *Counterclockwise Gobo Wheel Rotation from SLOW to FAST STATIC / FIXED GOBOS, FINE INDEXING [GOBO WHEEL 2] 0-255 Gobo Rotation FINE Indexing PLATINUM BX™ User Manual Ver. 1...
  • Page 42 Random Strobe Effect SLOW to FAST 224-255 NO Function (Shutter OPEN) DIMMER INTENSITY 0-255 Intensity 0 to 100% DIMMER INTENSITY FINE 0-255 Dimmer Intensity FINE Adjustment FROST 0-127 DISABLE Frost 128-255 ENABLE Frost 100% PLATINUM BX™ User Manual Ver. 1...
  • Page 43 Internal Program 2 (Scene 9-16) 140-159 Internal Program 3 (Scene 17-24) 160-179 Internal Program 4 (Scene 25-32) 180-199 Internal Program 5 (Scene 33-40) 200-219 Internal Program 6 (Scene 41-48) 220-239 Internal Program 7 (Scene 49-56) 240-255 NO Function PLATINUM BX™ User Manual Ver. 1...

  • Page 44: Error Codes

    The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors. PLATINUM BX™ User Manual Ver. 1...
  • Page 45 This message will appear after the reset of the fixture reset if the magnetic-indexing circuit Frost Er malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). PLATINUM BX™ User Manual Ver. 1...

  • Page 46: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 47: Technical Specifications

    14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS CE | cETLus |IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM BX™ User Manual Ver. 1...
  • Page 48 . e l a t i o n l i g h t i n g . c o m Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM BX™ User Manual Ver. 1...

  • Page 49: Photometric Data

    Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM BX™ User Manual Ver. 1...

  • Page 50: Optional Accessories

    Road Case For Platinum BX™ EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) PLC3 3' (1m) powerCON PRO Link Cable CAT6PRO5 5’ (1.5m) CAT6 EtherCON Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available PLATINUM BX™ User Manual Ver. 1...
