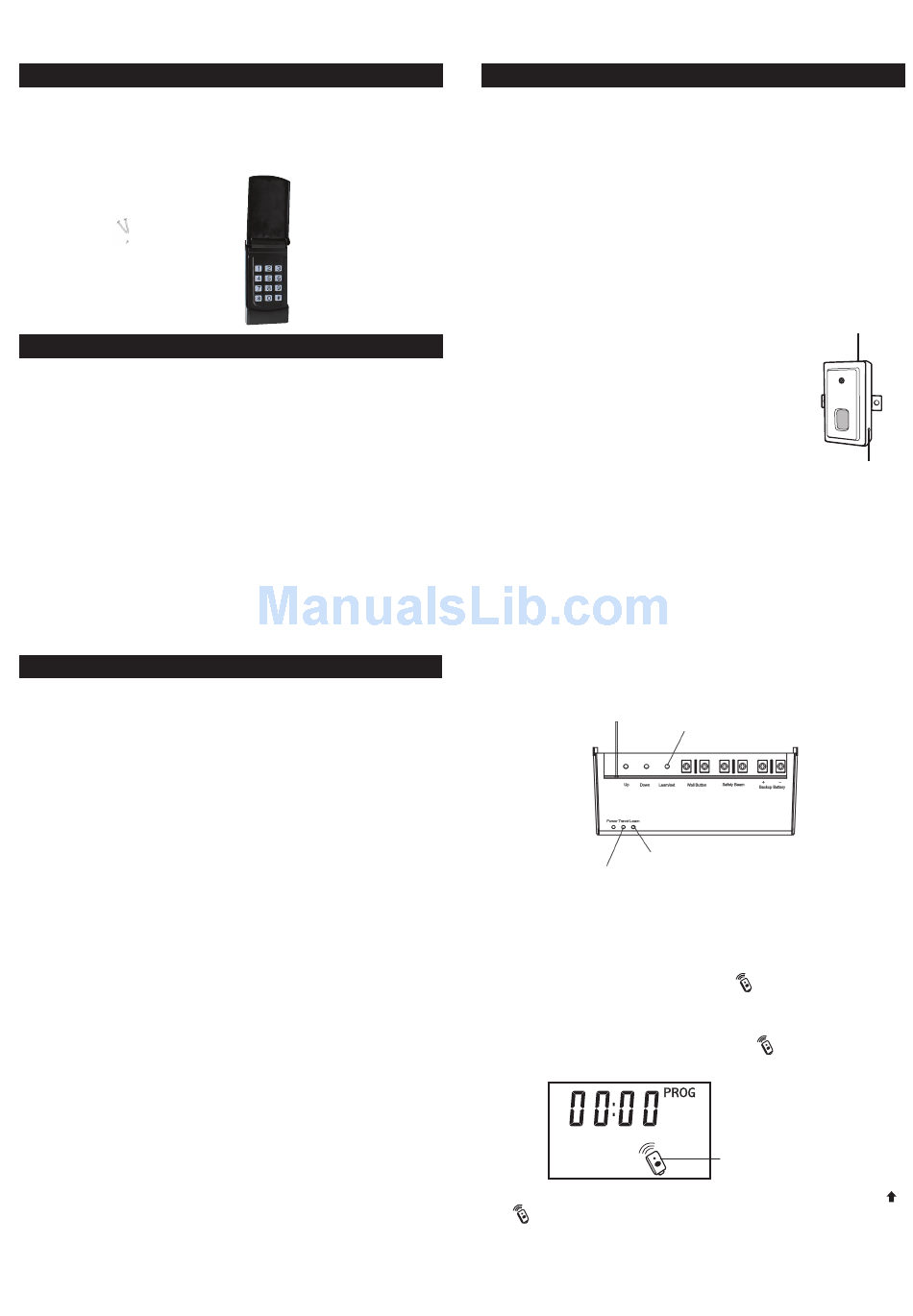

SkyLink KN-318 User Manual

Garage Door Remote Control
1. INTRODUCTION
Congratulations on your purchase of the Skylink
Control Model KN-318. The Model KN-318 works with the Skylink
Garage Door Receiver, such as Smart Button
Opener. In this package, you will find a keyless entry transmitter with
screws.
2 pcs M3.5 x 20 screws
2. OPERATING MODES
SINGLE DOOR ( FACTORY DEFAULT SETTING )
The KN-318 can operate single Skylink garage door openers, or single
garage door opener receiver Smart Button. This is the factory default
setting. If you plan to operate only one garage door opener or receiver,
proceed to Section 4 of this instructions, to program the keypad KN-318
to the receiver.
MULTIPLE DOORS
If you have multiple Skylink garage door openers, or Smart Button
receivers, you can also set it up to operate multiple doors, maximum up
to 4 doors. If you plan to operate multiple doors, please refer to Section
3 below to setup your KN-318 to Multiple-Door Operating Mode.
3. MULTIPLE DOORS OPERATION
ENABLE / DISABLE THE MULTIPLE-DOOR OPERATING MODE
Model KN-318 can operate multiple Skylink garage door openers or
multiple Smart Button Receivers. It can operate up to 4 receivers. To
setup the KN-318 to operate multiple garage door openers or receivers.
please follow the instructions below.
1. Enable the Multiple-Door Operating Mode by entering the current
password, then press [*]. Factory default password is [0000].
2. Press [9] [#], you will hear 2 beeps to confirm you have enabled the
Multiple-Door Operating Mode.
If you would like to disable the Multiple-Door Operating Mode, follow the
steps below:
1. Disable the Multiple-Door Operating Mode by entering the current
password, then press [*]. Factory Default password is [0000].
2. Press [0] [#], you will hear 2 beeps to confirm you have disabled the
Multiple-Door Operating Mode.
OPERATIONS
When you are in Multiple-Door Operating Mode, you can operate up to 4
garage door openers. You need to program the 4 unique signals to the
4 receivers or door openers you plan to operate.
To send the signal for door 1, enter [Password][#][1]
To send the signal for door 2, enter [Password][#][2]
To send the signal for door 3, enter [Password][#][3]
To send the signal for door 4, enter [Password][#][4]
You need to program these signals to the Skylink garage door openers
or Smart Button in order for the KN-318 to operate them properly.
Please refer to section 4 to program the KN-318 Keypad to these
receivers.
Model KN-318
Garage Door Remote
®
®
and EQ / IQ Garage Door
TM
Garage Door
Remote Control
4. PROGRAM A KEYPAD TO A GARAGE DOOR RECEIVER
To operate the door under Single Door Operating Mode, press [Pass-
word][#], factory default password is [0000].
To operate the door under Multiple Doors Operating Mode, press
[Password][#][Door Number], where [Door Number] can be 1, 2, 3, or 4.
Factory default password is [0000].
If the password is accepted, you will hear 3 beeps.
Before programming the keypad KN-318 to the garage door receiver, you
must decide which operating mode and which door you need to operate.
Follow the instructions below to program the keypad transmitter.
I
) PROGRAM KEYPAD TO SMART BUTTON
1. With the Smart Button connected on your
TM
existing wall button. The red light on the Smart
Button should flash after plugging in the power.
TM
If the red light on the Smart Button
slowly, that indicates it is in standby mode.
2. Press the learn button on the side of the Smart Button
3. Once the learn button is pressed, the red LED will
flash quickly. You may release the learn button.
4. Enter the default PIN [0000][#] (or [0000][#][Door
Number] for multiple door operation) within 5 seconds.
5. Once the keypad transmitter is programmed, the
red LED will flash slowly, in the same way as it
flashes in standby mode.
II
) PROGRAM KEYPAD TO EQ GARAGE DOOR OPENER
1. Press the "Learn" button on the EQ garage door opener, yellow LED
will flash for 30 seconds.
2. Within 30 seconds, activate the keypad transmitter. For example,
[0000][#] for single door operation, or [0000][#][Door Number] for
multiple door operation.
3. Once the keypad is programmed, the yellow LED will be off.
Learn and Set Button
LED (yellow)
LED (red)
III
) PROGRAM KEYPAD TO IQ GARAGE DOOR OPENER
1. Press and hold the PROG button on the LCD Wall Console for 10
seconds until the "PROG" icon appears on the display.
2. Press the PROG button again until the "
display.
3. Activate the keypad transmitter. For example, [0000][#] for single
door operation, or [0000][#][Door Number] for multiple door
operation. If a remote is programmed, the "
If additional remote needs to be programmed, press the up button "
the " " icon will flash again, you may program additional remotes.
TM
is flashing
TM
.
TM
Learn Button
" icon appears on the
" icon will stay on.
Remote Icon
",
