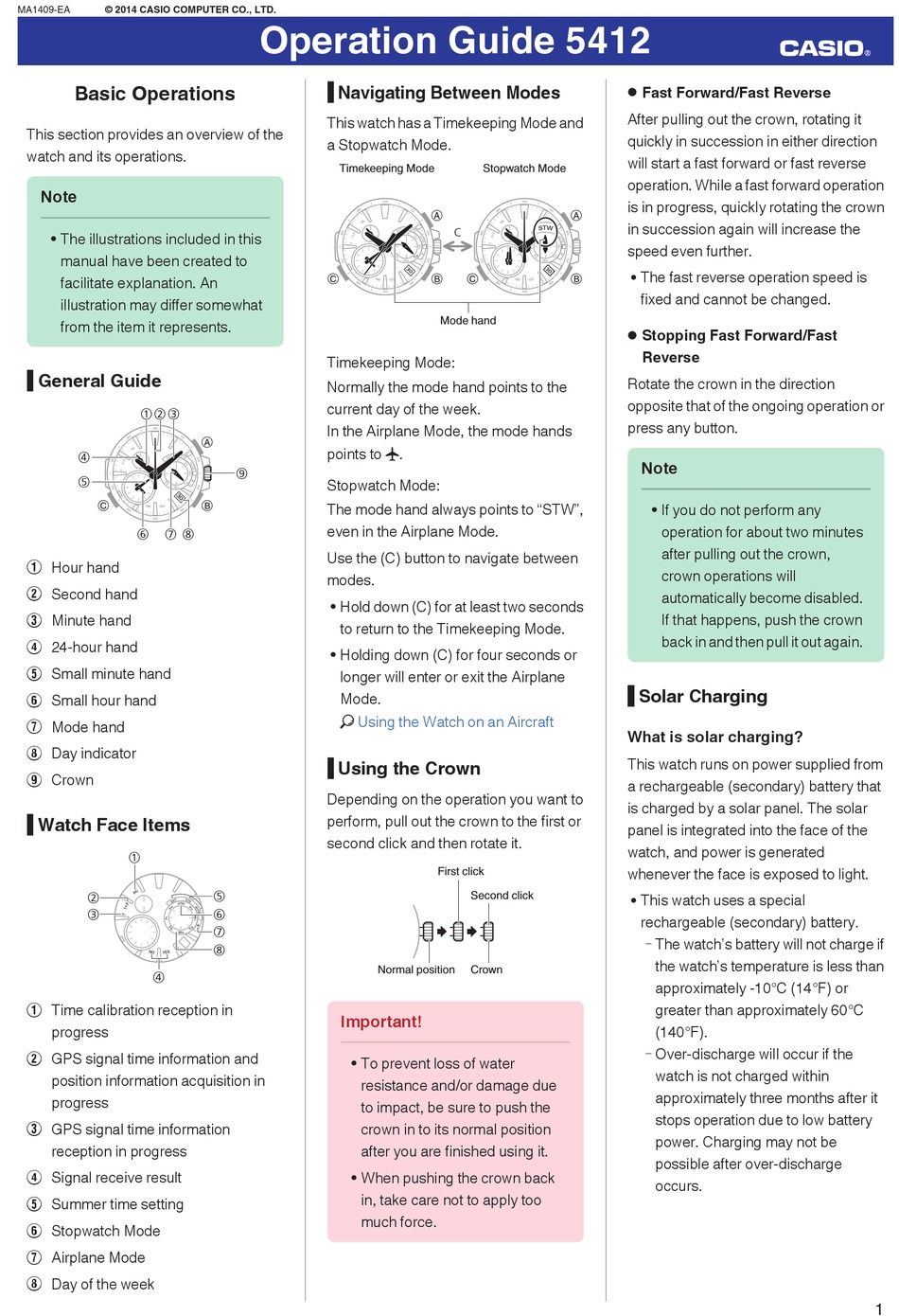

User Manual
© 2014 CASIO COMPUTER CO., LTD.
MA1409-EA
Basic Operations
This section provides an overview of the
watch and its operations.
Note
The illustrations included in this
●
manual have been created to
facilitate explanation. An
illustration may differ somewhat
from the item it represents.
General Guide
A Hour hand
B Second hand
C Minute hand
D 24-hour hand
E Small minute hand
F Small hour hand
G Mode hand
H Day indicator
I Crown
Watch Face Items
A Time calibration reception in
progress
B GPS signal time information and
position information acquisition in
progress
C GPS signal time information
reception in progress
D Signal receive result
E Summer time setting
F Stopwatch Mode
G Airplane Mode
H Day of the week
Operation Guide 5412
Navigating Between Modes
This watch has a Timekeeping Mode and
a Stopwatch Mode.
Timekeeping Mode
Timekeeping Mode:
Normally the mode hand points to the
current day of the week.
In the Airplane Mode, the mode hands
points to h.
Stopwatch Mode:
The mode hand always points to "STW",
even in the Airplane Mode.
Use the (C) button to navigate between
modes.
Hold down (C) for at least two seconds
●
to return to the Timekeeping Mode.
Holding down (C) for four seconds or
●
longer will enter or exit the Airplane
Mode.
Using the Watch on an Aircraft
l
Using the Crown
Depending on the operation you want to
perform, pull out the crown to the first or
second click and then rotate it.
Normal position
Important!
To prevent loss of water
●
resistance and/or damage due
to impact, be sure to push the
crown in to its normal position
after you are finished using it.
When pushing the crown back
●
in, take care not to apply too
much force.
Stopwatch Mode
Mode hand
First click
Second click
Crown
Fast Forward/Fast Reverse
●
After pulling out the crown, rotating it
quickly in succession in either direction
will start a fast forward or fast reverse
operation. While a fast forward operation
is in progress, quickly rotating the crown
in succession again will increase the
speed even further.
The fast reverse operation speed is
●
fixed and cannot be changed.
Stopping Fast Forward/Fast
●
Reverse
Rotate the crown in the direction
opposite that of the ongoing operation or
press any button.
Note
If you do not perform any
●
operation for about two minutes
after pulling out the crown,
crown operations will
automatically become disabled.
If that happens, push the crown
back in and then pull it out again.
Solar Charging
What is solar charging?
This watch runs on power supplied from
a rechargeable (secondary) battery that
is charged by a solar panel. The solar
panel is integrated into the face of the
watch, and power is generated
whenever the face is exposed to light.
This watch uses a special
●
rechargeable (secondary) battery.
The watch's battery will not charge if
ー
the watch's temperature is less than
approximately -10°C (14°F) or
greater than approximately 60°C
(140°F).
Over-discharge will occur if the
ー
watch is not charged within
approximately three months after it
stops operation due to low battery
power. Charging may not be
possible after over-discharge
occurs.
1
