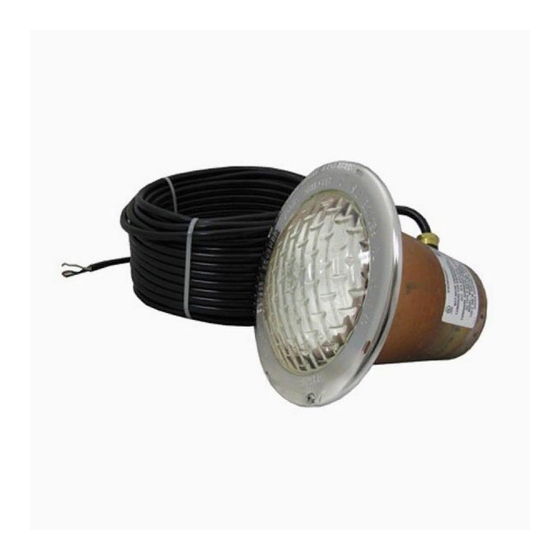

SWIMQUIP BRAND
UNDERWATER POOL LIGHTS AND NICHES
FOR 12 and 120 Volt Light Fixtures
O
W N E
R '
S
M
A
N
U
A
L
INSTALLATION, OPERATION & PARTS
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
North America: 800-752-0183, FAX 800-582-2217
International: 414-728-5551, FAX: 414-728-4461, TELEX: ITT 4970245
Union City, TN • Delavan, WI • Mississauga, Ont • Murrieta, CA
S344 (Rev. 5/6/99)
©1999, Sta-Rite Industries, Inc. Printed in U.S.A.
Advertisement
Related Manuals for STA-RITE SWIMQUIP series
Summary of Contents for STA-RITE SWIMQUIP series
- Page 1 293 Wright Street, Delavan, WI 53115 North America: 800-752-0183, FAX 800-582-2217 International: 414-728-5551, FAX: 414-728-4461, TELEX: ITT 4970245 Union City, TN • Delavan, WI • Mississauga, Ont • Murrieta, CA S344 (Rev. 5/6/99) ©1999, Sta-Rite Industries, Inc. Printed in U.S.A.
- Page 2 READ AND FOLLOW SAFETY INSTRUCTIONS! IMPORTANT SAFETY This is the safety alert symbol. When you see this sym- bol on your system or in this manual, look for one of INSTRUCTIONS the following signal words and be alert to the potential for personal injury.
-
Page 3: General Notes
GENERAL NOTES 1. Install a GFCI as required by the National Electric Code and the Canadian Electrical Code. 2. All wiring should be done by a licensed electrical con- tractor in accordance with local electrical codes and as required by the National Electric Code or the Canadian Electrical Code, as applicable. - Page 4 • The light niche is formed stainless steel with 3/4” 22-1/2° (19.05mm) or 1” (25.4 mm) I.P.S. stainless steel conduit 9-1/4" (235mm) Dia. Circle for connection and a cast bronze mounting ring. The mount- 45° Typ. mounting ing ring has a locking lug at the bottom and a tapped boss screws for a vandal proof securing screw at the top.
- Page 5 Niche Installation in Fiberglass Pools WITH Vinyl Liner: Pool Wall 1. Place one gasket on back side of niche making sure Vinyl holes are aligned properly. Hold gasket in place with Liner masking tape. 2. Slip niche through panel hole. Slip back ring over niche, aligning the two pre-mounting holes with niche pre- mounting lugs.
- Page 6 LIGHT HOUSING – ALL INSTALLATIONS Risk of electrical shock, cuts and burns. Make sure circuit breaker is off before re- lamping. Avoid direct impacts on glass lens. Do not install damaged or broken lens. Instead, replace lens. 1333 1094 @@@@...
- Page 7 Repair Parts – Light Niche for Vinyl liner Pools Niche #05068-0121 for 3/4" Conduit, Niche #05068-0171 for 1" Conduit Part Part Description Back up Ring 05057-0343 Niche Only (3/4” Conduit) 05068-0122 Niche Only (1” Conduit) 05068-0172 Rubber Gasket 05057-0667 Niche Face Ring WC3-53SS 1/4-20x5/8”...
- Page 8 Retain Warranty Certificate (upper portion) in a safe and convenient location for your records. DETACH HERE: Fill out bottom portion completely and mail within 10 days of purchase/installation to: Sta-Rite, Attn: Warranty Dept., 293 Wright St., Delavan, WI 53115 Warranty Registration Card...
