- Page 1 875 Dynasty MAINBOARD MANUAL P4-875P MAX DOC No.: M03207 Rev. : A2 Date : 6, 2003 Part No. : 25-11242-02...
- Page 2 Notice Handling Precautions Warning: 1. Static electricity may cause damage to the integrated circuits on the motherboard. Before handling any motherboard outside of its protective packaging, ensure that there is no static electric charge in your body. 2. There is a danger of explosion if the battery is incorrectly replaced.
-
Page 3: Table Of Contents
Chapter 1 Overview Package Checklist ................1-2 P4-875P MAX ................1-3 Main Features ................1-4 FIC Unique Innovation for Users (NOVUS) - Enhanced Mainboard Features and System Support ....1-6 Chapter 2 Installation Procedures 1). Set System Jumpers ..............2-2 Clear CMOS .............. - Page 4 875 Dynasty Mainboard Manual Audio I/O Jacks ..............2-18 Front Audio Connector ............. 2-18 5.1 Audio Channel Feature ..........2-19 Universal Serial Bus Connectors ........2-20 Chapter 3 BIOS Setup CMOS Setup Utility ............... 3-1 Standard CMOS Setup ..............3-2 Advanced BIOS Features ..............
-
Page 5: Chapter 1 Overview
Chapter 1 Overview Overview The new ATX, 478-pin 1stMainboard supports a full range of the latest ® generation Intel Pentium 4 processors. The leading edge Intel chipset ® ® ® was designed for coworking with Pentium 4 (up to 3.0 GHz) in the 478-pin ®... -
Page 6: Package Checklist
875 Dynasty Mainboard Manual Package Checklist If you discover any item below was damaged or lost, please contact your vendor. NOTE: lst Utilities CD that contains patch files, onboard video/au- dio chip drivers, related online help and other useful information can be found in your mainboard package. -

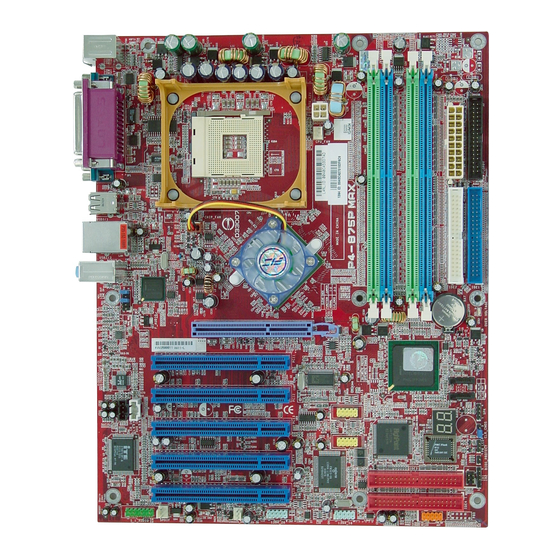

Page 7: P4-875P Max
Overview P4-875P MAX 1 - 3... -
Page 8: Main Features
875 Dynasty Mainboard Manual Main Features Pentium ® 2.26 to 2.8 GHz (FSB 533) and up* 2.4 to 3.0 GHz (FSB 800) and up* (*: not tested yet) Chipset North Bridge: Intel 875P ® South Bridge: Intel ICH5R ® Memory 4 memory sockets : support 184-pin DDR 333/ 400 memory size totally upto 4 GBz... - Page 9 Overview RAID (IDE) Connections 2 ports controlled by HighPoint 372 RAID function ® Level 0, 1, 0+1 up to 4 devices Audio Features Realtek ALC650 controller AC97 2.2 compliant LINE_IN, LINE_OUT, MICROPHONE_IN Jack 5.1 audio channel A73 audio bracket with cable (optional) front audio pinheaders I/O Ports 2 IDE connectors -...
-
Page 10: Fic Unique Innovation For Users (Novus) - Enhanced Mainboard Features And System Support
875 Dynasty Mainboard Manual FIC Unique Innovation for Users (NOVUS) - Enhanced Mainboard Features and System Support LogoGenie A user friendly GUI supporting Windows 95/98SE (not Windows 2000/ NT/ME/XP), LogoGenie allows you to customize, create or select a Logo which will be displayed when the system is booting. -
Page 11: Chapter 2 Installation Procedures
Installation Procedures Chapter 2 Installation Procedures The mainboard has several user-adjustable jumpers on the board that allow you to configure your system to suit your requirements. This chapter contains information on the various jumper settings on your mainboard. To set up your computer, you must complete the following steps: Step 1 - Set system jumpers Step 2 -... -
Page 12: Set System Jumpers
875 Dynasty Mainboard Manual 1). Set System Jumpers Jumpers are used to select the operation modes for your system. Some jump- ers on the board have three metal pins with each pin representing a different function. A 1 is written besides pin 1 on jumpers with three pins. To set a jumper, a black cap containing metal contacts is placed over the jumper pin/s according to the required configuration. -
Page 13: Bios Protect
Installation Procedures BIOS Protect The jumper helps users to prevent the 64K boot block table area in the BIOS ROM from being overwritten by mistake. 2 - 3... -
Page 14: Install Memory Modules
875 Dynasty Mainboard Manual 2). Install Memory Modules 1. Locate DDR DIMM sockets on the mainboard. 2. Install DDR DIMM straight down into the socket 1 using both hands, then socket 2, and so forth. 3. The clip on both ends of the socket will close up to hold the DDR DIMM in place when the DDR DIMM reaches the socket bottom. -
Page 15: Install The Cpu
Installation Procedures 3). Install the CPU The mainboard has built-in Switching Voltage Regulator to support CPU Vcore autodetection. That is, It has the ability to detect and recognize the CPU volt- age, clock, ratio and enables users to set up the CPU frequency from the BIOS Setup Screen. -
Page 16: Connect Atx Power
875 Dynasty Mainboard Manual Affix the CPU by pressing the lever downward and locking it beside the socket. 3. Place the fan with heatsink on the CPU top and press down two plastic clips to hook up with the holes on the retention module on two sides. -
Page 17: Install Expansion Cards
Installation Procedures NOTE: Users The CPU installing procedures should be: 1. Insert the CPU (with its fansink and retention module) on the socket. 2. Connect the 4-pin plug of the power supply 3. Connect the 20-pin plug of the power supply. To remove the processor, please do it in reverse order. - Page 18 875 Dynasty Mainboard Manual 1. Select an available expansion slot. 2. Remove the corresponding slot cover from the computer chassis. Un- screw the mounting screw that secures the slot cover and pull the slot cover out from the computer chassis. Keep the slot cover mounting screw nearby. 3.
-
Page 19: Connect Devices
Installation Procedures 5). Connect Devices Floppy Diskette Drive Connector This connector provides the connection with your floppy disk drive. Insert the floppy ribbon cable (below) onto the floppy connector. The colored stripe (indicated by the arrow head, right) of the ribbon cable must be the same side with the Pin 1. -
Page 20: Fan Connectors
875 Dynasty Mainboard Manual Assume that users want to install their operating systems in a brand new hard drive that connected to IDE3 connec- tor of the board. Press the key Ctrl and H during booting to enter the BIOS utility and set each hard drive level. -
Page 21: Power Connectors
Installation Procedures Power Connectors The 20-pin male block connector is connected to the ATX power supply. The 4-pin male block connector is for the ATX_12V power use. All two connectors are linked with your ATX power supply. The plug from the power supply will only insert in one orientation because of the different hole sizes. -
Page 22: Spdif Out Connector
875 Dynasty Mainboard Manual CAUTION: Improper orientation of SPDIF connection may cause damage of your device. SPDIF Out Connector The mainboard equipped one 1x3 pinheader. It is used for SPDIF digital audio output. Debug LED Display Connector The mainboard has one optional debug LED display feature (one is an 80 Port Debug 7-segment LED display, the other is a pinheader for its display device.) The above is an 80 Port Debug 7-segment LED display. -
Page 23: Front Panel Block, Power Led, Ir, And Speaker Connector
Installation Procedures Front Panel Block, Power LED, IR, and Speaker Connector This block connector includes the connectors for linking with Power LED (3- pin), HDD LED, power button, power/sleep/message waiting button, reset buttonon the front panel of the system case. Please identify polarities of plug wires for the case speaker and LEDs. -
Page 24: Serial Ata Connectors
875 Dynasty Mainboard Manual (4) Power Button is connected with power button. Push this switch allows the system to be turned on and off rather than using the power supply button. IR is a pinheader that is used for linking with your ID device to allow transmis- sion of data to another system that also supports the IR feature. -
Page 25: Cd Audio-In Connector
Installation Procedures CD Audio-In Connectors The connectors, CD_IN and AUX_IN, are for CD-ROM drive audio analog input use. 1394 Connectors The 2 optional 1394 pinheaders on the board provides you with two connec- tions with the peripherals which own 1394 connectors by an optional bracket with cable (see the figure below). -
Page 26: Ps/2 Keyboard And Mouse Connector
875 Dynasty Mainboard Manual PS/2 Keyboard and Mouse Connector These two 6-pin female (PS/2 keyboard is purple color and PS/2 mouse is green color) connectors are used for your PS/2 keyboard and PS/2 mouse. RJ45 LAN Connector The LAN (RJ45 port) jack is used for the LAN cable plug. 2 - 16... -
Page 27: Serial Port Connectors
Installation Procedures Serial Port Connectors COM1/2 (9-pin D-sub male connector with teal color) allow you to connect with your devices that use serial ports, such as a serial mouse or an external modem. Printer Connector This 25-pin D-Sub female burgundy-colored connector is attached to your printer. -
Page 28: 875 Dynasty Mainboard Manual
875 Dynasty Mainboard Manual Audio I/O Jacks LINE_OUT (lime) can be connected to headphones or preferably powered speakers. LINE_IN (light blue) allows tape players or other audio sources to be recorded by your computer or played through the LINE_OUT. MIC_IN (pink) allows microphones to be connected for audio input. -
Page 29: Audio Channel Feature
Installation Procedures 5.1 Audio Channel Feature The 5_1_AUDIO sound feature are offered via the pinheaders with an optional A73 bracket with ribbon cable. The pinheaders pin assignments are shown below left. When use the daughter board, plug in the LINE_OUT jack for the front speaker audio output (right and left). -
Page 30: Universal Serial Bus Connectors
875 Dynasty Mainboard Manual Universal Serial Bus Connectors The mainbaord have eight USB ports; four USB black jacks that integrated on the edge of the board, the other four USB ports on the board. They allows uses to attach with USB devices either from rear or front panels. The USB cabe that comes with your mainboard is used to connecting between the USB pinheaders and rear panel. -
Page 31: Chapter 3 Bios Setup
BIOS Setup Chapter 3 BIOS Setup The mainboard comes with the chip that Award BIOS that contains the ROM Setup information of your system. (This chip serves as an interface between the processor and the rest of the mainboard components.) This section ex- plains the information contained in the Setup program and tells you how to modify the settings according to your system configuration. -
Page 32: Standard Cmos Setup
875 Dynasty Mainboard Manual Standard CMOS Setup The Standard CMOS Setup screen is displayed above. Each item may have one or more option settings. The system BIOS automatically detects memory size, thus no changes are necessary. Use the arrow keys to highlight the item and then use PgUp or PgDn keys to select the value you want in each item. - Page 33 BIOS Setup Hard Disks This field records the specifications for all non-SCSI hard drives installed in the system. The onboard PCI IDE connectors provide Primary and Sec- ondary channels for connecting up to four IDE hard disks or other IDE devices.
-
Page 34: Advanced Bios Features
875 Dynasty Mainboard Manual Advanced BIOS Features Hard Disk Boot Priority This feature will auto detect all hard disks of bootable device on the system. It also allows users to select hard disk device booting priority. Virus Warning This feature starts the virus scan tool to detect if boot virus in boot sector of the first hard disk drive when booting up. - Page 35 BIOS Setup First/Second/Third Boot Device This feature allows user to select the boot device priority. The options are: Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-FDD, USB-ZIP, USB- CDROM, USB-HDD, LAN, Disabled. Boot Other Device This feature allows user to select the boot device priority. The options are: Enabled, Disabled.
- Page 36 875 Dynasty Mainboard Manual Typematic Delay (Msec) This feature is available only if the item, Typematic Rate Setting, is set at Enabled. Sets the delay time before a character is repeated. The options are: 250, 500, 750, 1000 millisecond. Security Option Allows to set the security level of the system.The options: Setup, System.
- Page 37 BIOS Setup BIOS Guardian and Reflash BIOS BIOS Guardian by default is enabled, thus effectively acts as a fire- wall against viruses that can attack the BIOS while the system is running. It must be disabled before reflash BIOS. The steps below show you how to off and on BIOS Guardian when reflash BIOS: 1.
-
Page 38: Advanced Chipset Features
875 Dynasty Mainboard Manual Advanced Chipset Features DRAM Timing Selectable This feature allows user to select the way to set DRAM timing. The options are: Manual, By SPD. CAS Latency Time This feature allows user to select the CAS latency time, when any SDRAM DIMM installed. - Page 39 BIOS Setup System BIOS Cacheable Setting at Enabled will allow the caching of the BIOS ROM F0000H-FFFFFH, resulting in better system performance. It may cause system error when some programd try to access the memory area. The options are: Disabled, Enabled. Video BIOS Cacheable Setting at Enabled will allow the caching of the video BIOS ROM at C0000H- C7FFFH, resulting in better video performance.
-
Page 40: Integrated Peripherals
875 Dynasty Mainboard Manual Integrated Peripherals OnChip IDE Device IDE HDD Block Mode When enabled, the system executes read/write requests to hard disk in block mode. The options are: Enabled, Disabled. IDE DMA trasfer access This item allows users to disable the IDE DMA transfer access. The options are: Enabled, Disabled. - Page 41 BIOS Setup On-Chip Secondary PCI IDE When enabled, it allows you to use the onboard secondary PCI IDE. The options are: Enabled, Disabled. IDE Secondary Master/Slave PIO Allows an automatic or a manual configuration of the PCI secondary IDE hard drive (master/slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.
- Page 42 875 Dynasty Mainboard Manual Onboard Device USB Controller Disable this option if you are not using the onboard USB 1.1 and USB 2.0 feature. The options are: Disabled, Enabled. USB 2.0 Controller It allows users to on or off EHCI controller. If BIOS has high speed USB built in, the feature will be on automatically if such devices attached.
- Page 43 BIOS Setup SuperIO Device PWRON After PWR-Fail When the system is shut down owing to the power failure, the system will not be back to power on by itself. This feature allows you to set the system back to which power status of the system when the system power is resumed.
-
Page 44: Power Management Setup
875 Dynasty Mainboard Manual Power Management Setup ACPI Function This item allows you to disable the ACPI function. The options are: Enabled, Disabled. ACPI Suspend Type This item allows you to select suspend mode when the system in ACPI mode. The options are: S1 (POS), S3 (PTR), S1&S3. Run VGABIOS if S3 Resume This feature allows you to decide the way if VGA BIOS should be called when the system resumes from S3 state if the above feature is set at S3... - Page 45 BIOS Setup Video Off Method The option Blank Screen allows the BIOS to blank off screen display by turning off the red-green-blue signals. The option V/H SYNC+Blank al- lows the BIOS to blank off screen display by turning off the V-Sync and H- Sync signals sent from add-on VGA card.
- Page 46 875 Dynasty Mainboard Manual Wake-Up by PCI card When set at Enabled, any PCI-PM event awakes the system from a PCI-PM controlled state. The options are Disabled, Enabled. Power On by Ring An incoming call via modem awakes the system from its soft-off mode. The options are Disabled, Enabled.
- Page 47 BIOS Setup Primary IDE 1 When the primary slave HDD is working, the system timer will be reloaded and the system will not be into the suspend mode. The options are: Disabled, Enabled. Secondary IDE 0 When the secondary master HDD is working, the system timer will be reloaded and the system will not be into the suspend mode.
-
Page 48: Pnp/Pci Configurations
875 Dynasty Mainboard Manual PnP/PCI Configurations Reset Configuration Data Enabling it to reset the system Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on card and the system reconfiguration has caused such a serious conflict that the operat- ing system can not boot. -
Page 49: Pc Health Status
BIOS Setup INT Pin 1/2/3/4/5/6/7/8 Assignment This feature allows you to assign the PCI IRQ numbers for PCI slots. Selecting the default, Auto, allows the PCI controller to automatically allo- cate the IRQ numbers. The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15. PC Health Status Shutdown Temperature This feature helps to shutdown the system when the system temperature... -
Page 50: Frequency/Voltage Control
875 Dynasty Mainboard Manual Frequency/Voltage Control CPU Speed Detected, CPU Clock, CPU Clock Ratio, CPU Clock cur- rent is, DRAM Speed, AGP/PCI BUS Speed, PCI BIOS Speed These features allow users to set the supported data or report to your about some devices, such as CPU and memory, current status. -
Page 51: Load Fail-Safe Defaults
BIOS Setup CPU Voltage Regulator This item allows you to set the CPU Vcore voltage. Options: 1.450V to 1.625 V in 0.025V increments. We recommend that you leave this at the default value (with * mark). AGP Voltage Regulator This item allows you to set the AGP slot voltage. Options: 1.5V to 1.8V in 0.1V increments. -
Page 52: Save And Exit Setup
875 Dynasty Mainboard Manual Under the BIOS Feature Setup, if Setup is selected under the Security Option field and the Supervisor/User Password is enabled, you will be prompted pass- word every time you try to enter the CMOS Setup Utility. If System is selected and the Supervisor/User Password is enabled, you will be requested to enter the Password every time when you reboot the system or enter the CMOS Setup utility. - Page 53 875 Dynasty ® Pentium 4 with Part Number: 25-11242-41...
- Page 54 ynasty EZ Guide Intel 875 Series ium 4 with NOTE: The information in this document are subject to change without fur- ther notice.
- Page 55 Package Checklist þ þ þ Mainboard Manual 875 Dynasty EZ Guide þ þ þ FDD cable Drivers CD ATA-100 cable þ þ I/O shielding USB cable Serial ATA cable (optional) 1394 bracket with cable (optional) A73 audio bracket with cable (optional) Before Start Warning: 1.
- Page 56 Step 1 - Install CPU 1. Swing the lever upword to 90 degree. 2. Install the CPU and make sure the the pin 1 orientation by aligning the socket corner marking with the socket corner closest to the lever tip. Do not insert the CPU by force.
- Page 57 Step 2 - Install Memory Module Step 2 - Install Memory Module 1. Locate DDR DIMM sockets on the mainboard. 2. Install DDR DIMM straight down into the socket 1 using both hands, then socket 2, and so forth. 3. The clip on both ends of the socket will close up to hold the DDR DIMM in place when the DDR DIMM reaches the socket bottom.
- Page 58 Step 3 - Install Mainboard Warning: 1. Excessive torque may damage the mainboard. When using an electric screwdriver on the mainboard, make sure that the torque is set to the allowable range of 5.0 ~ 8.0kg/cm. 2. Be aware of the shape edges in the case while installing board.
- Page 59 Front and Rear Panel Note: The chassis might not be the same as yours. The specifica- tion here is only for reference. Generally, most cases are simi- lar.
-
Page 60: Floppy Drive
1. Locate floppy drive frame and storage on the chassis. 2. Place the drive from the front panel side into the frame. 3. Affix the drive on the frame by screws. 4. Connect the floppy cable and power cable. http://www.fic.com.tw... - Page 61 Step 4 (continued) CD/DVD Drive 1. Locate CD/DVD drive frame and storage on the chassis. 2. Place the drive from the front panel side into the frame. 3. Affix the drive on the frame by screws. 4. Connect the IDE cable and power cable.
-
Page 62: Hard Disk Drive
Step 4 (continued) Hard Disk Drive 1. Locate hard drive frame and storage on the chassis. 2. Place the hard disk drive from the rear of the frame as the arroaw head indciated. 3. Affix the drive on the frame by screws. - Page 63 Step 5 - Install Add-on Card 1. Select an available expansion slot. 2. Remove the corresponding slot cover from the computer chassis. Un- screw the mounting screw that secures the slot cover and pull the slot cover out from the computer chassis. Keep the slot cover mounting screw nearby.
-
Page 64: Atx Power
Step 6 (continued) Use the USB bracket with cable to in- stall it on the rear panel. The pin defi- nitions of the USB pinheaders (posi- tions in the white rectangle in the be- low right figure) are shown in the table below: ATX Power The 20-hole power plug (top right) -
Page 65: Serial Ata
Step 6 (continued) Serial ATA Use the optional SATA cable to connect to the hard drives (lower one is a SATA data cable) and link with the power supply (upper one is a SATA power cable). The pin definitions of the SATA pinheaders (positions in the white rectangle in the right figure) are shown in the... - Page 66 Step 7 - Set System Jumpers Clear CMOS Warning: Please disconnect the ATX power cable before set this jumper and connect the ATX power cable after clear CMOS. BIOS Protect Enable The jumper is used to make sure that the system BIOS can boot up when it is enabled (default setting).
- Page 67 Step 8 - Assembly Case Place the cover on the chas- sis and secure the screws on the cover either by a screw driver or by fingers to tighten them up. Step 9 - Link Peripherals Link peripheral devices to your system via rear/front panel.
- Page 68 The item provides you with some information about the fea- tures and drivers. Reading it will be helpful on installation. Software Bundle The item provides you with some useful software tools to assist you to man- age your computer system. http://www.fic.com.tw...
