Dean SR114E Service & Parts Manual

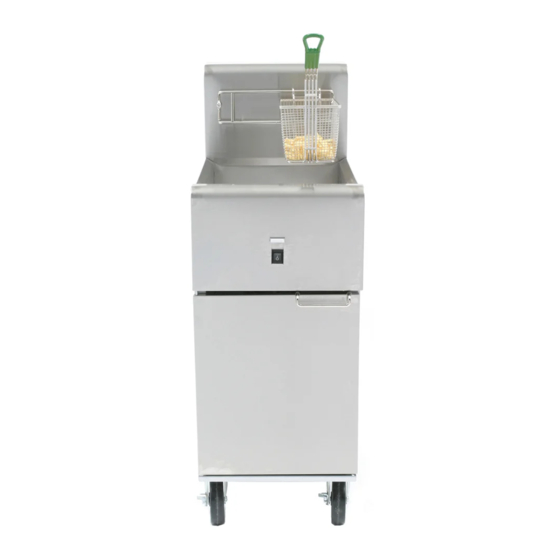

Super runner series electric fryers
Hide thumbs
Also See for SR114E:
- Installation & operation manual (12 pages) ,
- Installation & operation manual (12 pages)
Related Manuals for Dean SR114E
Summary of Contents for Dean SR114E

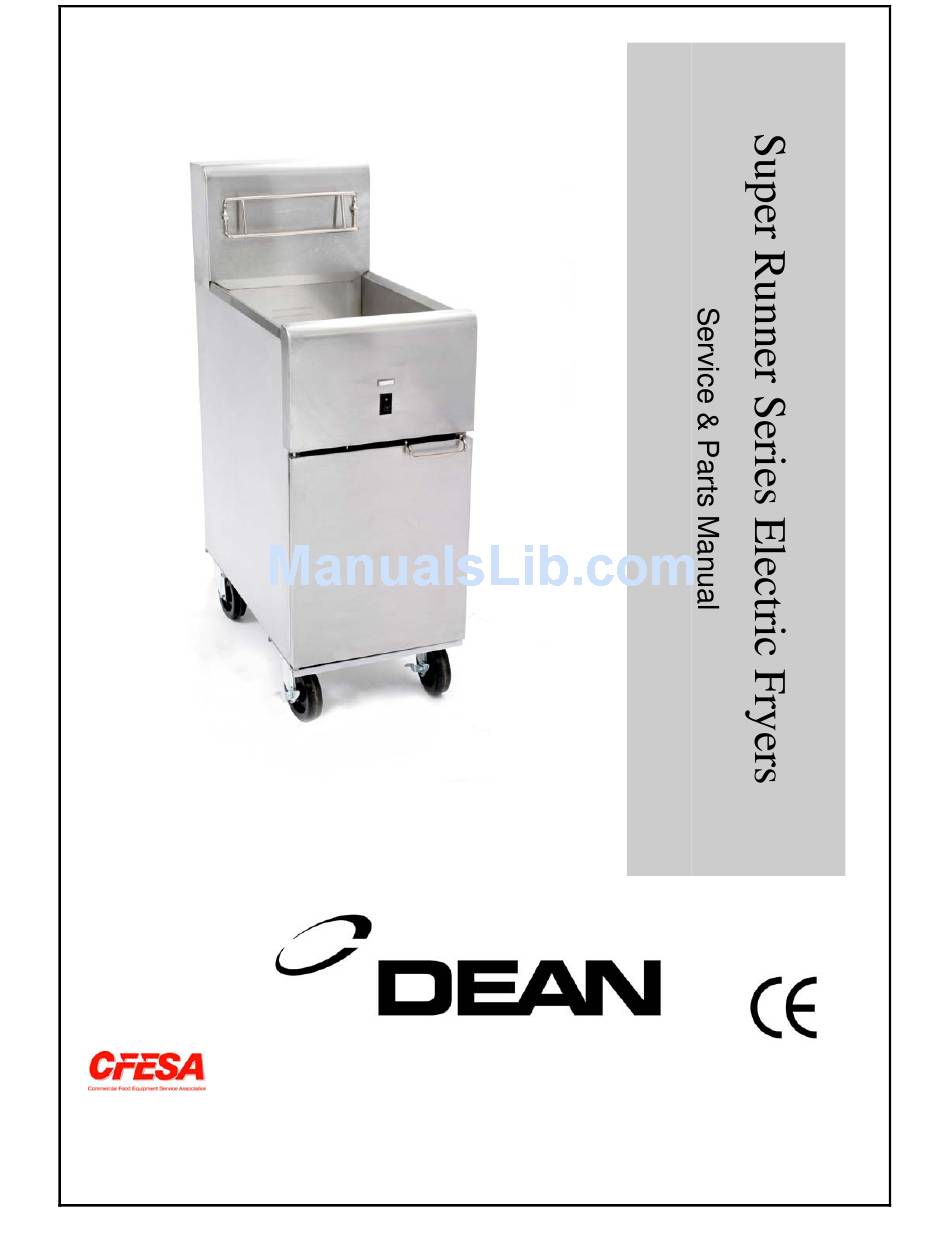

- Page 1 Super Runner Electric Series SR114E NON-CE & Dean, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. *8196109* 24-Hour Service Hotline 1-800-551-8633 FEB 2007...
- Page 2 DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
-
Page 3: Table Of Contents
Super Runner Series Electric Fryers TABLE OF CONTENTS Page CAUTIONARY STATEMENTS ELECTRICAL POWER SPECIFICATIONS CHAPTER 1 – SERVICE PROCEDURES General Calibrating the Temperature Control Knob Accessing the Control Box Electronics Replacing a Temperature Control Board Replacing a Transformer, Contactor or Relay Replacing a Power Switch or Indicator Lamp Replacing a Temperature Probe or High-Limit Thermostat Replacing a Heating Element... -
Page 4: Electrical Power Specifications
ELECTRICAL POWER SPECIFICATIONS Use copper wire ONLY, suitable for at least 170°F (75°C) MINIMUM WIRE AMPS WIRE MODEL VOLTAGE PHASE SIZE (per SERVICE leg) 14 kW Single (5.83) 14 kW (4.11) 14 kW Single (5.19) 14 kW (3.26) 14kW 230/400 (4.11) Interior View of the Control Box Fuse Block... -
Page 5: Chapter 1: Service Procedures
CHAPTER 1: SERVICE PROCEDURES General Before performing any maintenance on your Dean Super Runner Electric fryer, you must disconnect the electrical power supply. When electrical wires are disconnected, it is recommended that they be marked in such a way as to facilitate re-assembly. -
Page 6: Accessing The Control Box Electronics
Accessing the Control Box Electronics (Transformer, Contactor and Relay) 1. Unplug the power cord. 2. Open front door of cabinet and remove the two screws from the top of the control box cover to remove the cover. Replacing a Temperature Control Board 1. -
Page 7: Replacing A Power Switch Or Indicator Lamp
Replacing a Power Switch or Indicator Lamp 1. Unplug the power cord. 2. Remove the two screws on the bottom of the faceplate. Pull out and lift up slowly. Note that when lowering the faceplate, the door will lower and swing out to be set aside. 3. -
Page 8: Replacing A Heating Element
Replacing a Heating Element 1. Perform Procedure 1.7, Replace Temperature Probe, Steps 1-4. 2. Mark wires of the elements before disconnecting from the contactor to facilitate easy reassembly. Pull the wires through the conduit. 3. Remove element using an open-end wrench or other suitable tool to loosen the compression fitting. -
Page 9: Probe Resistance Chart
1.10 Probe Resistance Chart Use the chart below when testing temperature probes and probe circuits for proper operation. Probe Resistance Chart OHMS OHMS OHMS OHMS OHMS 1059 1204 1350 1493 1634 1070 1216 1361 1503 1644 1080 1226 1371 1514 1654 1091 1237... - Page 10 Problem Probable Causes Corrective Action B. If the circuitry in the fryer control system cannot determine the frypot temperature, the system will not allow the element to be energized B. One or more other components have Fryer does not heat. or will de-energize the element if it failed.
-
Page 11: Wiring Diagrams
1.12.1 Wiring Diagram SR114E Single Phase... - Page 12 1.12.2 Wiring Diagram SR114E 3 Phase...
- Page 13 1.12.3 Wiring Diagram SR114E WYE...
-
Page 14: Chapter 2: Parts List
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 2: PARTS LIST Accessories Item Part Number Description 803-0197 Fryer Friend 27” (Cleanout Rod) 803-0209 Brush, Frypot Cleaning 809-0171 Thumbscrew, ¼-20 X 1⅜-inch Basket Hanger 810-2793 Hanger, Basket 803-0019 Basket, Twin 803-0132 Basket Support Rack, Full Vat 826-0900 Kit, Chain Restraint for Casters 826-1095... -
Page 15: Cabinetry
Cabinetry 2.2.1 Back, Base, Casters, Sides, Fluecap, Top Cap and Frypot... - Page 16 Item Part Number Description 106-3528 Cabinet Assembly, Economy Electric SR114E 106-4419 Assembly, Heat Shield 200-5998 Channel, Base 200-8378 Brace, Cabinet Front 201-5802 Side, Cabinet Left 202-5802 Side, Cabinet Right 809-0117 Screw, 10-32 x 3/8 SLTD TR HD SS 809-0256 Nut, KEPS 10-32 HX ZP 809-0412 Screw, #10 –...
- Page 17 2.2.2 Door Assembly and Component Parts Item Part Number Description 106-3586 Door Assembly 106-4067 Pin Assembly, Door 809-0216 Pin, Hinge Cover & Door 810-0658 Retaining Ring (Unplated) 210-9491 Panel, Door 210-9544 Bracket, Door Hinge 809-0083 Rivet, Pop Al 1/8” Dia 809-0193 Washer, Flat ¼”...
-
Page 18: Control Box
Control Boxes 3-Phase Control Box Single Phase Control Box Item Part Number Description 106-3747 Control Box Assembly, Single Phase 106-3583 Control Box Assembly, 3 Phase 106-3748 Controller Assembly 802-2198 Label, Thermatron Dial 810-0387 Control Knob 200-8240 Box, Control 200-8369 Mount, Fuse Economy 807-0065 Block, Terminal Field 807-0070... -
Page 19: Electronics Components, Elements And Cable
Electronic Components, Elements and Cable Item Part Number Description 807-4036 Switch 807-1525 Light, White 24V Front Panel Indicator 807-3559 High-Limit, 435T w/ Manual Reset 813-0617 Probe Fitting, 3/16” CC x ¼” NPT Compression Elements 807-4031 Element, 208V / 14KW 807-4331 Element, 220V / 14KW 807-4072 Element, 240V / 14KW... - Page 20 Dean, 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 PRINTED IN THE UNITED STATES SERVICE HOTLINE 819-6109 1-800-551-8633 FEB 2007...
