FUNAI ZV427FX4 Quick Start Manual

4.
Prepare
1 After all the connections are complete,
connect the AC power cord.
2 Insert two Size AA (1.5V).
Press [ ] to turn On the unit.
3
Turn On your TV.
4
Press the button on the TV's remote control
5
that accesses the external input channel
repeatedly until you see "Initial Setup"
menu. (Please refer to your TV's owner's
manual.)
Initial Setup
OSD Language
English
Français
Español
Select the language for Setup display.
If the TV is connected by an HDMI cable,
it may take a while for the "Initial Setup"
menu to come up.
6 Use [K/L] to select your desired
language, then press [OK].
7 Use [K/L] to select calendar or time,
then press [OK].
Clock Setting
- - - / - - / - - - - ( - - - )
- - : - - - -
Use [s / B] to select an item to set, and
8
use [K/L] to select the contents to suit
your preference, then press [OK] when you
finish setting all the contents.
Clock Setting
JAN / 24 / 2013 ( THU )
12 : 00 AM
Your setting will be activated.
The clock starts counting when you press [OK].
FUNAI is a registered trademark of Funai Electric Co., Ltd. and may not be
used in any way without the express written consent of Funai.
5.
Record(DVD)
This Recorder only record on DVD-RW/-R,
cannot record on DVD+RW/+R.
Press [DVD] first.
Insert a recordable disc (refer to page
1
24 in the Owner's Manual on how to
insert a disc).
Align the disc to
the disc tray guide.
2 Press [REC MODE] repeatedly to
select a recording mode.
Press [INPUT SELECT] to select the
3
appropriate external input position
(L1/L2) to which your external tuner is
connected.
Then select the desired channel to record
on the external tuner.
4
Press [REC] to start recording.
5
Press [ ] to Stop recording.
The title list will appear automatically after
writing to a disc is completed.
e.g.) DVD-R
Writing to Disc 90%
[C] to exit the title list.
You will need to finalize DVD-RW or DVD-R
to play them back on other DVD players.
Refer to page 42 in the Owner's Manual
on how to finalize a disc.

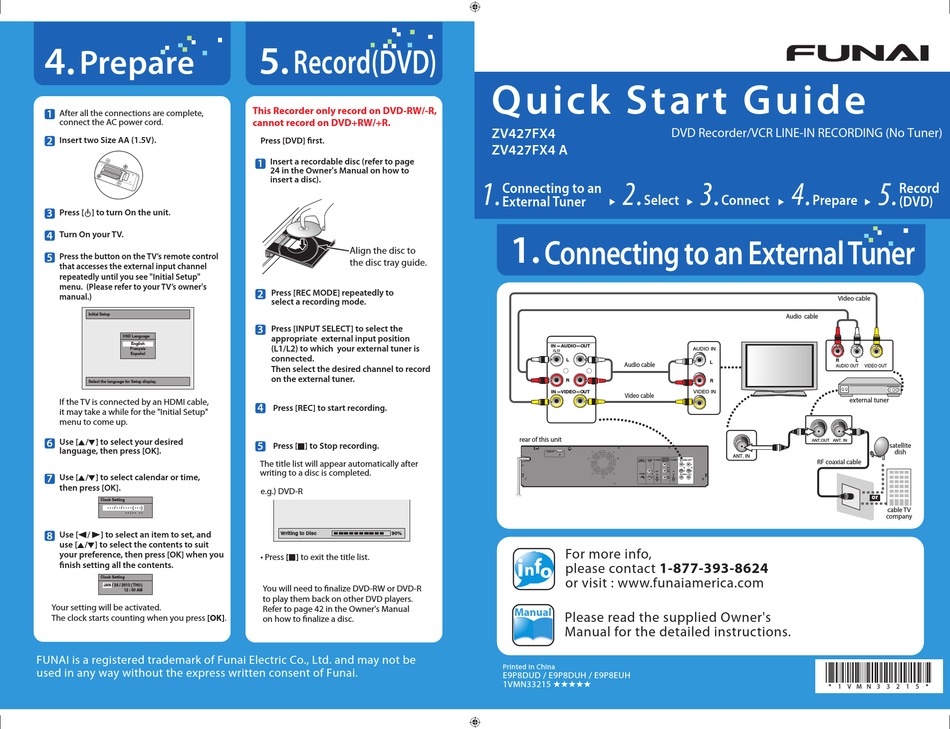

Quick Start Guide

ZV427FX4
ZV427FX4 A
1. 2.
Connecting to an
Select
External Tuner
1.

Connecting to an External Tuner

IN --- AUDIO --- OUT
L
Audio cable
R
IN --- VIDEO --- OUT
Video cable
rear of this unit
For more info,
i f o
please contact 1-877-393-8624
n
or visit : www.funaiamerica.com
Manual
Please read the supplied Owner's
Manual for the detailed instructions.
Printed in China
E9P8DUD / E9P8DUH / E9P8EUH
1VMN33215 ★★★★★
DVD Recorder/VCR LINE-IN RECORDING (No Tuner)
3. 4.
Connect Prepare
Video cable
Audio cable
AUDIO IN
R
L
AUDIO OUT
R
VIDEO IN
external tuner
ANT.OUT ANT. IN
ANT. IN
RF coaxial cable
* 1 V M N 3 3 2 1 5 *
5.
Record
(DVD)
L
VIDEO OUT
satellite
dish
or
cable TV
company
