Gas Furnaces - Blower & Relay
Installation Instructions
For MGHA and MMHA Series, Models -05 only, and M1 Series Furnaces
The p/n 903092A 2-wire and p/n 902898A A/C Heat Pump (4 to 7 wire) Relay Boxes install with cur-
rent M1, MGHA and MMHA models of NORDYNE gas furnaces with the new standardized blower
assembly. The 2-wire Relay Box has control switches which are operable through an opening in the
furnace door on MGHA and MMHA furnaces.
Read all instructions carefully before starting the installation. Specifi cations or designs are subject
to change or to discontinuance without notice and without incurring obligations.
WARNING:
!
Improper installation may damage equipment,
can create a hazard, and will void the war-
ranty.
Blower
Screws
Field Installed
Thermostat Wires
Furnace
System Switch
Furnace
Thermostat Wires
Furnace
Control Box

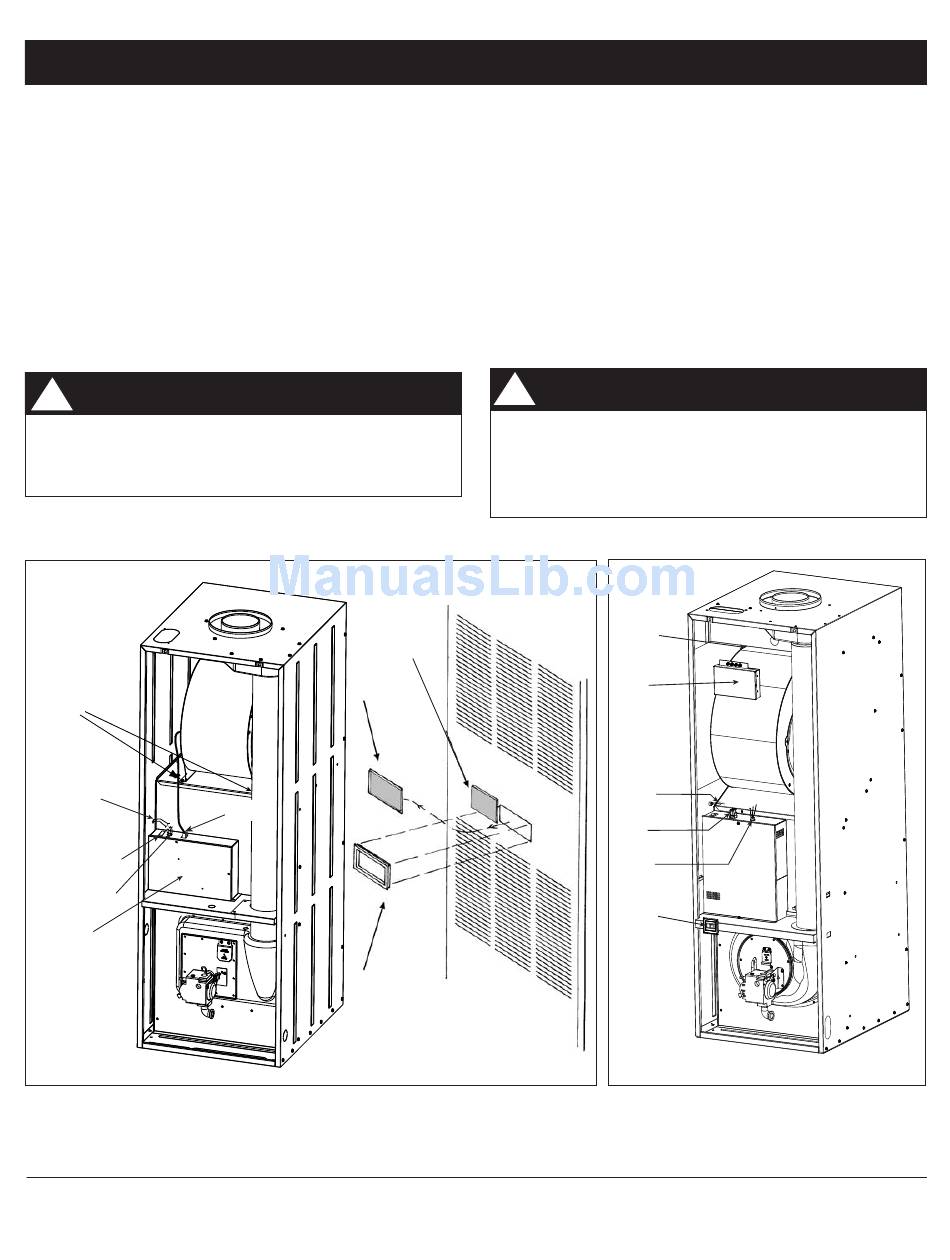

Figure 1. MGHA and MMHA Series Gas Furnace
These instructions are primarily intended to assist qualifi ed individuals experienced in the proper installation of heating and/or air
conditioning appliances. Some local codes require licensed installation/service personnel for this type of equipment. Read all instruc-
tions carefully before starting the installation.
IMPORTANT INFORMATION
Additional
Nameplate Insert
(on older models)
Decorative
Nameplate
Insert
Blower
Plug
Door Control
Frame
DANGER:
!
Shut off electrical supply to the furnace at
the household breaker box to prevent electri-
cal shock which could cause personal injury.
Blower
Screw
Relay
Box
Field Installed
Thermostat
Wires
Blower
Plug
Thermostat
Leads
Fan On/Auto
Switch
(on Heating
only Models)
Fig 2. M1* Furnace
