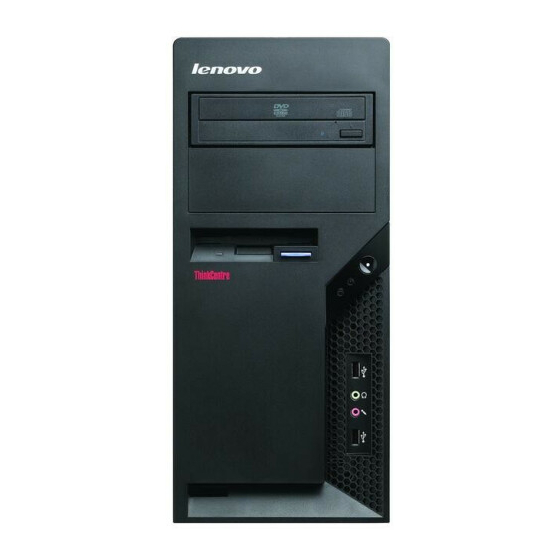

Lenovo ThinkCentre 6176 User Manual

Lenovo personal computer user guide
Hide thumbs Also See for ThinkCentre 6176:
Table of Contents

Advertisement

Quick Links

See also: Hardware Maintenance Manual

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkCentre 6176

  • Desktop Lenovo ThinkCentre A57 User Manual
    Desktop Lenovo ThinkCentre A57 User Manual
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (64 pages)
  • Desktop Lenovo ThinkCentre A57 User Manual
    Desktop Lenovo ThinkCentre A57 User Manual
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (60 pages)
  • Desktop Lenovo ThinkCentre A57 Käyttöopas
    Desktop Lenovo ThinkCentre A57 Käyttöopas
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (58 pages)
  • Desktop Lenovo ThinkCentre 7098 Hardware Installation Manual
    Desktop Lenovo ThinkCentre 7098 Hardware Installation Manual
    Hardware installation and replacement guide (58 pages)
  • Desktop Lenovo ThinkCentre A57 User Manual
    Desktop Lenovo ThinkCentre A57 User Manual
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (58 pages)
  • Desktop Lenovo ThinkCentre A57 Manual Do Utilizador
    Desktop Lenovo ThinkCentre A57 Manual Do Utilizador
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (56 pages)
  • Desktop Lenovo ThinkCentre A57 User Manual
    Desktop Lenovo ThinkCentre A57 User Manual
    Machine types 6176, 6177, 6178, 6179, 6305, 7064, 7065, 7066, 7094, 7096, 7098, 9349, 9351, 9352, 9356, 9357, 9358, 9359, 9438, 9439, 9481, 9482, 9487, 9488, 9489, 9622, 9702, 9703, 9704, 9708, 9709, 9784, 9785, 9788, 9789, 9792, 9794, 9807, 9851, 9853, 9 (54 pages)
  • Desktop Lenovo ThinkCentre A55 8705 Quick Start Manual
    Desktop Lenovo ThinkCentre A55 8705 Quick Start Manual
    Lenovo thinkcentre a55 8705: quick start (1 page)

Summary of Contents for Lenovo ThinkCentre 6176

  • Page 3 ThinkCentre User Guide...
  • Page 4 © Copyright Lenovo 2008. All rights reserved. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 5: Table Of Contents

    Information resources . Online Books folder ThinkVantage Productivity Center . Access Help . . 10 Safety and Warranty . . 10 Lenovo Web site (http://www.lenovo.com) . . 10 Help and service . 10 Using the documentation and diagnostic . 10 programs .
  • Page 6 User Guide...

  • Page 7: Introduction

    Chapter 8, “Getting information, help, and service,” on page 31 provides information about the wide variety of helpful resources available from Lenovo v Appendix A, “Manual modem commands,” on page 35 provides commands for manually programming your modem.
  • Page 8 User Guide...

  • Page 9: Chapter 1. Important Safety Information

    If you no longer have a copy of the ThinkCentre Safety and Warranty Guide, you can obtain one online from the Lenovo Support Web site at: http://www.lenovo.com/support © Copyright Lenovo 2008...
  • Page 10 User Guide...

  • Page 11: Chapter 2. Features And Specifications

    Connectivity v 10/100/1000 Mbps integrated Ethernet controller v Peripheral Component Interconnect (PCI) V.90 Data/Fax modem (some models) System management features v Preboot Execution Environment (PXE) v Wake on LAN © Copyright Lenovo 2008 ® dual-core processor ® processor ™ 2 Quad processor...
  • Page 12 v Wake on Ring (in the Setup Utility program, this feature is called Serial Port Ring Detect for an external modem) v Remote Administration v Automatic power-on startup v System Management (SM) BIOS and SM software v Ability to store power-on self-test (POST) hardware test results Input/output features v 25-pin Extended Capabilities Port (ECP)/Extended Parallel Port (EPP) v 9-pin serial port...

  • Page 13: Specifications

    1. The operating systems listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system vendor.
  • Page 14 For machine types: 6176, 6179, 7064, 7094, 9349, 9356, 9357, 9439, 9488, 9702, 9708, 9709, 9789, 9851, 9948 Dimensions Width: 175 mm (6.9 inches) Height: 402 mm (15.8 inches) Depth: 440 mm (17.3 inches) Weight Maximum configuration as shipped: 11 kg (24 lbs) For all machine types Environment Air temperature:...

  • Page 15: Chapter 3. Software Overview

    (TVT applications, device drivers, BIOS flashes, and other third party applications). Some examples of software that you should keep updated are programs provided by Lenovo, such as the Rescue and Recovery program and the Productivity Center program. System Migration Assistant...

  • Page 16: Pc Doctor For Windows, Pc Doctor For Windows Pe

    PC-Doctor for Windows has not been successful in isolating a possible problem. Adobe Reader Adobe Reader is a tool used to view, print, and search PDF documents. See “Online Books folder” on page 31 for more information about accessing the online books and the Lenovo Web site. User Guide...

  • Page 17: Chapter 4. Using The Setup Utility

    “Starting the Setup Utility program.” The following types of passwords are available: v User Password v Administrator Password You do not have to set any passwords to use your computer. However, if you decide to set any passwords, read the following sections. © Copyright Lenovo 2008...

  • Page 18: Password Considerations

    Password considerations A password can be any combination of up to 16 characters (A-Z, a-z and 0-9). For security reasons, it is a good idea to use a strong password that cannot be easily compromised. Passwords should adhere to the following rules: v Contain at least one alphabetic character and one numeric character v Setup Utility program and hard disk drive passwords are case sensitive v Not be your name or your user name...

  • Page 19: Selecting A Startup Device

    To enable or disable a device, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 9. 2. From the Setup Utility program menu, select Device. 3. Select Floppy Drive Setup or ATA Drives Setup. 4.

  • Page 20: Advanced Settings

    Advanced settings On some computer models, the Advanced menu includes a setting to enable or disable HyperThreading. This feature works only with HyperThreading-aware operating systems, such as Windows Vista and Windows XP. The default setting for HyperThreading is Enabled. However, if you select Set Defaults and are using an operating system other than Windows Vista or Windows XP, your computer performance might be degraded.

  • Page 21: Chapter 5. Updating System Programs

    Lenovo might make changes and enhancements to the POST/BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com. Instructions for using the POST/BIOS updates are available in a TXT file that is included with the update files. For most models, you can download either an update program to create a system-program-update (flash) diskette/disc or an update program that can be run from the operating system.

  • Page 22: Updating (Flashing) Bios From Your Operating System

    (including the links referenced in the following procedure) is subject to change. 1. Go to http://www.lenovo.com/support. 2. Locate the Downloadable files for your machine type as follows: a. In the Enter a product field, type your machine type and click Go →...

  • Page 23: Chapter 6. Troubleshooting And Diagnostics

    If you cannot correct the problem, have the computer serviced. Refer to the safety and warranty information that is provided with your computer for a list of service and support telephone numbers. © Copyright Lenovo 2008 electrical outlet. make sure that it is switched on.

  • Page 24: Diagnostic Programs

    Symptom Action The keyboard does not work. Verify that: The computer does not respond v The computer is turned on. to the keyboard. v The monitor is turned on and the brightness and contrast controls are set v The keyboard is securely connected to the keyboard connector on the v No keys are stuck.

  • Page 25: Pc-Doctor For Windows

    PC-Doctor for DOS Depending upon your machine type and model, you have either PC- Doctor for DOS or PC-Doctor for Windows PE on your Lenovo computer. The PC-Doctor for DOS diagnostic program is part of the Rescue and Recovery workspace and runs independently of the Windows operating system.

  • Page 26: Pc-Doctor For Windows Pe

    PC-Doctor for Windows PE Depending upon your machine type and model, you either have PC-Doctor for DOS or PC-Doctor for Windows PE on your Lenovo computer. The PC-Doctor for Windows PE diagnostic program is part of the Rescue and Recovery workspace.

  • Page 27: Cleaning The Mouse

    Running diagnostics from the Rescue and Recovery workspace You can run the PC-Doctor for Windows PE diagnostic program from the Rescue and Recovery workspace. To run diagnostics from the Rescue and Recovery workspace, use the following procedure: 1. Shut down the operating system and turn off the computer. 2.

  • Page 28: Non-Optical Mouse

    Non-optical mouse The non-optical mouse uses a ball to navigate the pointer. If the pointer on the screen does not move smoothly with the mouse, you might need to clean the mouse. To clean the non-optical mouse: Note: The following illustration might be slightly different from your mouse. 1 Retainer ring 2 Ball 3 Plastic rollers...
  • Page 29 11. Reconnect the mouse cable to the computer. 12. Turn your computer back on. Chapter 6. Troubleshooting and diagnostics...
  • Page 30 User Guide...

  • Page 31: Chapter 7. Recovering Software

    Chapter 7. Recovering software This chapter will help you become familiar with recovery solutions provided by Lenovo. This chapter explains when and how to use the following recovery methods: v Creating and using Product Recovery discs v Performing backup and recovery operations...

  • Page 32: Performing Backup And Recovery Operations

    v Windows Vista: Use Product Recovery discs to restore your computer to the original factory contents only. When using Product Recovery discs on Windows XP, you are given the option to enter the Rescue and Recovery workspace and choose from a variety of recovery operations.

  • Page 33: Using The Rescue And Recovery Workspace

    v On a second hard disk drive installed in your computer v On an externally attached USB hard disk drive v On a network drive v On recordable disc (a recordable CD or DVD drive is required for this option) After you have backed up your hard disk drive, you can restore the complete contents of the hard disk drive, restore selected files only, or restore only the Windows operating system and applications.

  • Page 34: Creating And Using Rescue Media

    the Rescue and Recovery workspace operates independently from the Windows operating system, you can restore the factory contents even if you cannot start the Windows operating system. Attention: If you restore the hard disk drive from a Rescue and Recovery backup or restore the hard disk drive to the factory contents, all files on the primary hard disk drive partition (usually drive C) will be deleted in the recovery process.

  • Page 35: Creating And Using A Recovery Repair Diskette

    1. Start your computer and operating system. 2. Using an Internet browser, go to the following Web address: http://www.lenovo.com/think/support/site.wss/document.do?lndocid=MIGR-54483 3. Insert a diskette into diskette drive. Information on the diskette will be erased and the diskette will be formatted appropriately.

  • Page 36: Recovering Or Installing Device Drivers

    The latest device drivers for factory-installed devices also are available on the World Wide Web at: http://www.lenovo.com/think/support To reinstall a device driver for a factory-installed device, do the following: 1. Start your computer and operating system.

  • Page 37: Setting A Rescue Device In The Startup Sequence

    Setting a rescue device in the startup sequence Before you start the Rescue and Recovery program from a disc, USB hard disk drive, or any external device, you must first change the startup sequence in the Setup Utility. To view or change the startup sequence, do the following: 1.
  • Page 38 User Guide...

  • Page 39: Chapter 8. Getting Information, Help, And Service

    CRUs are computer parts that can be upgraded or replaced by the customer. To view a publication, click Start → All Programs → Online Books → Online Books. Double-click on the appropriate publication for your computer. The publications also are available on the Lenovo Web site at: http://www.lenovo.com Notes: 1.

  • Page 40: Access Help

    Read and understand all safety information before using this product. Lenovo Web site (http://www.lenovo.com) The Lenovo Web site provides up-to-date information and services to help you buy, upgrade, and maintain your computer. You can also do the following: v Shop for: –...

  • Page 41: Help And Service

    For instructions on using the diagnostic programs, see “Diagnostic programs” on page 16. Lenovo maintains pages on the World Wide Web where you can get the latest technical information and download device drivers and updates. To access these pages, go to http://www.lenovo.com/support and follow the instructions.

  • Page 42: Using Other Services

    Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com. User Guide...

  • Page 43: Appendix A. Manual Modem Commands

    Basic AT commands In the following listings, all default settings are printed in bold text. Command DS=n © Copyright Lenovo 2008 Function Manually answer incoming call. Repeat last command executed. Do not precede A/ with AT or follow with ENTER.
  • Page 44 Command Sr=n User Guide Function Force modem off-hook (make busy) Note: H1 command is not supported for Italy Display product-identification code Factory ROM checksum test Internal memory test Firmware ID Reserved ID Low speaker volume Low speaker volume Medium speaker volume High speaker volume Internal speaker off Internal speaker on until carrier detected...

  • Page 45: Extended At Commands

    Extended AT commands Command &C_ &D_ &F_ &G_ &K_ &M_ &P_ &R_ &S_ &T_ &V Function &C0 Force Carrier Detect Signal High (ON) &C1 Turn on CD when remote carrier is present &D0 Modem ignores the DTR signal &D1 Modem returns to Command Mode after DTR toggle &D2 Modem hangs up, returns to the Command...

  • Page 46: Mnp/V.42/V.42Bis/V.44 Commands

    Command &W_ +MS? +MS=? +MS=a,b,c,e,f MNP/V.42/V.42bis/V.44 commands Command &Q_ +DS44=0, 0 +DS44=3, 0 +DS44? +DS44=? User Guide Function &V1 Display Last Connection Statistics &W0 Stores the active profile as Profile 0 &W1 Stores the active profile as Profile 1 Disable auto-retrain Enable auto-retrain Displays the current Select Modulation settings...

  • Page 47: Fax Class 1 Commands

    Fax Class 1 commands +FAE=n +FCLASS=n +FRH=n +FRM=n +FRS=n +FTH=n +FTM=n +FTS=n Fax Class 2 commands +FCLASS=n +FAA=n +FAXERR +FBOR +FBUF? +FCFR +FCLASS= +FCON +FCIG +FCIG: +FCR +FCR= +FCSI: +FDCC= +FDCS: +FDCS= +FDIS: +FDIS= +FDR +FDT= +FDTC: +FET: +FET=N +FHNG +FLID= +FLPL +FMDL?

  • Page 48: Voice Commands

    +FPHCTO +FPOLL +FPTS: +FPTS= +FREV? +FSPT +FTSI: Voice commands #BDR #CID #CLS #MDL? #MFR? #REV? #VBQ? #VBS #VBT #VCI? #VLS #VRA #VRN #VRX #VSDB #VSK #VSP #VSR #VSS #VTD #VTM #VTS #VTX User Guide Phase C time out. Indicates polling request. Page transfer status.
  • Page 49 Attention Switzerland User: If your Swisscom phone line does not have Taxsignal switched OFF, modem function may be impaired. The impairment may be resolved by a filter with the following specifications: Telekom PTT SCR-BE Taximpulssperrfilter-12kHz PTT Art. 444.112.7 Bakom 93.0291.Z.N Appendix A.
  • Page 50 User Guide...

  • Page 51: Appendix B. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 52: Television Output Notice

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo The Lenovo logo...

  • Page 53: Index

    CD/DVD image 17 diagnostics 15 diagnostics programs, using 33 disc, creating product recovery 23 diskette, creating and using a recovery repair 27 © Copyright Lenovo 2008 documentation, using 33 environment, operating 6 Ethernet 3 exiting, setup utility 12 expansion adapters 4...
  • Page 54 MNP/V.42/V.42bis/V.44, commands 38 modem commands basic AT 35 Extended AT 37 fax class 1 39 fax class 2 39 manual 35 MNP/V.42/V.42bis/V.44 38 Voice 40 mouse cleaning 19 non-optical 20 optical mouse 19 non-optical mouse 20 notice, television output 44 notices 43 online books folder 31 operations, backup and recovery 24...
  • Page 55 3 viewing and changing settings 9 voice, commands 40 warranty information 32 Web site, Lenovo 32 workspace, backup and recovery 25 Index...
  • Page 56 User Guide...
  • Page 58 Part Number: 45C6524 Printed in USA (1P) P/N: 45C6524...
