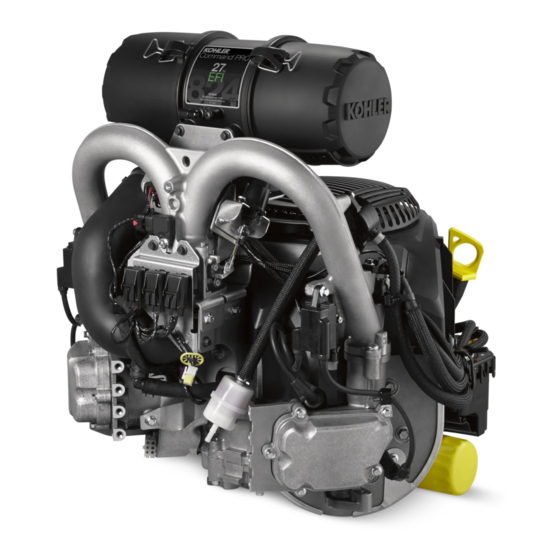

ECV850, ECV860, ECV870, ECV880
Service Manual
IMPORTANT:
Read all safety precautions and instructions carefully before operating equipment. Refer to operating
instruction of equipment that this engine powers.
Ensure engine is stopped and level before performing any maintenance or service.
2
Safety
3
Maintenance
5
Specifi cations
16
19
23
24
Electronic Fuel Injection (EFI) System
49
59
61
66
70
88
Reassembly
19 690 01 Rev. --
KohlerEngines.com
1

Advertisement

Table of Contents
loading

Related Manuals for Kohler Command Pro ECV850

Summary of Contents for Kohler Command Pro ECV850

  • Page 1 ECV850, ECV860, ECV870, ECV880 Service Manual IMPORTANT: Read all safety precautions and instructions carefully before operating equipment. Refer to operating instruction of equipment that this engine powers. Ensure engine is stopped and level before performing any maintenance or service. Safety Maintenance Specifi...
