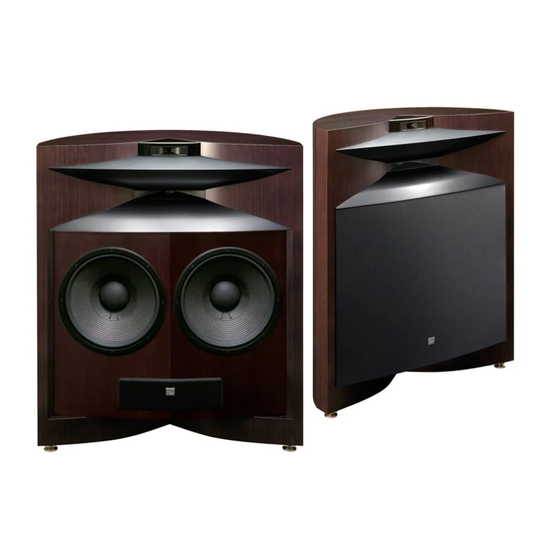

- Page 1 Project everest DD65000 & DD67000 Product commentaries and user Guide...
- Page 2 Thank you for purchasing a JBL Project Everest loudspeaker system. Before using the system, please take the time to read through this user guide to understand this loudspeaker well and also to use it properly.
-
Page 3: Table Of Contents
Preface: ............... 6 chaPter 1: Legacy ................8 chaPter 2: the Project everest DD65000 anD DD67000 LouDsPeakers – a triumPh in acoustics anD technoLogy ............14 chaPter 3: unPacking the Project everest system .... 22 chaPter 4: seLecting sPeaker Wire ......... 26 chaPter 5: amPLifier recommenDations ........ -
Page 4: Preface
Preface Thank you for selecting a Project Everest DD65000 or DD67000 loudspeaker system. These loudspeakers represent culmination of our research and developmental efforts in sound reproduction over the last half century. We have endeavored to create loudspeaker systems with no acoustical or electrical limitations whatsoever. -
Page 5: Chapter 1: Legacy
It is rare indeed when an individual or group is able to triumph over the constraints of economic and technological realities even once. At JBL, this has happened nine times. In each case, our engineers were told to build the speaker system they had always wanted to build. - Page 6 In essence, the system had its own “built-in acoustics.” In many respects, the Paragon anticipated loudspeaker developments It was in this environment that JBL set out to create its fourth and that would occur years and even decades later. This “built-in fifth Project loudspeakers, K2 S9500 and K2 S5500.
- Page 7 Hartsfield, exceptional wood craftsmanship of the Paragon, the that are the exclusive legacy of one loudspeaker builder – JBL. “built-in acoustics” which treat the enclosure as an extension of the And now, with the introduction of the Project Everest DD65000...
-
Page 8: And Technology
The basic system configuration is what JBL historically has referred to as an “augmented two-way”. In the 1950s and 1960s, JBL primarily built two-way systems with a 12-inch or 15-inch (305mm or 380mm) woofer crossed over to a large-format compression driver/ horn combination. - Page 9 Hartsfield and Paragon systems. The specially curved baffle 4-inch (100mm)-diameter flared ports are combined with the TrAnsducers changes and back EMF from the voice coil. JBL has overcome provides the sidewalls for the main high-frequency horn. The top input connections on a massive three-piece die-cast aluminum Alnico’s tendency to demagnetize with high drive by utilizing...
- Page 10 DD65000 and DD67000 systems to offer even greater freedom service life and will not deteriorate. The cone consists of a special driver used in JBL’s original K2 S9500 system, this is about a 45 The use of an efficient neodymium rare-earth motor structure of motion and dynamic range, specifically at low playback levels.
- Page 11 This driver employs the smallest horn used with the 045-series driver is properly scaled to maintain annular-slit phasing plug that JBL has ever designed. The 045Be- a coverage angle of 60 degrees in the horizontal plane and 30...
-
Page 12: Unpacking The Project Everest System
unPacking the Project everest system All components of the Project Everest system have been very carefully packed for maximum protection against damage. As with any superior audio product, it is advisable to keep the original packing materials, in case it is necessary to transport the Project Everest system. - Page 13 removinG the GriLLes 3. Remove the cardboard and packing materials. Remember to 6. Cut tapes at the corners of the bottom cardboard. 9. Remove the protective wrapping. take the accessories out from the upper endpads. Project Everest loudspeakers are shipped with their grilles installed on the enclosures.
-
Page 14: Selecting Speaker Wire
seLecting sPeaker Wire Speaker wire and interconnecting cables are an important component in any audio system. With a system like Project Everest, they assume an increased level of importance. Project Everest loudspeakers are internally wired using high- quality oxygen-free copper wiring. The same care that was given to the selection of the loudspeakers’... -
Page 15: Amplifier Recommendations
amPLifier recommenDations No single type of amplifier is specified for use with Project Everest Loudspeaker systems. The speakers are highly efficient and will operate adequately with an amplifier or receiver of 70 – 100 watts. However, the transient response and audio definition of a high-end system such as Project Everest will expose all the inaccuracies and distortion in the electronic chain that precedes it. -
Page 16: Placement And Setup Considerations
PLacement anD setuP Project Everest loudspeaker systems are designed to be less affected • The listener should be centered in front of the speakers, and furniture by room acoustics than conventional direct-radiator systems. However, should be of an appropriate height so that when the listener is sitting, they are still sensitive to the overall symmetry of their locations relative to their ear level is about the same height as the high-frequency horn the listening position, and their proximity to walls, ceilings and corners. -
Page 17: Project Everest Adjustments
Project everest aDjustments The DD65000 and DD67000 have two control panels under the cover at the center bottom of the front baffle. Shorting bars and switches on the control panels allow you to switch orientation of the system, engage bi-amplification if desired and adjust woofer and high-frequency levels. - Page 18 hF drive/LF drive The following adjustments are made using the above procedure: sysTem orienTATion These jumper bars allow you to set the loudspeakers for normal operation (using a single stereo amplifier or pair of mono amplifiers) As described earlier, the loudspeaker’s two low-frequency drivers and bi-amp operation (using two sets of stereo amplifiers and an operate over different frequency ranges.
- Page 19 hF And LF1 LeveL swiTches Setting the LF- and HF Drive shorting bars in the Bi-Amp position The graphs below shows the low-frequency and high-frequency The HF Level switch adjusts the attenuation applied to the bypasses the speaker’s crossover function for the full-range woofer voltage drive functions necessary to properly bi-amplify a 476-series high-frequency transducer by approximately ±0.4dB and the high-frequency driver.
-
Page 20: Project Everest Connections
Project everest connections CAUTION: Turn off all amplifiers before connecting or disconnecting Project Everest loudspeakers. Making connections while an amplifier is operating could seriously damage the loudspeaker system and void the warranty. All amplifiers must also be turned off before connecting or disconnecting cables at the amplifier or preamplifier inputs. - Page 21 singLe-wire connecTion meThod Speaker wires may be fastened to the loudspeaker terminals by Project Everest loudspeaker terminals are also designed to accept Project Everest loudspeaker connector panels have two sets several methods. The most positive connection is usually made spade connectors or banana connectors, which are fastened to the of terminals that provide a choice of three different connection The single-wire method requires one amplifier channel and one by directly connecting clean, bare wire (exposed by stripping the...
- Page 22 Bi-wire connecTion meThod Bi-Amp connecTion meThod imPortant: When you use the bi-wire or bi-amp connection The bi-wire connection method requires one amplifier channel and The bi-amp connection method requires two amplifiers, one for method, remove the shorting straps from the terminals (referring two sets of speaker wires for each loudspeaker.
-
Page 23: Troubleshooting And Service Guide
care anD maintenance Project Everest loudspeakers require no maintenance other than occasional dusting with a soft, dry, lint-free cotton cloth. The horns may also be wiped with a soft cloth. Treat the lacquered surface very carefully to avoid scratching the finish. To remove fingerprints and smudges, apply a small amount of diluted ammonia-free or alcohol-free neutral detergent to the cloth and gently clean the surface. -
Page 24: Project Everest Dd67000 System Specifications
Project everest system sPecifications dd65000 dd67000 Low-frequency transducer: 15" (380mm) Layered paper/pulp matrix cone woofer (1501AL-1) x 2 Low-frequency transducer: 15" (380mm) Pure pulp sandwich/foam core cone woofer (1501AL-1) x 2 High-frequency transducer: 4" (100mm) Magnesium compression driver (476Mg) High-frequency transducer: 4"... - Page 25 Thank you for purchasing a JBL Project Everest loudspeaker system.
- Page 26 JBL is part of the HARMAN International, a group of companies with a common purpose: combining technology with a love of music to manufacture audio products that provide new levels of satisfaction, performance and value. To promote variety and creativity, JBL operates independently in research and development. When it comes to translating the results of these efforts into actual consumer and professional products, JBL draws on the full combined strength of HARMAN International’s...
