SIMPLY CINEMA - DSC 400
SERVICE-MANUAL

DESCRIPTION:

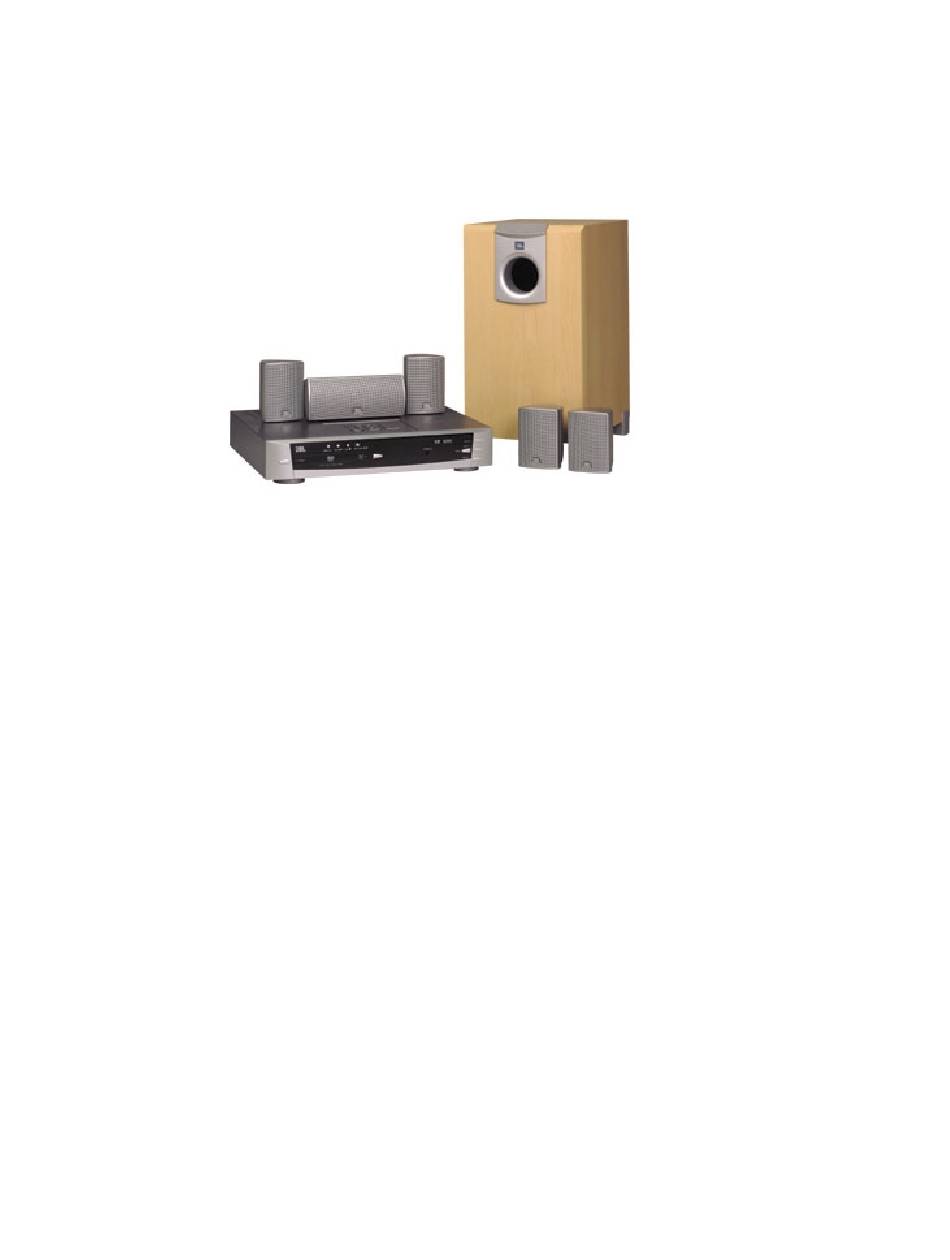

• 7 Piece Home Cinema Speaker System
• DVD Player/RDS Tuner Source Unit
• DVD/CD/VCD/CD-R/MP3 Readability
• Loudspeaker and Interconnect Kit Included
• 100W Active Slimline Subwoofer
• 5 x 35W Amplification for Satellites and Center Speakers
• 275W Total System Power
• Video-shielded Satellite Speakers
• Video-shielded, Voice-matched Center Speaker
• Vinyl Laminate Finish on Subwoofer in Beech
• Remote Control
Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir FRANCE

Advertisement

Table of Contents
loading

Related Manuals for JBL SIMPLY CINEMA DSC 400

Summary of Contents for JBL SIMPLY CINEMA DSC 400

  • Page 1 SIMPLY CINEMA - DSC 400 SERVICE-MANUAL DESCRIPTION: • 7 Piece Home Cinema Speaker System • DVD Player/RDS Tuner Source Unit • DVD/CD/VCD/CD-R/MP3 Readability • Loudspeaker and Interconnect Kit Included • 100W Active Slimline Subwoofer • 5 x 35W Amplification for Satellites and Center Speakers •...
  • Page 2 SPECIFICATIONS: Source Unit Section • Software Compatibility: DVD Video/CD/VCD/MP3/CD-R • Analog: DTS®, Dolby® Digital, Dolby® Pro Logic, Phantom, Dolby® 3-Stereo, Stereo • Dimensions: 80mm x 430mm x 345mm • Video Outputs: Euro SCART, Composite Video, S_VHS (S-Video) • Audio Connections: Din Plug System Connector Audio Output, Euro SCART, Aux Audio Input/Output (Tape Loop) RCA Phono FM Tuner Section •...
  • Page 3 Model DSC100DVD-RDS PROTECTED SYSTEM SETTINGS TO BE CHANGED BY SERVICE PERSONNEL ONLY 1. Cancel parental control and reset password 2. Change video ouput(CVBS->RGB) 3. Revise region code View software version number and region code Statement 1. Cancel parental control and reset secret code a.Press and Hold R/C “6”...
  • Page 5 FB = JBL SPDC-SZ Page#3 Date:27/oct/2001...
  • Page 6 DSC 100 \M+5C5FA \M+5D7BC...
  • Page 8 BLACK DBU0002-001 BUSHING AC LINE BUSHING PIN GOOD 4RF-5 DFH1229-001 FUSE HOLDR FUSE HOLDER FH-B02 10A; DIA 5.2x20 GSE0074M003 JACK PLATE 218X98X3mm SECC ESC380E-DSC800 JBL H060301-314 SCREW M3.0xP0.5xL14 mm BLACK PAN HEAD H101001-308 SCREW M3.0xP1.27-2RHxL8 mmBLACK PAN HEAD H101001-310 SCREW M3.0xP1.27-2RHxL10mmBLACK PAN HEAD...
  • Page 9 APE0006M002...
  • Page 12 APE0069M001 LM3886 * 3 5.1 EQ & ALC Amplifier 2 APE0072M001 SL, SR, SUB JP3, JP4, JP6 Input JP12 L, C, R JP13 Vdd 1/2 +/-15V APE0072M001 LM3886 * 3 Amplifier L, C, R JP21 JP1, JP5, JP2 SL, SR Standby &...
  • Page 13 R142 C153 1UF C1027 C1036 C1018 C1020 +3.6V +3.6V C152 100UF/16 C143 C144 FE001 C1035 C1016 C1017 C1019 C1021 C1022 C1023 C1024 C1025 C1026 C1066 C1028 C1030 R1177 100uF/16 R1178 R140 C104 R121 R102 R106 C119 XL102 7.2M Q110 LA[0..19] LA[0..19] LA[0..19] IC108...
  • Page 14 C1027 C1036 C1018 C1020 +3.6V +3.6V 100UF/16 C1035 C1016 C1017 C1019 C1021 C1022 C1023 C1024 C1025 C1026 C1066 C1028 C1030 R1177 100uF/16 R1178 LA[0..19] LA[0..19] LA[0..19] IC108 AT24C01A +3.6V LD[0..15] LD[0..15] TDMDX TVCC NTSC/PAL VIDEO ENCODER C1057 C1056 TVCC R1036 IC116 LHF80V11 4.7K...
  • Page 15 JK101 VGND C101 10UF R101 RB102 RB104 CN201 R102 AGND C102 RB108 B GND 10UF VGND Main board DSC 100 / Audio board CN001 SWTCH -12V G GND CLKOUT +12V TU12V DATA TU5V R GND IC415 DATAGND BLNK RB107 VGND BLNKGND TO TUNER BOARD VOUT...
  • Page 16 LD201 RB202 CN202 LD202 DP201 SG12 SG11/KS11 SG10/KS10 SG9/KS9 SG8/KS8 IC201 SG7/KS7 CT Sleep Memory Stereo PT6311 LED5 SG6/KS6 DIGITAL Wake Up X-Bass Mono DTS LED4 SG5/KS5 LED3 SG4/KS4 Pro Logic 3 Stereo Nor Phan Wide LED2 SG3/KS3 C203 LED1 SG2/KS2 C201 C202...
  • Page 17 C153 1UF R142 C152 FE001 C143 C144 C104 R140 R121 C119 R102 R106 XL102 7.2M Q110 R143 R122 2SC945 Q107 Q109 2SA733 CF101 2SC945 C121 Q106 10.7J 2SA733 C101 C124 C126 T102 I/O-7 R120 R103 I/O-8 C160 270K C125 1UF T103 C155 OT-1...
  • Page 18 4A/250V RHD0402-001 3300/50 3300/50 4A/250V From PT 8A/250V 3962-6 4700/50 3962-6 RHD0010-001 4700/50 8A/250V To J22 3962-4 IN4148 Amp 2 1A/250V 7815 CON2 BRIDGE1 From PT 2200/35 JP99 0.22uF 0.1uF 5003 To J20 CON3 Amp 1 2200/35 1A/250V 7915 2.2uF VDE PLUG 230V 50Hz Fuse To Trafo...
  • Page 19 +VCC1 -VCC1 +VCC1 -VCC1 +VCC1 -VCC1 LM3886 LM3886 LM3886 C190 C192 100/50 C193 From JP13 C191 From JP13 From JP13 100/50 R152 1K R552 1K R252 1K C153 C553 C253 C592 C590 R153 20K R553 20K R253 20K 560p 560p 560p 100/50 4999A...
  • Page 20 +VCC1 +VCC1 -VCC1 +Vcc2 -VCC1 -Vcc2 LM3886 LM3886 LM3886 From J14 From J14 From J14 R652 1K R352 1K R452 C653 C353 C453 R653 20K R353 20K R453 20K 560p 560p 560p R651 4999A R351 4999A R451 4999A R354 R454 L1 0.7uH R654 L2 0.7uH...
  • Page 21 C103 220p R110 R105 R103 C109 C101 +15V 560p R100 C104 C105 IC1B TL074 IC1C R106 R107 1/50 IC1D 100/25 TL074 C112 IC1A .047 .047 R113 C102 TL074 C107 R101 .0082 C106 C100 TL074 1/50 470p 470p 100p R104 R114 -15V 100K R111...
  • Page 22 JK501 DIN1 HEADER CON DIN JACK Speaker out C518 C522 C519 C521 C520 10uH JP16 JP12 L4 10uH CON3 CON9 10uH L5 10uH To J93 To J12 10uH Power supply JP21 JP23 3962 3962 From J21 From J23 Amp1 Amp2 Title Connector Size...
  • Page 23 FRONT SPK-2 WIRE ASSY 12240mm BLK P:5.0mm VWP0005-011 AEATL34-003 ACCESSORY SCART CABL SC/G-SC/G,1000mm VWP0006-002 AEATL34-003 ACCESSORY X'MITT AY 51 KEY (JBL) WIR0051-431 AEATL34-003 SAT POLYFORM SEAL TAPE 60mmx50M YOKO CLEAR XTP9777-010 AEATL34-003 SAT POLYFORM WRAP TAPE STRECH FILM TAPE XTP9777-035...
  • Page 24 AFA0018M001 PWR TRANS EI-105 230V35Wx5+60W TTL2301-005 AFA0018M001 J7 TO SPK CON/WRE AY 2 COND 430mm 4999A-581 AFA0018M001 J97 TO J22 CON/WIRE 6P 250mm 1015 #18 4999A-874 AFA0018M001 WIRE DRESSING FOR REAR AMP ASSY ADHESIVE JET-MELT ADHESIVE XAD6986-002 AFA0018M001 REAR AMP ASSY ALCOHOL KZH 1463 XAL1463-001...
  • Page 25 AFA0020M001 FUSE TO AC SW WIRE 22 GA 90 mm RED 5823-092BB AFA0020M001 BUSHING-1 ADHESIVE JET-MELT ADHESIVE XAD6986-002 AFA0020M001 SW ROCKER GLUE NE JI LOCK XGL5687 AFA0020M001 JACK PLATE MASK. TAPE MASKING TAPE XTP9777-022 AFA0020M001 AC ASSY AC PCB ASSY ZPE0070M021 AFAESC38C01 POWER PCB...
  • Page 26 AFAESC38C01 BOTTOM CAB BRACKET POWER PCB BKT GSE0111C001 AFAESC38C01 TOP COVER MT.GRY PT8403C SK112 GSE0118C001 AFAESC38C01 BACK CAB RAW PART W/PRINTING GSE0119C001 AFAESC38C01 X'FORMER TO BTM CAB X'FORM BKT X'FORMER BKT SECC GSE0121C001 AFAESC38C01 BOTTOM CAB BRACKET SECC T=0.8mm GSE0140C001 AFAESC38C01 TO MPEG PCB-1 TIN PLATE...
  • Page 27 AFK0003M003 SPK REAR METALLIC GREY SILVER BPA0004MBL0 AFK0003M003 SPK FRONT METALLIC GREY SILVER BPF5003MBL0 AFK0003M003 LOGO PLATE L16.0xW9.1xT1.6mm BPL0010M001 AFK0003M003 SPK FRONT-2 RUBER FOOT OD12.5xID6.0xT2.5mm BRF0005M001 AFK0003M003 SPK REAR-1 RUBER FOOT OD12.5xID6.2xT6.8mm BRF0006M001 AFK0003M003 TO SAT SPK-2 (CONSIGN TO VENDOR) INSERT PIN BRASS-TIN PLATING CCP1620-225...
  • Page 28 APE0006M002 RESISTOR OHM 10W 5% QVEA050-609 APE0006M002 CON/WIRE 2P 130mm 2468 #20 4999A-727 APE0006M002 WIRE TERM 120mm RED/BLK VWT23A3-012 APE0006M002 RB1, RB2, WIRE RB1 RB2, WIRE BUZZER ADHESIVE JET-MELT ADHESIVE XAD6986-002 APE0006M002 FLUX UNION SOLTEK 801H XFX0516-006 APE0006M002 C1, R1 BOND SONY BOND SC608Z XP1001140-2...
  • Page 29 APE0069C006 SOLDR WIRE S.MAO PH60-1.0 mm XSD9143-004 APE0069C006 THINER FLX UNION SOLTEK T22 XTN5714-003 APE0069M001 AMP PCB AY AMP PCB ASSY APE0069MA01 APE0069M001 CONNECTOR B2B-XH-A 2 PIN CCN1500-018 APE0069M001 CONNECTOR 2 PIN CL3962WVO CCN3962-002 APE0069M001 CONNECTOR 4 PIN CL3962WVO CCN3962-004 APE0069M001 CONNECTOR 6 PIN CL3962WVO...
  • Page 30 APE0070M011 D1, D2 SLEEVING OD3xID2.5xL10mm DSL0001-010 APE0070M011 BRACKET PCB BRACKET (R) SECC GSE0256-001 APE0070M011 BRACKET PCB BRACKET (L) SECC GSE0257-001 APE0070M011 DC PCB -4 SCREW T3x1.27P-2RHXL6.0mm H111002-306 APE0070M011 FUSE 1A 250V SLOW KSA2100-104 APE0070M011 FUSE 4A 250V SLOW 5ST BEL KSA2400-002 APE0070M011 FUSE...
  • Page 31 APE0071M001 JACK ASSY JACK PCB ASSY APE0071M011 APE0071M001 CNTL ASSY CONTROL PCB ASSY APE0071M021 APE0071M001 FLUX UNION SOLTEK 801H XFX0516-006 APE0071M001 SOLDER BAR 60% TIN 40% LEAD XSD0515-001 APE0071M001 SOLDR WIRE S.MAO PH60-1.0 mm XSD9143-004 APE0071M001 THINER FLX UNION SOLTEK T22 XTN5714-003 APE0071M011 JACK ASSY...
  • Page 32 APE0072M001 IC1 IC2 IC3 IC4 IC5 IC6 IC 14 PIN TL074CN SGS-THOMSON RHI0740-001 APE0072M001 IC 11 PIN LM3886T 68W NATIONAL RHI3886-001 APE0072M001 IC7 IC8 IC 8 PIN JRC4558D JRC RHI4558-001 APE0072M001 RL1 RL2 RL5 INDUCTOR 0.4 uH 1 OHM 2W 5% SHN2050-109 APE0072M001 JP1, JP2, JP5 TO JP13...
  • Page 33 C110 C111 C210 C211 C310 C311 C410 C411 C510 C511 APE0072MA01 COND MYLAR 0.0047uF 100V PRM3737-472 APE0072MA01 C104 C105 C204 C205 C304 C305 C404 C405 COND MYLAR 0.047 uF 100V PRM3737-473 APE0072MA01 C607 COND MYLAR 0.068 uF 100V PRM3737-683 APE0072MA01 C102 C202 C302 C402 COND MYLAR 0.0082uF 100V...
  • Page 34 APE0072MA01 QA01 QA02 XISTR NPN 2SC945P NEC RAN0945-001 APE0072MA01 XISTR NPN 2SC2001L NEC RAN2001-001 APE0072MA01 XISTR NPN 2SC2878-A (TE2,M) RAN2878-001 APE0072MA01 XISTR PNP 2SA733Q,P NEC RAP0733-001 APE0072MA01 JW1-JW38 WIRE BARE 22 GA TINNED AI20870-022 APE0077C001 MAIN PCB A MAIN PCB ASSY APE0077CE01 APE0077C001 RB102...
  • Page 35 APE0077C001 IC904 IC 3 PIN 7912 RHI7912-001 APE0077C001 Q601 XISTR NPN 2SD882P RHN0882-001 APE0077C001 Q902 Q904 XISTR PNP 2SB772P/Q NEC RHP0772-001 APE0077C001 JW101 JW102 JW105 JW107 BEAD FERIT 3.5 DIA X 5.25 MM SLF0201-028 APE0077C001 RB903 CON/WIRE 4P 220mm 2468#24AWG 4999A-715 APE0077C001 RB107 TO CN107...
  • Page 36 C501 C502 C509 C603 C604 C605 C606 C609 C610 C611 C612 C619 C620 C621 C635 C636 C659 C663 APE0077CA01 COND ELECT uF 50V PRE3955-100 APE0077CA01 C934 COND ELECT 100 uF 50V PRE3955-101 APE0077CA01 C614 C615 C616 COND ELECT uF 50V PRE3955-109 APE0077CA01 C622...
  • Page 37 APE0077CA01 R618 R924 RESISTOR 47K OHM 1/6W 5% CF QAF0650-473 APE0077CA01 R505 R506 RESISTOR 4.7 OHM 1/6W 5% CF QAF0650-479 APE0077CA01 R604 R904 RESISTOR 560 OHM 1/6W 5% CF QAF0650-561 APE0077CA01 R931 RESISTOR 6.8K OHM 1/6W 5% CF QAF0650-682 APE0077CA01 R932 R933 R934 RESISTOR OHM 1/2W 5%...
  • Page 38 R401 R402 R403 R404 R469 R475 R481 R487 R493 R499 APE0077CE01 CHIP RES. 22K OHM 1/10W 5% QCF0152-223 APE0077CE01 R496 R497 CHIP RES. 24K OHM 1/10W 5% QCF0152-243 APE0077CE01 R4100 CHIP RES. 3K OHM 1/10W 5% QCF0152-302 APE0077CE01 R440 R445 CHIP RES.
  • Page 39 APE0078C021 JK501 GND TO BOTTOM CAB TUBING SRK DIA=3 L=13mm BLACK DTB0003-013 APE0078C021 JK501 GND TO BOTTOM CAB COND DISC 0.01 uF 50V 10% PRD3545-103 APE0078C021 RB501 TO CN501 CON/WRE AY 4P 180mm 2468#26 4999A-948 APE0078C031 LD202 3 DIA BLUE ROUND KEB0003-001 APE0078C031 LD201...
  • Page 40 APE0079CA01 PCB FR-4 MPEG PCB DOUBLE LFF0079C001 C1008 C1012 C1023 C1027 C1032 C1042 C1058 C1076 C1125 C1127 C1256 C1257 C1258 C1259 APE0079CA01 COND ELECT uF 16V 20% PMA3952-101 C1001 C1015 C1100 C1101 C1102 C1103 C1104 C1105 C1147 C1157 C1158 C1159 C1160 C1161 APE0079CA01 COND ELECT uF 50V 20%...
  • Page 41 R1002 R1059 R1062 R1063 R1064 R1076 R1077 R1124 R1125 APE0079CE01 CHIP RES. 100 OHM 1/10W 5% QCF0152-101 R1100 R1102 R1104 R1106 R1108 R1110 R1112 R1114 R1116 R1118 APE0079CE01 CHIP RES. 1K OHM 1/10W 5% QCF0152-102 APE0079CE01 R1179 R1180 R1181 R1182 R1183 R1184 CHIP RES.
  • Page 42 AS0380E-001 FIX AT EAI (EVM0063M001) RUBER FOOT D13.6XT2mm BLK BRF0015M001 AS0380E-001 SILICA GEL 10 g DSC0001-002 AS0380E-001 WIRE DRESSING-2 WIRE TIE GT-90M 90mm DTP1382-090 AS0380E-001 WOOD BOX L430XW400XH330mm EVM0063-001 AS0380E-001 PALLET L1020xW1220xH120mm EVP0001-001 AS0380E-001 SPK DRIVER 8" 4 OHM FTW6080-312 AS0380E-001 DRIVER TO WOOD BOX-8, H/SINK TO WOOD BOX-10, SCREW...
  • Page 43 AV0380E-001 POLY FOAM POLY FOAM [R] ITF0124C002 AV0380E-001 LINE CORD-1 POLY BAG L80xW220mm IVP0001-019 AV0380E-001 MAIN UNIT-1 POLY BAG L450xW560xD75mm IVP0001-033 AV0380E-001 FOR OWN MANUAL POLY BAG L240xW355mm IVP0001-048 AV0380E-001 FM ANTENNA 1500 mm 75 OHM MALE VTA9300-021 AV0380E-001 PACKING SEAL TAPE 60mmx50M YOKO CLEAR XTP9777-010...
