Electrical Parts List - Sony SLV-SE230 Service Manual

MAIN
FUNCTION

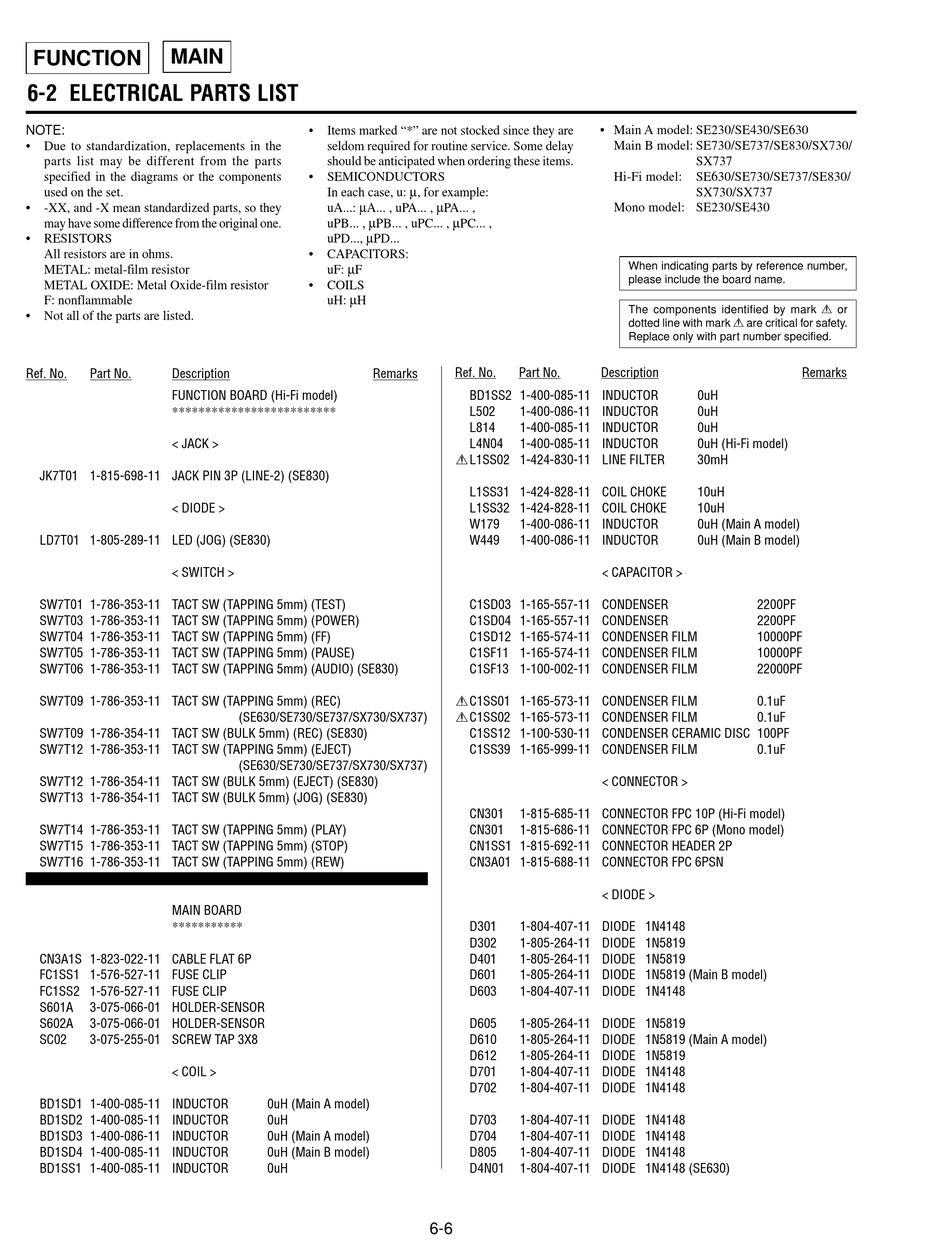

6-2 ELECTRICAL PARTS LIST

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, and -X mean standardized parts, so they
may have some difference from the original one.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• Not all of the parts are listed.
Ref. No. Part No. Description
FUNCTION BOARD (Hi-Fi model)
*************************
< JACK >
JK7T01 1-815-698-11 JACK PIN 3P (LINE-2) (SE830)
< DIODE >
LD7T01 1-805-289-11 LED (JOG) (SE830)
< SWITCH >
SW7T01 1-786-353-11 TACT SW (TAPPING 5mm) (TEST)
SW7T03 1-786-353-11 TACT SW (TAPPING 5mm) (POWER)
SW7T04 1-786-353-11 TACT SW (TAPPING 5mm) (FF)
SW7T05 1-786-353-11 TACT SW (TAPPING 5mm) (PAUSE)
SW7T06 1-786-353-11 TACT SW (TAPPING 5mm) (AUDIO) (SE830)
SW7T09 1-786-353-11 TACT SW (TAPPING 5mm) (REC)
SW7T09 1-786-354-11 TACT SW (BULK 5mm) (REC) (SE830)
SW7T12 1-786-353-11 TACT SW (TAPPING 5mm) (EJECT)
SW7T12 1-786-354-11 TACT SW (BULK 5mm) (EJECT) (SE830)
SW7T13 1-786-354-11 TACT SW (BULK 5mm) (JOG) (SE830)
SW7T14 1-786-353-11 TACT SW (TAPPING 5mm) (PLAY)
SW7T15 1-786-353-11 TACT SW (TAPPING 5mm) (STOP)
SW7T16 1-786-353-11 TACT SW (TAPPING 5mm) (REW)
MAIN BOARD
***********
CN3A1S 1-823-022-11 CABLE FLAT 6P
FC1SS1 1-576-527-11 FUSE CLIP
FC1SS2 1-576-527-11 FUSE CLIP
S601A 3-075-066-01 HOLDER-SENSOR
S602A 3-075-066-01 HOLDER-SENSOR
SC02 3-075-255-01 SCREW TAP 3X8
< COIL >
BD1SD1 1-400-085-11 INDUCTOR
BD1SD2 1-400-085-11 INDUCTOR
BD1SD3 1-400-086-11 INDUCTOR
BD1SD4 1-400-085-11 INDUCTOR
BD1SS1 1-400-085-11 INDUCTOR
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• CAPACITORS:
uF: µF
• COILS
uH: µH
Remarks
(SE630/SE730/SE737/SX730/SX737)
(SE630/SE730/SE737/SX730/SX737)
0uH (Main A model)
0uH
0uH (Main A model)
0uH (Main B model)
0uH
• Main A model: SE230/SE430/SE630
Ref. No. Part No. Description
BD1SS2 1-400-085-11 INDUCTOR
L502 1-400-086-11 INDUCTOR
L814 1-400-085-11 INDUCTOR
L4N04 1-400-085-11 INDUCTOR
0 L1SS02 1-424-830-11 LINE FILTER
L1SS31 1-424-828-11 COIL CHOKE
L1SS32 1-424-828-11 COIL CHOKE
W179 1-400-086-11 INDUCTOR
W449 1-400-086-11 INDUCTOR
< CAPACITOR >
C1SD03 1-165-557-11 CONDENSER
C1SD04 1-165-557-11 CONDENSER
C1SD12 1-165-574-11 CONDENSER FILM
C1SF11 1-165-574-11 CONDENSER FILM
C1SF13 1-100-002-11 CONDENSER FILM
0 C1SS01 1-165-573-11 CONDENSER FILM
0 C1SS02 1-165-573-11 CONDENSER FILM
C1SS12 1-100-530-11 CONDENSER CERAMIC DISC 100PF
C1SS39 1-165-999-11 CONDENSER FILM
< CONNECTOR >
CN301 1-815-685-11 CONNECTOR FPC 10P (Hi-Fi model)
CN301 1-815-686-11 CONNECTOR FPC 6P (Mono model)
CN1SS1 1-815-692-11 CONNECTOR HEADER 2P
CN3A01 1-815-688-11 CONNECTOR FPC 6PSN
< DIODE >
D301 1-804-407-11 DIODE 1N4148
D302 1-805-264-11 DIODE 1N5819
D401 1-805-264-11 DIODE 1N5819
D601 1-805-264-11 DIODE 1N5819 (Main B model)
D603 1-804-407-11 DIODE 1N4148
D605 1-805-264-11 DIODE 1N5819
D610 1-805-264-11 DIODE 1N5819 (Main A model)
D612 1-805-264-11 DIODE 1N5819
D701 1-804-407-11 DIODE 1N4148
D702 1-804-407-11 DIODE 1N4148
D703 1-804-407-11 DIODE 1N4148
D704 1-804-407-11 DIODE 1N4148
D805 1-804-407-11 DIODE 1N4148
D4N01 1-804-407-11 DIODE 1N4148 (SE630)
6-6
Main B model: SE730/SE737/SE830/SX730/
SX737
Hi-Fi model: SE630/SE730/SE737/SE830/
SX730/SX737
Mono model: SE230/SE430
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
0uH
0uH
0uH
0uH (Hi-Fi model)
30mH
10uH
10uH
0uH (Main A model)
0uH (Main B model)
2200PF
2200PF
10000PF
10000PF
22000PF
0.1uF
0.1uF
0.1uF
Remarks
