INSTALLATION / CONNECTION

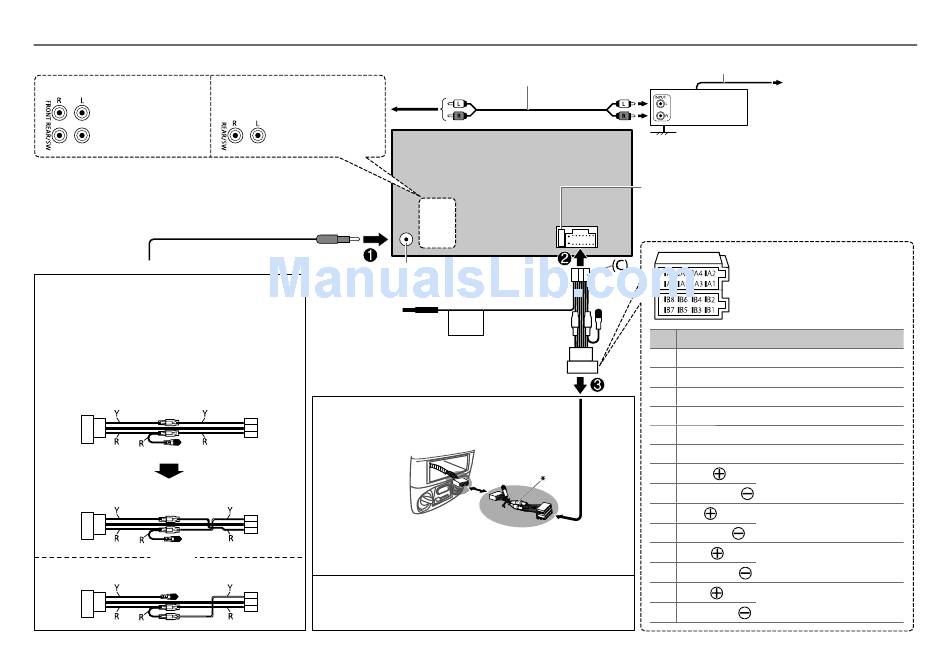

Wiring connection
KW-R710
Front output
Rear/subwoofer output
For some VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
power cord (C) as illustrated.
If the unit does not turn on with modified wiring 1, use
modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
( or )
Modified wiring 2
16
KW-R510
Rear/subwoofer output
Aerial terminal
To the steering
wheel remote
control adapter
If your car does NOT have an ISO terminal
* Custom wiring harness (separately purchased)
IMPORTANT: A custom wiring harness (separately purchased)
which is suitable for your car is recommended for connection.
Signal cord
(not supplied)
Light blue/yellow
STEERING
WHEEL
REMOTE
Remote wire (not supplied)
To Blue/white wire of the
wiring harness (C)
JVC Amplifier
Fuse (10 A)
ISO connector
Pin Color and function
A2 Brown : Tel muting
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
: Rear speaker (right)
B2 Purple/black
B3 Gray
: Front speaker (right)
B4 Gray/black
B5 White
: Front speaker (left)
B6 White/black
B7 Green
: Rear speaker (left)
B8 Green/black
