Desa Wireless Chime User Manual

This package includes (Style of pushbutton and chime may vary from illustration):
• Wireless chime cover
• Wireless pushbutton w/battery
You'll need to buy 3 "D" alkaline batteries for the chime. In typical use, alkaline batteries will
last up to three years.
'D '
P E
T Y 2 0
L R
X
- R
3 5
- 0 0
T R
'D '
P E
T Y
2 0
L R
Battery Cover
'D '
P E
T Y
2 0
L R
'D '
P E
T Y
2 0
L R
© 2004 DESA Specialty Products™
Wireless Chime
1.
2.
3.
Chime Base
Chime
Cover
4.
Use either screws or double sided tape to mount pushbutton.
X
- R
3 5
- 0 0
T R

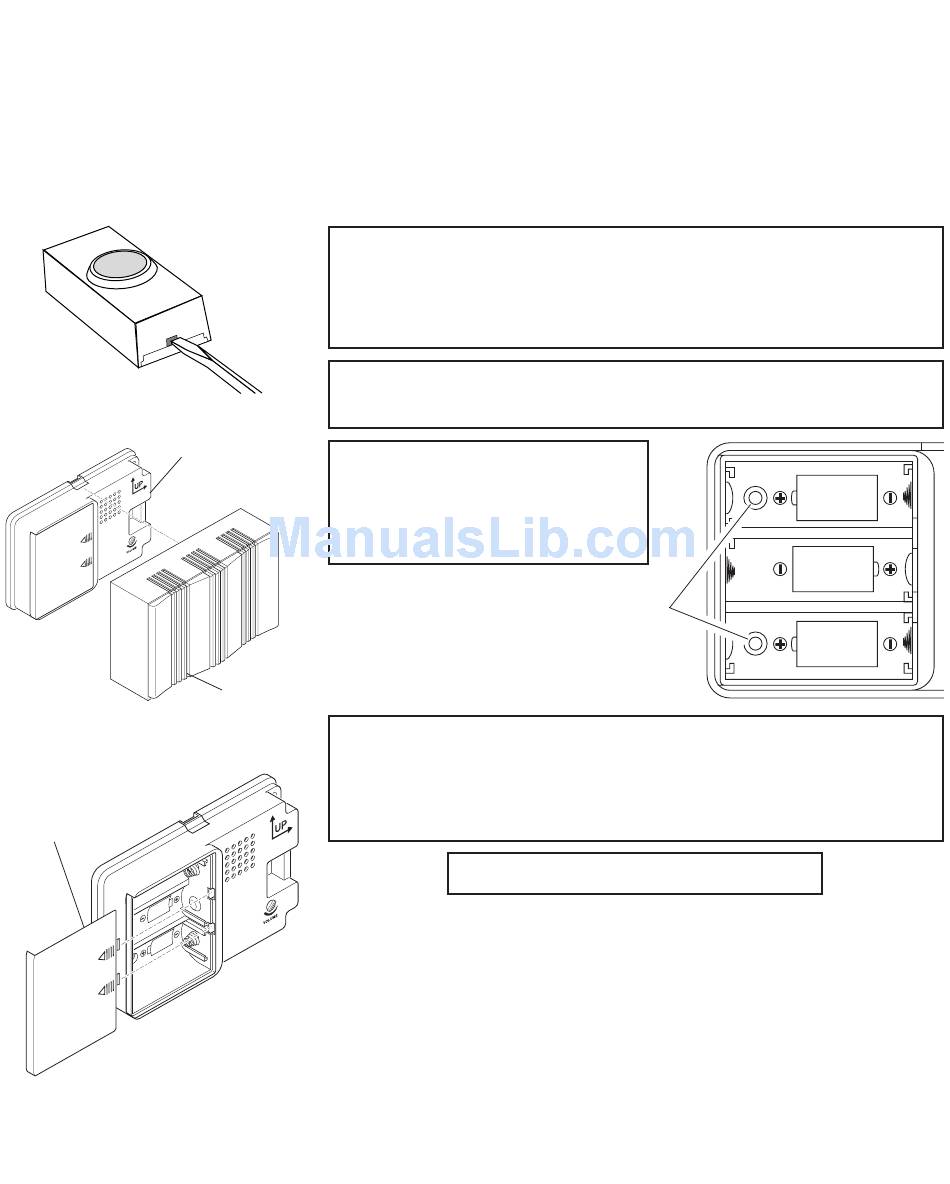

To mount with screws, remove back of case by pushing in tab
on bottom with a small screwdriver.
Attach back of case to door jamb or wall. Snap front of
pushbutton on.
• Wireless chime base
• Hardware pack
Install alkaline type A23 12 volt pushbutton battery.
Remove back of case by pushing in tab on bottom with
a small screwdriver. Make sure battery is oriented prop-
erly (see page 3).
Remove Chime Cover (see page 4). Press down on
imprinted arrows and slide battery cover to remove.
Install 3 alkaline "D"
batteries. Make sure
batteries are oriented
properly.
Mounting Holes
Test range. Temporarily position chime and pushbutton
where you want them mounted. Press pushbutton to
verify chime and pushbutton work properly. If chime
does not sound, see Troubleshooting.
5. Mount pushbutton and chime.
TYPE 'D'
LR20
TYPE 'D'
LR20
TYPE 'D'
LR20
598-1172-00
