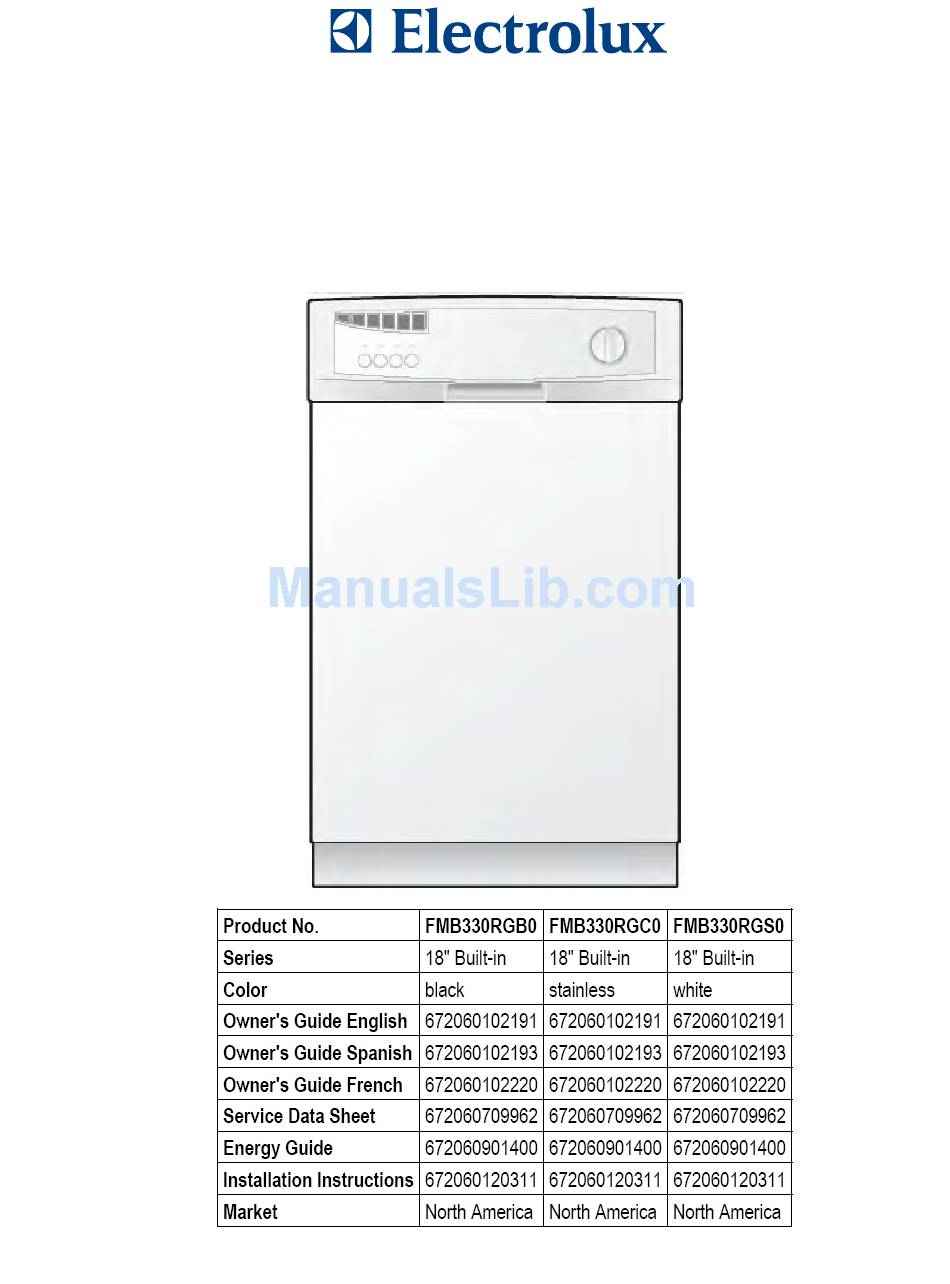

- Page 1 2007 18 Inch Built-In Dishwasher Service Manual 5995498770 September 2007...
-
Page 3: Table Of Contents
Table of contents Safe Servicing Practices - All Appliances......2 Disassembly and Service ......... 11 Outer Door Panel ..............11 Table of Contents ............ 3 Console .................11 Timer ..................11 18 Inch Stainless Steel Tub Dishwasher ......4 Door Latch ................11 Timer ..................4 Selector Switch ..............11 Testing the timer ..............4 Vent Housing and Vent Grate ..........12... -
Page 4: 18 Inch Stainless Steel Tub Dishwasher
18 Inch Stainless Steel Tub Dishwasher The stainless steel tub 18 inch under counter and portable This will reduce burning of the timer contacts. dishwasher offers a completely new wash system, door Return the timer to the Heavy Wash setting, close hinge and spring assembly, with the addition of a separate the door and allow the timer to advance. -
Page 5: To Test The Selector Switch
Door strike To Test the Selector Switch It is best to disconnect power from the dishwasher when testing these switches. Always remove one wire from the switch you are testing to be sure you are getting an accurate Actuator reading. Check the wiring diagram to see which contact is closed, then check the contact with an ohm meter. -
Page 6: Dispenser Operation
it exits through a different hose attached to the sump Dispenser Operation just below the filter. The total fill time is 30 seconds and The detergent dispenser cover is opened manually by the amount of water entering the tub is approximately 1 pressing the spring loaded thumb release located at the gallon. -
Page 7: Drain Pump
Drain pump in turn closes the contact to the drain pump draining the tub. The drain pump is mounted to the right side frame facing forward. A hose from the bottom of the sump is attached to the front of the pump. The discharge of the drain pump has flapper check valve to prevent drain water from backing into the tub when the dishwasher is idle. -
Page 8: Lower Spray Arm
The next filter passes through the Control and Safety Thermostats in the Mount assembly center of the stainless steel filter Both the control thermostat and the safety thermostat and has larger opening. This filter are mounted in one mount assembly and this assembly is extends all the way to the bottom locked to the side of the sump. -
Page 9: Sump
Sump locator pin The sump is a reservoir used by the wash pump to collect water before spraying it onto the dishes. The sump on this dishwasher has ports for the wash pump, the drain pump, the fill hose from the air gap and the pressure tube to the over flow pressure switch. -
Page 10: Vent
Vent The air vent for this dishwasher is located on the top left side of the inner door panel. A vent housing inside the console contains baffles to prevent water from splashing out of the tub during the wash and rinse cycles. In the dry cycle, steam laden air at the top of the tub passes out the vent. -
Page 11: Disassembly And Service
DISASSEMBLY AND SERVICE IMpoRTANT NoTE Always turn off the power supply before servicing any All terminals on this electrical component, making ohm meter checks, or dishwasher are locking replacing any part. terminals and have a All voltage checks should be made with a voltmeter having release that needs to a full scale range of 130 volts or higher. -
Page 12: Vent Housing And Vent Grate
Vent Housing and Vent Grate Upper Rack Disconnect power to the dishwasher. Slide rack rail forward the end cap on the rail has a lock. Remove console from inner door panel. Push lock over and slide end cap off rail. Remove the four screws holding vent housing and vent grate located inside together. -
Page 13: Water Valve
Disconnect power to dishwasher. Go to top corner and form seal into corner, then tack seal into channel down side. Remove as much water as possible from sump. Repeat for opposite side. Remove toe kick and outer door panel. Close door to seat seal into channel. Turn off water supply to dishwasher, then place protection under water line that attaches to the water valve to catch water that will be in the line as... -
Page 14: Pressure Switch
Mounting screws Front frame rail 6. With pliers, compress mount on back side of switch and pull switch from frame. See figure below 7. Disconnect the three wires from the pressure Water Valve Junction box switch. Terminals have locks, press down on lock Pressure Switch to remove terminal. -
Page 15: Drain Pump
Wash motor and pump Assembly Figure below shows all components of the dishwash- er with the unit laying on it’s back Disconnect power to dishwasher. Remove as much water as possible from sump Water Inlet Hose Pressure Switch before starting this repair. Water Valve Sump Remove toe kick and outer door panel. -
Page 16: Heater
Heater Sump Disconnect power to dishwasher. Disconnect power and turn off the water supply to the dishwasher before starting this repair. Remove as much water as possible from sump before starting this repair. Remove as much water as possible from sump. Loosen heater from mounts holding heater on the Remove lock from inside sump by turning counter left side of tub. -
Page 17: Parts List Breakdown
pARTS LIST BREAKDoWN... -
Page 25: Service Information
Service Information NOTE WHEN HI TEMP OPTIO... -
Page 26: Wiring Diagram
EN HI TEMP OPTION IS SELECTED , THE TIMER WILL PAUSE UNTIL WASH TEMPERATURE IS REACHED...
