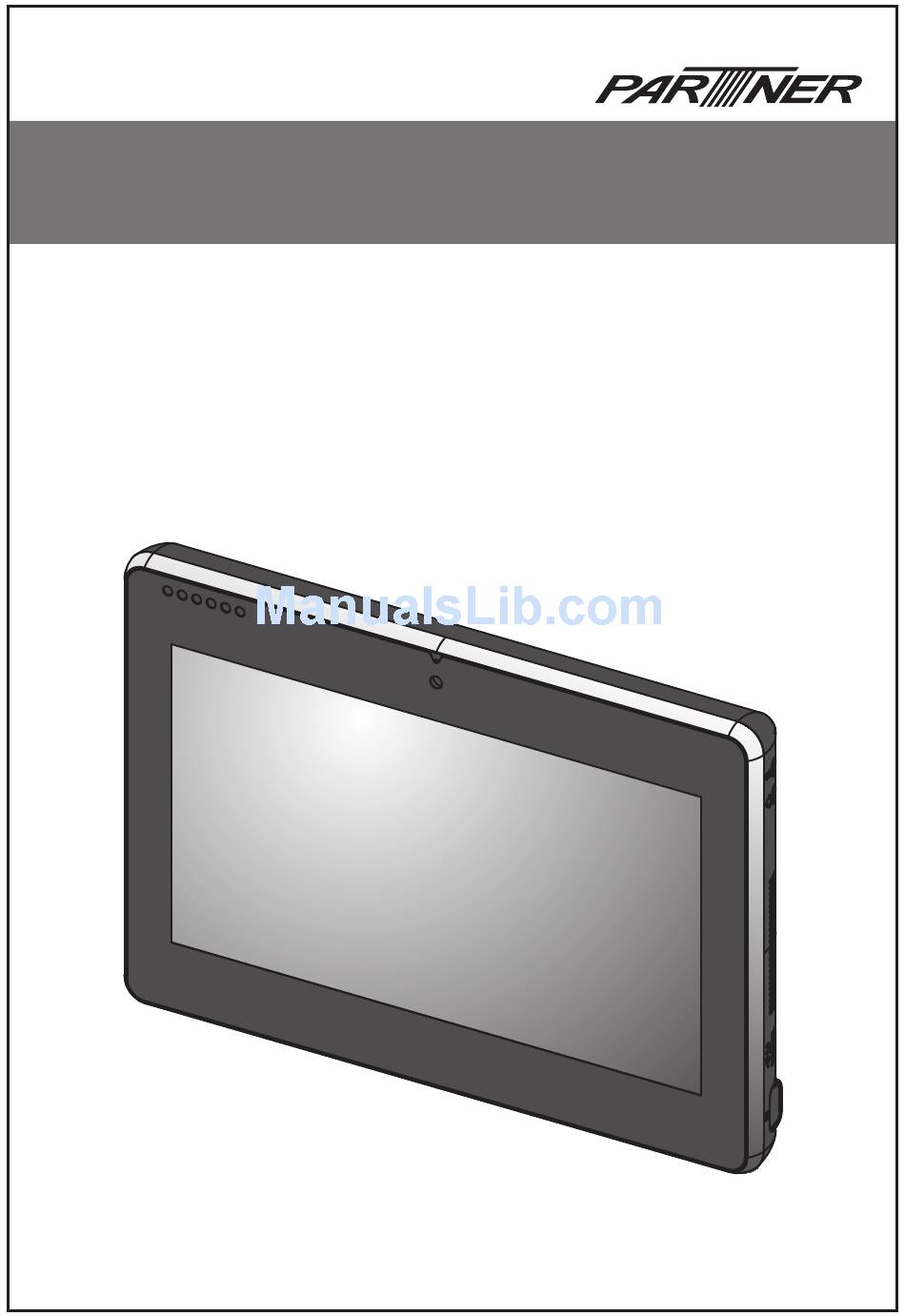

- Page 1 EM-200 User Manual...
-
Page 3: Declaration Of Conformity
Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. -
Page 4: About This Manual
EM-200 serviced, and technical specifications. Safety information Before installing and using the EM-200, take note of the following precautions: • Read all instructions carefully. • SAR compliance for body-worn operations is restricted which provide at least 2 cm separation between the device and the user’s body... -
Page 5: Revision History
Revision history Version 1.0, August 2009... -
Page 6: Table Of Contents
Safety and precautions ................23 Before you begin ..................24 Upgrading the hard drive................25 Upgrading the memory module ..............27 Upgrading the Mini-PCIE card ..............28 APPENDIX .................. 31 Troubleshooting ...................31 Tips for Troubleshooting ................31 General Problems ..................32 Having the EM-200 Serviced ..............33 Specification ....................34... -
Page 7: Chapter 1 Getting Started
CHAPTER 1 GETTING STARTED This chapter describes the procedures from unpacking the EM-200, to powering it on. The following topics are described. • Unpacking the machine on page 1 • Checking the package contents on page 2 • Identifying components on page 3 • Installing the battery pack on page 8... -
Page 8: Checking The Package Contents
Checking the package contents After you unpack the device, check that the following items are included. Metal Stylus EM-200 Battery Driver CD with drivers Quick Start Guide and the user manual PDF file. Protection pack Power cord AC adapter If any item is missing or appears damaged, contact your dealer immediately. -
Page 9: Identifying Components
Identifying components This section describes the parts and connectors on the machine. Front view Figure 1.2 Front view Component Description Power indicator Battery charging indicator HDD status indicator WiFi On/ Off indicator Bluetooth On/ Off indicator 3.5G LAN On/Off indicator (optional) Built-in Microphone Camera (optional) 10.1-inch touch panel... -
Page 10: Left View
Left view Figure 1.3 Left view Component Description 5-in-1 media card slot Express card 34 slot USB port Power button RJ45 LAN jack DC IN C H A P T E R 1 G E T T I N G S T A R T E D... -
Page 11: Right View
Right view Figure 1.4 Right view Component Description VGA port USB port Ventilation hole Headphone jack Microphone jack... -
Page 12: Rear View
Rear view Figure 1.5 Rear view Component Description Speaker Battery pack Charger pin: connect to a cradle for charging the battery. Do not short-circuit the 3 charger pins. A short-circuit may cause damage to the machine and present risks for electric shock or fire. IMPORTANT C H A P T E R 1 G E T T I N G S T A R T E D... -
Page 13: Bottom View
Bottom view Figure 1.6 Bottom view Component Description Mounting hole Camera (optional) Battery lock switch Memory, WiFi module, Bluetooth module and 3.5G LAN module (optional) slots Battery pack HDD compartment Battery release latch... -
Page 14: Installing The Battery Pack
Installing the battery pack 1. Overturn the EM200 so that the bottom is facing up toward you, as shown in the right. Slide the battery release latch to the unlock position. 2. Align EM200 battery compartment pins to the battery connector. Slightly slide and press the battery pack into the compartment until the... -
Page 15: Charging The Battery Pack
Charging the battery pack Plug the AC adapter power cord into an electrical outlet, then connect the DC plug of the adapter cable to the EM-200. It takes approximately 2–4 hours to fully charge the battery for the first time. Subsequent charges might take longer. Charge the battery within a temperature range 0˚C to 45˚C. NOTE To protect and prolong the life of the battery, do not charge it for 24 hours or longer at a time. -
Page 16: Powering On
Powering on The power button located on the left side of the EM200, press the power button the turn it on. To force power off , long press the power button for 4~5 seconds. NOTE C H A P T E R 1 G E T T I N G S T A R T E D... -
Page 17: Chapter 2 Bios Setup
CHAPTER 2 BIOS SETUP The primary function of the BIOS (Basic Input and Output System) is to identify and initiate component hardware. The BIOS parameters are stored in non-volatile BIOS memory (CMOS). CMOS contents don’t get erased when the computer is turned off. The following topics are described in this chapter. • About the Setup Utility on page 11 • Using the USB keyboard on page 11 • Main Menu on page 14... -
Page 18: Entering The Setup Utility
Entering the Setup Utility Press the F2 key during booting to access the BIOS Setup Utility: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help System BIOS Version GA-D1USB28 F04 Processor Type Intel(R) Atom(TM) CPU N270 @ 1.66GHz System Bus Speed 533 MHz System Memory Speed... -
Page 19: Using Bios
Using BIOS When you start the Setup Utility, the main menu appears. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>. Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. -
Page 20: Main Menu
Main Menu Press right/left arrow key to select the Main menu, which displays the following screen: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help System BIOS Version GA-D1USB28 F04 Processor Type Intel(R) Atom(TM) CPU N270 @ 1.66GHz System Bus Speed 533 MHz System Memory Speed... -
Page 21: Advanced Menu
Advanced Menu Press right/left arrow key to select the Advanced menu, which displays the following screen: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help ►Boot Configuration ►IDE Configuration Advanced S3 [Enabled] Keyboard Language [US, Chinese] Figure 2.3 Advanced menu Help Select Item F7/F8... -
Page 22: Boot Configuration
► Boot Configuration Use this submenu to set the boot configuration. Select the item and press <Enter> to open the following menu: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help Boot Configuration Numlock [Off] Figure 2.4 Boot Configuration submenu Help Select Item F7/F8 Change Values Setup Default ↑↓ ←→Select Menu Exit Enter Select►Sub-Menu Save and Exit Numlock This item is used to turn on/off the numlock of the external keyboard at boot. -
Page 23: Ide Configuration
► IDE Configuration Use this submenu to set the IDE configuration. Select the item and press <Enter> to open the following menu: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help IDE Configuration HDC Configure as [SATA Only] ATA/IDE Mode [Native] ►Channel 1 Master [WDC WD1600BEV1-222CT] Figure 2.5 IDE Configuration submenu Help Select Item F7/F8 Change Values Setup Default ↑↓... -
Page 24: Channel 1 Master
► Channel 1 Master Use this submenu to set the hard disk drive, Select the item and press <Enter> to open the following menu: InsydelH2O Setup Utility Advanced Item Specific Help Channel 1 Master [WDC WD1600BEVT-22ZCT] Type : [Auto] Transfer Mode: [Auto] 32Bit I/O: <Enabled>... -
Page 25: Security Menu
Security Menu The security system allows you to set a password to prevent unauthorized access to BIOS. Press right/left arrow key to select the Security menu, which displays the following screen: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help Supervisor Password : Not Installed User Password... -
Page 26: Boot Menu
Boot Menu This menu allows the user to set the boot-related options. Press right/left arrow key to select the Boot menu, which displays the following screen: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help Quiet Boot [Enabled] ►Boot Type Figure 2.8 Boot Menu Help... -
Page 27: Boot Device Priority
►Boot Device Priority Select the Boot Type item and press <Enter> to open the following menu: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help Boot Device Priority ►Boot Type Order Figure 2.9 Boot Device Priority submenu Help Select Item F7/F8 Change Values... -
Page 28: Exit Menu
Exit Menu This menu allows the user to save CMOS setting and exit the Setup Utility. Press right/left arrow key to select the Exit menu, which displays the following screen: InsydelH2O Setup Utility Main Advanced Security Boot Exit Item Specific Help Exit Saving Changes Exit Discarding Changes Load Optimal Defaults... -
Page 29: Chapter 3 Upgrading Components
CHAPTER 3 UPGRADING COMPONENTS This chapter describes how to upgrade components for the EM-200. The following topics are described. • Safety and precautions on page 23 • Before you begin on page 24 • Upgrading the hard drive on page 25 • Upgrading the memory module on page 27... -
Page 30: Before You Begin
Before you begin Make sure you have a stable, clean working environment. Dust and dirt can get into components and may cause malfunction. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the electrical and mechanical connections can be disconnected by using your fingers. It is recommended that you do not use needle-nosed pliers to disconnect connectors as these can damage the soft metal or plastic parts of the connectors. -
Page 31: Upgrading The Hard Drive
Upgrading the hard drive Refer to the following to remove and replace the hard drive. 1. Turn off the EM-200. 2. Disconnect the AC adapter cable. 3. Overturn the EM200. 4. Remove the two screws as shown in the right. - Page 32 7. Remove the hard drive. 8. Remove the four screws, then remove the hard drive out from the tray. To replace the hard drive, reverse the above procedure. C H A P T E R 3 U P G R A D I N G C O M P O N E N T S...
-
Page 33: Upgrading The Memory Module
Upgrading the memory module Refer to the following to remove and replace the memory. 1. Turn off the EM-200. 2. Disconnect the AC adapter cable. 3. Overturn the EM200. 4. Remove the two screws as shown in the right. 5. Open and remove the memory module compartment cover. -
Page 34: Upgrading The Mini-Pcie Card
To replace the memory module, reverse the above procedure. Upgrading the Mini-PCIE card Refer to the following to remove and replace the PCIE card. 1. Turn off the EM-200. 2. Disconnect the AC adapter cable. 3. Overturn the EM200. - Page 35 6. Locate the Mini-PCIE card, as shown in the right. 7. Remove the screw on the Mini- PCIE card, Mini-PCIE will pop up 45 degree. 8. When it pops up, gently remove To replace the Mini-PCIE card, reverse the above procedure.
- Page 36 C H A P T E R 3 U P G R A D I N G C O M P O N E N T S...
-
Page 37: Appendix
APPENDIX This appendix describes locating and solving problems that you may encounter while using the EM-200. Troubleshooting Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions. Tips for Troubleshooting In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly. Try to pin point the problem and thus avoid replacing non-defective parts. For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step. -
Page 38: General Problems
Refer to the following general problems you may encounter. PROBLEM SOLUTION The display screen is dark. Make sure that the EM-200 is not in suspend mode. An incorrect date and time are displayed. Set the date and time in BIOS or Operation System. -
Page 39: Having The Em-200 Serviced
Having the EM-200 Serviced If you are unable to solve the problem, you should have the terminal serviced. Pack the terminal in the original carton. (See “Unpacking the EM-200” on page 1.) Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service... -
Page 40: Specification
Specification Processor Intel Atom 1.6GHz Processor (N270) BIOS 1024K BB Flash ROM Chipset Intel 945GSE Memory Memory DDRII SO-DIMM X 1, 1GB, support up to 2GB LCD Display 10.1” TFT-LCD, 1024x600, 200 nits, LED backlight With Touch Panel Resistive touch Graphics Integrated in Intel 945GSE graphics controller Hard Disk Drive...
