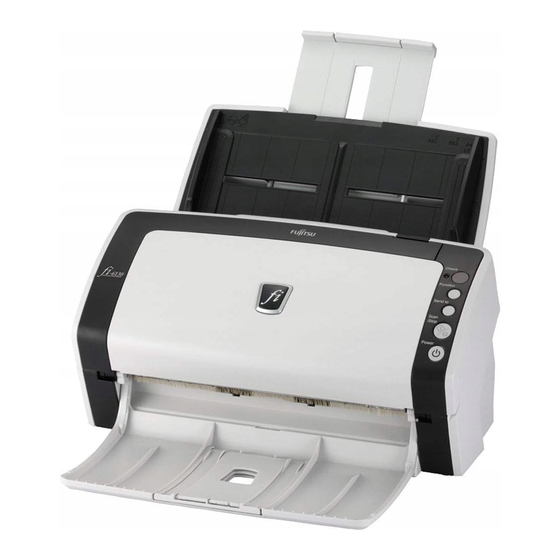

Fujitsu fi-6130 Instruction Manual
Hide thumbs
Also See for fi-6130:
- Operator's manual (222 pages) ,
- Cleaning and maintenance (47 pages) ,
- Getting started manual (20 pages)
Related Manuals for Fujitsu fi-6130
Summary of Contents for Fujitsu fi-6130
- Page 1 Fujitsu Scanners Cleaning and Consumable Replacement Instructions fi-6130 / fi-6230 fi-6140 / fi-6240 Versitec is a division of Cranel, Inc.
-
Page 2: Table Of Contents
WARNING !! TURN OFF SCANNER, DISCONNECT FROM POWER ALLOW TO COOL FOR AT LEAST 15 MINUTES BEFORE SERVICING Limitation of Liability Before using this product, please read this manual carefully. If this product is used incorrectly, unforeseen injury may occur. Although best efforts have been made to ensure all information in this manual is correct, Cranel Inc. - Page 3 Kit Contents Wipes Cleaning Sheets Swabs V1 Cleaner Pick Roller Brake Roller...
-
Page 4: Cleaning The Automatic Document Feeder
Cleaning the Automatic Document Feeder Open the ADF Location of Parts to be Cleaned... - Page 5 Recommended Cleaning Interval During normal use, the ADF is to be thoroughly cleaned every 5,000 scans Scanning certain documents may require more frequent cleaning * Some examples are: Carbonless paper Handwritten documents Paper with special coatings Glossy paper Clean in direction of arrows using either cotton swaps or wipes moistened with V1 cleaner Pick Arm Rollers Feed, Eject, Pinch and Pick Rollers...
-
Page 6: Using The Cleaning Paper
Using the Cleaning Paper Cleaning paper is designed to remove loose dust and ink only. Perform these steps between the manual cleanings described in the previous section Connect scanner to computer and power on. Apply V1 Cleaner to both sides of cleaning paper and place in paper chute. -
Page 7: Replacing Consumables
Replacing Consumables Brake Roller (Recommended after 200,000 sheets or 1 year) Squeeze tabs and pull down brake roller cover. Lift right side of brake roller up and out to remove from scanner Remove brake roller from shaft Install new roller. Make sure tab on shaft fits into the slot on roller Insert left end of shaft into hole in scanner and right end of... -
Page 8: Pick Roller
Pick Roller (Recommended after 200,000 sheets or 1 year) Lift open sheet guide Rotate pick roller lever up Lift out pick roller and shaft. Use a paper clip to lift tab on pick roller and remove from shaft. Install new roller. Slide pin on shaft Insert left end of shaft into brass into slot in roller and click into place. - Page 9 Resetting Pick Roller and Pad Assembly Counters After changing consumables, you need to reset the scan counters Click Start. Go to Settings and click on Control Panel Once in the Control Panel window, open Scanners and Cameras Right Click on the scanner and select properties Click the Device Set tab Click the clear buttons...
- Page 10 www.versitec.com Corporate Headquarters 8999 Gemini Parkway Columbus, OH 43240 Fax: 614.431.8388 Repair Center Western Region Office 908 Boston Turnpike Road 8001 Irvine Center Drive, 4th Floor Shrewsbury, MA 01545 Suites 411, 412, 413 Fax: 508.460.1890 Irvine, CA 92618 For inquiries on consumables, call Versitec at: 800.727.2635...
