Python 424 Owner's Manual

Remote start and keyless entry system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Python 424

Summary of Contents for Python 424

  • Page 2 Congratulations Congratulations on the purchase of your state-of-the-art remote start and keyless entry system. Reading this Owner’s Guide prior to using your system will help maximize the use of your system and its many features. For more information please visit the below website: http://www.pythoncarsecurity.com –...

  • Page 3: Important Information

    Important information Government Regulations and Safety information Read the Government Regulations and Warning! Safety First sections of this manual prior to operating this system. Warning! Failure to heed this information can result in death, personal injury or property damage and may also result in the illegal use of the system beyond its intended purpose.

  • Page 4: Table Of Contents

    Contents Getting Started ....................3 Keys to using this manual ..............3 Remote Control Information .................. 4 Control Center ..................5 Using your System ....................6 Commanding the system ............... 6 Performing Commands ................. 6 Remote Control Command table ............7 Basic Commands (Direct Access) ................
  • Page 5 Remote Start Safe-lock ..............20 Disabling Remote Start ..............20 Advanced Start ................. 20 Temperature Reporting ................ 21 Remote Start Time-out Alert ..............21 Manual Transmission Start (MTS mode) ..........22 Turbo Timer Mode ................23 Remote Start Faults ................24 Remote and System Operations ................

  • Page 6: Getting Started

    Getting Started Keys to using this manual Specific actions (in bold type) and style conventions are used consis- tently throughout this manual, they are as follows: Press: implies pushing in and releasing a button. Hold: is used after Press actions when a button needs to be held in position for an extended period of time, typically several sec- onds.

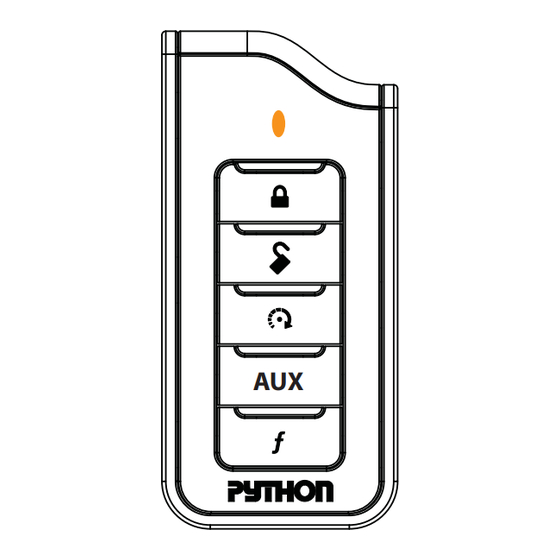

  • Page 7: Remote Control Information

    Remote Control Information Internal Antenna Transmit Ghost Command LED’s Buttons Function Button Feature Description Internal Antenna Used for transmitting and receiving*information Command buttons (4) Used to perform locking, unlocking, auxiliary channel and remote start commands Function button Used to access function levels for commands, configura- tion menus for programming, Car Selection, and to request reports.

  • Page 8: Control Center

    Control Center Control button Antenn Status LED The Control Center, typically located on the upper part of the front windshield. It consists of: The In-vehicle system antenna. The Status LED, as a visual indicator of the system’s status. The Control button, for placing the system into Valet Mode* and to perform the Emergency Override operation.

  • Page 9: Using Your System

    Using your System Commanding the system Commands, Basic or Advanced, are used to activate system features and are performed by pressing one of the Command buttons. Basic commands control the most often used keyless entry and remote start features while Advanced commands control more specialized fea- tures.

  • Page 10: Remote Control Command Table

    Remote Control Command table Basic Advanced Commands Commands Direct Access Level Button Lock Silent Lock Unlock Silent Unlock Valet Mode Car Finder Remote Start Reset Runtime Timer Mode Smart Start Rear Defogger Trunk Release AUX 1 AUX 2 AUX 3 AUX 4 Lock Runtime...

  • Page 11: Basic Commands (Direct Access)

    Basic Commands (Direct Access) Lock Press and release Doors lock (if connected). The horn honks once, and the parking lights flsh one-time. Lock LED turns on with 1 beep. To Lock and Panic Press and hold To lock the system, then activate Panic. For Panic to work,the optional horn honk feature must be connected.

  • Page 12: Aux/Trunk

    AUX/Trunk** Press and hold AUX. The AUX LED turns on and tones play to confirm. The Trunk opens (if connected) when this button is pressed for 2 seconds. For Manual transmission vehicles see “Manual Transmission Start (MTS mode)” on page 22 in the “Remote Start Features” section for more details.

  • Page 13: Runtime Reset

    Runtime Reset Press and release If more time is needed while remote start is active, runtime reset will reset the runtime counter to the pre-programmed setting. The green ghost LED’s show the runtime and the remote start On tones play to comfirm runtime reset.

  • Page 14: Remote Valet

    Remote Valet Press and release Enters (or if On, exits) Valet Mode. The Control Center LED turns on and off accordingly, and prevents doors from locking passively. The The Unlock LED and Valet beeps play (1 for on, 2 for off) to confirm. Timer Start* Press and release Activates (or if On, deactivates) Timer Start.

  • Page 15: Advanced Commands: (Level 3)

    Advanced Commands: (Level 3) Press and release the button 3 times. The transmit LED illuminates in sets of triple flashes to indicate Level 3. Car finder Press and release The horn emits one long honk and the parking lights flash for 10 sec- onds.

  • Page 16: Advanced Commands: (Level 4)

    Example for 12 minute runtime: 3 LED’s: 6 to 9 minutes remaining (50 - 75% of time selected). 1 LED: less than 3 minutes remaining (<25% of time selected). *See “Advanced Start” under “Remote Start Features” for more de- tails. Advanced Commands: (Level 4) Press and release the button 4 times.

  • Page 17: Remote Control Configuration

    Remote Control Configuration The remote controls have operations that can be configured to a user’s personal preferences. The following instruction will direct you through the available configuration and programing options for the remote control. Remote Programming Enter programming, press and hold the button for 8 seconds, the transmit LED turns on to indicate the Main Menu is accessed.

  • Page 18: Remote Features

    Prepare the remote control for pairing: Enter programming by pressing and holding the button for 8 seconds to access the Main Menu. Press and hold the button for 1 second, 3 transmit LED flash- es indicate the remote control is ready to pair. Press the button.

  • Page 19: Keypad Lock

    1-way companion remote control The 1-way remote will flash the transmit LED to indicate the setting. Feature Button Press Single Flash Double Flash Keypad Lock Auto Off * No function No function No function Car 2 Car 2 On Car 2 Off * Keypad Lock Options: Off, Auto When Off, the buttons do not lock and always perform a command...

  • Page 20: Page Mode

    Page Mode* Options: Power Save 1, Power Save 2, On, Off. The Responder LE remote monitors your system’s messages via Paging. When Paging is On the remote wakes up every few seconds to detect pages from the system. When Off the remote does not wake up to receive pages from the system.

  • Page 21: Emergency Override

    Emergency Override The override feature allows you to select a specific number of presses needed to disable the system. If the override button has been programmed to a new number of presses by your authorized dealer, that number should be indicated as follows.

  • Page 22: Remote Start Features

    Remote Start Features Pit Stop Mode To exit vehicle with engine running The system keeps the engine running during short trips into the house or convenience store. To perform Pit Stop: With the engine running, set the parking brake and release the foot brake.

  • Page 23: Remote Start Safe-Lock

    Remote Start Safe-lock Remote start safe-lock makes sure the doors are locked while the en- gine is running and after, even if they are unlocked when remote start is activated. Door locks may require additional parts and labor. Disabling Remote Start Remote start can be disabled by moving the Toggle Switch to the Off position.

  • Page 24: Temperature Reporting

    by the installer (default 6 starts). Timer Start is exited after the final start. Smart Start operation Smart Start uses the settings for Timer Start in addition to tempera- ture and battery level to automatically start the engine. Activation begins the countdown timer. When the timer expires the vehicle interior temperature and battery level is checked and, if the Tem- perature is above 100F, below 0F, or the battery level is be- low 10.5v, the engine will start.

  • Page 25: Manual Transmission Start (Mts Mode)

    Manual Transmission Start (MTS mode) When installed into a manual transmission vehicle, the system requires that the MTS mode is properly set when parking. If MTS mode is not properly set or is defeated after being properly set the system will not start the engine.

  • Page 26: Turbo Timer Mode

    Turbo Timer Mode The system keeps the engine running for the Turbo Timer runtime and can be activated by remote control or optional dash mounted activa- tion button. With the engine running, set the parking brake. Press the optional dash mounted activation button or perform the Timer Mode command.

  • Page 27: Remote Start Faults

    Remote Start Faults For user safety, the system must be properly configured or remote start will not activate. A Remote Start Fault may be caused by any of several configuration issues. Refer to the table below for the command type and parking light flashes that will identify the configuration issue and solution.

  • Page 28: Remote And System Operations

    Remote and System Operations Passive Locking* Park and exit the vehicle, after the doors are closed the Passive locking countdown begins. The led flashes quickly and upon reaching 20 sec- onds then the horn honks once. At 30 seconds the system locks itself. Anytime before the system locks you can re-enter the vehicle or open the trunk to load or unload items and, after closing passive lock- ing resumes.

  • Page 29: Valet Mode

    Valet Mode Valet mode can be entered and exited by performing the Remote Valet command or manually using the vehicle key and the control button. When entered, the convenience features still operate normally. Use the following steps to manually enter and exit Valet Mode: Turn the ignition switch On and then Off Immediately press and release the control button once The control center LED turns On when entering and Off when...

  • Page 30: Car Select

    Car Select Car 2 remote control option must first be turned On (See Remote Con- trol Configuration section to turn on). Press and hold the button for 3 seconds. The LED flashes once or twice to indicate the selected Car is 1 or 2. Release the button for Car Select or continue to hold for program- ming.

  • Page 31: System Expansion Options

    System Expansion Options Controlling two vehicles (Car Select) The Responder LE and 1-way companion remotes can control systems in two vehicles saving the need for multiple remote controls. This fea- ture also allows for customized system configurations on each vehicle that has more than one driver.

  • Page 32: Battery Information

    Battery Information The Responder LE remote is powered by 2 batteries (PB CR-2016) and the 1-way companion remote is powered by 1 battery (CR-2032) that can be purchased at most retailers. When the battery begins to weaken, the operating range will be reduced. The information and precautions in this section can help maximize your battery’s life and usage in providing your Responder LE and 1-way companion remote controls with many years of trouble free operation.

  • Page 33: Battery Replacement

    Turn Paging off: The remote will not wake up to check for mes- sages with Paging off in the Setup Remote menu. Turn Beeps off: The Button beeps can be turned off in the Setup Remote menu. The command beeps still play normally. Battery Replacement Rear View 1.

  • Page 34: Glossary Of Terms

    Glossary of Terms Document Terminology Control Module The “brain” of your system. Usually hidden underneath the dash area of the vehicle. It houses the microprocessor which monitors your vehicle and controls all of the system’s func- tions. Remote Control A hand-held, remote control which operates the various func- tions of your system.

  • Page 35: Government Regulations

    Government Regulations This device complies with Part 15 of FCC rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 36: Warning! Safety First

    Warning! Safety First Please read the safety warnings below before proceeding. Improper use of the product may be dangerous or illegal. Installation Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. If you have any questions, ask your retailer or contact Directed directly at 1-800-753-0600.
  • Page 37 Before remote starting a manual transmission vehicle, be sure to: Leave the vehicle in neutral and be sure no one is standing in front or behind the vehicle. Only remote start on a flat surface Have the parking brake fully engaged WARNING! It is the responsibility of the owner to ensure the parking/emer- gency brake properly functions.

  • Page 38: Interference

    GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPER- ATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMME- DIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE IN- STALLED REMOTE START MODULE.

  • Page 39: Limited Lifetime Consumer Warranty

    Limited lifetime consumer warranty Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at Directed’s election) with a comparable reconditioned model any Directed unit (hereaf- ter the “unit”), excluding without limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to be defective in workmanship or material under reasonable use during the lifetime of the vehicle provided the following conditions are met: the unit was purchased from an authorized Directed dealer, the unit was professionally...
  • Page 40 OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE OF THE UNIT.
