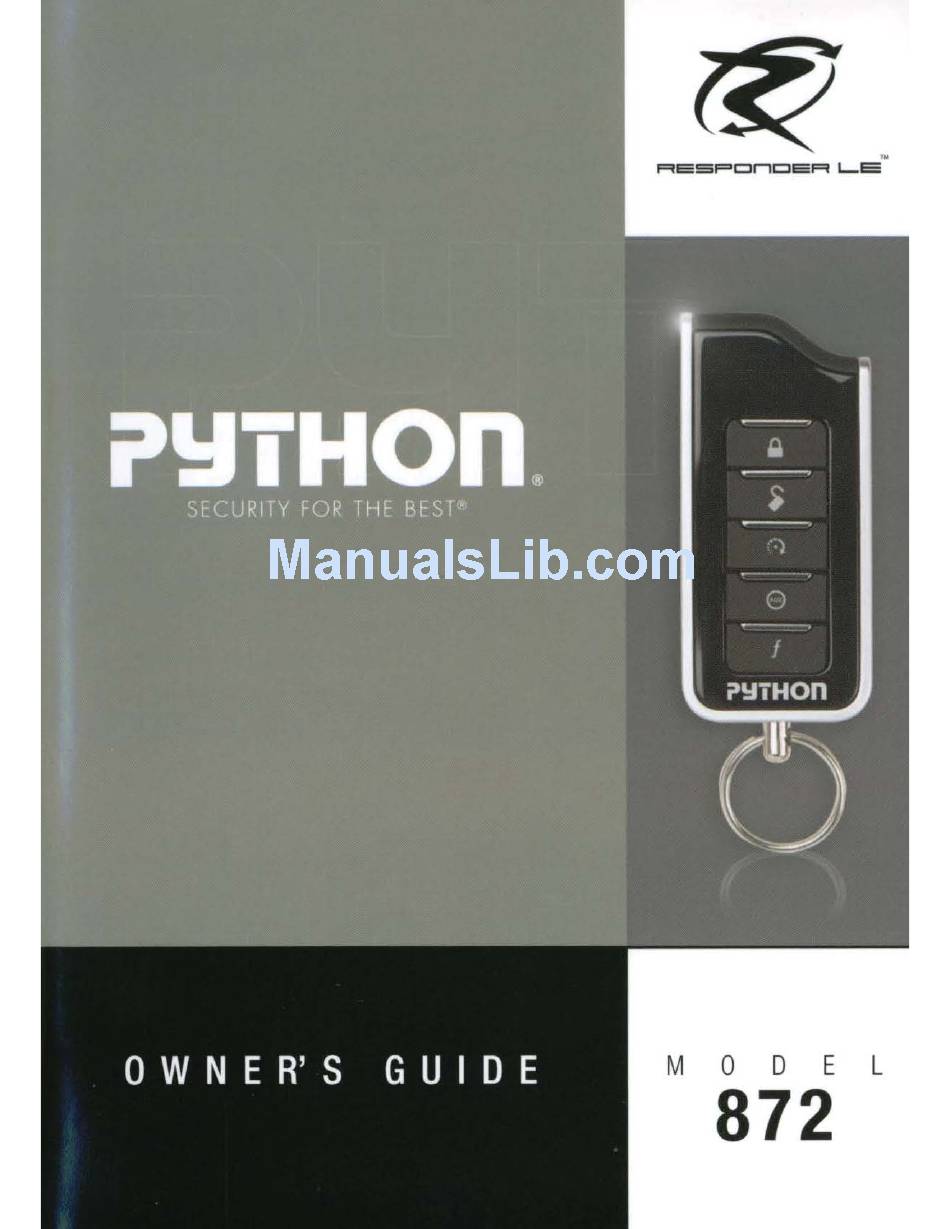

Python 872 Owner's Manual

Hide thumbs Also See for Python 872:
Table of Contents

Advertisement

Quick Links

M
0
D
E
L
872

Advertisement

Table of Contents
loading

Related Manuals for Python Python 872

Summary of Contents for Python Python 872

  • Page 55: Installation Guide

    Responder LE Models Viper 5701 Clifford 3.3X Python 872 Security and Remote Start Installation Guide This product is intended for installation by a professional installer only! Attempts to install this product by a per- son other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
  • Page 56 Bitwriter®, Code Hopping™, Doubleguard®, ESP™, Fail- Safe®, Ghost Switch™, Learn Routine™, Nite-Lite®, Nuisance Prevention® Circuitry, Revenger®, Silent Mode™, Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away® are all Trademarks or Registered Trademarks of Direct- ed Electronics. Bitwriter (p/n ®...

  • Page 57: Table Of Contents

    Contents Warning! safety first ........................4 Wiring Diagram ..........................5 Wiring Connections ........................6 Main Harness (H1), 12-pin connector ..................6 H2 Harness, 18-pin connector ....................6 Remote Start, (H3) 10-pin connector .................... 6 Door Lock, 3-pin connector ......................7 Adjusting the Sensor ........................

  • Page 58: Warning! Safety First

    Warning! safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed Electronics dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 59: Wiring Diagram

    Wiring Diagram Control button Valet switch Status LED Control Center 6211T Valet switch Control button D2D jumpers; Factory setting is horizontal position. Status LED Most Xpresskit modules use this setting, check the Xpresskit installation guide for the specific setting. LIGHT FLASH POLARITY (10A (MAXIMUM) FUSE JUMPER) nter Control Center...

  • Page 60: Wiring Connections

    MINI ATM Xpresskit RPN: 8540 interface Bitwriter Neutral Safety Remote Door Lock/ Relay Out Valet Status module) Port Switch Start In Unlock Output Port Port Port Optional Mux (for additional se To change CPU1 jumper settings Wiring Connections TACH threshold OFF: Main Harness (H1), 12-pin connector TACH threshold ON: RED/WHITE...

  • Page 61: Door Lock, 3-Pin Connector

    Important! The vehicle system must be disarmed and the vehicle doors, hood, and trunk should remain closed and ignition off or the unit will exit adjust mode prematurely. Adjusting the sensor with the Responder LE remote control: Press and hold the button of the remote control for 8 seconds (If Car 2 mode is on, ignore the Car Select beep after 3 seconds) or until the amber LED turns on and you hear one long beep.

  • Page 62: Neutral Safety Switch Interface

    Initializing Virtual Tach (not needed w/hardwire tach inputs) To program Virtual Tach: After the install is complete, remote start the engine. The programming operation may require 3 cranks of the starter before the engine starts and runs. Do not turn off the remote start if this happens, it is a normal programming operation.

  • Page 63: Remote Start Shutdown/Startup Diagnostics

    Startup Diagnostics: If the vehicle fails to activate the remote start, the remote start module will notify you via your Responder LE 2-way remote control and will flash the parking lights on the vehicle to notify you of what caused the no-start situation.

  • Page 64: Remote Pairing

    Note: If no remote pairing results, the system will exit after 60 seconds. Prepare the new Responder LE remote to be Paired with the system: Remote Pair matches your LE remote to the system. Make sure the LE remote is set for the desired Car 1 (Default) or Car 2 operation for the system it will be paired with.

  • Page 65: Programming System Features

    Programming System Features The System Features Learn Routine dictates how the unit operates. It is possible to access and change most of the feature settings using the Control button. Open a door. Turn the ignition on, then off. Select a Menu. Press and hold the Control button. The number of siren chirps indicates the menu num- ber.

  • Page 66: Feature Menus

    Feature Menus Default settings are Opt. 1 (in bolder type). New features are bold with grey background. Menu 1 - Security Menu Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+ Item System Arming Mode Active Passive Arm Passive Arm Auto re-arm Auto re-arm w/ w/o lock...
  • Page 67 4. Siren Duration 30sec: the siren output for full trigger activations and Panic mode is 30 seconds 60sec: the siren output for full trigger activations and Panic mode is 60 seconds 5. Ign-controlled Locks No Ign-locking: the door lock/unlock outputs will not activate when ignition is turned on/off Lock &...

  • Page 68: Menu 2 - Convenience

    Menu 2 - Convenience Menu Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+ Item One-time Bypass One time One time bypass Off bypass On Nuisance Prevention Override Pulse count Door Trigger Error Chirp Ign-controlled Dome light OEM Alarm Disarm w/Aux- Trunk OEM Alarm Disarm Output With Unlock...
  • Page 69 On: the OEM Alarm Disarm wire will pulse as programmed when the Aux/Trunk output is activated Off: the OEM Alarm Disarm wire will not pulse when the Aux/Trunk output is activated 7. OEM Alarm Disarm Output (H2/1 wire) With Unlock: the OEM Alarm Disarm wire will pulse as programmed at the same time as the unlock (Blue) wire Before Unlock: the OEM Alarm Disarm wire will pulse as programmed before the unlock wire Remote start only: the OEM Alarm Disarm wire will pulse as programmed during remote start only...

  • Page 70: Menu 3 - Remote Start

    Menu 3 - Remote start Menu Feature Opt. 1 Opt. 2 Opt. 3 Opt.4 Opt. 5+ Item Transmission Mode Automatic Manual Engine Checking Mode Virtual Tach Voltage Tachometer Cranking Time 0.6 sec. 0.8 sec. 1.0 sec. 1.2 sec. 1.4 (5)/ 1.6 (6)/ 1.8 (7) 2.0 (8)/ 4.0 Remote Start Runtime...
  • Page 71 6. Turbo Mode No turbo Mode: Turbo mode is not available On – 1/3/5/10 minutes: Turbo Mode is available and, when activated, the engine will run for the duration set per the selected option 7. Timer Mode Runtime • 12/3/6/9 minutes: sets the runtime when the engine is started by the Timer Mode and SmartStart features 8.

  • Page 72: Bitwriter - Only Options

    locked) during remote start and after shut down On: the Door lock and Factory Alarm Re-arm outputs will arm/lock the vehicle during remote start and after shutdown Bitwriter - Only Options If programming with the Bitwriter®, the learn routine can be locked or unlocked. If the learn routine has previously been locked, it must be unlocked with Bitwriter®...
  • Page 73 Zone 4 Sensor Type: sets the Zone 4 (Sensor 2) name to be displayed in the Text Field for Warn-away and Full Trigger activations Siren Duration: sets the Full Trigger output duration in 1 second intervals up to 180 seconds. Aux/Trunk Icon Type: sets the Accessory animation to be displayed on the screen when the Aux/Trunk output is activated/de-activated Aux 1 Timed Output: sets the output duration in 1 second intervals up to 90 seconds for Aux 1...

  • Page 74: Basic Remote Functions

    Basic Remote Functions See Owner’s guide for functionality details on both the LE and 1-way companion remote control. Reset and Deletion If a feature/virtual tach needs to be reset or the remote controls need to be deleted, use the following proce- dure.

  • Page 75: Table Of Zones

    Table of Zones A zone is represented by the number of status LED flashes used by the system to identify a particular type of input. Zone Description Input Description Trunk Pin H1/7 Blue wire Instant trigger: a heavier impact On board shock sensor. detected by the onboard shock sensor Door switch trigger H1/8 Green or H1/6 Violet wire...

  • Page 76: Troubleshooting: Remote Start

    Troubleshooting: Remote Start The remote start will not activate the remote start Check remote startup diagnostics. Is the neutral safety switch plugged in and turned on? If the vehicle has an automatic transmission, make sure the remote start is programmed for Automatic Transmission mode.
  • Page 77 Is the remote start programmed for voltage sense? If this does not work, a tach wire should be used. Check shutdown diagnostics. The climate control system does not work while the unit is operating the vehicle. Either the wrong accessory wire is being energized or more than one igni tion or accessory wire must be energized in order to operate the climate control system.

  • Page 78: Installation Points

    TACH threshold ON: settings module will notify you via your Responder LE remote control and will flash the park- Xpresskit installation guide for the specific setting. main menu. Press and hold for 1.5 seconds in the main menu to exit program- ing lights on the vehicle to notify you of what caused the no-start situation.
  • Page 79 Programming System Features Menu 2 - Convenience Aux 3 Timed Output 30 sec. Options: 1 to 90 sec. Tach Mode Starter Normal Increase Decrease Release The System Features Learn Routine dictates how the unit operates. It is possible to Aux 3 Icon Type Pulsed Trunk Window...
