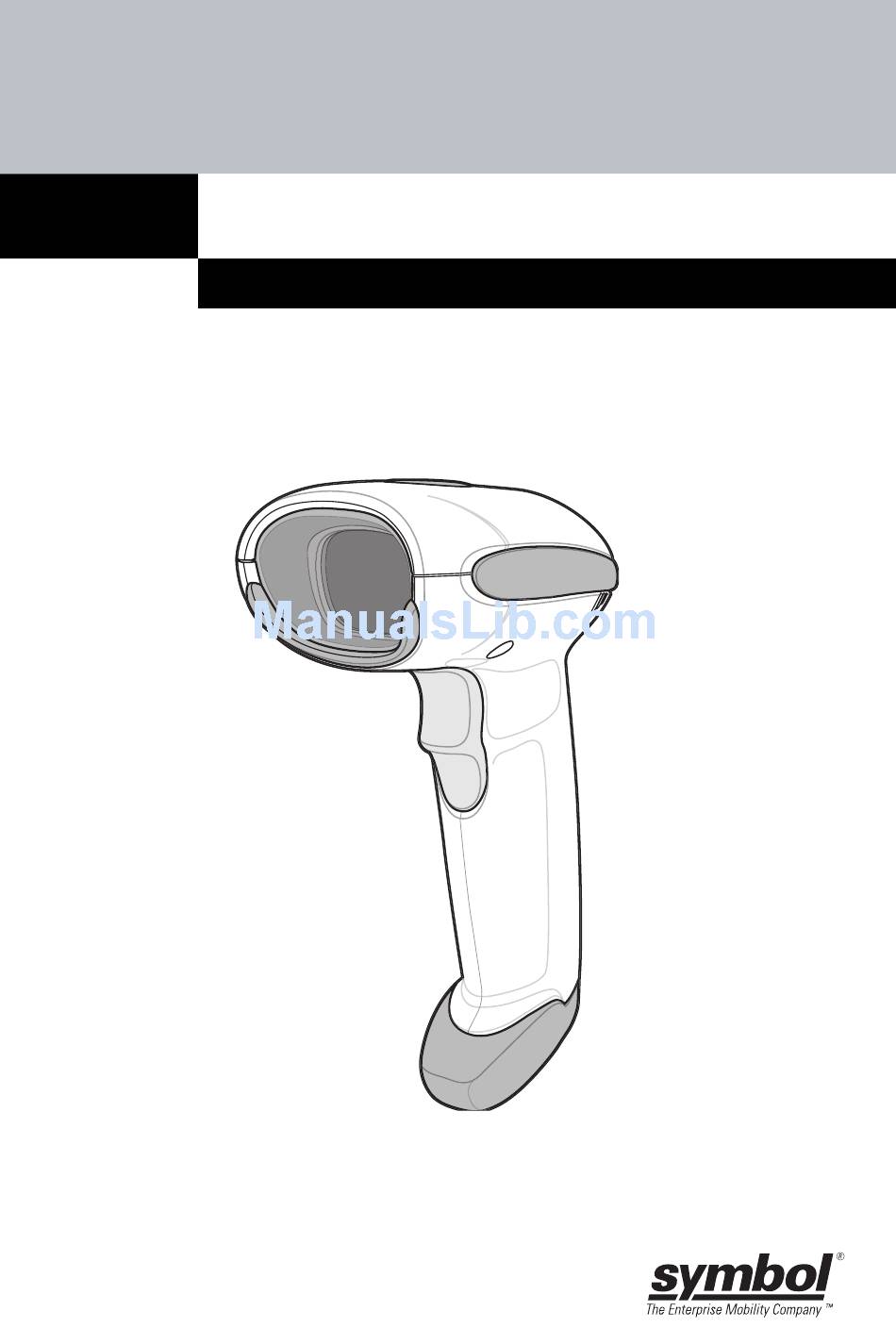

LS3008
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Symbol LS3008

Summary of Contents for Symbol LS3008

  • Page 1 LS3008 Quick Reference Guide...

  • Page 2: Warranty

    LS3008 © 2006 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

  • Page 3: Inserting And Removing The Interface Cable

    Quick Reference Guide Introduction The LS3008 scanner combines excellent scanning performance and advanced ergonomics to provide the best value in a lightweight laser scanner. Whether used as a hand-held scanner or in hands-free mode in a stand, the scanner ensures comfort and ease of use for extended periods of time.
  • Page 4 LS3008 Aiming Scanning 012345 012345 012345 012345...

  • Page 5: Beeper Definitions

    A bar code symbol was decoded (if decode beeper is enabled). 4 long low beeps A transmission error was detected in a scanned symbol. The data is ignored. This occurs if a unit is not properly configured. Check option setting. 5 low beeps Conversion or format error.

  • Page 6: Led Definitions

    LS3008 Beeper Sequence Indication Low/high/low beep The Code 39 buffer was erased or there was an attempt to clear or transmit an empty buffer. Low/high beep A successful transmission of buffered data. Host Specific USB only 4 short high beeps Scanner has not completed initialization.

  • Page 7: Troubleshooting

    Refer to the LS3008 Product Reference type. Guide, p/n 72E-86092-xx, for more information. Bar code symbol is Check the symbol to ensure it is not unreadable. defaced. Try scanning test symbols of the same bar code type. Distance between Move the scanner closer to or further scanner and bar from the bar code.

  • Page 8: Programming Bar Codes

    Programming Bar Codes Following are some frequently used programming bar codes. For additional host types, refer to the LS3008 Product Reference NOTE Guide, p/n 72E-86092-xx, available on the LS3008 CD, or on the http://www.symbol.com/manuals Symbol website: Set Defaults Scan SET DEFAULTS to set all parameters to their default values.

  • Page 9: Host Type

    HID keyboard interface. See page 12 to select the IBM hand-held host type. Refer to the LS3008 Product Reference Guide, p/n 72E-86092-xx, for additional USB host types. If a Keyboard Wedge, RS-232, Wand Emulation, Scanner Emulation, or IBM 46XX is used, the appropriate host type must be scanned. Select the appropriate host type from the bar codes that follow.
  • Page 10 LS3008 Country Keyboard Types (Country Codes) GERMAN Windows SPANISH Windows ITALIAN Windows SWEDISH Windows UK ENGLISH Windows JAPANESE Windows PORTUGUESE-BRAZILIAN Windows...
  • Page 11 Quick Reference Guide RS-232 Host Types STANDARD RS-232 ICL RS-232 NIXDORF RS-232 MODE A NIXDORF RS-232 MODE B FUJITSU RS-232 OPOS/JPOS...
  • Page 12 LS3008 USB Host Types HID KEYBOARD EMULATION IBM HAND-HELD USB IBM 46XX Host Types PORT 5B PORT 9B Wand Emulation Host Type SYMBOL WAND Many Wand hosts require input as Code 39 data. Scan the following bar codes to enable or disable transmission of data to the Wand host as Code 39 data.
  • Page 13 To append a carriage return/line feed to all transmitted data, scan the following bar codes in the order shown. To cancel this operation, the SET DEFAULTS bar code on page 8, or refer to the LS3008 Product Reference Guide. SCAN OPTIONS <DATA><SUFFIX>...

  • Page 14: Ergonomic Recommendations

    • Provide a suitable working environment • Improve work procedures. Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment.

  • Page 15: Radio Frequency Interference Requirements-Fcc

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Marking and European Economic Area (EEA) Statement of Compliance Symbol Technologies, Inc., hereby declares that this device is in compliance with all the applicable Directives, 89/336/EEC, 73/23/EEC. A Declaration of Conformity may be obtained from http://www2.symbol.com/doc/.

  • Page 16: Laser Devices

    LS3008 Laser Devices Symbol devices using lasers comply with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001 and EN60825-1:1994+ A1:2002 +A2:2001, IEC60825-1:1993+A1:1997+A2:2001. The laser classification is marked on one of the labels on the device.
  • Page 17 Quick Reference Guide In accordance with Clause 5, IEC 825 and EN60825, the following information is provided to the user: ENGLISH HEBREW CLASS 1 CLASS 1 LASER PRODUCT CLASS 2 LASER LIGHT DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT DANISH / DANSK ITALIAN / ITALIANO KLASSE 1...
  • Page 18 LS3008 Waste Electrical and Electronic Equipment (WEEE)
  • Page 19 Quick Reference Guide...
  • Page 20 If you have a problem running your unit or using your equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Symbol Global Customer Interaction Center. For Symbol Global Customer Interaction Center contact information, go to: www.symbol.com/contactsupport.
