Page 1

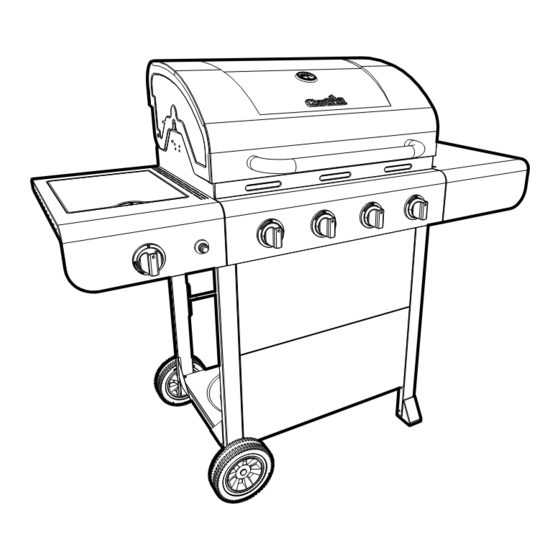

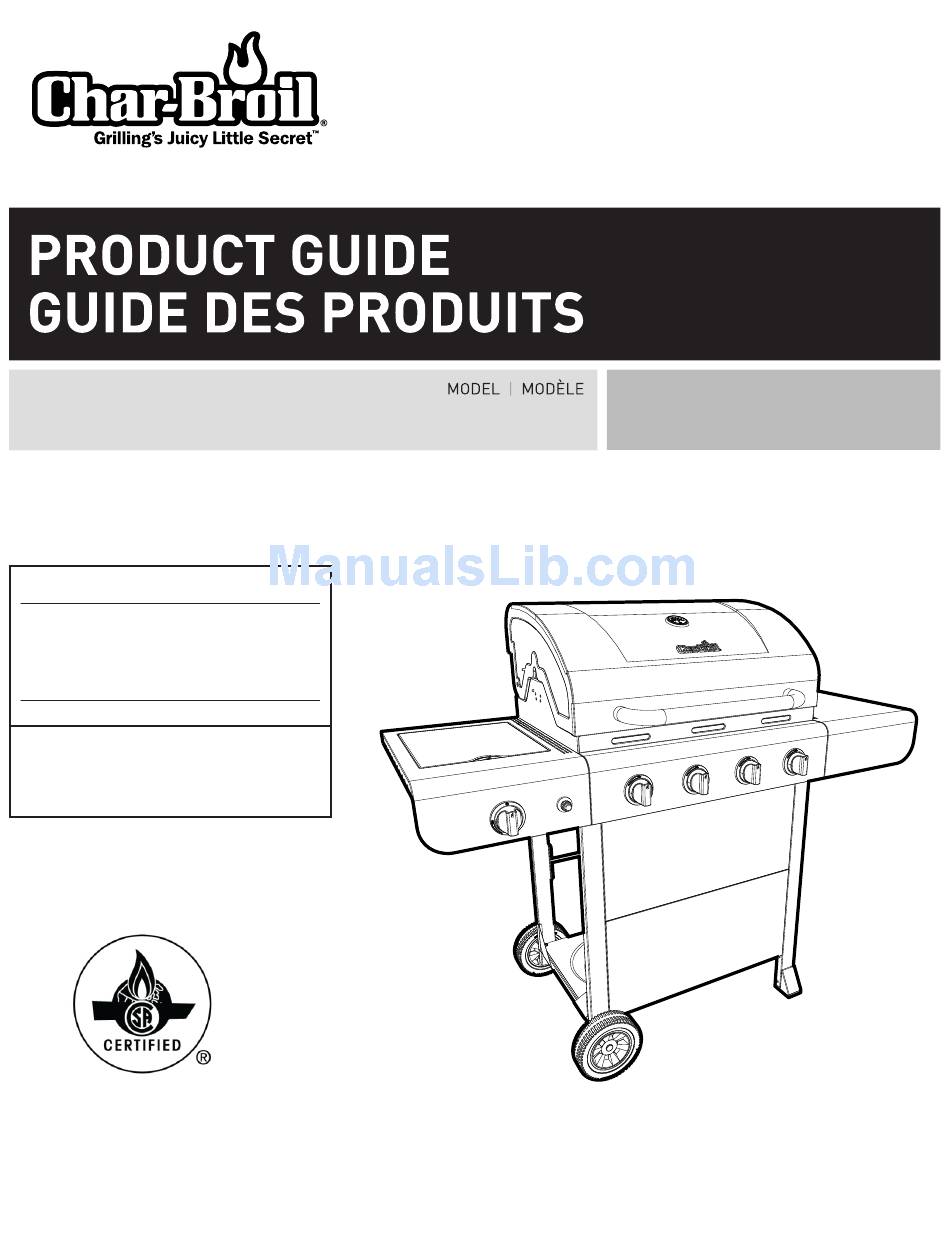

4-Burner Gas Grill 466344015 Serial number | Numéro de série See rating Label on grill for serial number. Ce numéro se trouve sur l´étiquette signalétique sur i´appareil. Date purchased | Date d’chat If you have questions or need assistance during assembly, please call 1-800-241-7548.
WARNING CAUTION Using pots larger than 6 quarts in capacity could exceed Failure to follow all manufacturer’s instructions could result in weight limit of the side burner shelf or side shelf, resulting serious personal injury and/or property damage. in failure of grill cart components. CAUTION Read and follow all safety statements, assembly instructions, and use and care directions before attempting...
Installation Safety Precautions LP Cylinder •The LP cylinder used with your grill must meet the •Use grill, as purchased, only with LP (propane) gas and the following requirements: regulator/valve assembly supplied. If your grill is Dual Fuel •Use LP cylinders only with these required measurements: 12" ready, a conversion kit must be purchased for use with (30.5cm) (diameter) x 18"...
Connecting Regulator to the LP Cylinder LP Cylinder Exchange •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to assembly section.) your empty LP cylinder through an exchange service. Use only 2.Turn all control knobs to the OFF position.
WARNING WARNING • Outdoor gas appliance is not intended to be installed in or • Do not use grill until leak-tested. on a boat. • If a leak is detected at any time, STOP! Turn off gas at source and correct leak. •...
Page 7
Ignitor Lighting WARNING • Do not lean over grill while lighting. 1. Turn gas burner control valves to (off). For Safe Use of Your Grill and to Avoid Serious Injury: 2. Open lid during lighting or re-lighting. • Do not let children operate or play near grill. 3.
Page 8
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by Char-Broil at charbroil.com. • Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed from grill and stored outdoors.
Cleaning the Burner Assembly CAUTION Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill. 1. Turn gas off at control knobs and LP cylinder. SPIDER ALERT! 2. Remove cooking grates and heat tents. 3.
LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
TABLE DES MATIÈRES CET APPAREIL EST CONÇU POUR UN USAGE À L'EXTÉRIEUR Pour votre sécurité ......11-13 UNIQUEMENT Utilisation et entretien .
Page 12
AVERTISSEMENT ATTENTION Ne pas suivre toutes les instructions du fabricant pourrait Utiliser des pots de plus de 6 quarts de la capacité causer des préjudices physiques graves et des dommages pourrait dépasser le poids limite du plateau brûleur matériels. latéral ou Côté plateauce qui entraîne la défaillance du gril panier composants.
Réservoir de gaz. Mesures de sécurité pendant l'installation • Le réservoir de GPL utilisé avec votre gril doit satisfaire aux exigences suivantes : Utilisez grill, comme l'achat, avec seulement LP (propane) du gaz et le régulateur / valve de montage fourni. Si votre •...
Page 14
Connexion du régulateur au réservoir de GPL Échange de réservoir de GPL 1. Le réservoir de GPL doit être attaché à l’appareil de façon • Plusieurs commerçants qui vendent la unité offrent la sécuritaire. (Reportez-vous à la section sur l'assemblage.) possibilité...
Page 15
AVERTISSEMENT AVERTISSEMENT • N'utilisez pas le gril avant d'en avoir vérifié l'étanchéité. • L'appareil d'utilisation extérieure du gaz n'est pas conçu pour être installé sur ou dans un bateau. • Si une fuite est détectée, STOP! Fermer le gaz à la source et remédier à...
Page 16
Allumage AVERTISSEMENT • Ne pas se pencher sur le gril au moment de l'allumage. 1. Tourner le bouton de commande du brûleur à gaz vers (« arrêt »). Pour utiliser votre gril en toute sécurité et pour 2. Ouvrir le couvercle avant de l'allumer l'appareil ou du éviter des blessures graves : réallumer.
Page 17
Vérification du réglage de la flamme Remarque : il se peut que votre gril NE soit PAS équipé d'un brûleur latéral! • Enlevez les grilles et les couvre-brûleurs. Allumez les brûleurs et tournez les boutons de la position maximale à la position Allumage du brûleur latéral minimale.
Page 18
Nettoyage de l'assemblage du brûleur ATTENTION Suivez ces instructions pour nettoyer ou remplacer des pièces du brûleur ou si vous éprouvez de la difficulté à allumer le gril. 1. Fermez tous les boutons de réglage, ainsi que la valve ATTENTION AUX du réservoir de gaz.
GARANTIE LIMITÉE La présente garantie n'est valide que pour les appareils achetés auprès d'un détaillant autorisé. Le fabricant garantit à l'acheteur initial, et uniquement celui-ci, que le produit est exempt de tout défaut de matériel et de main-d'œuvre, dans la mesure où il a été assemblé correctement, qu'il est utilisé de façon normale et raisonnable à...
ASSEMBLY/ ASSEMBLAGE NOTE: DO NOT over tighten screws and washers that come into contact with porcelain coated surfaces. Over tightening may cause the porcelain coating to crack and break, resulting in exposed metal that will be prone to rust. REMARQUE: NE serrez PAS excessivement les vis et les rondelles qui sont en contact avec les surfaces au revêtement en porcelaine. Un serrage excessif peut fissurer ou briser le revêtement en porcelaine, entraînant l'exposition du métal qui pourrait rouiller.
Page 23
NOTE: Do Not tighten the screws REMARQUE : NE serrez PAS les vis NOTE: Tighten the screws REMARQUE : Serrez les vis...
Page 24
NOTE: Do Not tighten the screws REMARQUE : NE serrez PAS les vis NOTE: Tighten the screws REMARQUE : Serrez les vis...
Page 26
Do Not tighten NE serrez PAS Tighten Serrez...
Page 27
Back of Firebox/ Arrière du foyer Front of Firebox/ Avant du foyer...
Page 28
CAUTION Failure to install grease cup clip and cup will cause hot grease to drip from bottom of grill with risk of fire or property damage. ATTENTION À défaut d'attacher un récipient à graisse à son agrafe, la graisse chaude s'égouttera du fond du gril, entraînant un risque d'incendie ou de dommages matériels.
If your grill is not getting hotter than 250°F to 300°F these GRILLING GUIDE – Getting Started steps should be taken first to reset the gas regulator safety device: First Time Use 1. Open the grill lid. Read your Assembly Manual and ensure the grill is put together 2.
Page 30
Indirect Cooking Indirect cooking utilizes select burners to circulate heat throughout the grill, without direct contact between the meat and the flame. The meat is placed over the burner that is 'off'. This method is generally used to slow cook large cuts of meat and poultry.
Page 31
Skewers GRILLING GUIDE – Tips & Tricks Metal skewers should be flat, with long handles. Round skewers allow food to roll when turned, so it may not cook as evenly. Use metal skewers when cooking meat kabobs. Wooden skewers Sauces should be soaked in water for an hour before use, and are best Sauces containing sugars and fats can cause flare-ups, and used for quick cooking foods such as vegetables and fruits.
Painted surfaces: Wash with mild detergent or non-abrasive cleaner and warm water. Wipe dry with a soft non-abrasive cloth. The Char-Broil® grill is equipped with Gear Trax™, which allow for the easy mounting of our unique line of Gear Trax Stainless steel surfaces: Stainless steel can rust under certain accessories.
Page 33
Si la température de votre gril ne dépasse pas 250 ° F à 300 GUIDE DE CUISSON – Pour commencer °F, suivez d'abord ces étapes afin de réinitialiser le dispositif de sécurité du régulateur de gaz : 1. Ouvrez le couvercle du grill. Première utilisation 2.
Page 34
Cuisson indirecte La cuisson indirecte consiste à utiliser certains brûleurs pour faire circuler la chaleur dans l'ensemble du gril, sans contact direct entre la viande et la flamme. La viande est placée au- dessus du brûleur éteint. Cette méthode est généralement utilisée pour faire cuire avec lenteur de gros morceaux de viande et de la volaille.
Page 35
Broches Les broches en métal doivent être plates et pourvues de longues GUIDE DE CUISSON – Conseils et astuces poignées. Les broches rondes laissent les aliments rouler lorsqu'on les tourne, ce qui peut produire une cuisson moins Sauces uniforme. Utilisez des broches en métal lorsque vous préparez Les sauces contenant du sucre et des graisses peuvent causer des brochettes de viande.
Utilisez de la poudre à récurer non abrasive pour les taches tenaces. Le gril Char-Broil® est muni du dispositif Gear Trax™ qui facilite le montage de notre gamme unique d’accessoires Gear Trax.
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. •Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use of cracked/cut/burned hose.
Page 38
Troubleshooting (continued) Problem Possible Cause Prevention/Solution Sudden drop in gas flow or • Check for gas in LP cylinder. • Out of gas. low flame. • Excess flow valve tripped. • Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP cylinder valve.
URGENCES : si une fuite de gaz ne peut pas être arrêtée, ou si un incendie se propage en raison d'une fuite de gaz, appelez le service d'incendie. Cause possible Prévention/Solution Urgences Fuite de gaz sur un tuyau • Tuyau endommagé. •...
Page 40
Dépannage (suite) Problème Cause possible Prévention/Solution Baisse subite du flux de • Le gaz est épuisé. • Vérifiez que le réservoir de GPL contient bien du gaz. gaz ou flamme faible. • La soupape de remplissage excessif a été • Fermez les boutons, attendez 30 secondes et allumez le gril. Si les déclenchée.
PARTS LIST Qty Description Qty Description WING SCREW F/ TANK FIREBOX LID BUMPER, ROUND TUBE BURNER ELECTRODE WIRE, F/ SIDEBURNER ELECTRODE, MAIN BURNER LEG CAP CARRY OVER TUBE CONTROL PANEL, MAIN NOT Pictured ELECTRONIC MODULE, W/BUTTON … VENTURI CLIP F/ SB BUTTON, F/ ELECTRONIC MODULE …...
LISTE DES PIÈCES Réf. Qté Description Réf. Qté Description FOYER VIS À OREILLES DU RÉSERVOIR BRÛLEUR TUBULAIRE BUTOIR DU COUVERCLE, ROND ÉLECTRODE, BRÛLEUR PRINCIPAL FIL DU ÉLECTRODE, BRÛLEUR LATÉRAL TUBE DE RENFORT CAPUCHON DE PIED TABLEAU DE COMMANDE PRINCIPAL MODULE ÉLECTRONIQUE AVEC BOUTON NON illustré...
HARDWARE LIST/ LISTE DES FERRURES Key/ Réf. Description/ Description Picture/ Illustré Qty/ Qté 1/4-20 x 1/2" Screw Vis ¼-20 × ½ po Hitch Pin Clip Cheville 1/4-20 x 1-1/2" Screw Vis ¼-20 × 1-½ po #8 Wing Nut Écrou à oreilles nº 8 Axle Washer Rondelle d'essieu Venturi Clip...
