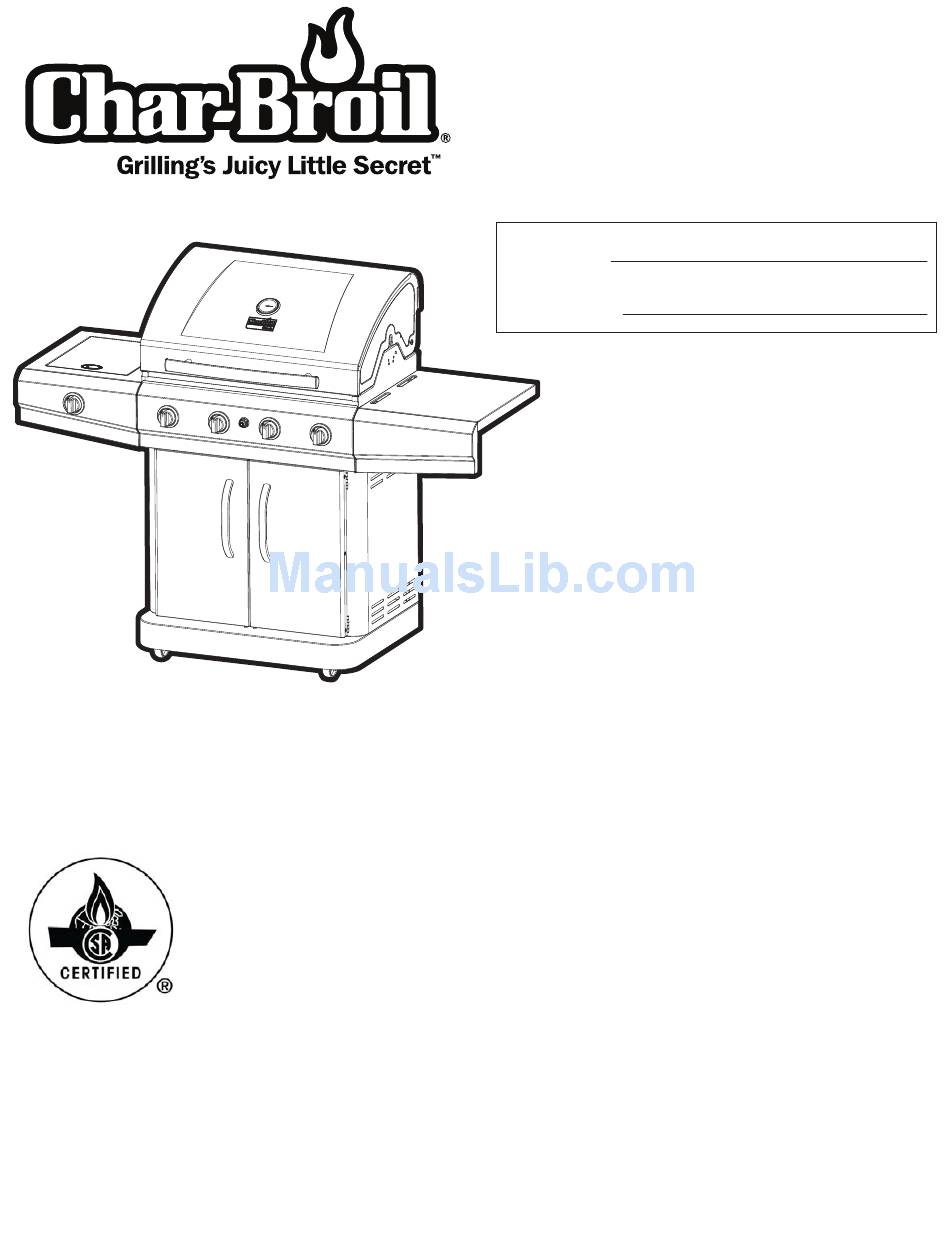

© 2013 Char-Broil, LLC Columbus, GA 31902
PRODUCT GUIDE
MODEL 466460713
Classic C-45G5
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-800-241-7548.
Printed in China
See rating label on grill for serial number.
Assembly instructions © 2013
06/29/12 • G438-001-160801

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil 466460713

Summary of Contents for Char-Broil 466460713

  • Page 1 PRODUCT GUIDE MODEL 466460713 Classic C-45G5 IMPORTANT: Fill out the product record information below. Serial Number See rating label on grill for serial number. Date Purchased For support and to register your grill, please visit us at www.charbroil.com If you have questions or need assistance during assembly, please call 1-800-241-7548.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DANGER For Your Safety ........2-3 If you smell gas: Grilling Guide.

  • Page 3: Grease Fires

    WARNING CAUTION Using pots larger than 6 quarts in capacity could CALIFORNIA PROPOSITION 65 exceed weight limit of the 1. Combustible by-products produced when using side burner shelf this product contains chemicals known to the State or side shelf, of California to cause cancer, birth defects, or resulting in failure other reproductive harm.

  • Page 4: Grilling Guide

    Temperature - Convective Grills ONLY. GRILLING GUIDE – Getting Started The temperature gauge in the hood of your new grill measures air temperature. The air temperature inside your grill will never First Time Use be as hot as the temperature at the cooking surface. Read your Assembly Manual and ensure the grill is put together properly.
  • Page 5 Rotisserie Cooking GRILLING GUIDE – Grilling 101 Rotisserie cooking is best for 'round' meat, such as large roasts, whole poultry, and pork. It generally requires an accessory motor Outdoor grilling is really quite simple. You'll succeed with and spit rod that allows the meat to be turned at a constant burgers, dogs, or steaks usually on your very first try.
  • Page 6 Wood Chips GRILLING GUIDE – Tips & Tricks For extra smoke flavor when grilling, try adding wood chips. Cooking on your new grill is a hands-on experience, and it is Soak the chips in water for approximately 30 minutes before recommended to remain outside with your grill while cooking.
  • Page 7 Gear Trax Painted surfaces: Wash with mild detergent or non-abrasive accessories. Please visit charbroil.com for a complete list cleaner and warm water. Wipe dry with a soft non-abrasive cloth. of Gear Trax accessories. *Available on most models.

  • Page 8: Use And Care

    LP Cylinder USE AND CARE •The LP cylinder used with your grill must meet the following requirements: DANGER •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. •...
  • Page 9 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 10 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 11 Safety Tips WARNING ▲ Before opening LP cylinder valve, check the coupling nut for tightness. ▲ When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. Injury: ▲...
  • Page 12 Burner Flame Check • Remove cooking grates and flame tamers. Light burners, rotate WARNING knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Perform burner flame check Turn controls and gas source or tank OFF when not on sideburner, also.

  • Page 13: Spider Alert

    3. Remove carryover tubes and burners. CAUTION Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below. 5. Carefully lift each burner up and away from valve openings. SPIDER ALERT! We suggest three ways to clean the burner tubes. Use the one easiest for you.

  • Page 14: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.

  • Page 15: Parts List

    PARTS LIST Qty Description Qty Description FIREBOX, GRILL BOTTOM RIGHT DOOR MAIN BURNER CASTER, FIXED ELECTRODE, MAIN BURNER CASTER, LOCKING BURNER CARRY OVER TUBE CLIP, F/ GREASE CUP CONTROL PANEL, MAIN GREASE CUP ELECTRONIC IGNITION MODULE TANK EXCLUSION, LOWER BUTTON, F/ IGNITION MODULE TEMPERATURE GAUGE BEZEL HOSE VALVE REGULATOR ASSEMBLY ELECTRODE, SIDEBURNER...

  • Page 17: Assembly

    ASSEMBLY Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters.
  • Page 18 Attach front brace to side panels using two #10-24X1/2” screws, 5mm lock washers and 5mm flat washers on each side. Magnet 5mm flat washers #10-24x1/2” screws 5mm lock washers Attach rear cart brace to cart frames using two #8-32x1/2” screws, 4mm lock washers and 4mm flat washers on each side.
  • Page 19 Insert wire ends on lower tank exclusion wire into bottom shelf (A). Attach with two #8-32x3/8" screws diagonally. Place upper tank exclusion wire on front brace and back brace as shown, secure with two #8-32x3/8" screws and #8-32 flange nuts Magnet Front brace #8-32 flange nut...
  • Page 20 This step requires two people to lift and position grill head onto cart. Carefully lower the grill head onto the cart. Make sure the regulator hose is hanging outside the cart. Insert 1/4-20x1/2" screws through side panels and firebox in all four corners. Secure with fiber washers and 1/4-20 flange nuts.
  • Page 21 Repeat step 7 (A) on left side shelf. Hang sideburner shelf on tabs mounted on the firebox. Secure shelf brackets to cart side panel using two 1/4-20x1/2" screws, fiber washers and 1/4-20 flange nuts on each bracket (A). Secure fascia to firebox using two 1/4-20x1/2" screws, 7mm lock washers and 7mm flat washers (B).
  • Page 22 Remove the two screws factory attached to the sideburner valve bracket. Position sideburner valve bracket beneath sideburner fascia so that valve stem comes through larger center hole in fascia. Place control knob bezel over valve stem on front side of fascia. Secure using two screws that were removed from valve bracket. Press sideburner control knob onto valve stem.
  • Page 23 Place sideburner cooking grate into holes in drip pan. Sideburner grate Place four flame tamers over burners by inserting tabs into slots in front of firebox. Opposite ends of flame tamers rest on pins in back of firebox.
  • Page 24 Place cooking grates into grill bottom. Cooking Grates Insert ends of Warming Rack pivot wire into holes in sides of gril lid. Insert ends of Warming Rack leg wire into holes in sides of firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on top, Warming Rack is installed upside-down.
  • Page 25 Hang grease cup wire from bottom of firebox and place grease cup into grease cup clip. CAUTION Failure to install grease cup will cause hot grease to drip from bottom of grill with risk of fire or property damage. Grease Cup Wire Grease Cup Unscrew ignitor cap and place AA battery into ignitor slot with positive end (+) facing outward.
  • Page 26 LP tank is sold separately. Fill and leak check the tank (see Use & Care section) before attaching to grill and regulator. Once tank has been filled and leak checked, place tank into tank hole in bottom shelf. Make sure tank valve is facing front of grill.

  • Page 27: Troubleshooting

    DANGER: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off gas at LP cylinder or at source on natural gas systems. If cracked/cut/burned anything but burned, replace valve/hose/regulator.
  • Page 28 Troubleshooting (continued) Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition Troubleshooting also) • No spark, some ignition noise. • See Section II of Electronic Ignition System. •...

  • Page 29: Troubleshooting

    Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause Check Procedure Prevention/Solution SECTION I No sparks appear at • Battery not installed • Check battery orientation. • Install battery (make sure that “+” and “–” any electrodes when properly. connectors are oriented correctly, with “+” end up Electronic Ignition Button and “–”...
  • Page 30 NOTES...
