Summary of Contents for Kodak Advantix 4700ix

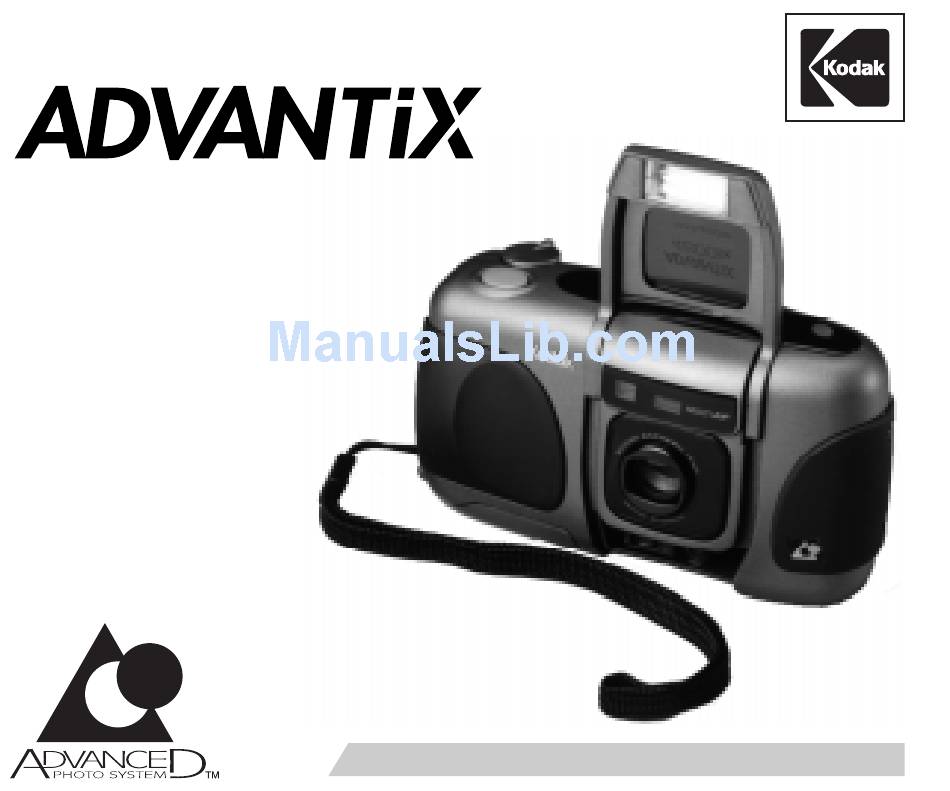

- Page 1 Kodak 4700ix / 4800ix Zoom Camera...
- Page 2 Camera Identification (11) (10) Unfold the front and back flaps of this manual for easy reference to the camera’s parts.
- Page 3 Camera Identification (22) (21) (20) (19) (18) (12) (13) S E L E C T T E X (17) (16) (14) (15)
-
Page 4: Lcd Panel
LCD Panel (31) (24) (23) FILL (30) (29) (28) (27) (25) SELECT TEXT E X P L E F T (26) - Page 5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 6: Need Help With Your Camera
And thank you for buying this KODAK ADVANTIX Camera. Need Help with Your Camera? Call: Kodak (USA only) toll free from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1 (800) 242-2424. Kodak (Canada only) from 8:30 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1 (800) 465-6325, ext. - Page 7 Film Status Indicator (FSI) A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette. Look for this logo to be certain that the film you buy is made for this camera. Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.
-
Page 8: Table Of Contents
Contents Camera Identification ... 9 Attaching the Strap ... 10 Loading the Battery ... 10 Low-Battery Indicator ... 11 Battery Tips ... 11 Power Shut-Off ... 11 Loading the Film ... 12 Taking Pictures ... 13 Typical Print Sizes (Formats) ... 13 Using the Zoom Lens ... -
Page 9: Camera Identification
Camera Identification (Unfold the front and back cover flaps of manual for camera diagrams.) 1 Zoom-Dial Lever 2 Shutter Button 3 Lens Cover/Flash 4 Format-Selector Button 5 Viewfinder 6 Light Sensor 7 Lens 8 Self-Timer Lamp 9 Auto-focus Windows 10 Strap Post 11 Battery Door 12 Viewfinder Eyepiece 13 Flash/Camera-Ready Lamp... -
Page 10: Attaching The Strap
2. Thread the longer end of the strap through the shorter loop. 3. Pull the strap tight. Loading the Battery This camera uses one 3-volt lithium KODAK K123LA (or equivalent) Battery that supplies power for all camera operations. 1. Open the Battery Door (11) by using your finger tip. -
Page 11: Low-Battery Indicator
Low-Battery Indicator It’s time to replace the battery when— • the Battery Symbol (24) “blinks” and the “BATTERY LOW” message appears on the LCD panel or • none of the indicators, except for steady battery symbol, appears on the LCD panel and the shutter button cannot be released. -
Page 12: Loading The Film
Loading the Film You can load film into the camera with the lens cover/flash opened or closed. 1. Turn the camera upside down and slide the Film-Door Latch (17) to automatically open the Film Door (15). • The film door will open only when the film chamber is empty or the film in the camera is completely rewound into the film cassette. -
Page 13: Taking Pictures
Taking Pictures You can take Classic (C), HDTV (H), and Panoramic (P) pictures on the same film cassette (see the following table for Typical Print Sizes ). Your photo- processing cost will be based on the format size(s) that you use to expose the film. -
Page 14: Using The Zoom Lens
Using the Zoom Lens This camera has a motorized-zoom lens that lets you select the ideal lens-focal length for taking pictures. When you turn the camera on, it is initially set to the wide-mode position. 1. Lift the Lens Cover/Flash (3) up to uncover the Lens (7) and to activate the flash. -
Page 15: Taking Flash Pictures
Taking Flash Pictures In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera features an automatic flash that fires when you need it. It also provides automatic daylight fill flash under certain bright-light conditions where shadows may exist. -
Page 16: Flash-To-Subject Distance
Flash-to-Subject Distance Film Wide Speed (30 mm) 2.5 to 9 ft (0.8 to 2.7 m) 2.5 to 13 ft (0.8 to 4 m) 2.5 to 18 ft (0.8 to 5.5 m) 2.5 to 26 ft (0.8 to 7.9 m) 2.5 to 36 ft (0.8 to 11 m) 1600 2.5 to 52 ft... -
Page 17: Fill Flash
“FILL FLASH” FILL Bright light indoors or outdoors from backlit subjects can create dark shadows (especially on faces) in high-contrast scenes. Use fill flash to lighten these shadows. 1. Press the SELECT Button (19) until the “FILL FLASH” message and indicator appear on the LCD Panel (14). -
Page 18: Using The "Selftimer
Using the “SELFTIMER” You can include yourself in pictures by using the self-timer feature. The electronic self-timer will delay the release of the shutter button for approximately 10 seconds after you press the shutter button. 1. Place the camera on a tripod (Tripod Socket [22]) and press the ENTER Button (18). -
Page 19: Date And Time Formats
3. Press the ENTER Button (18) to store the selected month and to activate the next “blinking” date option (follow steps 2 and 3 to complete your selection). • After you set the “date” or “time,” the LCD panel will display “DATE IS” or “TIME IS”... -
Page 20: Using The "Set Display
Using the “SET DISPLAY” This feature will allow you to view one of three display formats: Example “SHOW DATE TIME:” 03/21/97 12:00 “SHOW DATE/ISO:” 03/21/97 ISO 200 “SHOW TIME/ISO:” ISO 200 12:00 1. Repeatedly press the MENU Button (21) until “ SET DISPLAY ” appears on the LCD Panel (14). -
Page 21: Print Title Imprinting
Print Title Imprinting You can choose a print title from the Title- Select List and choose a language (see Setting the Language) before you take the picture. The title you select will be recorded on the film’s magnetic data strip. At certified Advanced Photo System labs, the selected title will be printed on the back of... -
Page 22: Title-Select List
Title-Select List Title ANNIVERSARY BAPTISM BIRTHDAY CANADA DAY CHRISTMAS CONGRATULATIONS EASTER FAMILY FATHER’S DAY FESTIVAL FRIENDS GRADUATION HALLOWEEN HANUKKAH HAPPY NEW YEAR Title HOLIDAY HONEYMOON I LOVE YOU INDEPENDENCE DAY MOTHER’S DAY PARTY REUNION SCHOOL EVENT SEASONS GREETING THANK YOU THANKSGIVING TRIP VACATION... -
Page 23: Unloading The Film
Unloading the Film Automatic Rewind The camera automatically rewinds the film into the cassette after the last exposure. 1. Wait for the film to completely rewind into the film cassette. • The “FILM REWINDING” message will appear on the LCD Panel (14) and the Frame Counter (26) will count down to “0.”... -
Page 24: Using The Manual Rewind Button
Using the Manual Rewind Button If you don’t want to take pictures on the entire roll of film, you can manually activate the automatic rewind. 1. Gently press the Film-Rewind Button (20) by using a pointed object to start the auto-film rewind. 2. -
Page 25: Troubleshooting
Troubleshooting What happened Camera will not operate Film does not advance or rewind LCD panel is blank LCD panel displays: “BATTERY LOW” “REPLACE BATTERY” “FLASH NOT READY” Probable cause There are no more pictures remaining Battery weak, dead, missing, or improperly loaded Battery weak, dead, missing, or... - Page 26 What happened Flash/camera ready lamp “blinks” red Flash/camera ready lamp glows red Film cassette does not fit completely into the film chamber; film door does not close Probable cause Flash not fully charged Subject closer than 2.5 ft (0.8 m) Loaded exposed, or processed film into the camera...
-
Page 27: Specifications
Main power: one 3 V lithium KODAK K123LA (or equivalent) Battery Dimensions: 121 mm X 67 mm X 43.5 mm Weight: 8.1 oz (230 g) without film or battery Kodak, Sensalite, Advantix, and the Advanced Photo System symbol and logotype are trademarks. (0.8 m – ) - Page 28 Consumer Imaging EASTMAN KODAK COMPANY Rochester, NY 14650 © Eastman Kodak Company, 1997 11-97 Pt. No. 917 4459 Printed in U.S.A.
