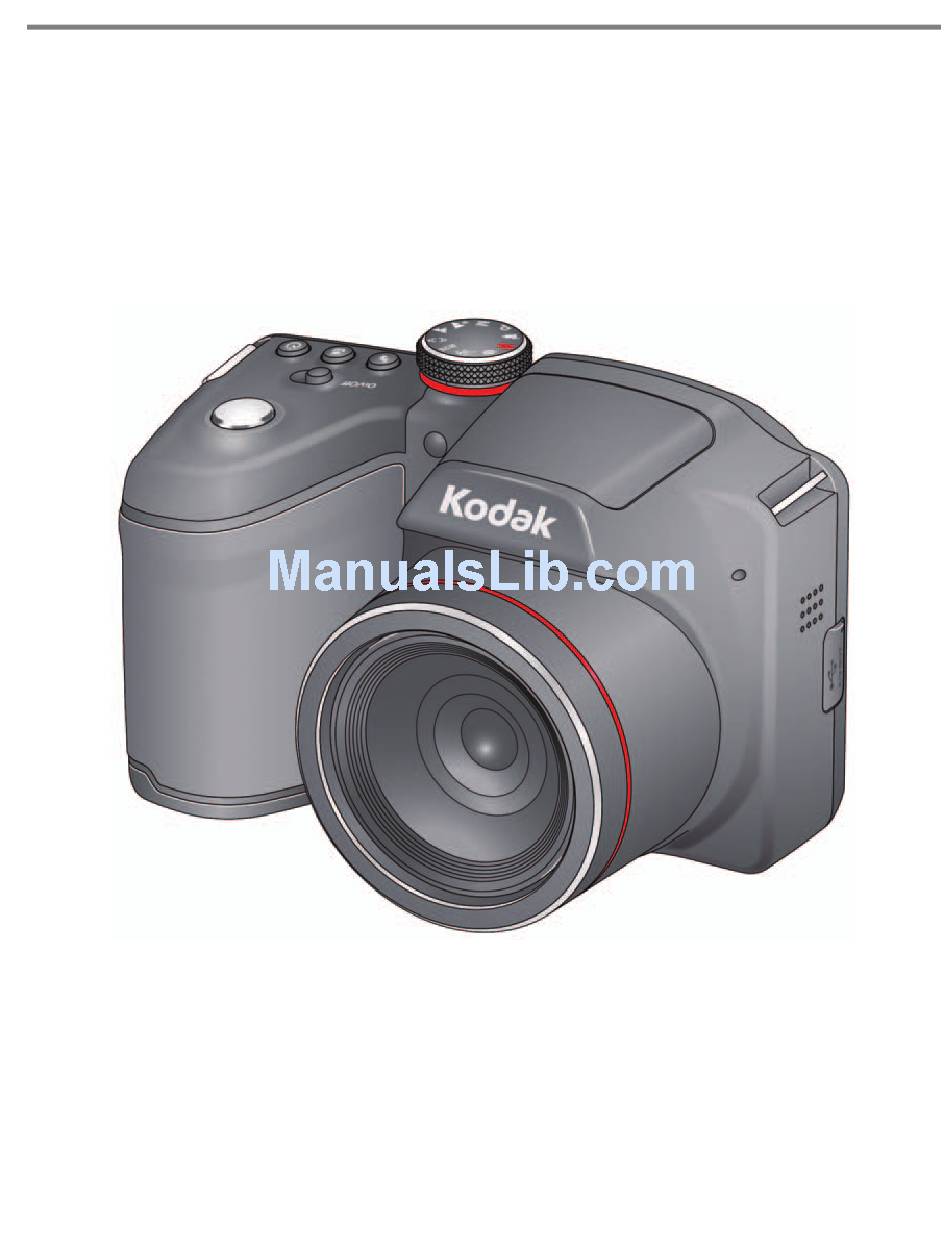

- Page 1 KODAK EASYSHARE Camera / Z5010 Extended user guide www.kodak.com For help with your camera: www.kodak.com/go/Z5010support...
- Page 2 Eastman Kodak Company Rochester, New York 14650 © Eastman Kodak Company, 2011 All screen images are simulated. Kodak, EasyShare, and Pulse are trademarks of Eastman Kodak Company. 4H8713_en...
-
Page 3: Front View
Front view Lens www.kodak.com/go/support Product features AF Assist/Self-timer/Video light Flash Microphone Speaker Micro USB, AV Out... -
Page 4: Back View
Product features Back view • Delete • Menu • Info • Review www.kodak.com/go/support Power light Mode dial Power Shutter button • Flash • Focus Mode, • Self-timer/Burst Strap post Zoom Share... -
Page 5: Bottom View
Bottom view Tripod socket www.kodak.com/go/support Battery compartments Slot for SD/SDHC Card (accessory) -
Page 6: Table Of Contents
Using SCN (Scene) modes ... 16 Program and Manual modes ... 17 Using the histogram to view picture brightness... 19 Using exposure compensation to adjust brightness ... 19 Taking panoramic pictures... 20 Turning on the Date Stamp feature... 21 www.kodak.com/go/support... - Page 7 Using the Setup menu ... 37 6 Install software ...40 Install software, transfer pictures, and share ... 40 Printing pictures... 41 Marking your pictures for print ... 42 7 Troubleshooting ...43 Getting help on the Web ... 47 www.kodak.com/go/support Table of contents...
- Page 8 8 Appendix ...48 Specifications... 48 Care and maintenance ... 50 Upgrading your software and firmware... 50 Storage capacities ... 51 Important safety instructions ... 51 Battery replacement, battery life ... 52 Limited warranty ... 53 Regulatory compliance ... 54 www.kodak.com/go/support...
-
Page 9: Setting Up Your Camera
Charging the rechargeable Loading the batteries, page All batteries lose power over time–even if they’re not being used. For longer life, fully charge KODAK Ni-MH Rechargeable Batteries AA prior to use. See page 8 www.kodak.com/go/accessories Lights are on while the charger is plugged in. -
Page 10: Loading The Batteries
Setting up your camera Loading the batteries Press the door lock while sliding the door open. Watch the battery level Extend battery life Purchase extra batteries See page 8 See page 52 www.kodak.com/go/accessories www.kodak.com/go/support... -
Page 11: Turning On The Camera
Turning on the camera Setting the language and date/time NOTE: To change language in the future, use the Setup menu www.kodak.com/go/support Setting up your camera Language: to change. to accept. Date/Time: At the prompt, press to change current field. for previous/next field. -
Page 12: Storing Pictures On An Accessory Sd/Sdhc Card
When you turn on the camera, it checks to see if a card is inserted. If so, new pictures/videos are stored on the card. If no card is inserted, new pictures/videos are stored in the camera’s internal memory. Purchase cards Insert a card until it clicks. To remove a card, press and release it. Accessory www.kodak.com/go/accessories www.kodak.com/go/support... -
Page 13: Attaching The Strap
Setting up your camera Attaching the strap www.kodak.com/go/support... -
Page 14: Taking Pictures/Videos
“AF” appear, release the Shutter button and recompose the scene. 4 Press the Shutter button completely down. The new picture is briefly displayed. If you don’t like it, press the Delete button, then follow the prompts. (To delete a picture later, see page 23.) www.kodak.com/go/support... - Page 15 To review, tag, and edit pictures and videos, press the Review button page 22). ■ To change camera settings, If it’s hard to see the LCD, you can adjust the brightness ■ www.kodak.com/go/support see page Info Review Taking pictures/videos to choose a tool, then (see (see page 37).
-
Page 16: Understanding The Picture-Taking Icons
Don’t miss out on great pictures and videos—keep your batteries fully charged. Charge the batteries Purchase extra batteries Full Three quarters Half Critical AC Power See page 1 www.kodak.com/go/accessories www.kodak.com/go/support Pictures/time remaining Zoom indicator Date Stamp Battery level Flash Compensation... -
Page 17: Taking Videos
HD720p To switch from HD720p (higher quality, larger file size) to VGA, press the Menu button, highlight Video Size, and press OK. www.kodak.com/go/support 1 Turn the Mode dial to Video 2 To start recording, press and release the Shutter button. To stop recording, press and release the button again. -
Page 18: Using The Zoom
1 Use the LCD to frame your subject. (For focus distances, see Specifications, page 2 Press Telephoto (T) to zoom in. Press Wide Angle (W) to zoom out. 3 Take the picture or video. NOTE: To get a focused picture every time, see www.kodak.com/go/support 48.) page... -
Page 19: Using The Flash
NOTE: Not available in Smart Capture mode. Red-eye A preflash fires, shrinking the eye pupil, before the picture is taken. Reduction Never. www.kodak.com/go/support Press the Flash button repeatedly to scroll through flash modes. The current flash mode appears on the LCD. Taking pictures/videos... -
Page 20: Using The Focus Feature
The current focus mode appears on the LCD. Distant scenery or for taking pictures through a window. (Turn off the flash when taking pictures through glass. See page 11.) Subjects that are 0.1–1 m (0.3–3.3 ft) from the lens. www.kodak.com/go/support... -
Page 21: Using The Self-Timer Feature
The camera takes the picture(s) after the delay. Use the same procedure to take a 2- or 10-second self-timer video, but press the Shutter button completely down. www.kodak.com/go/support Press the Self-timer button repeatedly to scroll through Self-timer/Burst modes. -
Page 22: Using The Burst Feature
10 MP, you can take approximately 10 pictures at 0.9 fps (frames per second). Press the Self-timer/Burst button repeatedly to scroll through Self-timer/Burst modes. The burst mode appears on the LCD. www.kodak.com/go/support is displayed on the LCD. Burst depth (pictures) -
Page 23: Using Different Modes
Excellent image quality and ease of use. ■ The scene is analyzed for other content and for lighting. ■ KODAK PERFECT TOUCH Technology is applied, for better pictures. Videos with sound. More control over your camera and pictures. (See Distant scenes. -
Page 24: Using Scn (Scene) Modes
Reduces red eye of people in night scenes or low-light conditions. Stage People on a lit stage. Fast shutter speed, high ISO. Flash and sounds are off. (Flash setting can be changed.) High ISO People indoors, in low-light scenes. to read Scene mode descriptions. www.kodak.com/go/support... -
Page 25: Program And Manual Modes
NOTE: Settings you change in P or M modes apply only to pictures taken in those modes. The settings, including Flash, are maintained for P and M modes—even when you change modes or turn off the camera. Use Reset Camera www.kodak.com/go/support (see page 38) to reset P or M modes to their default settings. - Page 26 Smaller aperture numbers indicate a larger lens opening; good for low-light. ■ ■ Larger aperture numbers indicate a smaller lens opening; keeps the main subject sharp; good for landscapes and well-lit conditions. page 17.) Flash Compensation www.kodak.com/go/support...
-
Page 27: Using The Histogram To View Picture Brightness
You can use exposure compensation in conjunction with exposure bracketing to get the best exposure. If the exposure compensation is set to: +1.0 –1.0 www.kodak.com/go/support (see page Bright picture And if the exposure bracketing interval is set to: 0.3 steps Taking pictures/videos 37). -
Page 28: Taking Panoramic Pictures
5 If you are taking/stitching only 2 pictures, press OK to stitch them together. After you take 3 pictures, the pictures are automatically stitched together. Take 2 or 3 pictures. Get 1 panoramic picture. NOTE: To use the self-timer 10-second or 2-second setting, see page www.kodak.com/go/support... -
Page 29: Turning On The Date Stamp Feature
3 Follow the prompts to turn on the Date Stamp feature. The date is added to pictures you take next. The feature stays on until you turn it off. To return to picture-taking mode, press the Shutter button halfway down. www.kodak.com/go/support... -
Page 30: Reviewing And Editing
Press OK to play a video. Press OK to pause/resume. During playback: ■ Press to adjust the volume. ■ Press to play at 2X speed; press again for 4X. ■ Press to reverse at 2X speed; press again for 4X. button. www.kodak.com/go/support... -
Page 31: Deleting Pictures/Videos
4 Follow the screen prompts. Using the undo delete picture feature If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it. This feature is only available immediately after you delete a picture. www.kodak.com/go/support... -
Page 32: Viewing Pictures/Videos In Different Ways
Press the Review button to exit Review. ■ 1 Press Telephoto (T) to magnify 2X–8X. 2 Press Press OK to return to 1X. ■ button. page to view other parts of a picture. to choose it. Then press the www.kodak.com/go/support... -
Page 33: A Smarter Way To Find And Enjoy Your Pictures
Angle (W) to see thumbnails or picture stacks. To return to picture-taking mode, press the Shutter button halfway down. People Date Tip: For best results, make sure the camera’s date/time is current www.kodak.com/go/support Tagging with keywords, page button. Reviewing and editing 34.) -
Page 34: Understanding The Review Icons
Reviewing and editing Understanding the review icons Video duration Select picture/video Shortcuts Edit tags View thumbnails Play video Upload Favorite Keyword or People Tag Watch the battery level Print/number of prints Email Picture/Video number Battery level See page 8 www.kodak.com/go/support... -
Page 35: Cropping Pictures
3 Follow the screen prompts. The video is trimmed. (You can save it as a new video or replace the original.) To return to picture-taking mode, press the Shutter button halfway down. www.kodak.com/go/support 1 Press the Review picture to crop. -
Page 36: Making A Picture From A Video
2 Press OK to select pictures/videos. A check mark appears on the picture. (Press OK again to remove a check mark.) You can now print, transfer, delete, etc. the selected pictures. button, then (and www.kodak.com/go/support... -
Page 37: Displaying Pictures/Videos On A Television
You can display pictures/videos on a television, computer monitor, or any device equipped with a composite video input. To connect the camera directly to a television, use a composite cable (may be sold separately). Use the camera controls to navigate through pictures/videos on the television. Purchase cables www.kodak.com/go/accessories www.kodak.com/go/support... -
Page 38: Sharing Pictures/Videos
Sharing pictures/videos Sharing pictures/videos through social networks It’s never been easier to share pictures on your favorite social networking sites. IMPORTANT: To use the sharing and social networking features, you must install KODAK Software. 1 Press the Share button, then If it’s your first time, a Help screen appears. -
Page 39: Choose Which Social Networking Sites To Display On Your Camera
Review and press the Share button, only chosen sites are shown. Manage email addresses and KODAK PULSE Digital Frames You can add, edit, or delete email addresses and KODAK PULSE Digital Frames on your camera. 1 Press the Share button. Press Manage Frames), then press OK. -
Page 40: Tagging Pictures
Tag People, then press OK. 33), then press OK. to select a face, to choose Yes, then press OK. to choose www.kodak.com/go/support... -
Page 41: Using The Keyboard
The keyboard appears when you need to enter text. 1 Press to choose a letter, then press OK. 2 When finished, press www.kodak.com/go/support button. to choose Tag People, then press OK. to choose OK, then press OK. to choose OK, then press OK. -
Page 42: Marking Pictures/Videos For Emailing
To return to picture-taking mode, press the Shutter button halfway down. Marking pictures/videos for emailing It’s simple to mark pictures so that they’re ready to email when you transfer them to your computer and use the KODAK Share Button App. First, create a new email address. (See Using the 1 Press the Share button. -
Page 43: Doing More With Your Camera
Choose a picture or video resolution. White Balance Choose your lighting condition. (Available only in Program and Panorama modes.) www.kodak.com/go/support (page More information See Specifications, starting on Auto—Automatically corrects white balance. Ideal for general picture taking. Daylight—For pictures in natural lighting. - Page 44 Continuous AF—Because the camera is always focusing, there is no need to press the Shutter button halfway down to focus. Single AF—Focuses when the Shutter button is pressed halfway down. (This setting uses less battery power.) High Normal High Normal www.kodak.com/go/support...
-
Page 45: Using The Setup Menu
High Power—Brighter LCD; uses more battery power. Power Save—Dimmer LCD; uses less power. Auto—LCD brightness is automatically adjusted according to environment. page Show or hide: ■ Individual social networking sites ■ E-mail addresses (all or none) ■ KODAK PULSE Digital Frames (all or none) - Page 46 Choose your language. Reset settings to their default. KODAK Software Other Application (APPLE iPHOTO, etc.) IMPORTANT: To use the social networking features, you must install the KODAK Share Button App (see page www.kodak.com/go/support 40).
- Page 47 Formatting deletes all pictures/videos. Removing a card during formatting may damage the card. About www.kodak.com/go/support Doing more with your camera More information Memory Card—Deletes everything on the card; formats the card. Cancel—Exits without making a change. Internal Memory—Deletes everything in internal memory including email addresses;...
-
Page 48: Install Software
Download KODAK Software later Get Software help See How-To videos 2 Turn off the camera. 3 Using the KODAK Camera USB Cable, Micro B / 5-Pin, connect the camera to the computer. (Use only the cable included with this camera.) 4 Turn on the camera. -
Page 49: Printing Pictures
Connecting the camera to a KODAK All-in-One Printer 1 Turn off the camera and printer. 2 Use the KODAK Camera USB Cable, Micro B / 5-Pin (included with the camera) to connect the camera to the printer. Printing from a KODAK All-in-One Printer 1 Turn on the printer. -
Page 50: Marking Your Pictures For Print
Automatically print tagged pictures when you insert your card into a printer. See ■ your printer user’s guide for details. ■ Make prints at a KODAK Picture Kiosk. Go to www.kodak.com/go/picturemaker. ■ Take the card to your local photo retailer for professional printing. Marking your pictures for print... -
Page 51: Troubleshooting
■ Camera displays a High Temperature error www.kodak.com/go/support Remove then reinsert batteries. Replace non-rechargeable alkaline batteries. Charge rechargeable batteries (see page Turn the camera off, then back on. Make sure the camera is turned off before inserting or removing a card. - Page 52 23) or insert a new card. (see page 38), turn the (see page 1). Watch the battery level (see page 37). (see page 40), delete pictures 23), or insert a card with available (see page 40), then format the 39). www.kodak.com/go/support 11). 52). (see (see...
-
Page 53: Computer/Connectivity Problems
Turn off the camera, then turn it back on. Make sure the batteries are charged and installed correctly page Make sure the KODAK Camera USB Cable, U-8 is connected to the camera and the computer (see page camera. - Page 54 If PERFECT TOUCH Technology has been applied to a picture on the camera, do not apply it again when the picture is on the computer KODAK PERFECT (or on a KODAK Picture Kiosk). TOUCH Technology NOTE: PERFECT TOUCH Technology is automatically applied to pictures...
-
Page 55: Getting Help On The Web
Purchase camera accessories Download the latest camera firmware Register your camera Chat, email, write, or phone Kodak (Chat not available in all languages) www.kodak.com/go/support Press any camera button to redisplay the menu. Make sure there is a connection between the camera and the... -
Page 56: Appendix
Auto focus control—Continuous and Single AF Face detection—Yes Face recognition—Yes Shutter speed—1/2–1/1500 seconds ISO speed—Auto: 64–400; Manual: 64, 100, 200, 400, 800, 1600 Focus/Exposure Zone—TTL-AE; Multi-Zone, Center-Zone (The SD logo is a trademark of the MB available for image 84.8 www.kodak.com/go/support... - Page 57 VGA: < 2 GB or approximately 25 minutes Color modes—Vivid Color, Full Color, Basic Color, Black & White, Sepia Sharpness modes—Sharp, Normal, Soft Communication with computer—USB 2.0 high speed (PIMA 15740 protocol); via KODAK Camera USB Cable, Micro B / 5-Pin Microphone—Mono www.kodak.com/go/support page...
-
Page 58: Care And Maintenance
Do not allow chemicals, such as suntan lotion, to contact painted surfaces. ■ Service agreements may be available in your country. Contact a dealer of KODAK Products for more information. For digital camera disposal or recycling information, contact your local authorities. -
Page 59: Storage Capacities
LCD breaks, do not touch the glass or liquid. Contact Kodak customer support. ■ The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, go to www.kodak/go/accessories. ■... -
Page 60: Battery Replacement, Battery Life
Appendix Remove the batteries when the product is stored for an extended period of time. In ■ the unlikely event that battery fluid leaks inside the product, contact Kodak customer support. ■ In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. -
Page 61: Limited Warranty
If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. -
Page 62: Regulatory Compliance
Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act. -
Page 63: Canadian Doc Statement
FCC regulation. The KODAK High Performance USB AC Adapter K20-AM complies with part 15 of the FCC Rules. Operation is subject to the following... - Page 64 Appendix conforme à la norme NMB-003 du Canada. Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Australian C-Tick N137 VCCI Class B ITE Korean Class B ITE...
