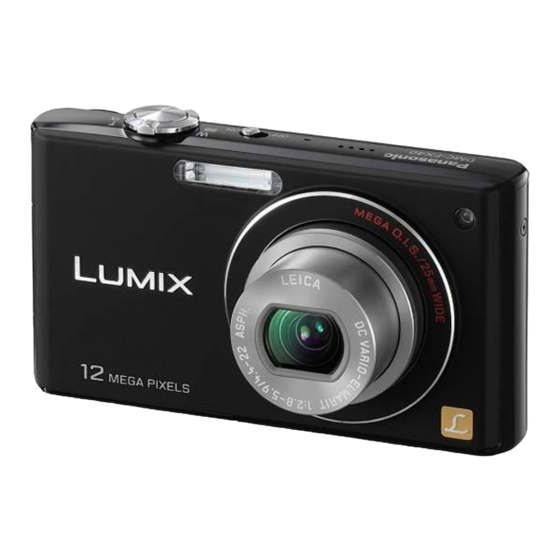

DMC-FX40/DMC-FX48
Model No.
Before use, please read these instructions completely.
SG GC GH GJ

Operating Instructions

Please also refer to Operating
Instructions (PDF format)
recorded on the CD-ROM
containing the Operating Instructions
(supplied).
You can learn about advanced operation methods
and check the Troubleshooting.
Basic

Digital Camera

VQT1X72

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix DMC-FX40

Summary of Contents for Panasonic Lumix DMC-FX40

  • Page 1: Operating Instructions

    Basic Operating Instructions Digital Camera DMC-FX40/DMC-FX48 Model No. Before use, please read these instructions completely. Please also refer to Operating Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied). You can learn about advanced operation methods and check the Troubleshooting. VQT1X72 SG GC GH GJ...

  • Page 2: Information For Your Safety

    Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.
  • Page 3 • Always use a genuine Panasonic AC adaptor (DMW-AC5G; optional). • Do not use any other AV cables except the supplied one. • Do not use any other cables except a genuine Panasonic component cable (DMW-HDC2; optional). • Do not use any other USB connection cables except the supplied one.
  • Page 4 ∫ How to replace the Fuse The location of the fuse differ according to the type of AC cable (figures A and B). Confirm the AC cable fitted and follow the instructions below. Illustrations may differ from actual AC cable. Open the fuse cover with a Figure A Figure B...
  • Page 5 • A 4 GB (or more) Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product. Please confirm the latest information on the following website. http://panasonic.co.jp/pavc/global/cs (This Site is English only.) • Keep the Memory Card out of reach of children to prevent swallowing.

  • Page 6: Table Of Contents

    Contents Information for Your Safety....................2 Standard Accessories......................7 Names of the Components ....................8 Charging the Battery......................10 Inserting and Removing the Card (optional)/the Battery........... 12 Setting Date/Time (Clock Set) ..................13 • Changing the clock setting ..................13 Setting the Menu.......................

  • Page 7: Standard Accessories

    Standard Accessories Check that all the accessories are included before using the camera. Battery Pack DMW-BCF10E (Indicated as battery in the text) Charge the battery before use. Battery Charger (Indicated as charger in the text) DE-A60E (DMC-FX40SG) AC Cable DE-A60B A: Hong Kong Special Administrative (DMC-FX48GC/ Region of China and Saudi Arabia...

  • Page 8: Names Of The Components

    Names of the Components Flash Lens Self-timer indicator AF assist lamp LCD monitor Status indicator [MENU/SET] button [DISPLAY] button [Q.MENU]/Delete button [REC]/[PLAYBACK] selector switch 10 Cursor buttons A: 3/Exposure compensation/Auto bracket/White balance fine adjustment B: 4/Macro mode/ AF Tracking C: 2/Self-timer button D: 1/Flash setting button In these operating instructions, the cursor buttons are described as shown in the figure below or described with 3/4/2/1.
  • Page 9 22 Card/Battery door 23 Release lever 24 DC coupler cover • When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC4; optional) and AC adaptor (DMW-AC5G; optional) are used. (ENG) VQT1X72...

  • Page 10: Charging The Battery

    To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. • Use the dedicated charger and battery.
  • Page 11 ¢ • Temperature: 23 oC/Humidity: 50% when LCD monitor is on. • Using a Panasonic SD Memory Card (32 MB). • Using the supplied battery. • Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [AUTO].)

  • Page 12: Inserting And Removing The Card (Optional)/The Battery

    Inserting and Removing the Card (optional)/the Battery • Check that this unit is turned off. • We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. • Always use genuine Panasonic batteries (DMW-BCF10E).

  • Page 13: Setting Date/Time (Clock Set)

    Setting Date/Time (Clock Set) • The clock is not set when the camera is shipped. Turn the camera on. A [MENU/SET] button B Cursor buttons • The language select screen is not displayed on DMC-FX48GJ > step Press [MENU/SET]. Press 3/4 to select the language, and press [MENU/SET]. •...

  • Page 14: Setting The Menu

    Setting the Menu The camera comes with menus that allow you to set the settings for taking pictures and playing them back just as you like and menus that enable you to have more fun with the camera and use it more easily. In particular, the [SETUP] menu contains some important settings relating to the camera’s clock and power.
  • Page 15 Switching to the [SETUP] menu Press 2. Press 4 to select the [SETUP] menu icon [ Press 1. • Select a menu item next and set it. Press 3/4 to select [AF MODE]. • Select the item at the very bottom, and press 4 to move to the second screen.

  • Page 16: Selecting The [Rec] Mode

    Selecting the [REC] Mode When the [REC] mode is selected, the camera can be set to the Intelligent auto mode in which the optimal settings are established in line with the subject to be recorded and the recording conditions, or to the scene mode which enables you to take pictures that match the scene being recorded.

  • Page 17: Taking Pictures Using The Automatic Function (Ñ: Intelligent Auto Mode)

    ñ [REC] mode: Basic Taking pictures using the automatic function : Intelligent Auto Mode) ñ The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily.

  • Page 18: Scene Detection

    • Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor (DMW-AC5G; optional) when the access indication is lit [when pictures are being written, read or deleted, or the built-in memory or the card is being formatted]. Furthermore, do not subject the camera to vibration, impact or static electricity.

  • Page 19: Taking Pictures With Your Favourite Settings (·: Normal Picture Mode)

    · [REC] mode: Taking pictures with your favourite settings : Normal picture mode) · The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject. You can take pictures with greater freedom by changing various settings in [REC] menu. Slide the [REC]/[PLAYBACK] selector switch to [!].

  • Page 20: Playing Back Pictures ([Normal Play])

    ¸ [PLAYBACK] mode: Playing back Pictures ([NORMAL PLAY]) Slide the [REC]/[PLAYBACK] selector switch A to [(]. • Normal playback is set automatically in the following cases. – When the mode was switched from the [REC] to [PLAYBACK]. – When the camera was turned on while the [REC]/[PLAYBACK] selector switch was at [(].

  • Page 21: Deleting Pictures

    ¸ [PLAYBACK] mode: Deleting Pictures Once deleted, pictures cannot be recovered. • Pictures on the built-in memory or the card, which is being played back will be deleted. To delete a single picture Select the picture to be deleted, and then press [‚].

  • Page 22: Reading The Operating Instructions (Pdf Format)

    Reader(R)] and then follow the messages on the screen to install. ∫ To uninstall the Operating Instructions (PDF format) Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder. • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.

  • Page 23: Specifications

    Specifications Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.3 W (When recording) 0.6 W (When playing back) Camera effective pixels: 12,100,000 pixels Image sensor: 1/2.33q CCD, total pixel number 12,700,000 pixels, Primary colour filter Lens: Optical 5kzoom, fl4.4 mm to 22 mm (35 mm film camera equivalent: 25 mm to 125 mm)/F2.8 to F5.9...
  • Page 24 ISO sensitivity: AUTO/80/100/200/400/800/1600 [HIGH SENS.] mode: 1600 to 6400 Shutter speed: 8 seconds to 1/2000th of a second [STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds White balance: Auto white balance/Daylight/Cloudy/Shade/Incandescent lights/ White set Exposure (AE): Programme AE Exposure compensation (1/3 EV Step, j2 EV to i2 EV) Metering mode: Multiple LCD monitor:...
  • Page 25 Approx. 128 g (excluding card and battery) Approx. 150 g (with card and battery) Operating temperature: 0 o C to 40 o C Operating humidity: 10% to 80% Battery Charger (Panasonic DE-A60B)(DMC-FX48GC/DMC-FX48GH/DMC-FX48GJ): Information for your safety Input: 110 V to 240 V 50/60 Hz, 0.2 A Output: CHARGE 4.2 V...
  • Page 26 Apple Inc., used under license therefrom. Microsoft product screen shot(s) reprinted with permission from Microsoft • Corporation. Other names, company names, and product names printed in these • instructions are trademarks or registered trademarks of the companies concerned. Panasonic Corporation Web Site: http://panasonic.net...
