Klipsch Reference Series RF-10 Specifications

Dual 4.5'' Two-Way Floorstanding Loudspeaker
As the smallest floorstanding loudspeaker in
Klipsch's award-winning Reference Series line,
the RF-10 delivers high-performance
Reference sound at a lower price point.
Despite its entry-level status, this loudspeaker
utilizes the same advanced technologies and
world-class materials used in the larger
Reference III floorstanders.

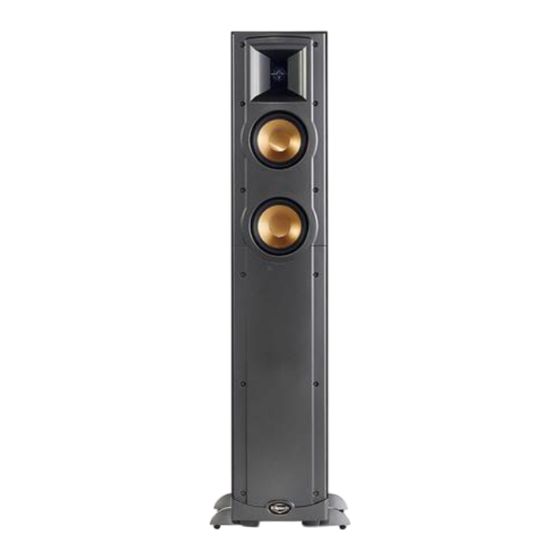

The RF-10 employs dual 4.5-inch woofers
and a 1-inch titanium-dome compression
driver loaded with a 5-inch square Tractrix®
Horn. The woofers on the RF-10 still feature
Klipsch's distinctive, copper-colored
Cerametallic™ cones. Made with an anodized
aluminum, these cones are strong with low
mass. The anodizing process converts their
inner and outer surfaces to ceramic. The
outcome is a rigid cone with superb damping
characteristics that will not flex or resonate at
frequencies within the woofer's operating
range.
As in all Reference Series speakers, the RF-10
crossover network is constructed using
extremely high-quality components including
top-of-the-line internal wiring, polyester film-
type capacitors and an air-core inductor to
ensure signal purity and proper driver
integration.
Available in a black ash vinyl finish, the RF-10
features a low-diffraction sculpted baffle and
magnetically attached grille for an elegant fit
and finish.
RF-10
Magnetically shielded to prevent video interference
I
Bi-wire compatible inputs
I
Tractrix Horn titanium dome compression driver tweeter for clean,
I
detailed highs
Cerametallic cone woofers
I
High sensitivity and power handling
I
S P E C I F I C A T I O N S
BANDWIDTH
SENSITIVITY
NOMINAL IMPEDANCE
CROSSOVER FREQUENCY
POWER HANDLING
ENCLOSURE TYPE
DRIVE COMPONENTS
WEIGHT
HEIGHT
WIDTH
DEPTH
FINISH
*All dimensions include grille, binding posts, and feet
59Hz-20kHz ± 3dB
95dB @ 2.83 volts/1 meter
8 ohms compatible
2280Hz
75 watts (300 watts peak)
Bass-reflex via rear-firing port
Two way system using one 1'' (2.5cm)
magnetically shielded, titanium dome
compression driver with an integral 5''
(12.7cm) square 90˚x 60˚ Tractrix Horn and
two 4.5'' (11.4cm) magnetically shielded,
Cerametallic cone woofers
35 lbs. (15.9kg)
34" (86.4cm)
6.8" (17.3cm) (w/o feet)
10'' (25.4cm)
Black Ash woodgrain vinyl
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2004
