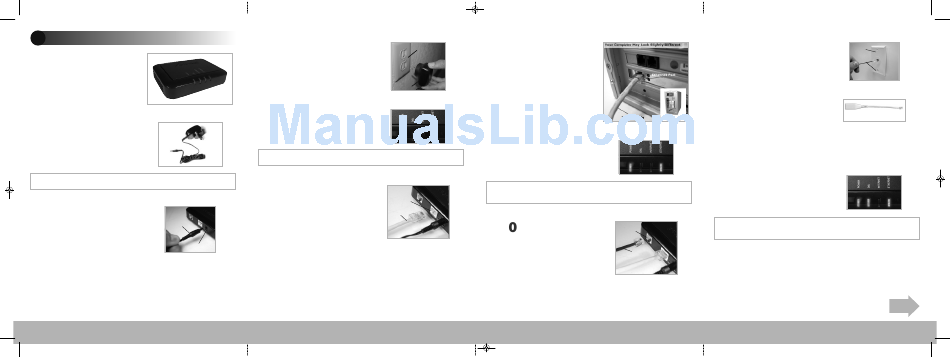

Connect the Modem to a Computer
1
Step
Get the DSL Modem
from your DSL Quick Start Kit and
take it out of the bag.
2
Step
Get the Power Cord from
your DSL Quick Start Kit.
Note: Your Power Cord may look different.
3
Step
Plug the smaller end of
the Power Cord into the Black Power
Cord
Port on the back of the Modem.
Black
Port
4
Step Power
Plug the larger end of the
Outlet
Power Cord into a Power Outlet.
Power
Cord
5
Step
Make sure the Power Light on
the Modem is SOLID Green.
Note: The DSL light may blink.
6
Step
Get the Yellow Cable.
Yellow Port
7
Step Yellow
Plug one end of the Yellow
Cable
Cable into the Yellow Port on the
back of the DSL Modem.
8
Step
Make sure that your com-
puter is turned on. Then, plug the
other end of the Yellow Cable
into the Ethernet Port on the
back of the computer.
An Ethernet Port looks similar to
a regular Phone Jack, but is
slightly larger.
9
Step
Make sure that the Ethernet
light on the Modem is Green. This may
take a few moments.
Note: If the Ethernet Light does NOT turn green, make sure the Yellow Cable is
properly connected on both ends.
1
Step
Get the Black or Gray DSL
Gray Port
Cable from your DSL Quick Start Kit.
Black
11
Step
Cable
Plug one end of the DSL
Cable into the Gray Port located on
the back of the Modem.
12
Phone
Step
Plug the other end of the Port
DSL Cable into the Phone Jack closest
to your computer.
Black
Cable
13
Step
Make sure All Devices with
example of a typical inline
the same phone number as your DSL
phone filter
Line have Phone Filters. This includes
telephones, fax machines, caller ID
boxes, satellite TV receivers, TiVo
devices, and answering machines.
14
Step
Make sure that the Power
and DSL Lights are solid Green. This
may take up to 30 seconds.
Note: If the DSL Light continues to blink, make sure you received notification
from your DSL Internet Service Provider that your DSL service has been activated.
NEXT
Flip this Quick Start Guide over to continue
