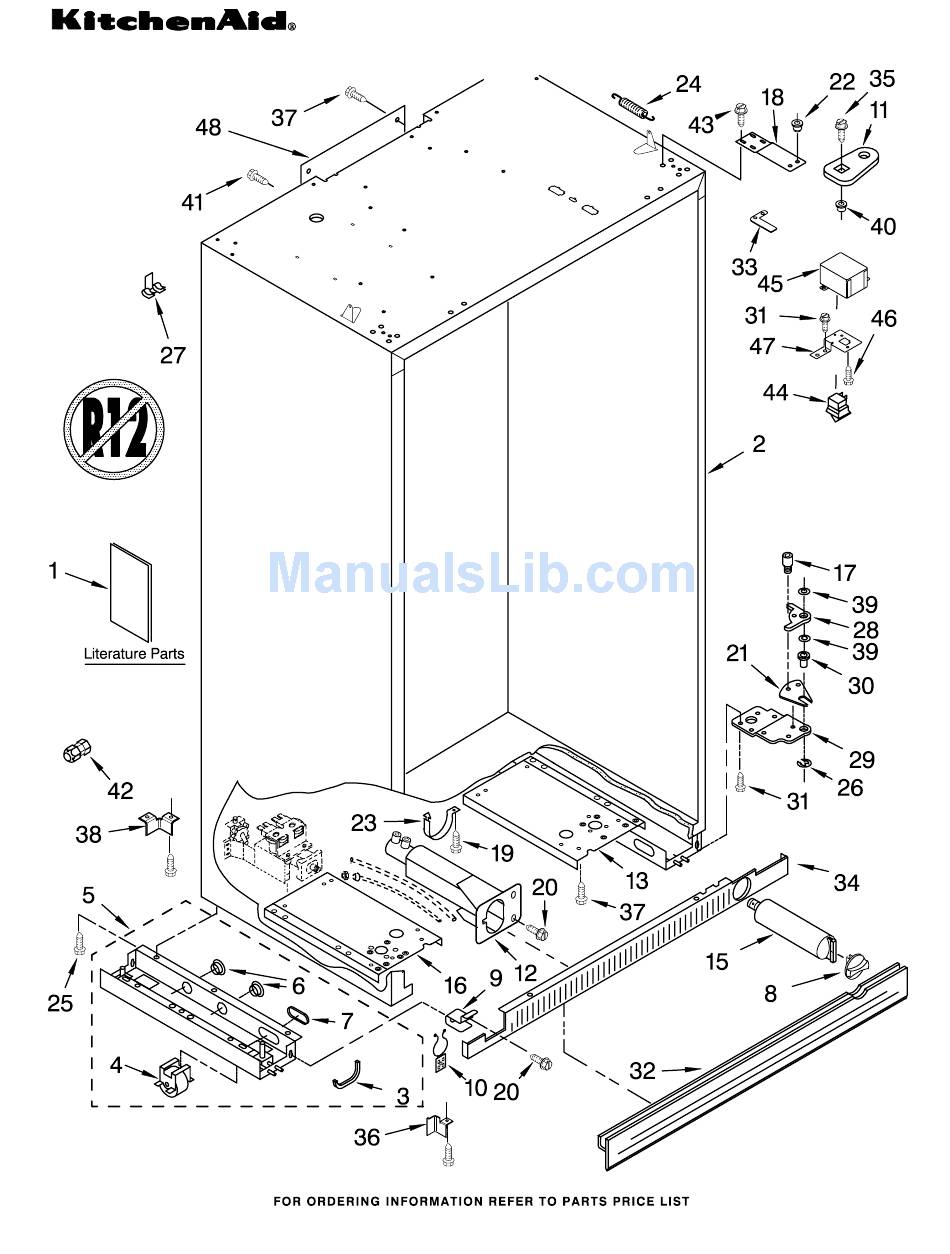

- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 11−02 Litho In U.S.A. (rcg) Part No. 8197679...
-
Page 2: Cabinet Parts
For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION Literature Parts LIT2215850 Use & Care Guide LIT2221058 Energy Label LIT2221021 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2215852 Installation Instructions Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front &... - Page 3 For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 8197679 CABINET TRIM PARTS (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919W White 2215919B Black 2215919T Biscuit 8201535 Etched Aluminum 2003857 Screw Screw 8281251 White 8281252 Black 8281253 Biscuit...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2220891 Solid Shelf 2220848 Front, Ice 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2220845 Trim, Basket 2208198 Right Side 2208197 Left Side 486194 Screw (White) -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air 2000337 Meat Pan, Air Duct...
-
Page 7: Control Panel Parts
For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 8197679 CONTROL PANEL PARTS (Black) (Biscuit) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light 2160708 Light Bulb (2) - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION Top Grille Assembly 2215963W White 2215963B Black 2215963T Biscuit 2215963 Etched Aluminum 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006525 Frame, Assembly 1112247 Cover, Crisper 2003380 Glass, Crisper...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, 488500 Screw, Ground 2162085 Socket, Light (2)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2003941 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2209120 Wiring Assembly, 489399 Screw...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION 8201581 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 18 FREEZER DOOR PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2215659W White 2215659B Black 2215659T Biscuit 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, 1112539 Gasket Retainer, 2188497 Door Gasket, 486194 Screw (34)
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2202585 Wire Assembly Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw...
- Page 21 UPPER UNIT PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679...
- Page 22 For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION 2209324 Inverter Box 489373 Screw, Compressor Mounting (4) 2208937 Compressor (Includes Items 6, 9 & 21) (Also Order 876765 Tube Kit) 2199929 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) Illus. Part 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect 2209451 Heater, Drain Pan 2209450 Hanger, Heater...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197679... - Page 26 For Models: KSSS48QKB00, KSSS48QKT00, KSSS48QKW00, KSSS48QKX00 Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2209430 Tube, Filter Outlet 2006766 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire...
