Coleman C36MW Installation Instructions Manual

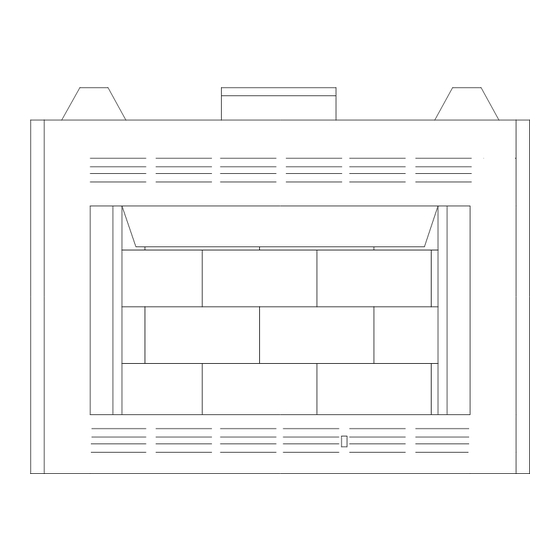

36” circulating firebox
Hide thumbs
Table of Contents

Advertisement

Quick Links

SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or accessory items when needed.
Keep it with your other important papers.
WARNING: Always leave glass doors fully opened or fully closed when operating this fireplace.
This firebox meets the construction and safety standards of H.U.D. for
application in mobile homes when installed according to these instructions.
DESA INTERNATIONAL
2701 INDUSTRIAL DRIVE
P.O. BOX 90024
BOWLING GREEN, KY 42101-9004
www.desatech.com

INSTALLATION INSTRUCTIONS

36" Circulating Firebox
Includes: Manual Variable Control Fan System, Combustion
Air Kit and Bi-Fold Doors with Brushed Brass Finish
This fireplace is approved for use as a wood burning fireplace or for
use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA
2-72 standards or for use with a vent-free gas log heater approved to
ANS Z21.11.2 standard. A DESA hood must be installed when
using a vent-free gas log heater (see Accessories, p. 12).
C36MW
ALL DIMENSIONS IN THIS MANUAL ARE IN
INCHES UNLESS OTHERWISE SPECIFIED
P/N 108918-01
REV D
6/02

Advertisement

Table of Contents
loading

Related Manuals for Coleman C36MW

Summary of Contents for Coleman C36MW

  • Page 1: Installation Instructions

    C36MW 36” Circulating Firebox Includes: Manual Variable Control Fan System, Combustion Air Kit and Bi-Fold Doors with Brushed Brass Finish INSTALLATION INSTRUCTIONS SAVE THIS BOOK This fireplace is approved for use as a wood burning fireplace or for This book is valuable. In addition to instructing you on use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ------------------------------------------------------------- PG. 2 SELECTING LOCATION ------------------------------------------------------------- PG. 2 MINIMUM CLEARANCES ------------------------------------------------------------- PG. 2 FRAMING AND INSTALLING ------------------------------------------------------------- PG. 3 HEARTH EXTENSION ------------------------------------------------------------- PG. 3 OUTSIDE AIR KIT INSTALLATION ------------------------------------------------------------- PG. 4 FAN KIT ASSEMBLY ------------------------------------------------------------- PG. 4 CHIMNEY PIPE ------------------------------------------------------------- PG.

  • Page 3: Introduction

    WARNING: Do not pack required air spaces with code the manufacturer recommends it. insulation or other materials. This Model fireplace C36MW meets the construction MINIMUM / MAXIMUM CHIMNEY HEIGHT and safety standards of HUD for application in mobile The minimum height of the chimney, measured from the base homes when installed according to these instructions.

  • Page 4: Framing And Installing

    FRAMING AND INSTALLING THE FIREPLACE STEP 1: Frame the opening for the fireplace using the dimensions shown in figures 1 & 2. STEP 2: If the fireplace is to be installed directly on carpeting, tile (other than ceramic), or any combustible material other than wood flooring, the fireplace must be installed upon a metal or wood panel extending the full width and depth of the fireplace.

  • Page 5: Outside Air Kit Installation

    OUTSIDE AIR KIT (MODEL AK-6) Slide all wiring connections in the electrical housing The installation of an outside air kit should be performed as shown in figure 6b. during the rough framing of the fireplace due to the nature of Secure the electrical cover plate with screws its location.

  • Page 6: Firestop Thimble And Spacers

    ASSEMBLY AND INSTALLATION OF THE DOUBLE An opening large enough to allow the insertion of the firestop WALL CHIMNEY SYSTEM thimble assembly will be required in the ceiling. Attach the Each double wall chimney section is consist of a galvanized firestop/thimble assembly to the ceiling/ceiling joist using outer pipe, a stainless steel inner flue pipe and a wire spacer.
  • Page 7 If the adapter is needed, secure it onto the firestop using holes provided (see figure 10). The row of holes on the sides of the thimble is provided to allow for pitch variances. Position the firestop assembly and thimble to desired angle and secure with screws provided.

  • Page 8: Flashing And Termination

    Note: Storm collar is required but can be installed after the home is sited. PITCH SLOPE OPENING "A" MAX USE FLASHING (degrees) (inches) MODEL NO. FLAT V6F-8DM 0 - 6/12 26.6 16 - 1/8 V6F-8DM 6/12 - 12/12 45.0 20 - 3/8 V12F-8DM Figure 16 STORM COLLAR...

  • Page 9: Finishing Your Fireplace

    OPERATING GUIDELINES AND MAINTENANCE INSTRUCTIONS GLASS DOORS Glass doors are standard with the C36MW fireplace. When the fireplace is in operation, doors must in FULLY OPENED or FULLY CLOSED position only or a fire hazard may be created (see figure 21).

  • Page 10: Gas Line Installations

    Figure 21 GLASS DOORS Figure 22 GAS LINE KNOCKOUT STEP 2: Remove gas line cover plate on either side of IMPORTANT: The glass must be allowed to warm slowly fireplace and pull out insulation (if any) from gas line conduit and evenly.

  • Page 11: Damper Operation

    IF YOU WISH TO INSTALL AN UNVENTED (VENT- FREE) GAS LOG SET, ONLY UNVENTED GAS LOG SETS WHICH HAVE BEEN FOUND TO COMPLY WITH THE STANDARD FOR UNVENTED ROOM HEATERS, ANSI Z21.11.2, ARE TO BE INSTALLED IN THIS FIREPLACE. NOTE: A DESA hood must be installed when using an unvented gas log set (see accessories on page 12).

  • Page 12: Illustrated Parts

    ILLUSTRATED PARTS For more information, visit www.desatech.com...
  • Page 13 107128-01 CONDUIT, GAS 27253 NOTICE: INDENTATION 106953-01 BOTTOM, WRAPPER 109989-01 ELECTRICAL DUCT ASSEMBLY 106943-01 WRAPPER, FIREBOX 54199 LABEL-REMOVE GAS KNOCKOUT 20046 TIEDOWN, GRATE 56090 DECAL, COLEMAN 106250-01 DOOR ASSEMBLY-LT * ITEMS NOT SHOWN FOR CLARITY For more information, visit www.desatech.com...

  • Page 14: Replacement Parts

    REPLACEMENT PARTS ACCESSORY PARTS VENT KIT PART NUMBER SEE BELOW VENT KITS - USE FOR MOST COMMON MANUFACTURED (MOBILE) HOME INSTALLATIONS CONTENTS MW8K MW9K 8' vent kit 9' vent kit 36-8DM 36" Double Wall Pipe 24-8DM 24" Double Wall Pipe 18-8DM 18"...

  • Page 15: Part Number Reference Table

    PART NUMBER REFERENCE TABLE* MODEL DESCRIPTION COLEMAN PART # DESA PART # TRIPLE FAN BLOWER KIT ----- EP-36 EMBER PROTECTOR 9736-5601 20093 AK-6 OUTSIDE AIR KIT FLOOR INSTALLATION 9736A-2206 90153 AK-6WAI OUTSIDE AIR KIT WALL INSTALLATION 9736-2306 90156 12-8DM DOUBLE WALL PIPE, 12" SECTION...
