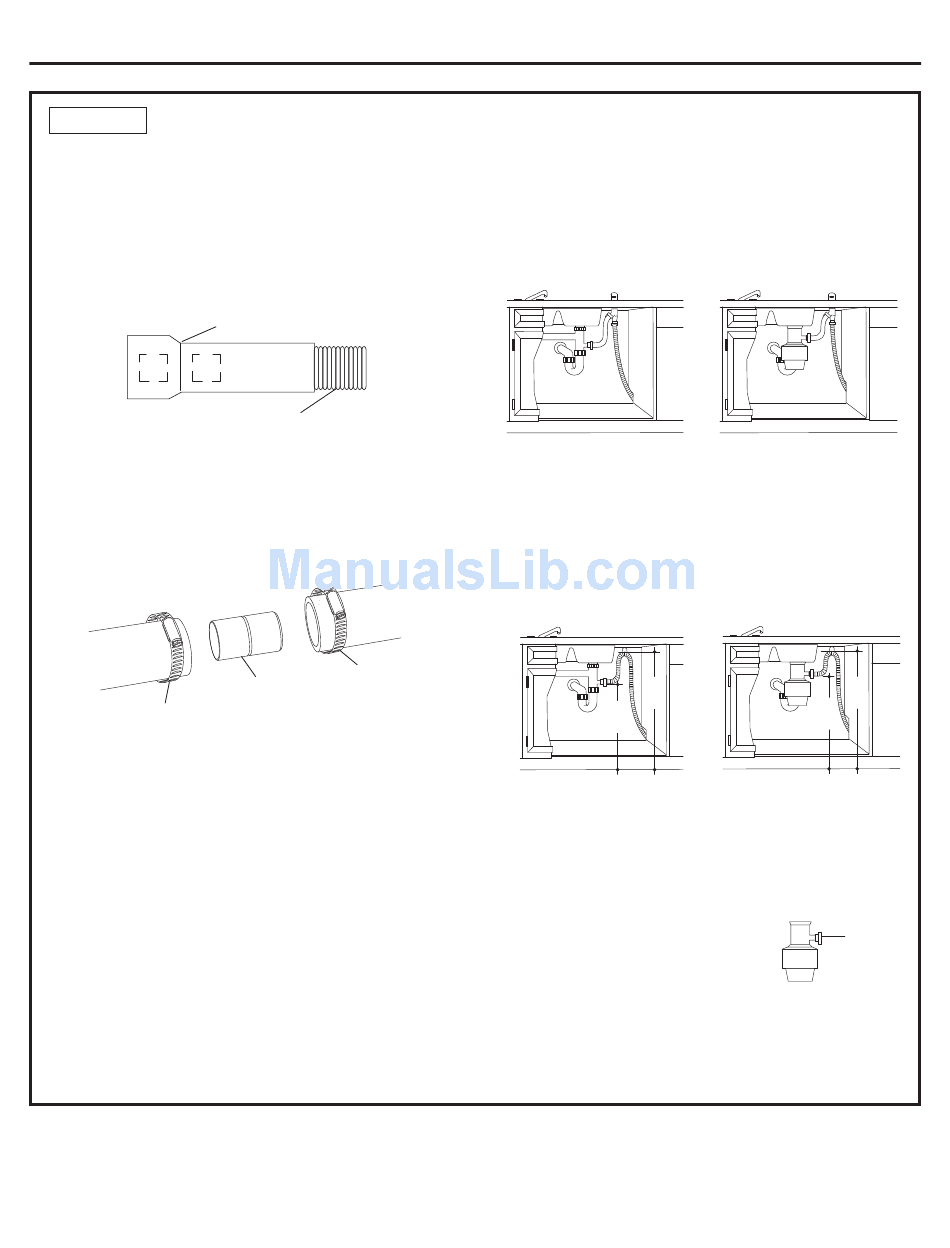

STEP 17 CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8" through
1" diameter inlet ports on the air gap, waste tee or
disposer.
• Determine size of inlet port.
• Cut drain hose connector on the marked line,
if required, to fit the inlet port.
Figure DD
Cutting Line
1"
5/8"
IMPORTANT: Do not cut corrugated
portion of hose
• If a longer drain hose is required, and you did not
purchase 10' long GPF10L drain hose, add up to
3-1/2' of length for a total of 10' to the factory
installed hose. Use 5/8" or 7/8" inside diameter
hose and a coupler to connect the two hose ends.
Secure the connection with hose clamps.
Figure EE
Hose Clamp
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10' FOR PROPER DRAIN OPERATION.
Installation Instructions
Hose Clamp
Coupler

DRAIN LINE INSTALLATION

• Connect drain line to air gap, waste tee or disposer
using the previously determined method.
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
Method 1—Air gap with waste tee or disposer
Insert the drain hose into the air gap as shown.
Waste Tee Installation
Method 2—High Drain Loop with the Waste Tee
or Disposer
Route the drain hose of the dishwasher to a
minimum height of 32" from the floor with the
supplied hanger as shown.
Fasten to underside
of countertop
Min.
18"
Min.
Waste Tee Installation
IMPORTANT
must be used or dishwasher will not operate
properly.
IMPORTANT
connecting drain line to disposer,
check to be sure that drain plug
has been removed. DISHWASHER
WILL NOT DRAIN IF PLUG IS LEFT IN PLACE.
TIP: Avoid unnecessary service call charges. Always
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
13
Disposer Installation
Figure FF
Fasten to underside
of countertop
32"
18"
Min.
Disposer Installation
Figure GG
One of the above methods
—
When
—
32"
Min.
Remove
Hopper
Plug
