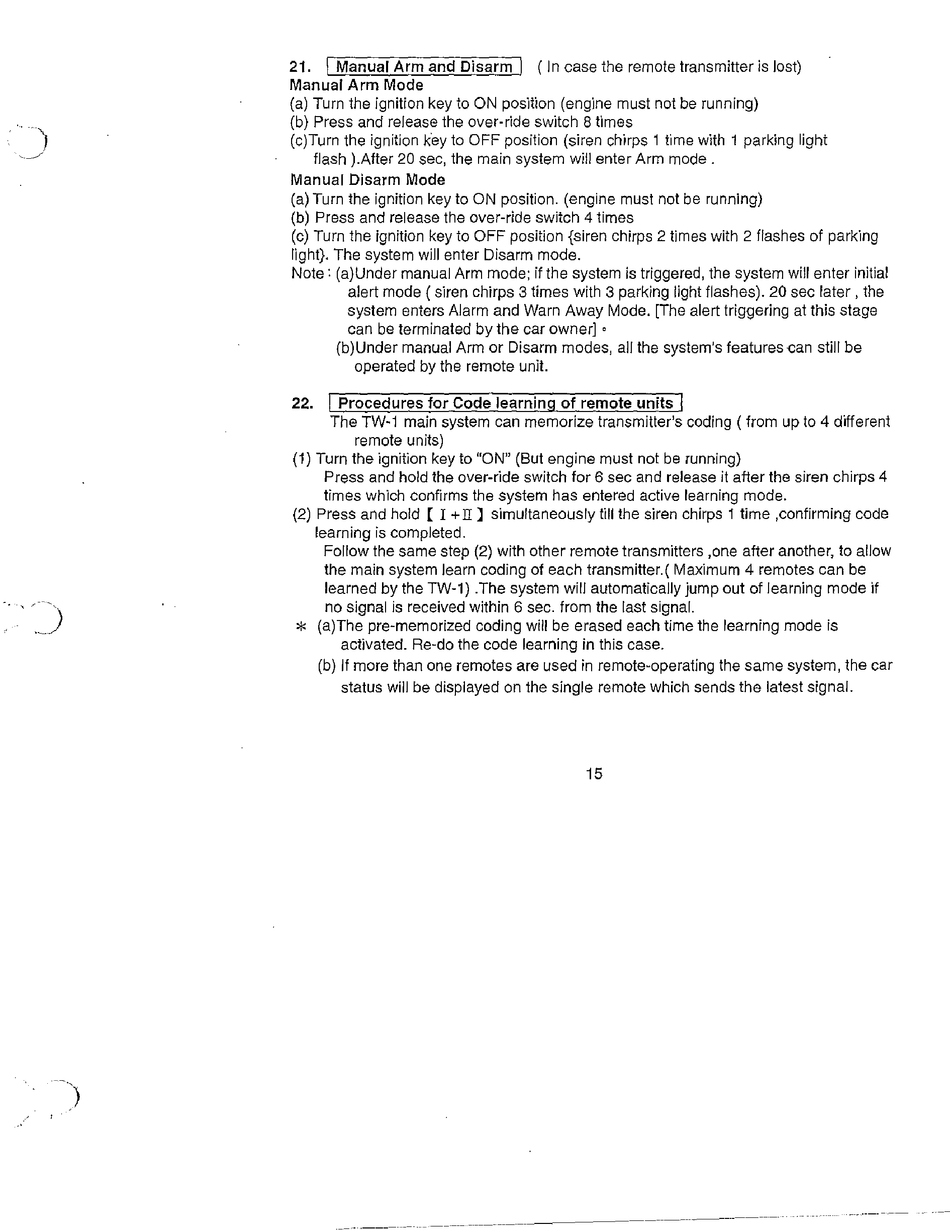

21.
I
Manual Arm and Disarm
I
(In case the remote transmitter is lost)
Manual Arm Mode
(a) Turn the ignition key to ON position (engine must not be running)
(b) Press and release the
over-ride
switch 8 times
(c)Turn the ignition key to OFF position (siren chirps 1 time with 1 parking light
flash ).After 20 sec, the main system will enter Arm mode.
Manual Disarm Mode
(a) Turn the ignition key to ON position. (engine must not be running)
(b) Press and release the
over-ride
switch 4 times
(c) Turn the ignition key to OFF position {siren chirps 2 times with 2 flashes of park"ng
light}, The system will enter Disarm mode,
Note: (a)Under manual Arm mode; if the system is triggered, the system will enter initial
alert mode ( siren chirps 3 times with 3 parking light flashes), 20 sec later, the
system enters Alarm and Warn Away Mode, [The alert triggering at this stage
can be terminated by the car owner]
0
(b) Under manual Arm or Disarm modes, all the system's features<:an still be
operated by the remote unit,
22.
I
Procedures for Code learning of remote units
I
The TW-1 main system can memorize transmitter's coding ( from up to 4 different
remote units)
(1) Turn the ignition key to "ON" (But engine must not be running)
Press and hold the
over-ride
switch for 6 sec and release it after the siren chirps 4
times which confirms the system has entered active learning mode,
(2) Press and hold [ I
+
II] simultaneously till the siren chirps 1 time ,confirming code
learning is completed,
Follow the same step (2) with other remote transmitters ,one after another, to allow
the main system learn coding of each transmitter.( Maximum 4 remotes can be
learned by the TW-1) ,The system will automatically jump out of learning mode if
no signal is
received
within 6 sec, from the last signal.
*
(a) The pre-memorized coding will be erased each time the learning mode is
activated, Re-do the code learning in this case,
(b) If more than one remotes are used in remote-operating the same system, the car
status will be displayed on the single remote which sends the latest signal.
15
