- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 MAKER (White) (Biscuit) (Black) (Stainless Steel) Part No. 8214596 5−09 Litho In U.S.A. (djc) (psw)

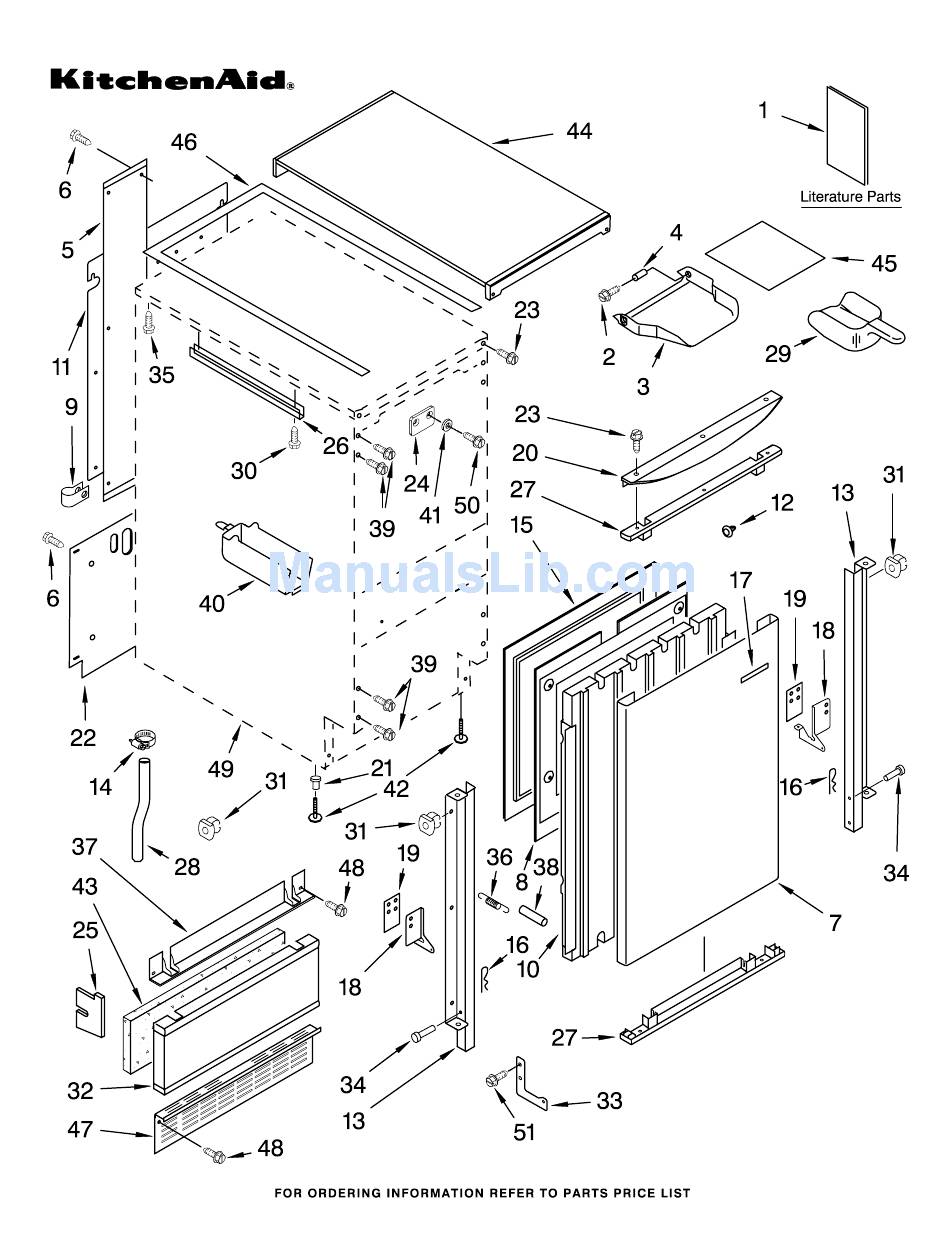

- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 Illus. Part DESCRIPTION Literature Parts 2313788 Use & Care Guide 2313728 Service & Wiring Sheet 3400886 Screw 8−18 x 1 1/4 2208354 Bin, Door 2185678 Spacer 2217394 Cover, Wiring...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 (White) (Biscuit) (Black) (Stainless Steel) 8214596...
- Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 5 W10218037 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 8214596 PUMP PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly (Stainless Steel) -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 2304016 Control Board 2149705 Switch, Plunger (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2185694 Lens, LED... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 (White) (Biscuit) (Black) (Stainless Steel) 8214596... - Page 8 For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 Illus. Part DESCRIPTION 2217434 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan 2313636 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 8−18 x 1/2 2208370 Compressor (Includes Illus. 11,18, 20,21 &...
-
Page 9: Optional Parts
For Models: KUIS18NNJW7, KUIS18NNJT7, KUIS18NNJB7, KUIS18NNJS7 8214596 OPTIONAL PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.
