Summary of Contents for Sanyo PLV-Z2000

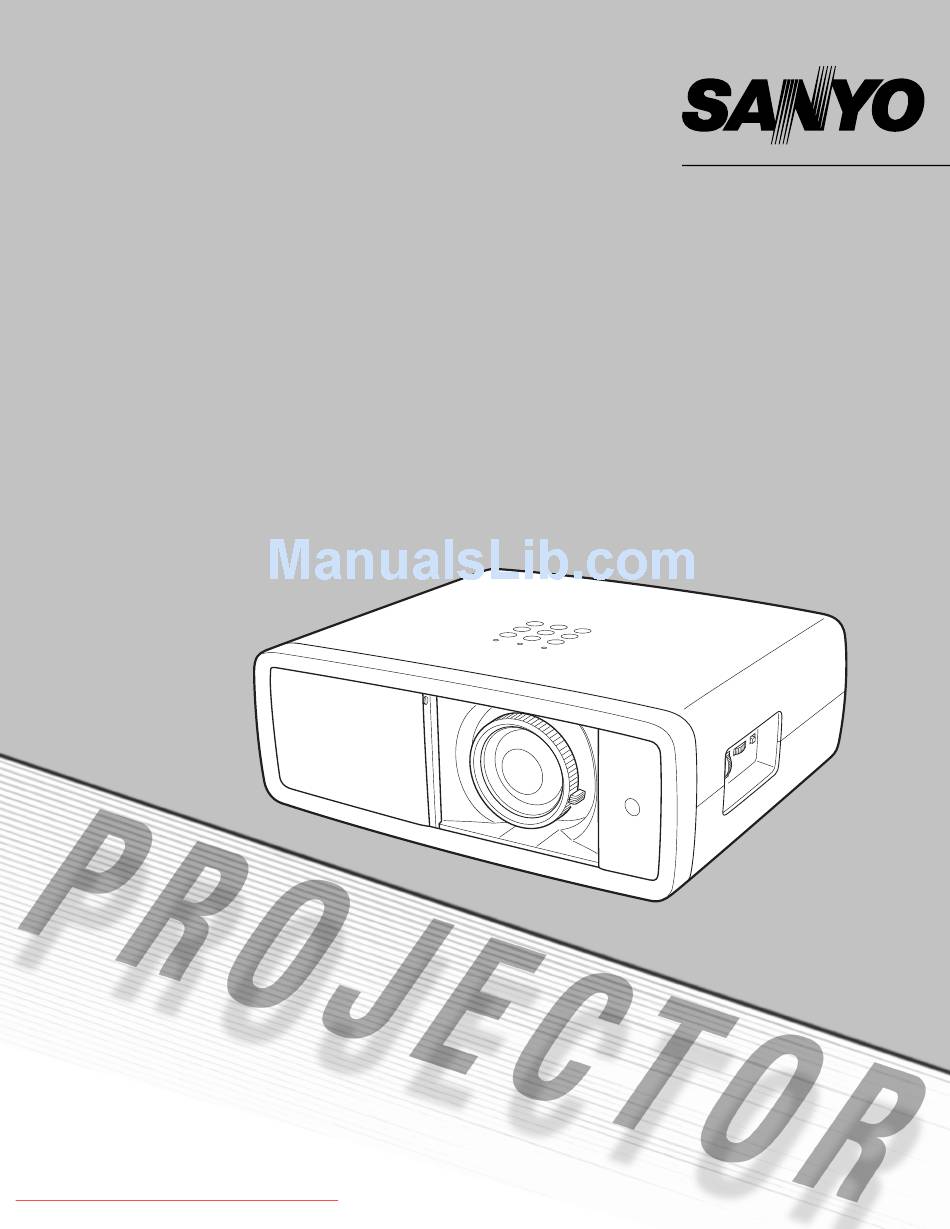

- Page 1 Multimedia Projector PLV-Z2000 MODEL Owner’s Manual Downloaded From projector-manual.com Sanyo Manuals...
-
Page 2: Features And Design
Interface) terminals. Simple connection with digital equipment is offered through these terminals. Interlace-Progressive Conversion ◆ High-quality picture technology is available that converts an interlaced signal into a progressively-scanned one (see page 29). ✔ Note: • The On-Screen Menu and figures in this manual may differ slightly from the actual product. • The contents of this manual are subject to change without notice. Downloaded From projector-manual.com Sanyo Manuals... -
Page 3: Table Of Contents
Menu and its Functions Optional Parts Zoom and Focus Adjustment Dimensions Remote Control Operation TRADEMARKS ● Each name of corporations or products in this owner’s manual is either a trademark or a registered trademark of its respective corporation. Downloaded From projector-manual.com Sanyo Manuals... -
Page 4: To The Owner
Your SANYO product is designed and DO NOT SET THE PROjECTOR IN GREASy, WET, manufactured with high quality materials... -
Page 5: Safety Instructions
Never spill liquid of any kind on the projector. Do not install the projector near the ventilation duct of air- conditioning equipment. Downloaded From projector-manual.com Sanyo Manuals... -
Page 6: Air Circulation
For information about transporting the projector by courier or any other transport service, consult your dealer. – Do not put the projector in a case before it is cooled enough. Downloaded From projector-manual.com Sanyo Manuals... -
Page 7: Compliance
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. WARNING: THIS APPARATUS MUST BE EARTHED . THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE . Downloaded From projector-manual.com Sanyo Manuals... -
Page 8: Part Names And Functions
Kensington Security Slot This slot is for a Kensington lock used to deter theft of the projector. *Kensington is a registered trademark of ACCO Brands Corporation. Bottom !6 Adjustable Feet !7 RGB Panel Cleaning Hole Cover Downloaded From projector-manual.com Sanyo Manuals... -
Page 9: Rear Terminal
Use the HDMI connector less than the size shown below. Otherwise you cannot connect use HDMI 1 and HDMI 2 terminals at the same time. Maximum dimensions of the HDMI connectors 0.94" (24 mm) 0.59" (15 mm) WIDTH THICKNESS Downloaded From projector-manual.com Sanyo Manuals... -
Page 10: Top Control
POWER ON/STAND-By button Lights yellow light when the projection lamp reaches its Turn the projector on or off (pp.18, 19). end of life (pp.49, 53). r MENU button Open or close the On-Screen Menu (p.20). Downloaded From projector-manual.com Sanyo Manuals... -
Page 11: Remote Control
To ensure safe operation, observe the following precautions: – Do not bend, drop, or expose the remote control to moisture or heat. – For cleaning, use a soft dry cloth. Do not apply benzene, thinner, splay, or any other chemicals. Downloaded From projector-manual.com Sanyo Manuals... -
Page 12: Remote Control Operating Range
● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries. ● Risk of explosion if battery is replaced by an incorrect type. ● Dispose of used batteries according to the instructions. Downloaded From projector-manual.com Sanyo Manuals... -
Page 13: Installation
Rotate the adjustable feet and tilt the projector to the proper height; to raise the feet, rotate the both feet clockwise. To lower or to retract the adjustable feet, rotate the both feet counterclockwise. Adjustable Feet Downloaded From projector-manual.com Sanyo Manuals... -
Page 14: Moving The Lens
Vertical Lens Shift Ring (Up/Down) Horizontal Lens Shift (Left/Right) 1/2W 1/2W Before using the Lens Shift Rings, make sure that this lock is released. leftmost rightmost Vertical Lens Shift (Up/Down) uppermost downmost ✔ Note: • The best image is generally obtained at the central axis of the lens shift. • With maximum lens shift in each direction, image distortion may be observed at the edge of the screen. • With the maximum horizontal lens shift, the maximum vertical lens shift cannot be obtained, and vice versa. • The Lens Shift Rings are locked at the factory. Make sure that the Lens Shift Lock is released before using the Lens Shift Rings. Downloaded From projector-manual.com Sanyo Manuals... -
Page 15: Connecting To Video Equipment (Video, S-Video)
(RCA x 3) ✔ Note: • To order the optional cables, see page 58. COMPONENT • When connecting HDTV equipment to the projector’s COMPONENT 1/2 terminals, horizontal line noise may be noted only occasionally. T hen adjust the value of Fine sync. T he setting can be adjusted from 0 to +31 (see page 34). Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables . Downloaded From projector-manual.com Sanyo Manuals... -
Page 16: Connecting To Video Equipment (Hdmi, Rgb Scart)
Use a VGA cable (commercially available) or a DVI-VGA cable (commercially available). Monitor Out DVI-VGA Cable Cable COMPUTER ✔ Note: • To order the optional cables, see page 58. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables . Downloaded From projector-manual.com Sanyo Manuals... -
Page 17: Connecting The Ac Power Cord
For Continental Europe For the U .K . Ground To POWER CORD CONNECTOR on your To the AC Outlet. To the AC Outlet. To the AC Outlet. projector. (120 V AC) (200–240 V AC) (200–240 V AC) Downloaded From projector-manual.com Sanyo Manuals... -
Page 18: Basic Operation
• During the countdown period, all operations are invalid. • Image may look dark for a while after turning on the projector. Lamp needs some time to stabilize after the power is turned on. Stored lamp mode and the image mode will be active after the lamp is stabilized. Use this tab when handling manually. Automatic Slide Shutter Do not touch the slide shutter while it is moving, as this could cause injury or the projector to malfunction. Downloaded From projector-manual.com Sanyo Manuals... -
Page 19: Turning Off The Projector
WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS. ✔ Note: • If the automatic slide shutter is closed during operation, the projector is automatically turned off for safety. Be sure to turn off the projector by pressing the POWER ON/STAND-BY button on the top control or on the remote control after use. • While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to be turned on again. • The running speed of cooling fans is changed according to the temperature inside the projector. • If the WARNING indicator blinks or emits red light, see “Warning Indicator” on page 44. • Do not put the projector in a case before it is cooled enough. Downloaded From projector-manual.com Sanyo Manuals... -
Page 20: How To Operate The On-Screen Menu
MENU button again to exit the On-Screen Menu. On-Screen Menu (Main Menu) Point Right or OK The selected item is buttons highlighted in ORANGE. On-Screen Menu (Submenu) Downloaded From projector-manual.com Sanyo Manuals... -
Page 21: Menu And Its Functions
Information Display the input source information: Input source, Signal, H-sync freq., V-sync freq., Deep color, Image mode, Screen size, Lamp status, Lamp time and Filter time (p.43). i Guide The key operation is displayed. Downloaded From projector-manual.com Sanyo Manuals... -
Page 22: Zoom And Focus Adjustment
Press the BACK button to return to the previous menu. When there ✔ Note: is no previous menu, the currently displayed menu disappears. • See the next page for the description of other buttons. SCREEN button Press the SCREEN button to select the desired screen size. For details, see page 35. Downloaded From projector-manual.com Sanyo Manuals... - Page 23 NO SHOW button again or press any other button. FREEZE button “No Show” disappears after 4 seconds. Press the FREEZE button to freeze the picture on the screen. To cancel, press the FREEZE button again or press any other button. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 24: Input
When the video signal is connected to the HDMI 1 terminal, press H1. When the video signal is connected to the HDMI 2 terminal, press H2. When the computer signal is connected to the COMPUTER connector, press PC. ✔ Note: • When switching from HDMI1 to HDMI2 or vice versa, the signal may be interrupted for a moment depending on the equipment. Downloaded From projector-manual.com Sanyo Manuals... - Page 25 Component 1 or Component 2 When the video signal is connected to the Y-Pb/Cb-Pr/Cr jacks, select Component 1 or Component 2. The projector automatically detects the incoming video signal and adjusts itself to optimize its performance. Downloaded From projector-manual.com Sanyo Manuals...
- Page 26 Source Select Menu additional setting. (The signal formats provided in this projector is Use the Point buttons shown on page 56.) to select the desired source and press the OK or Point buttons. Quit Exit this menu. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 27: Image
For viewing contrasty images in a bright room. Vivid For viewing contrasty images to a maximum extent. User image 1 – 7 For displaying user preset image mode in the Image adj. Menu (pp.28 – 33). ✔ Note: • The Image Menu cannot be operated without an input signal. Downloaded From projector-manual.com Sanyo Manuals... -
Page 28: Image Adjustment
Color temp. level mode is set to “Natural. ” Each value varies (High2, High1, Default, Low1, or Low2). Default is based on the depending on the selected Image mode (p.27). currently set image mode (p.27). Go on to the next page..✔ Notes: • Tint cannot be selected when the video system is PAL, SECAM, PAL-M, or PAL-N in Video input or S-video input. • The Image adj. Menu cannot be operated without an input signal. Downloaded From projector-manual.com Sanyo Manuals... - Page 29 Off ..Noise reduction mode is “Off” On ..Noise reduction mode is “On” Press the Point or OK ✔ Note: buttons to display the • If any one of the White balance (Red, Green, or Blue) are adjusted, Advanced menu. the Color temp. level changes to “User. ” • Progressive cannot be selected with the computer input and when Go on to the next page..the video signal format is 480p, 575p, 720p, or 1080p. Downloaded From projector-manual.com Sanyo Manuals...
- Page 30 Set the level for Dynamic gamma correction. Select from the following options: Off ..Disable dynamic gamma correction Low ..Small correction High ..Large correction ✔ Note: • One of the above options are displayed depending on the selected image mode. Downloaded From projector-manual.com Sanyo Manuals...
- Page 31 Colored gamma pointer When the Point button is pressed at the right end of the gamma bar in Gamma R, the Gamma G with the colored gamma pointer on the left end gamma bar appears. Downloaded From projector-manual.com Sanyo Manuals...
- Page 32 Color management pointer will be reset. the Color management mode and go to “Store” in the Image After adjusting, press the OK button to go to the COLOR adj. Menu (see page 33). MANAGEMENT LIST. Downloaded From projector-manual.com Sanyo Manuals...
- Page 33 Choose one of the seven (7) user Point buttons image modes with the Point to exit the User buttons and press the OK or Point Image Mode buttons. The confirmation box Menu. appears. Select [Yes] and then press the OK button. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 34: Picture Adjustment
PC image (from -100 to +100). button, the next item can be selected. ✔ Note: • Overscan can be selected with the video input only. • When the digital signal is selected and the image noise appears on the edge of the screen, use the Overscan to make adjustment. • The adjusting range for the Horizontal and Vertical positions, and Total dots differs depending on the input signal. When the video signal format is 480i or 575i, the adjusting range for the Horizontal position will be from -8 to +8. • The Auto adj. function cannot be operated with the video input, some incompatible computer input and digital signals. • Fine sync and T otal dots cannot be operated when the video signal format is 480i or 575i and with some incompatible computer input and digital signals. • The Picture adj. Menu cannot be operated without an input signal. • When the adjustment exceeds the signal range of Horizontal, the projected image may be distorted. Downloaded From projector-manual.com Sanyo Manuals... -
Page 35: Screen
16:9. • The Screen Menu cannot be operated without an If a part of the captions is out of the screen, adjust the display input signal. range with the Vertical adj. function. See “Vertical adj. ” on this page • The Vertical adj. function is operated only when for details. Zoom or Caption in is selected. Downloaded From projector-manual.com Sanyo Manuals... - Page 36 Images in the chart below are the examples and differ from the actual images. subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles subtitles Screen: Look dark in the actual setting. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 37: Setting
When this function is set to “On, ” the picture is left/right reversed. OK buttons. The Menu This function is used to project the image to a rear projection position screen appears. screen. Press the Point or OK buttons to switch On/Off. Downloaded From projector-manual.com Sanyo Manuals... - Page 38 Blue ..Project a blue background Logo ..Project an image selected in the Logo setting. Background Black..Project a black background ✔ Note: • When the Logo setting (see page 40) is set to “Off” with the “Logo” background, the Background setting will be switched to “Blue. ” Downloaded From projector-manual.com Sanyo Manuals...
- Page 39 To complete the naming entry, Select [Yes] and press the Select [No] and press the press the MENU button. The OK button to cancel the OK button, then another confirmation dialog box appears. naming entry. confrimation box appears. Downloaded From projector-manual.com Sanyo Manuals...
- Page 40 The captured image will be displayed the next time the projector is turned on. To cancel the Capture function, select [No]. Select [Yes] to capture ✔ Note: the projected image. • A signal from a computer can be captured up to XGA (1024 x 768). • The image that has been adjusted in the Image adj. Menu will not be reflected even if it is captured. • If the Capture function fails to capture an image or stops capturing halfway, the On-Screen Menu returns to the Capture item. • The Capture function cannot be operated with unsupported signals. • When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing. Select [Yes] to stop capturing. Downloaded From projector-manual.com Sanyo Manuals...
- Page 41 OK buttons to start Shutter demo. The automatic slide shutter closes once with the lamp being turned on and opens up again. This is used for checking the operation of the automatic slide shutter. ✔ Note: • The Shutter demo function cannot be operated continuously. Once you started, it cannot be selected again for about five seconds. Downloaded From projector-manual.com Sanyo Manuals...
- Page 42 This function restores all setting values except for the user’s logo, confirmation box appears. the filter counter and the lamp time to the factory default settings. Select [Yes] again to restore to the factory default settings. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 43: Information
The selected image mode is displayed. Screen The selected screen size is displayed. Lamp status The selected lamp mode is displayed. Lamp time The cumulative lamp operating time is displayed. Filter time The cumulative filter operating time is displayed. Downloaded From projector-manual.com Sanyo Manuals... -
Page 44: Maintenance And Cleaning
WARNING indicator lights red, unplug the AC power cord and contact the service station. WARNING CAUTION lights red. DO NOT LEAVE PROJECTOR WITH AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK. Downloaded From projector-manual.com Sanyo Manuals... -
Page 45: Cleaning The Rgb Panels
When putting the nozzle into the blower, hold near the stopper so until the stopper that it will not break. becomes invisible. Be sure not to try to pull the nozzle out of the blower. Stopper Hold near the stopper of the nozzle. Downloaded From projector-manual.com Sanyo Manuals... - Page 46 Do not use a commercially available compressed air duster. It causes the interior of the projector to malfunction with release of cold liquid propellant. We could not guarantee the malfunction of breakage by using other tools. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 47: Cleaning The Air Filter
Arrows When putting back the air Push here when filter, make sure that the you are putting arrows on the filter are back the air filter. facing towards the projector. Groove Downloaded From projector-manual.com Sanyo Manuals... -
Page 48: Resetting The Filter Counter
Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put it in an appropriate carrying case to protect it from dust and scratches. Downloaded From projector-manual.com Sanyo Manuals... -
Page 49: Lamp Replacement
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No . of your projector: PLV-Z2000 ● Replacement Lamp Type No .: POA-LMP114 ● (Service Parts No. 610 336 5404) Downloaded From projector-manual.com Sanyo Manuals... -
Page 50: Resetting The Lamp Replacement Counter
Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass. Downloaded From projector-manual.com Sanyo Manuals... -
Page 51: Appendix
– Check the LAMP REPLACE indicator. If it lights, the end of lamp life is approaching. Replace the lamp with a new one promptly. (see pages 49-50, 53). – Chekc the Lamp control function (see pages 23, 29). Downloaded From projector-manual.com Sanyo Manuals... - Page 52 If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or service center. Give the model number and explain about the problem. We will advise you how to obtain service. Downloaded From projector-manual.com Sanyo Manuals...
-
Page 53: Indicators And Projector Condition
Reset the Lamp replacement counter after replacing the lamp. The time when the LAMP REPLACE indicator should light is depending on the lamp mode. See pages 49 – 50. Downloaded From projector-manual.com Sanyo Manuals... -
Page 54: Menu Tree
Native / List1 / List2 / List3 / User Dynamic gamma Off / Low / High 3D-Y/C On / Off Custom gamma Gamma R/G/B Reset Yes / No Store User image 1 Value changes depending on User image 7 ✽ the selected image mode. Quit Downloaded From projector-manual.com Sanyo Manuals... - Page 55 Unknown 300H Deep color 400H Image 500H Screen Cleaning Lamp status Highland On / Off Lamp time Lamp counter reset Yes / No Filter time Service Port On / Off Factory default Yes / No Downloaded From projector-manual.com Sanyo Manuals...
-
Page 56: System Mode Chart
Appendix System Mode Chart PLV-Z2000 can basically accept the signal from all computers and some video equipment with V- and H-Frequency mentioned below and less than 100 MHz of Dot Clock. H-Freq . V-Freq . System H-Freq . V-Freq . System (kHz) -
Page 57: Technical Specifications
Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards. The CE Mark is a Directive conformity mark of the European Community (EC). Pixelworks ICs used. Downloaded From projector-manual.com Sanyo Manuals... -
Page 58: Configurations Of Terminals
HDMI 1.3 (or next version), please use a suitable HDMI cable commercially available.) ● Component Cable (2 .8’/10m) Type No .: POA-CA-COMP10 ● Scart-VGA Cable Type No .: POA-CA-SCART (This cable is used for RGB Scart 21-Pin Video output of video equipment.) Downloaded From projector-manual.com Sanyo Manuals... -
Page 59: Dimensions
Appendix Dimensions Unit: inch (mm) 15.75 (400) 2.09 (53) 6.5º 3.45 (87.7) 6.31 (160.3) Downloaded From projector-manual.com Sanyo Manuals... - Page 60 SANyO Electric Co ., Ltd . MD4A Downloaded From projector-manual.com Sanyo Manuals...
