Whirlpool ADN 644 Instructions For Installation, Use E Maintenance page 15

mA Terminal board
B1 Commutator
R1 Heating element 2500 W
F1 Thermostat
H1 Green indicator light
H2 Yellow indicator light
MV Motorized fan
Total power: 2.5 kW
0802_GB_42 - GAS KITCHENS

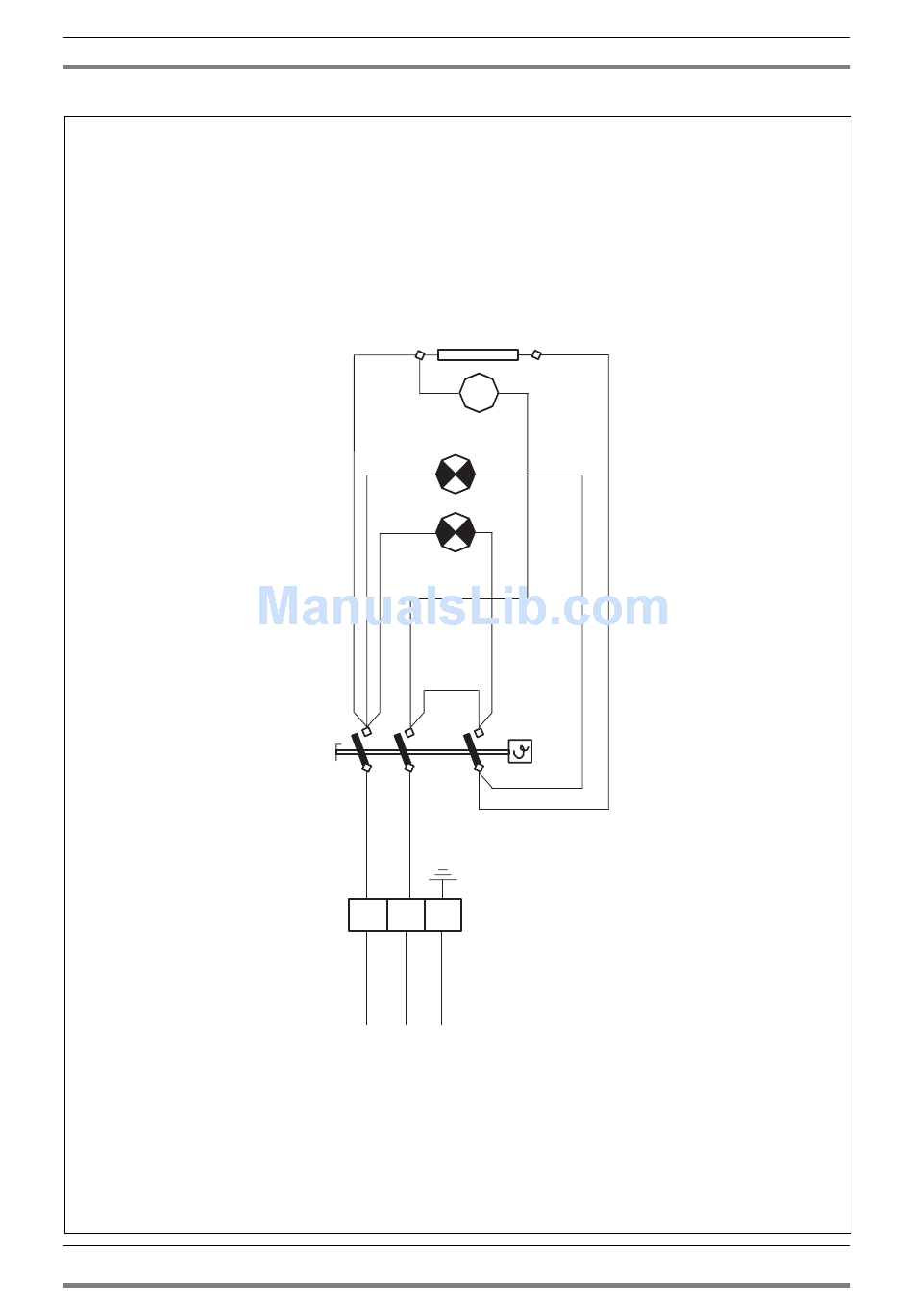

7 - APPENDIX: ELECTRICAL DIAGRAMS
ADN 602 • ADN 603
H2
H1
B1
mA 1 2 3
N L1 PE
15 · 16
R1
MV
F1
04/2008
