Page 1: Instruction Manual

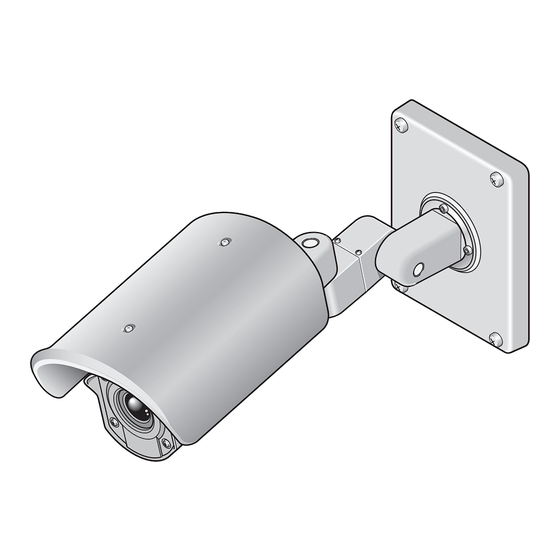

INSTRUCTION MANUAL VCC-XZ200 Color CCD Camera Please read this manual before installing and using this camera, and always follow the instructions in it for proper use. Be sure to keep it handy for later reference. -
Page 2: Table Of Contents
Contents ☞The contents in angle brackets <> are the menu screen title. Information to User........Adjusting DAY/NIGHT Function <DAY/NIGHT>... -
Page 3: Information To User
Information to User Safety Guard This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. THIS SYMBOL INDICATES THAT THERE ARE These limits are designed to provide reasonable protection against IMPORTANT OPERATING AND MAINTENANCE harmful interference in a residential installation. -
Page 4: Precautions
Do not open the cabinet, as it may be dangerous and cause damage to the unit. For repairs, consult your dealer or an Authorized Sanyo Service • Dirt can be removed from the cabinet by wiping it with a soft cloth. To Center. -
Page 5: Characteristics
Characteristics • Complies with the IP66 international standard for dust and Useful Operations water protection (The IP66 has not been verified by UL.) • Equipped with motorized zoom pan focus auto iris lens. ■ Putting titles to camera images: Thanks to its large depth of field, focused images can be R OPTION →... -
Page 6: Accessing The Main Menu
Accessing the Main Menu You can configure various adjustments and preference settings on the monitor screen. ☞In this manual, the buttons and their names on the camera are used for description. ■ Removing the camera cover and setting up the camera ■... -
Page 7: Access The Main Menu
Accessing the Main Menu Access the main menu. Open the advanced settings screen. Main menu SYNC ·SYNC IRIS WHITE BALANCE IRIS AGC GAIN NORM WHITE BALANCE GAMMA 0.45 AGC GAIN NORM SHUTTER GAMMA 0.45 APERTURE HIGH Press the SET SHUTTER Press and hold DAY/NIGHT AUTO y... - Page 8 Accessing the Main Menu Close the settings screen. ·SYNC Once the settings are complete, set <MENU> to “END” and press the SET button. IRIS WHITE BALANCE AGC GAIN NORM GAMMA 0.45 SHUTTER APERTURE HIGH DAY/NIGHT AUTO y PRESET OPTION ·MENU PRESET MENU ·MENU...
-
Page 9: Selecting Display Language
Selecting Display Language <LANGUAGE> You can change the language displayed on the settings and adjusting screens. (Default setting: ENGLISH) SYNC OPTION IRIS TITLE WHITE BALANCE PRIVACY MASK PASSWORD AGC GAIN NORM GAMMA ALARM 0.45 SHUTTER ·LANGUAGE APERTURE HIGH DAY/NIGHT AUTO y ·OPTION ·LANGUAGE PRESET... -
Page 10: Naming Cameras
Naming Cameras <TITLE> You can give a name (title) to each camera. The specified names are displayed on the monitor so that you can easily distinguish the monitoring images when you use multiple cameras. ROOM2 ROOM1 SYNC OPTION IRIS ·TITLE ROOM1 ROOM2 WHITE BALANCE... - Page 11 Naming Cameras <TITLE> Repeat step to complete the name and select Determine the location where the name should <ID>. be displayed, and then press the SET button. Example: ROOM1 ROOM1 TITLE SETTING ABCDEFGHIJKLM NOPQRSTUVWXYZ 0123456789 :-v RReturns to the settings screen. ·ID ROOM1??????????? ID string...
-
Page 12: Password Lock Setting/Cancelling
Password Lock Setting/Cancelling <PASSWORD> You can lock the accessing the main menu by specifying a password. You will be prompted to enter the password to access the main menu. SYNC OPTION IRIS TITLE WHITE BALANCE PRIVACY MASK AGC GAIN NORM ·PASSWORD GAMMA 0.45... - Page 13 Password Lock Setting/Cancelling <PASSWORD> Select <PASSWORD CHANGE> and press the Enter a new password (4 numerical values) and SET button. press the SET button. ☞ Write down the new password before you forget it. PASSWORD RYou will see the “OK” message. PASSWORD LOCK ·PASSWORD CHANGE SET y...
-
Page 14: Adjusting Synchronization Error
Adjusting Synchronization Error <SYNC> By default, the synchronization adjustment for the camera is performed internally (INT). However, you must make adjustments in the Line-Lock (L-L) Setting screen, if the monitor screen seems out of sync after switching over among multiple cameras using AC 24 V. -
Page 15: Backlight Compensation
Backlight Compensation <BLC> If the images of subjects are not clear because of backlight, compensate for it by adjusting conditions or changing the compensation method. Select <BLC> and specify a compensation ■ CENT (Center zone metering) method. Compensation is made based on the optical measurement that is focused on the central area of the screen (the image of subject to be compensated is located in the center of the screen). -
Page 16: Adjusting Iris Level
Adjusting Iris Level <IRIS> If you need to adjust the brightness, follow the steps below. SYNC IRIS SETTING ·IRIS WHITE BALANCE <LEVEL> AGC GAIN NORM · GAMMA 0.45 SHUTTER APERTURE HIGH DAY/NIGHT AUTO y OPTION PRESET PRESET ·IRIS MENU MENU BACK (SET) Adjust the brightness (iris) (0 –... -
Page 17: Setting White Balance
Setting White Balance <WHITE BALANCE> With its default Auto-Tracing White Balance (ATW) setting, this unit is able to obtain natural colors even when the light source is changed. However, you may manually change the white balance settings or its mode to obtain better tone, especially when the screen color does not match actual objects. -
Page 18: Awc Setting (One-Push Adjustment)
Setting White Balance <WHITE BALANCE> AWC SETTING (One-Push Adjustment) ■ To perform fine adjustment of color Select <AWC LOCK> – “SET”. In the “AWC SETTING” screen, select <GO TO MWB> – “SET”, and press the SET button. AWC SETTING R The “MWB SETTING” screen appears. Specify values manually. (see next page) ·AWC LOCK MEMO: Transferring to the “MWB SETTING”... -
Page 19: Mwb Setting (Manual White Balance)
Setting White Balance <WHITE BALANCE> MWB SETTING (Manual White Balance) Select <R> or <B> to adjust tint (0 – 255). Set <MENU> to “END” and press the SET button. RCloses the settings screen and returns to the normal monitoring screen. MWB SETTING •... -
Page 20: Setting Gain Value
Setting Gain Value <AGC GAIN> If you need to adjust the sensitivity in dark places (AGC*), follow the steps below. Select <AGC GAIN> and specify a mode. ■ NORM SYNC Normal setting IRIS WHITE BALANCE ·AGC GAIN ■ HIGH (For a dark subject) NORM GAMMA 0.45... -
Page 21: Correcting Gamma Characteristic
Correcting Gamma Characteristic <GAMMA> Change the mode for Gamma correction*. Select <GAMMA> and specify a mode. ■ 0.45 SYNC γ Gamma value of = 0.45 IRIS WHITE BALANCE AGC GAIN ■ 1 NORM ·GAMMA 0.45 γ SHUTTER Gamma value of APERTURE HIGH DAY/NIGHT... -
Page 22: Specifying Shutter Speed
Specifying Shutter Speed <SHUTTER> You can specify the electronic shutter speed to capture fast-moving subjects. Note: With the increase in shutter speed number, faster movement can be captured, though the image becomes darker. Select <SHUTTER> and specify a shutter speed. Set <MENU>... -
Page 23: Accentuating Subject Outline
Accentuating Subject Outline <APERTURE> By specifying the APERTURE* setting, you can accentuate the outline of the subject when its image is blurred and unidentifiable. Select <APERTURE> and specify a mode. ■ OFF No accentuating is performed for aperture. SYNC ■ NORM IRIS Normal setting WHITE BALANCE... -
Page 24: Adjusting Day/Night Function
Adjusting DAY/NIGHT Function <DAY/NIGHT> The DAY/NIGHT function automatically switches over between COLOR and B/W mode depending on the ambient brightness; for example, choosing COLOR mode during daytime, and B/W mode for nighttime monitoring with its increased sensitivity in a darker environment. “AUTO” is preselected by default, which provides an automatic switch feature to detect the ambient darkness. -
Page 25: Adjusting Automatic Setting (Auto)
Adjusting DAY/NIGHT Function <DAY/NIGHT> Adjusting Automatic Setting (AUTO) Select <LEVEL> and specify a level for Set <MENU> to “END” and press the SET button. DAY/NIGHT switching. RCloses the settings screen and returns to the normal monitoring screen. • If you want to return to the previous screen, select “BACK” and DAY/NIGHT SETTING press the SET button. -
Page 26: Adjusting Black-And-White Setting (B/W)
Adjusting DAY/NIGHT Function <DAY/NIGHT> Adjusting Black-and-White Setting (B/W) Set <BURST> to “ON” or “OFF” for the burst Set <MENU> to “END” and press the SET button. signal*. RCloses the settings screen and returns to the normal monitoring screen. • If you want to return to the previous screen, select “BACK” and DAY/NIGHT SETTING press the SET button. -
Page 27: Hiding Image Partially
Hiding Image Partially <PRIVACY MASK> If privacy protection is required for any shot, apply the masking feature for any position to be prevented from being presented. SYNC OPTION IRIS TITLE WHITE BALANCE ·PRIVACY MASK AGC GAIN NORM PASSWORD GAMMA 0.45 ALARM SHUTTER LANGUAGE... - Page 28 Hiding Image Partially <PRIVACY MASK> Privacy Masking Setting (continued) ■ To cancel the masking setting Specify the masking size and press the SET button. Change “ON” of the MASK number to “OFF” in “MASK NO.SELECT” screen. ■ To change the previously specified masking setting SIZE Choose “ON”...
-
Page 29: Specifying Alarm Input
Specifying Alarm Input <ALARM> If you have connected an external door switch or an infrared sensor, specify the following settings. This unit has a built-in motion sensor, which outputs alarm signals when any moving subject, such as a would be intruder, is detected. SYNC OPTION TITLE... -
Page 30: Motion Sensor Setting
Specifying Alarm Input <ALARM> Motion Sensor Setting Select <MOTION> and specify “ON”. Move the cursor to the area where should not be motion-detected and press the SET button to change “---”. ALARM SETTING ALARM IN e.g., frequently moving objects such as trees swaying in the wind ·MOTION as well as flickering. - Page 31 Specifying Alarm Input <ALARM> Motion Sensor Setting (continued) Select <uSENSITIVITY> and press the SET Select <TIME> and specify a detection time of button. duration (1 – 60). RThe greater the number, the lower the detectability against fast-moving subjects. ALARM SETTING ■...
-
Page 32: Setting Zooming Up At Alarm Detection
Specifying Alarm Input <ALARM> Setting Zooming Up at Alarm Detection Setting Alarm Duration Select <ZOOM> and specify the zoom factor for Select <DURATION> and specify the duration for alarm detection (included motion-detected). the alarm sign indication (a time until next alarm input becomes enabled). -
Page 33: Setting Alarm Detection Notification
Specifying Alarm Input <ALARM> Setting Alarm Detection Notification Select <ALARM SIGN> and specify “ON”. ALARM SETTING ALARM IN MOTION uAREA uSENSITIVITY ZOOM uZOOM TIME ·ALARM SIGN DURATION ·ALARM SIGN PRESET MENU BACK ON : If an alarm signal (including motion detection) comes in, alarm notification is displayed during the time set in <DURATION>. -
Page 34: Troubleshooting
Troubleshooting Before seeking repair service, please review the following points first. If the trouble persists, consult your dealer or an Authorized Sanyo Service Center. Symptom Items to Be Checked Symptom Items to Be Checked • Is the coaxial cable connected securely? -
Page 35: Specifications
Specifications Scanning system NTSC standard 525 lines, 60 fields/sec. Simplified controller (VAC-70: Separately ordered) supported Image sensor 1/4" interline transfer method CCD Communications RS-485 (VA-20ST: Option board) Number of Network (VA-20LAN: Option board) 768(H) x 494(V) effective pixels Operating Temperature: -20°C - +50°C (-4°F - 122°F) Horizontal Environment More than 520 TV lines... -
Page 36: Dimensions
Dimensions : mm (inch) 379.6 (15.0) 360.6 (14.3) 123.0 (4.9) 224.3 (8.9) 21.2 (0.9) 191.4 (7.5) 74.6 (3.0) 28.8 (1.2) 141.0 (5.7) -
Page 37: Screen Sequence
ZOOM uZOOM TIME DURATION OPTION SENSITIVITY ALARM SIGN ·TITLE <MOVE> PRIVACY MASK · PASSWORD ALARM LANGUAGE <TIME> LANGUAGE ·LANGUAGE ENGLISH LANGUE FRENCH TEST IDIOMA SPANISH PRESET MENU OFF/X1.0/X1.4/X2.0/X2.6 BACK 5S/10S/15S/20S/30S/1M/2M/3M/4M/5M 5S/10S/15S/20S/30S/1M/2M/3M/4M/5M OFF/ON SANYO Electric Co., Ltd. 1AC6P1P3082-- L5BJ2/US (0606KP)
