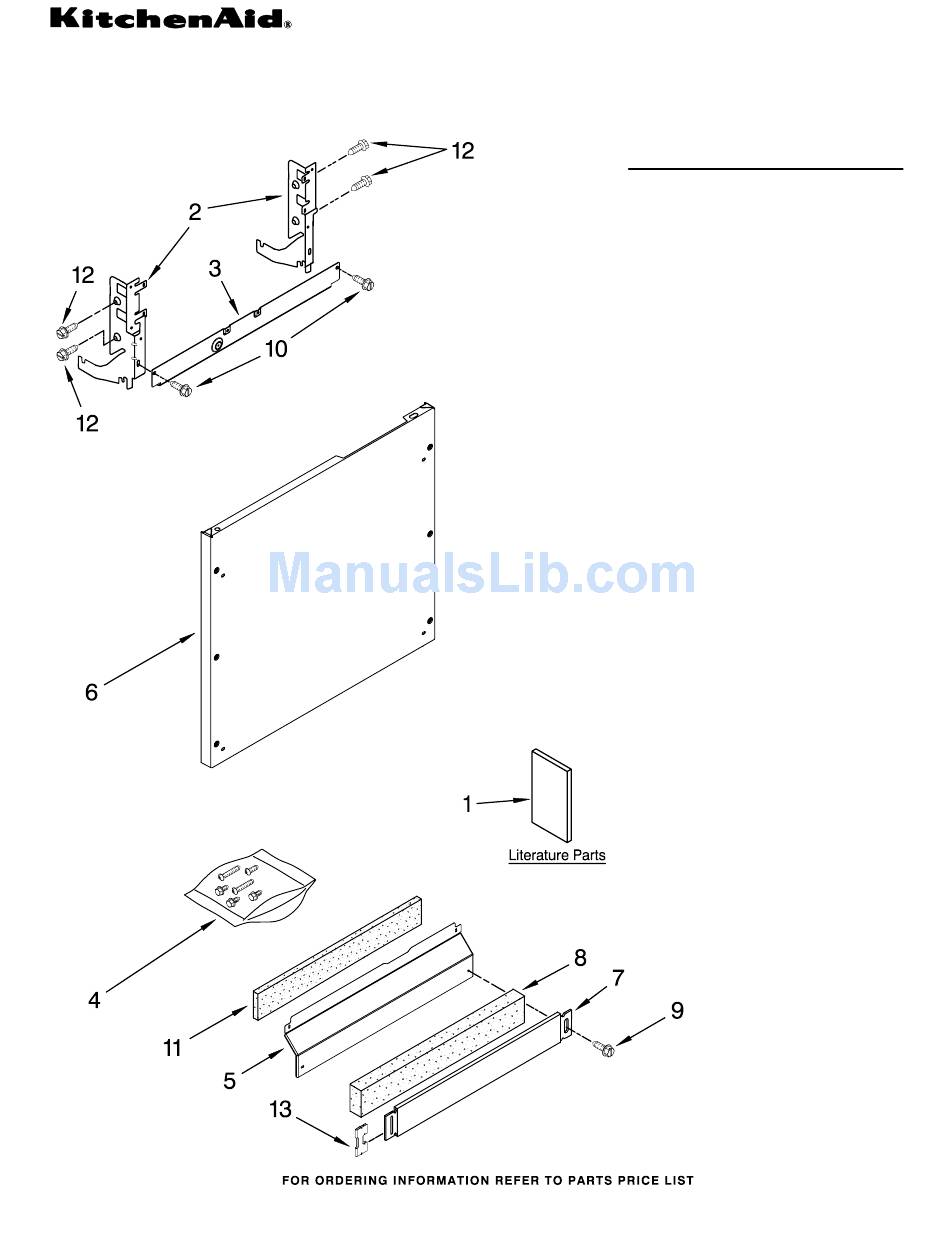

DOOR AND PANEL PARTS
For Models: KUDT03FTPA2
(Panel Ready)
1
UNDERCOUNTER
DISHWASHER
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10078153 Instructions,
Installation
W10111124 Energy Guide
W10084169 D/W User
Instructions,
Spanish
W10084091 D/W User
Instructions,
English/French
W10082651 Tech Sheet
2
Arm, Hinge
8534854 Left
8534853 Right
3
8564886 Stiffener, Door
4
8531882 Screws, Bag
Door Assembly
5
8558260 Access Panel
(Includes Item 11)
6
8535133 Panel, Full Front
7
8558252 Toe Panel
(Includes
Items 8 & 13)
8 W10073550 Insulation,
Toe Panel
9
302868 Screw
10
304392 Screw
11 W10073540 Insulation,
Access Panel
12
3400071 Screw
13
8269016 Clip, Grounding
Part No. W10163068 Rev. A
