03−09 Litho in U.S.A. (LL) (eeb)

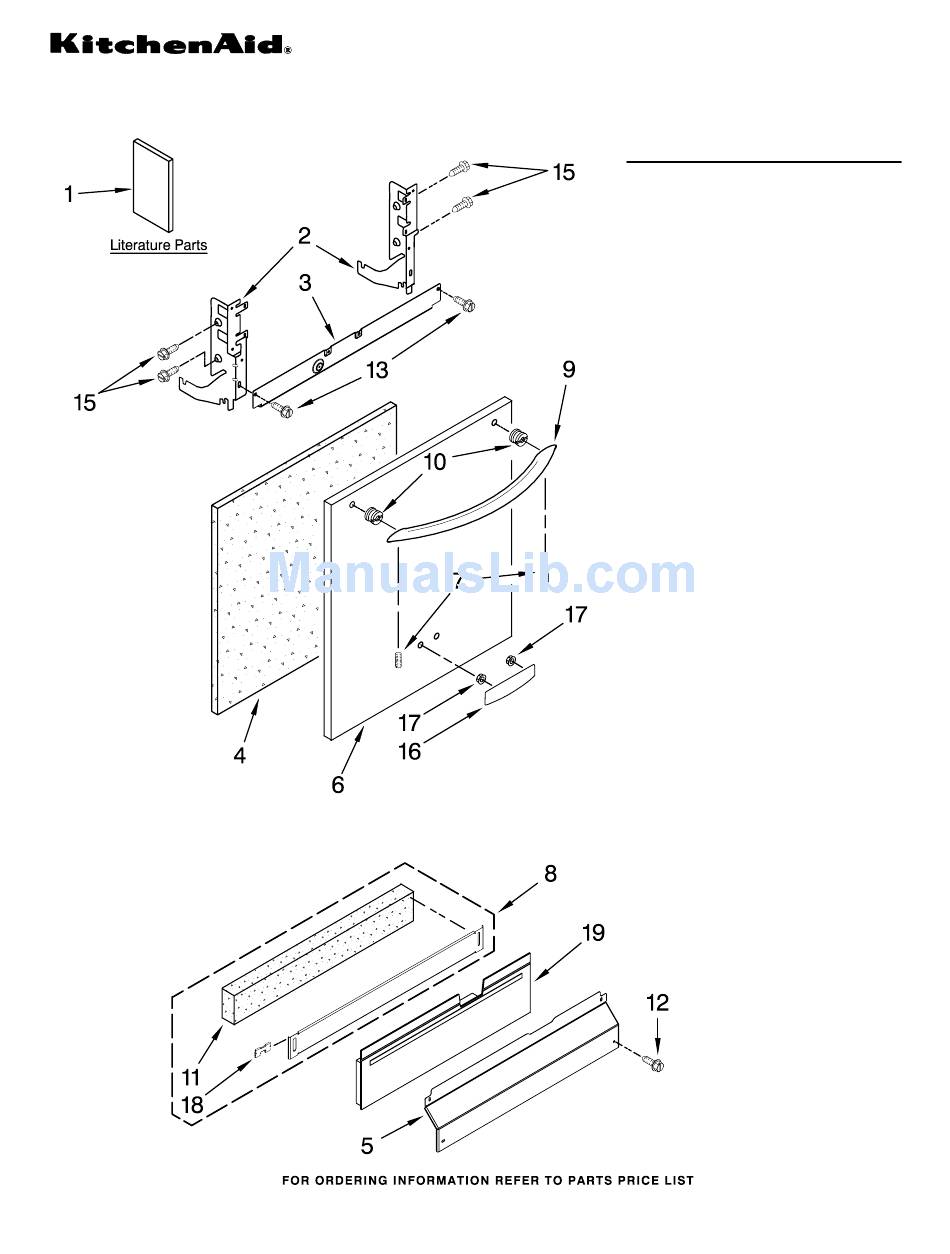

DOOR AND PANEL PARTS
For Model: KUDE70FVSS1
1
(Stainless)
Illus.
No.
1
2
3
4 W10073520 Insulation, Door
5
6
7
8
9
10
11
12
13
15
16
17
18
19 W10056310 Pad, Barrier
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
W10056407 Instructions,
Installation
W10194847 Energy Guide
W10208709 Guide, Use & Care
English
W10208710 Guide, Use & Care
Spanish
W10142826 Tech Sheet
W10158347 Tech Sheet, French
Arm, Hinge
8534854 Left
8534853 Right
8268983 Stiffener, Door
Access Panel
8573255 Black
Panel, Full Front
(Includes Items
4, 10, 16 & 17)
W10137623 Stainless
8534008 Screw
Toe Panel
(Includes
Items 11 & 18)
8558252 Black
Handle Assy
(Includes Item 7)
W10083935 Stainless
8564951 Stud, Mounting
8268581 Insulation,
Toe Panel
Screw
302868 Black
304392 Screw
3400071 Screw
Nameplate
W10021850 Stainless
2004333 Nut
8269016 Clip, Grounding
Part No. W10252535 Rev. A
Advertisement
Related Manuals for KitchenAid KUDE70FVSS1
Summary of Contents for KitchenAid KUDE70FVSS1
- Page 1 03−09 Litho in U.S.A. (LL) (eeb) DOOR AND PANEL PARTS For Model: KUDE70FVSS1 (Stainless) UNDERCOUNTER DISHWASHER Illus. Part DESCRIPTION Literature Parts W10056407 Instructions, Installation W10194847 Energy Guide W10208709 Guide, Use & Care English W10208710 Guide, Use & Care Spanish W10142826 Tech Sheet...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION Console Assembly (Includes Insert) W10056365 Stainless 8546546 Clip, Bi−Metal 661663 Bi−Metal 3369051 Screw 5 W10077360 Latch Assembly 6 W10056352 Control, Electronic 7 W10134019 Switch, Door 8 W10083167 Fuse, In−Line W10252535... - Page 3 3 W10056250 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 8572611 Vent Assembly (Also Order Item 6) W10252535 For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION 8269259 Gasket, Vent 7 W10077877 Deflector, Vent (Also Order Item 6)
- Page 4 FILL, DRAIN AND OVERFILL PARTS For Model: KUDE70FVSS1 (Stainless) Illus. Part 8268892 Lever, Overfill 8531412 Hose, Inlet 3 W10193584 Water Inlet 8531323 Gasket 5 W10213826 Nut, Inlet 371505 Clamp, Hose 7 W10158389 Fill Valve 304392 Screw 8268909 Switch, Overfill 8545946 Standpipe,...
- Page 5 TUB AND FRAME PARTS For Model: KUDE70FVSS1 (Stainless) W10252535...
- Page 6 TUB AND FRAME PARTS For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION 1 W10213821 Tub Assembly (Also Includes Heater Assembly) 8574123 Barrier, Moisture Undercounter 3 W10112096 Door Seal 4 W10082838 Plug Tub 5 W10077370 Strike, Plate 3400014 Screw 7 W10179427 Seal, Cabinet...
- Page 7 PUMP, WASHARM AND MOTOR PARTS For Model: KUDE70FVSS1 (Stainless) W10252535...
- Page 8 PUMP, WASHARM AND MOTOR PARTS For Model: KUDE70FVSS1 Illus. Part 8579241 Cover, Sieve 3400069 Screw 8579240 Cover, Outlet 4 W10208687 Sump With Seal 8579298 Retainer, 8579253 Screen 7 W10084508 Wash Arm Assembly 8 W10056426 Filter Cup, 8531325 Hose, Inlet 10 W10056309 Motor & Sump Assy.
- Page 9 UPPER WASH AND RINSE PARTS W10252535 For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION 8579262 Feed Tube Assembly (Also Includes Item 3) 8557720 Sprayarm, 3rd Level 8579242 Mount 8579259 Manifold 8579232 Sprayarm 6 W10084221 Manifold, Turbo Wash...
-
Page 10: Heater Parts
HEATER PARTS For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced. W10252535... - Page 11 UPPER RACK AND TRACK PARTS For Model: KUDE70FVSS1 (Stainless) W10252535...
- Page 12 UPPER RACK AND TRACK PARTS For Model: KUDE70FVSS1 Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268653 Adjuster Assembly 8270138 Wheel 8268703 Axel, Adjuster 8281156 Screw 8562030 Tine Row...
- Page 13 W10252535 LOWER RACK PARTS For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION 1 W10056271 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10082868 Wheel & Transport Assembly 4 W10190415 Basket, Silverware 8519662 Lid, Basket Center 6 W10056272 Tine, Row...
- Page 14 THIRD LEVEL RACK AND TRACK PARTS For Model: KUDE70FVSS1 Illus. Part W10205950 Right W10224501 Left 2 W10077854 Stop, Track 8564899 Mount, Track 8564900 Rack Assembly 8564901 Basket−TLR (Stainless) DESCRIPTION Track Assembly (Third Level) W10252535...
- Page 15 W10083938A Biscuit Drain Hose 3385556 12 Ft. Vinyl Touch−Up (4oz.) 676453 White 676455 Grey 4396853 Silver Atlantis Moisture Barrier Kit 4396277 Kit W10252535 For Model: KUDE70FVSS1 (Stainless) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit 4396603 Meteorite PAINT, PRESSURIZED SPRAY (12 oz.)
